User Manual for Wooden Camera E-Mount to PL-Mount Adapter for Sony FS7 Click to enlarge the picture
Contents of the user manual for the Wooden Camera E-Mount to PL-Mount Adapter
- Product category: Lens Mount Adapters Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Lens Mount Adapters
|
User manual for the Wooden Camera E-Mount to PL-Mount Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

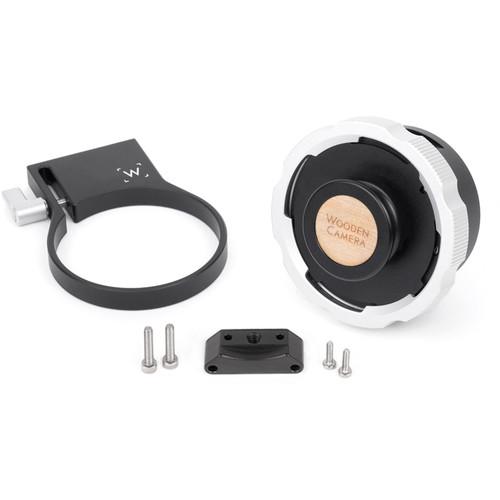

Product description This Wooden Camera E-Mount to PL-Mount Adapter for Sony FS7 adapts the E-mount on your FS7 camera to ARRI PL, which allows you to mount available PL mount lenses on your camera. It features a support brace that attaches to your camera by interfacing with an optional Wooden Camera FS7 top plate. Once mounted to the optional FS7 top plate, the support brace relieves the strain of supporting the lens on the mount alone. The unit includes a set of shims to adjust your flange focal distance if necessary and a PL lens port cap to keep your sensor dust free when no lens is attached. Please note that you are able to use the PL adapter on a variety of E-mount cameras; however, the support ring would not provide any support and would not need to be attached. - The support brace attaches to an optional, but highly recommended, Wooden camera FS7 top plate that you attach to your camera. This support allows you to mount large lenses without stressing your camera's lens mount.
- The adapter's flange distance is set at the factory to match that of an FS7 camera; however, you may need to shim your adapter to adjust if your camera is out of calibration.
UPC: 702534252831 In the Box Wooden Camera E-Mount to PL-Mount Adapter for Sony FS7 PL Lens Port Cap 2 x 1/4"-20 x 1/2" Socket Cap Screws Set of Shims Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera E-Mount to PL-Mount Adapter for Sony FS7 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 194000 Specs | Shim Thickness | Silver: 0.0005" / 0.0127 mm
Amber: 0.001" / 0.0254 mm
Purple: 0.0015" / 0.0381 mm
Red: 0.002" / 0.0508 mm
Green: 0.003" / 0.0762 mm
Tan: 0.004" / 0.1016 mm
Blue: 0.005" / 0.127 mm | | Dimensions | 4 x 4 x 3" (101.6 x 101.6 x 76.2 mm) | | Weight | 0.9 lb (408 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 4.488 x 3.071 x 2.677" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
