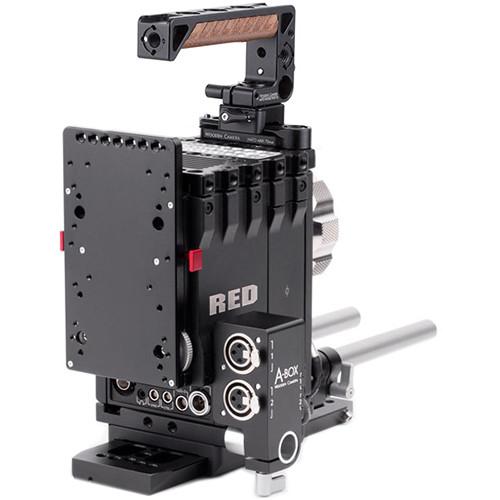

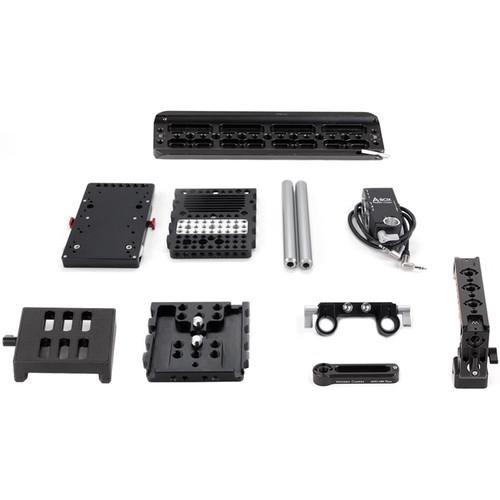

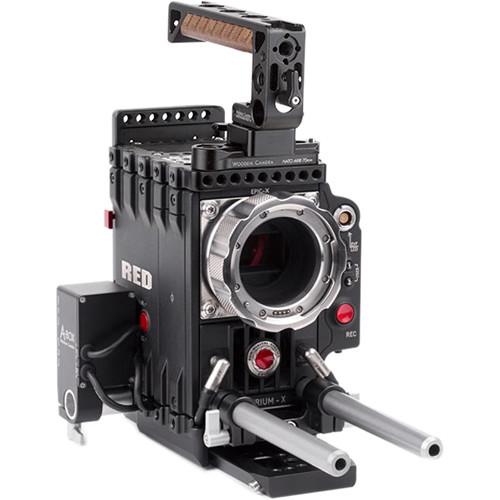

Product description

• Easy Top X Plate for Select RED Cameras The Easy Top X from Wooden Camera is a top accessory plate designed for the RED EPIC, SCARLET, and DRAGON cameras. The plate features an array of 1/4"-20 female threads in standard RED compatible spacing, as well as numerous 3/8"-16 threads to accommodate larger accessories.

  The plate features a removable link cover for expanding REDMOTE range when needed, and utilizes a design which will not obstruct or interfere with the new RED top fan. UPC: 610079105270
• Easy Riser Baseplate for Epic and Scarlet Cameras The Wooden Camera Easy Riser Baseplate for Epic and Scarlet Cameras attaches to the bottom of a RED Epic or Scarlet to provide a mounting base for ARRI-style bridgeplates, such as Wooden Camera's 15 or 19mm bridgeplate. With the Easy Riser attached to the bottom of the camera, the bridgeplate attaches to the bottom of the Easy Riser.

  Another use is in combination with Wooden Camera's 15mm Bracket. With the Easy Riser attached to the bottom of the camera, the bracket attaches to the front of the Easy Riser. UPC: 610079105225
• LW 15mm Bracket for Epic or Scarlet Cameras The Wooden Camera LW 15mm Bracket for Epic or Scarlet Cameras combines with Wooden Camera's Easy Riser Baseplate to attach to a RED Epic or Scarlet. The Easy Riser attaches to the bottom of the camera, and the bracket attaches to the front of the Easy Riser by included screws. The Easy Riser is sold separately. UPC: 610079105294
• NATO Handle Kit with Cheese Handle The Wooden Camera NATO Handle Kit with Cheese Handle is a quick release handle system that can be attached to anything that has on it two 1/4"-20 screw-holes spaced between 0 and 72mm apart. A 100mm long rail is the base of the system and is what attaches to the screw holes, and the handle dovetails onto rail. The rail can at all times stay where it's attached and the handle slipped on and off as needed. The handle features numerous 1/4" and 3/8" screw-holes in case you want to attach any accessory, like a Noga arm.

  70mm and 150mm rails are separately available. UPC: 610079106024
• Dovetail Clamp The Wooden Camera Dovetail Clamp allows you to attach cameras, baseplates, or accessories to an ARRI standard dovetail. It features slots at multiple locations for inserting mounting screws from underneath, and comes with two 3/8"-16 and two 1/4"-20 low profile screws. UPC: 610079106468
• Safety Dovetail Plate (8") The 8" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations. UPC: 610079106338
• A-Box for Epic/Scarlet Cameras The Wooden Camera A-Box for Epic/Scarlet Cameras adapts industry standard balanced XLR male plugs to 3.5mm balanced plugs (female). The A-Box comes with a free bolt-on 19mm Rod for attaching to any 1/4"-20 threaded hole. UPC: 610079105034
• Quick Back V2 Plate for RED Epic & Scarlet The Wooden Camera Quick Back V2 Plate for RED Epic & Scarlet enables attaching V-Mount and Gold-Mount battery plates directly to an Epic or Scarlet without any intermediary adapters.

  The plate attaches to the back of any RED Module, including the +1 Module, without any tools. You'll be able to mount Anton Bauer QRC, Switronix, RED, Blueshape, IDX, and other battery plates directly. You can also combine the plate with an optional Wooden Camera A-Lock to mount battery plates in alternative configurations. UPC: 610079106666

• 2 x 1/4"-20 x 1/2" Screw

• 4 x M4 x 12mm Screw

• Limited 1-Year Warranty

• 2 x Captured 3/8"-16 Riser Screws

• 1-Year Limited Warranty

• 2 x 1/4"-20 x 3/4" Screws

• 1-Year Limited Warranty

• 148800 NATO Handle (Cheese)

• WC-151400 Safety NATO Accessory Rail (100mm)

• 2 x 1/4"-20 x 3/8" Screw

• 1-Year Limited Warranty

• 2 x 3/8"-16 Low Profile Screw

• 2 x 1/4"-20 Low Profile Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 1/4-20 x 3/8" screw

• Limited 1-Year Warranty

• 4 x m4 x 12mm Screws

• 6 x m3 x 6mm Socket Screws

• 4 x m3 x 6mm Phillips Screws

• 4 x m3 x 12mm Phillips Screws

• 1-Year Limited Warranty

Also Includes

• 2 x 15mm Rod (6")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Easy Top X Plate for Select RED Cameras

  Accessory Mounting Threads	1/4"-20 & 3/8"-16
  Dimensions	4.7 x 3.9 x 0.5" (118 x 98 x 12 mm)
  Weight	0.5 lb (209 g)

  Box Dimensions (LxWxH)	5.0 x 4.0 x 0.3"

• Easy Riser Baseplate for Epic and Scarlet Cameras

  Box Dimensions (LxWxH)	3.9 x 3.8 x 0.75"

• LW 15mm Bracket for Epic or Scarlet Cameras

  Box Dimensions (LxWxH)	4.25 x 2.3 x 1.5"

• NATO Handle Kit with Cheese Handle

  Dimensions	4.8 x 4 x 3.2" / 12 x 10 x 8 cm
  Weight	.5 lbs / .22 kg

  Box Dimensions (LxWxH)	6.0 x 3.0 x 1.0"

• Dovetail Clamp

  Dimensions	3.5 x 4 x 0.8" (9 x 10 x 2 cm)
  Weight	0.4 lb ( lb (164 g)

  Box Dimensions (LxWxH)	4.9 x 3.85 x 1.0"

• Safety Dovetail Plate (8")

  Dimensions	8.0 x 2.7 x 0.5" / 20.3 x 6.8 x 1.3 cm
  Weight	0.6 lb / 0.3 kg

  Box Dimensions (LxWxH)	9.0 x 2.8 x 0.65"

• A-Box for Epic/Scarlet Cameras

  Inputs	XLR (x2)
  Outputs	3.5 mm TRS connectors (x2)
  Mount	19 mm lightweight rod support systems clamp
  Dimensions	3.8 x 1.4 x 1.5" (9.65 x 3.56 x 3.81 cm)
  Weight	8 oz (0.23 kg)

  Box Dimensions (LxWxH)	8.0 x 3.5 x 2.0"

• Quick Back V2 Plate for RED Epic & Scarlet

  Box Dimensions (LxWxH)	7.0 x 4.0 x 0.5"
