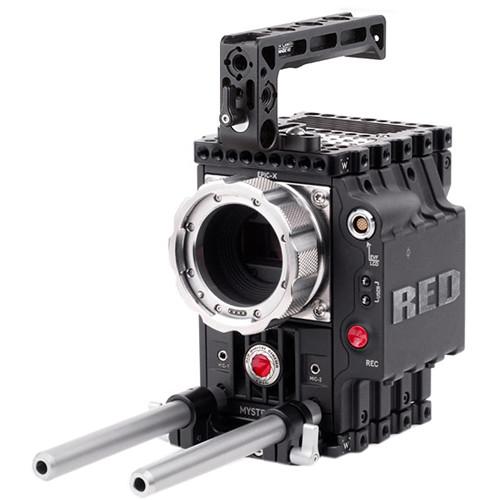

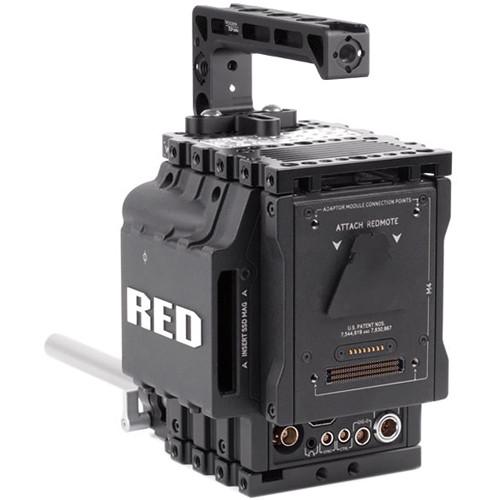

Product description Wooden Camera's EPIC/SCARLET Basic Kit outfits your RED EPIC or SCARLET camera with a top cheese plate, a top handle, and a 15mm rod baseplate. The top plate and handle provide 1/4"-20 and 3/8"-16 threaded holes for mounting various accessories. The baseplate attaches to the bottom of a RED Epic or Scarlet and provides a mounting base for ARRI-style bridge plates, such as Wooden Camera's 15mm or 19mm bridge plate. A 15mm LWS rod bracket is provided that screws into the front of the baseplate and supports a pair of included 6"-long 15mm rods, useful for supporting optional accessories such as a follow focus or matte box.
Please see the links below for more information on the components of this kit. - Easy Top for RED Epic, Scarlet, and Dragon Cameras The Easy Top for RED Epic, Scarlet, and Dragon Cameras from Wooden Camera is a custom accessory plate featuring an array of 1/4"-20 holes in RED spacing along with 3/8"-16 holes for larger accessories. The plate allows RED users to equip their cameras with multiple accessories including monitors, microphones, lights, magic arms, and more. Users should take note to remove the plastic vent cover from the camera before mounting this plate as it may interfere with proper installation. UPC: 610079106642
- Easy Riser Baseplate for Epic and Scarlet Cameras The Wooden Camera Easy Riser Baseplate for Epic and Scarlet Cameras attaches to the bottom of a RED Epic or Scarlet to provide a mounting base for ARRI-style bridgeplates, such as Wooden Camera's 15 or 19mm bridgeplate. With the Easy Riser attached to the bottom of the camera, the bridgeplate attaches to the bottom of the Easy Riser.
Another use is in combination with Wooden Camera's 15mm Bracket. With the Easy Riser attached to the bottom of the camera, the bracket attaches to the front of the Easy Riser. UPC: 610079105225 - LW 15mm Bracket for Epic or Scarlet Cameras The Wooden Camera LW 15mm Bracket for Epic or Scarlet Cameras combines with Wooden Camera's Easy Riser Baseplate to attach to a RED Epic or Scarlet. The Easy Riser attaches to the bottom of the camera, and the bracket attaches to the front of the Easy Riser by included screws. The Easy Riser is sold separately. UPC: 610079105294
- WC-153900 Top Handle (Cheese) The Wooden Camera WC-153900 Top Handle (Cheese) is used for securely carrying and stabilizing the camera during hand-held shooting. It bolts on to two 1/4-20 holes spaced 1.4" (36mm) apart center. The cheese grip handle bar features an array of 1/4-20 and 3/8-16 holes in standard spacing for accessory mounting. UPC: 610079105713
- 15mm Support Rod (3") This is a single, 3" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106093
In the Box Bundle Items Easy Top for RED Epic, Scarlet, and Dragon Cameras tfzvwfwczaabutdvvbvvbvwvwzswyvybvvryx Easy Riser Baseplate for Epic and Scarlet Cameras - 2 x Captured 3/8"-16 Riser Screws
LW 15mm Bracket for Epic or Scarlet Cameras - 2 x 1/4"-20 x 3/4" Screws
WC-153900 Top Handle (Cheese) 15mm Support Rod (3")
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera EPIC SCARLET Basic Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Easy Top for RED Epic, Scarlet, and Dragon Cameras
| Dimensions | 4.8 x 3.9 x 0.5" (121.9 x 99.0 x 12.7 mm) | | Weight | 0.4 lb (160 g) | | | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 1.0" | - Easy Riser Baseplate for Epic and Scarlet Cameras
| | | Box Dimensions (LxWxH) | 3.9 x 3.8 x 0.75" | - LW 15mm Bracket for Epic or Scarlet Cameras
| | | Box Dimensions (LxWxH) | 4.25 x 2.3 x 1.5" | - WC-153900 Top Handle (Cheese)
| Dimensions | 4.8 x 2.7 x 1.9" (121.92 x 6.86 x 4.82 mm) | | Weight | 0.4 lb (181.43 g) | | | | Box Dimensions (LxWxH) | 7.7 x 4.35 x 2.3" | - 15mm Support Rod (3")
| Rod Size | 15 mm | | Rod Length | 3" (7.5 cm) | | | | Box Dimensions (LxWxH) | 3.05 x 1.05 x 0.6" |
