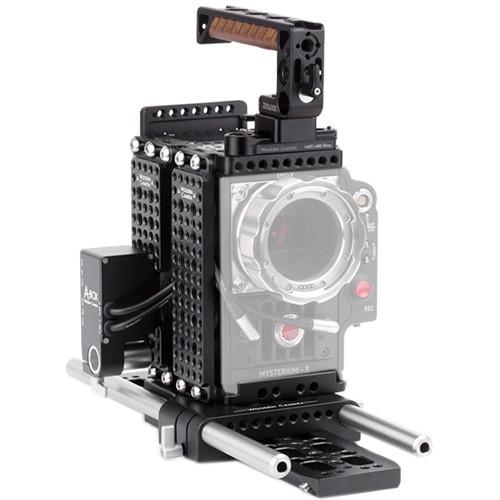

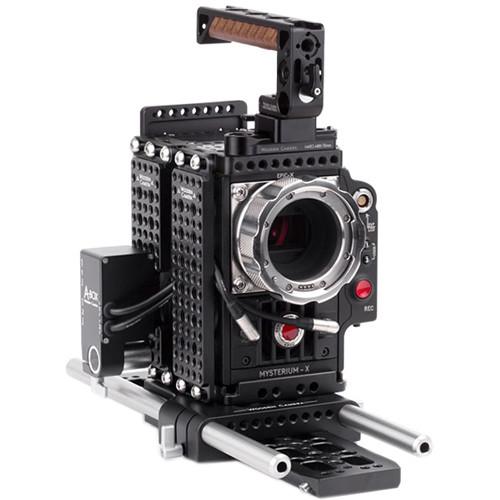

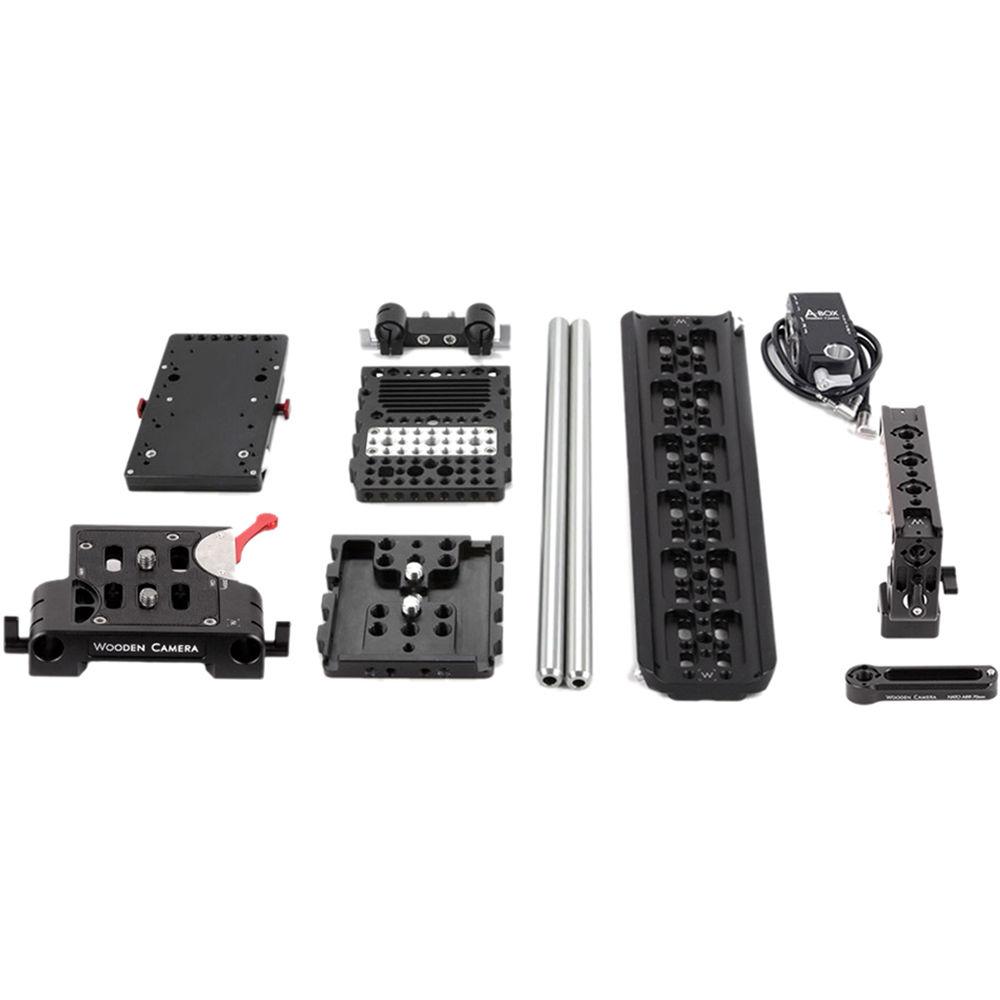

Product description

• Easy Top X Plate for Select RED Cameras The Easy Top X from Wooden Camera is a top accessory plate designed for the RED EPIC, SCARLET, and DRAGON cameras. The plate features an array of 1/4"-20 female threads in standard RED compatible spacing, as well as numerous 3/8"-16 threads to accommodate larger accessories.

  The plate features a removable link cover for expanding REDMOTE range when needed, and utilizes a design which will not obstruct or interfere with the new RED top fan. UPC: 610079105270
• Easy Riser Baseplate for Epic and Scarlet Cameras The Wooden Camera Easy Riser Baseplate for Epic and Scarlet Cameras attaches to the bottom of a RED Epic or Scarlet to provide a mounting base for ARRI-style bridgeplates, such as Wooden Camera's 15 or 19mm bridgeplate. With the Easy Riser attached to the bottom of the camera, the bridgeplate attaches to the bottom of the Easy Riser.

  Another use is in combination with Wooden Camera's 15mm Bracket. With the Easy Riser attached to the bottom of the camera, the bracket attaches to the front of the Easy Riser. UPC: 610079105225
• NATO Handle Kit with Cheese Handle The Wooden Camera NATO Handle Kit with Cheese Handle is a quick release handle system that can be attached to anything that has on it two 1/4"-20 screw-holes spaced between 0 and 72mm apart. A 100mm long rail is the base of the system and is what attaches to the screw holes, and the handle dovetails onto rail. The rail can at all times stay where it's attached and the handle slipped on and off as needed. The handle features numerous 1/4" and 3/8" screw-holes in case you want to attach any accessory, like a Noga arm.

  70mm and 150mm rails are separately available. UPC: 610079106024
• WC-145300 ARRI Style Bridge Plate (15mm) The Wooden Camera WC-145300 ARRI Style Bridge Plate (15mm) features 15mm studio offset spacing (rods spaced 100mm center to center). Its height is compatible for use with the RED ONE camera. In addition, it can be used with the Universal Baseplate to adjust the lens height on the camera, or with the Easy Riser to adjust the lens height on the RED Epic and Scarlet cameras. UPC: 610079105133
• Safety Dovetail Plate (12") The 12" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations. UPC: 610079105492
• A-Box for Epic/Scarlet Cameras The Wooden Camera A-Box for Epic/Scarlet Cameras adapts industry standard balanced XLR male plugs to 3.5mm balanced plugs (female). The A-Box comes with a free bolt-on 19mm Rod for attaching to any 1/4"-20 threaded hole. UPC: 610079105034
• WC-153000 Side Plate (Right Front) The Wooden Camera WC-153000 Side Plate (Right Front) mounts on RED EPIC and SCARLET cameras outfitted with both the Easy Top X and Easy Riser plates (sold separately). Providing an additional mounting surface for accessories, the WC-153000 Side Plate features an array of 1/4"-20 and 3/8"-16 holes in RED standard spacing. It is also compatible with VF top and bottom plates.

  Note: This product is not compatible with the RED TACTICAL system. Easy Top X and Easy Riser are required for proper attachment of this product.
  • Used for adding accessory mounting points to RED EPIC and SCARLET cameras.
  • Expands the mounting surface for accessories when attached to Easy Top X and Easy Riser (required, not included).
  • Features fifty-nine 1/4"-20 and twelve 3/8"-16 threaded mounting holes.
  UPC: 610079105645
• WC-153100 Side Plate (Right Rear) The Wooden Camera WC-153100 Side Plate (Right Rear) mounts on RED EPIC and SCARLET cameras outfitted with both the Easy Top X and Easy Riser plates (sold separately). Providing an additional mounting surface for accessories, the WC-153100 Side Plate features an array of 1/4"-20 and 3/8"-16 holes in RED standard spacing. It is also compatible with VF top and bottom plates.

  Note: This product is not compatible with the RED TACTICAL system. Easy Top X and Easy Riser are required for proper attachment of this product.
  • Used for adding accessory mounting points to RED EPIC and SCARLET cameras.
  • Expands the mounting surface for accessories when attached to Easy Top X and Easy Riser (required, not included).
  • Features fifty 1/4"-20 and eight 3/8"-16 threaded mounting holes.
  UPC: 610079105652

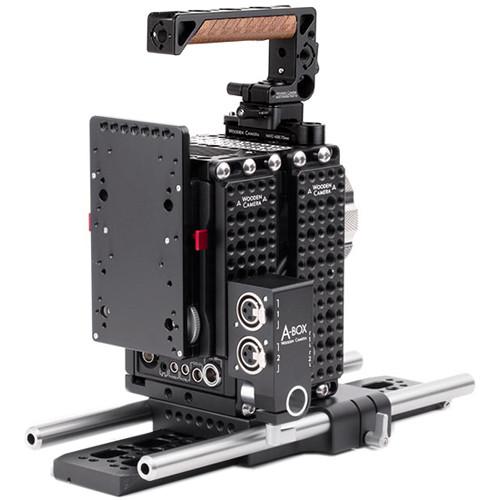

• Quick Back V2 Plate for RED Epic & Scarlet The Wooden Camera Quick Back V2 Plate for RED Epic & Scarlet enables attaching V-Mount and Gold-Mount battery plates directly to an Epic or Scarlet without any intermediary adapters.

  The plate attaches to the back of any RED Module, including the +1 Module, without any tools. You'll be able to mount Anton Bauer QRC, Switronix, RED, Blueshape, IDX, and other battery plates directly. You can also combine the plate with an optional Wooden Camera A-Lock to mount battery plates in alternative configurations. UPC: 610079106666

• 2 x 1/4"-20 x 1/2" Screw

• 4 x M4 x 12mm Screw

• Limited 1-Year Warranty

• 2 x Captured 3/8"-16 Riser Screws

• 1-Year Limited Warranty

• 148800 NATO Handle (Cheese)

• WC-151400 Safety NATO Accessory Rail (100mm)

• 2 x 1/4"-20 x 3/8" Screw

• 1-Year Limited Warranty

• 2 x Riser Screw

• 1-Year Limited Warranty

• Limited 1-Year Warranty

• 1/4-20 x 3/8" screw

• Limited 1-Year Warranty

• 4 x 1/4"-20 Screw (1/2" Long)

• Limited 1-Year Warranty

• 5 x 1/4"-20 Screw (1/2" Long)

• Limited 1-Year Warranty

• 4 x m4 x 12mm Screws

• 6 x m3 x 6mm Socket Screws

• 4 x m3 x 6mm Phillips Screws

• 4 x m3 x 12mm Phillips Screws

• 1-Year Limited Warranty

Also Includes

• 2 x 15mm Rod (12")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Easy Top X Plate for Select RED Cameras

  Accessory Mounting Threads	1/4"-20 & 3/8"-16
  Dimensions	4.7 x 3.9 x 0.5" (118 x 98 x 12 mm)
  Weight	0.5 lb (209 g)

  Box Dimensions (LxWxH)	5.0 x 4.0 x 0.3"

• Easy Riser Baseplate for Epic and Scarlet Cameras

  Box Dimensions (LxWxH)	3.9 x 3.8 x 0.75"

• NATO Handle Kit with Cheese Handle

  Dimensions	4.8 x 4 x 3.2" / 12 x 10 x 8 cm
  Weight	.5 lbs / .22 kg

  Box Dimensions (LxWxH)	6.0 x 3.0 x 1.0"

• WC-145300 ARRI Style Bridge Plate (15mm)

  Dimensions	6.9 x 4.5 x 1.2" (175.26 x 114.3 x 30.48 mm)
  Weight	1.2 lb (0.54 kg)

  Box Dimensions (LxWxH)	6.0 x 5.0 x 2.0"

• Safety Dovetail Plate (12")

  Dimensions	12.0 x 2.7 x 0.5" / 30.5 x 6.8 x 1.3 cm
  Weight	0.9 lb / 0.4 kg

  Box Dimensions (LxWxH)	12.2 x 3.6 x 0.5"

• A-Box for Epic/Scarlet Cameras

  Inputs	XLR (x2)
  Outputs	3.5 mm TRS connectors (x2)
  Mount	19 mm lightweight rod support systems clamp
  Dimensions	3.8 x 1.4 x 1.5" (9.65 x 3.56 x 3.81 cm)
  Weight	8 oz (0.23 kg)

  Box Dimensions (LxWxH)	8.0 x 3.5 x 2.0"

• WC-153000 Side Plate (Right Front)

  Dimensions	6.3 x 1.8 x .4" (160.0 x 45.7 x 10.2 mm)
  Weight	0.3 lb (136.1 g)

  Box Dimensions (LxWxH)	6.0 x 2.8 x 0.2"

• WC-153100 Side Plate (Right Rear)

  Dimensions	6.4 x 2.3 x .4" (162.6 x 58.4 x 10.2 mm)
  Weight	0.2 lb (90.7 g)

  Box Dimensions (LxWxH)	6.1 x 3.0 x 0.5"

• Quick Back V2 Plate for RED Epic & Scarlet

  Box Dimensions (LxWxH)	7.0 x 4.0 x 0.5"
