User Manual for Wooden Camera Fixed Base for ARRI Alexa Mini Click to enlarge the picture
Contents of the user manual for the Wooden Camera Fixed Base for ARRI
- Product category: Camcorder Supports & Rigs Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Camcorder Supports & Rigs
|
User manual for the Wooden Camera Fixed Base for ARRI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

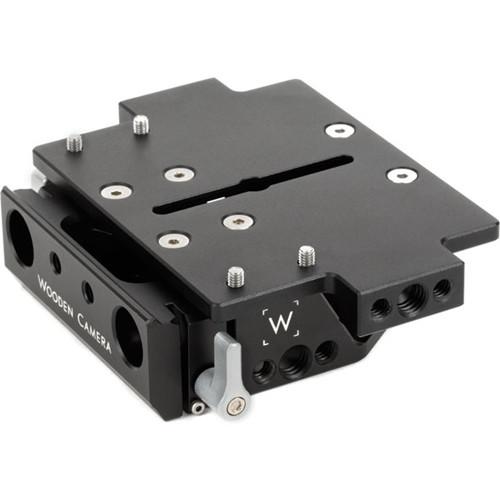

Product description The Fixed Base for ARRI Alexa Mini from Wooden Camera provides LWS 15mm pass-through rod support at the correct lens height. The baseplate can attach to any tripod plate or ARRI standard bridge plate, such as Wooden Camera's 19mm or 15mm Studio Bridge Plates. When rods are not needed, a separately-available Dovetail Clamp can be added instead to interface with 2060 Dovetails, Safety Dovetails, or Shoulder Rigs. -
- 1/4"-20 and 3/8"-16 holes on sides for attaching accessories
- 1/4"-20 and 3/8"-16 holes on bottom for attaching to tripod or bridge plate
- Optional GO Shoulder low-profile shoulder pad and optional Rosette Bracket available
UPC: 702534255160 In the Box Wooden Camera Fixed Base for ARRI Alexa Mini 1/4"-20 Low-Profile Screw 3/8"-16 Low-Profile Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Fixed Base for ARRI Alexa Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 210200 Specs | Camera Mount Screw Sizes | 1/4"-20 & 3/8"-16 | | Accessory Mounting Threads | 1/4"-20 & 3/8"-16 | | Dimensions | 3.7 x 4.4 x 1.6" (93.3 x 110.8 x 39.8 mm) | | Weight | 9.8 oz (277 g) | | | | Box Dimensions (LxWxH) | 4.4 x 3.7 x 1.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
