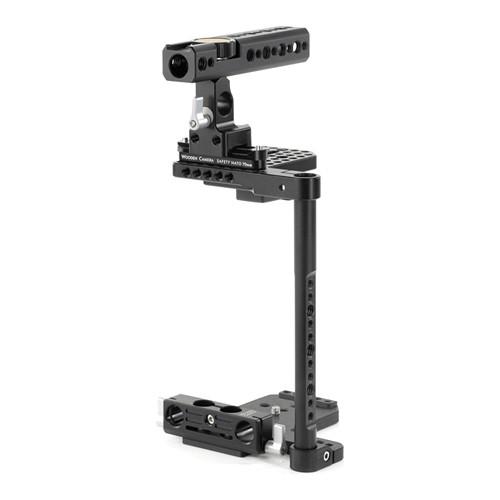

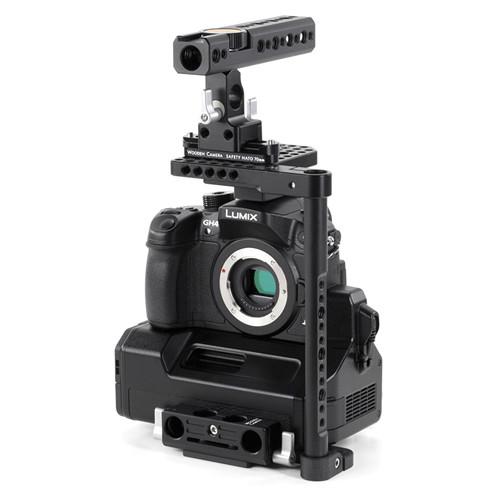

The Fixed Kit for Panasonic GH4 and YAGH Interface Unit from Wooden Camera prepares your camera for professional video applications by providing a cage, 15mm rod bracket, and quick-release NATO top handle kit. Designed for use with the Panasonic GH4 with attached YAGH Interface Unit, the Fixed Kit provides a versatile foundation for adding the camera accessories that suit your needs.

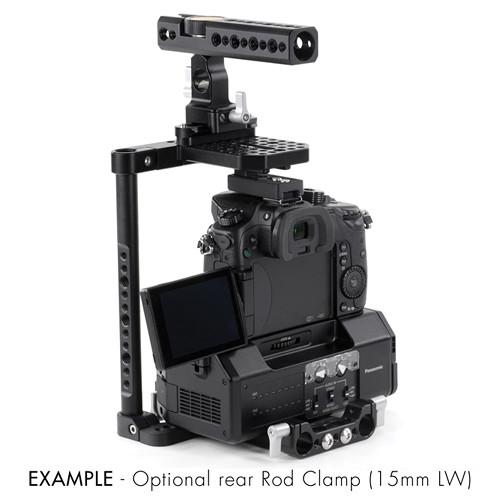

The cage expands the accessory mounting capabilities of the GH4 with attached YAGH Interface Unit, while maintaining a minimalist design that doesn't block access to controls. It attaches via one 3/8"-16 and one 1/4"-20 screw on the bottom and a hot shoe pinch on top, and features 1/4"-20 and 3/8"-16 threaded accessory holes along the top and left side of the cage. The 15mm rod bracket attaches to the front of the camera base, providing support for LWS 15mm rods with the correct lens height for use with a matte box. When rear 15mm rods are needed, the optional 15mm Rod Clamp is available.
The NATO quick-release top handle attaches to the top of the cage via an included 2.76" NATO rail. Once the rail is mounted onto the cage, the top handle slides on and off the rail, locking into place with a thumbscrew. The top handle features a variety of accessory mounting options, including an integrated 15mm rod clamp, great for attaching an optional monitor/EVF support bracket such as the UVF Mount v2. A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching single rods, which can be used for mounting accessories such as focus motors. An integrated shoe mount is also provided, as well as 1/4"-20 and 3/8"-16 threaded holes on the grip area. Lastly, 1/4"-20 holes on the handle front let you attached optional rod clamps for adding rods to the top of your rig.
The Fixed Kit is built to the proper height for attaching to 19mm and studio 15mm Wooden Camera bridgeplates. When studio rods are not needed, an optional dovetail clamp can be added to interface with a 2060 dovetails, safety dovetails, or shoulder rigs. - Cage
-
- 1/4"-20 holes - in standard spacing (9mm center to center)
- 3/8"-16 holes - in ARRI standard spacing (50mm center to center)
- Leaves camera buttons accessible and LCD viewable
- 1/4"-20 & 3/8"-16 attachment screws
- Hot shoe pinch
- DSLR 15mm Bracket
-
- Dual LWS 15mm rod ports
- Provides correct lens height for use with a matte box
- NATO Handle Kit
-
- Quick-release top handle
- 70mm NATO rail
- Integrated sideways 15mm rod clamp for attaching optional UVF Mount v2
- Forward facing 15mm rod opening and 19mm rear rod opening
- Shoe mount
- 1/4"-20 and 3/8"-16 accessory holes on handle
- 1/4"-20 holes on front for adding optional rod clamps
In the Box Wooden Camera Fixed Kit for Panasonic GH4 and YAGH Interface Unit Camera Cage for Panasonic GH4 and YAGH Interface Unit bvwerrsfuqwrayttfaevcdyyxratzydqbb DSLR 15mm Bracket NATO Quick-Release Top Handle 2.76" NATO Rail Limited 1-Year Warranty User Manual PDF 297.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Fixed Kit for Panasonic GH4 and YAGH Interface Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera WC-182200 Specs | Rod Compatibility | LWS 15mm | | Hole Pattern | 1/4"-20 in standard spacing (9mm center to center)
3/8"-16 in ARRI standard spacing (50mm center to center) | | Camera Mount Screws | 1/4"-20 and 3/8"-16 | | NATO Rail Length | 2.76" (70 mm) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 10.7 x 6.4 x 3.3" |
