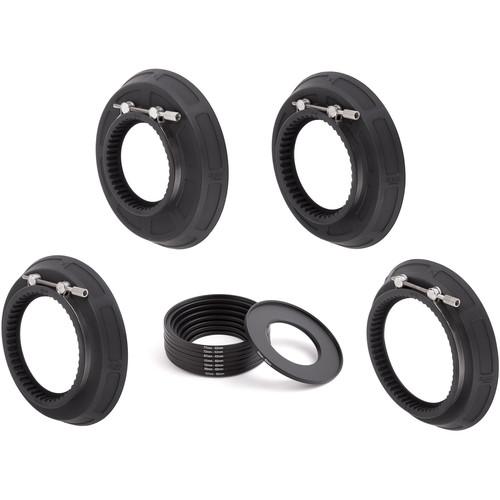

Product description The Wooden Camera Kit with Four 1-Stage 138mm Round Zip Boxes & Adapter Rings consists of four sunshades/filter holders sized to fit lenses with 80-85mm, 90-95mm, 100-105mm, and 110-115mm front diameters. This bundle also includes adapter rings that enable you to use the 80-85mm Zip Box with 49, 52, 55, 58, 62, 67, 72, and 77mm‐threaded lenses. Designed to fit a wide variety of cine-style, still, and ENG lenses, this 138mm Round Zip Box kit will come in handy for projects where you're using a varying selection of lenses. The lens shades are wide enough to prevent vignetting on most wide and super-wide lenses. The lightweight Zip Box line features durable rubber and stainless steel construction. The 138mm design holds one filter and is especially suitable when using full or split diopters, polarizers or other round filters. - 1-Stage Clamp-On 138mm Round Zip Box (80-85mm) Use the 1-Stage Clamp-On 138mm Round Zip Box (80-85mm) from Wooden Camera to attach one filter to the front of your lens. The Zip Box clamps onto lenses with an external front diameter of up to 3.1-3.3". No need to worry about sandwiching a diopter into a standard matte box tray, this round sunshade/filter holder's tray-less design will fit a diopter of any thickness. The Zip Box's lightweight yet strong design features a unibody rubber shade with stainless steel components. The sunshade's wide design prevents vignetting even when using wide lenses and large camera sensors. Note: To ensure compatibility, use the outside lens diameter measurement, not the threaded filter ring size.
Compatible Lenses - Not a comprehensive list, check your lens diameter for compatibility
Cinema Lenses:
ARRI Standard Speed 16/24/32/40/50/85/100/135mm T1.3
ARRI Super Speed 18/25/35/50/65/85mm T1.3
ARRI Macro 16/24/32/40/50/60/100/200mm T2.1
COOKE Speed Panchro 18/25mm SII/III
COOKE Speed Panchro 32/40/50/75/100mm SII
Duclos Tokina 11-16mm
Canon Lenses:
Canon EF-S 10-22mm f/3.5-4.5 USM
Canon EF 16-35 2.8L USM
Canon EF 17-40mm f/4L USM
Canon EF-S 17-55mm f/2.8 IS USM
Canon EF 20-35 3.5-4.5 USM
Canon EF 24mm f/1.4L USM
Canon EF 24mm f/1.4L II USM
Canon EF 24-70mm f/2.8L USM
Canon EF 24-70mm f/4L IS USM
Canon EF 24-105mm f/4L IS USM
Canon EF 28-70 2.8L USM
Canon EF 28-300mm f/3.5-5.6L IS USM
Canon EF 300 2.8 L USM
Leica Lenses:
Leica Super-Elmar-M 18 mm f/ 3.8 ASPH (using Leica's 77mm adapter)
Most Leica lenses utilize smaller front diameters which require the Zip Box Adapter Rings (49, 52, 55, 58, 62, 67, 72, 77mm)
Nikon Lenses:
Nikon AF-S Nikkor 20mm f/1.8G ED
Nikon AF-S Nikkor 24mm f/1.4G ED
Nikon AF-S Nikkor 85mm f/1.4G
Nikon AF-S Nikkor 300mm f/4E PF ED VR
Nikon AF-S Nikkor 300mm f/4D IF-ED
Nikon AF-S DX Zoom-Nikkor 10-24mm f/3.5-4.5G ED
Nikon AF-S Zoom-Nikkor DX 12-24mm f/4G IF-ED
Nikon AF-S Zoom-Nikkor 16-35mm f/4G ED VR
Nikon AF-S Zoom-Nikkor 17-35mm f/2.8D IF-ED
Nikon AF-S Zoom-Nikkor 18-35mm f/3.5-4.5G ED
Nikon AF-S DX Zoom-Nikkor 17-55mm f/2.8G IF-ED
Nikon AF-S Zoom-Nikkor 24-70mm f/2.8G IF-ED
Nikon AF-S Zoom-Nikkor 24-120mm f/4G ED VR
Nikon AF-S Zoom-Nikkor 28-70mm f/2.8D IF-ED
Nikon AF-S Zoom-Nikkor 28-300mm f/3.5-5.6G ED VR
Nikon AF-S Zoom-Nikkor 70-200mm f/2.8G VR IF-ED
Nikon AF-S Zoom-Nikkor 70-200mm f/2.8G ED VR II
Nikon AF-S Zoom-Nikkor 70-200mm f/2.8G ED VR II
Nikon AF-S Zoom-Nikkor 80-200mm f/2.8D ED
Nikon AF-S Zoom-Nikkor 80-400mm f/4.5-5.6G ED VR
Sony Lenses:
Sony Carl Zeiss Vario-Sonnar T* 16-35 mm f/ 2.8 ZA Sony Carl Zeiss Vario-Sonnar T* 24-70 mm f/ 2.8 ZA
Most Sony lenses utilize smaller front diameters which require the Zip Box Adapter Rings (49, 52, 55, 58, 62, 67, 72, 77mm)
Zeiss Lenses:
Carl Zeiss Planar T* 55 mm f/ 1.2 C/Y
Carl Zeiss Planar T* 85 mm f/ 1.2 C/Y
3rd Party Lenses:
Tokina 11-16mm f/2.8 PRO DX II
Tokina 12-24mm f/4 PRO DX II
Tokina 12-28mm f/4 PRO DX
Tokina 16-50mm f/2.8 PRO DX
Tokina 16.5-135mm f/3.5-5.6 DX
Tokina 17 mm f/3.5 AF PRO
Tokina 19-35 mm f/3.5-4.5 AF
Tokina 20-35 mm f/2.8 AF PRO Features - Clamps onto lenses with an outside diameter of 3.1-3.3" (80-85mm)
- Holds one 138mm filter such as a diopter or polarizer
- Lightweight, durable, rubber and stainless steel construction
- Wide sunshade avoids vignetting on wide lenses
UPC: 606184853144 - 1-Stage Clamp-On 138mm Round Zip Box (90-95mm) Use the 1-Stage Clamp-On 138mm Round Zip Box (90-95mm) from Wooden Camera to attach one filter to the front of your lens. The Zip Box clamps onto lenses with an external front diameter of up to 3.5-3.7". No need to worry about sandwiching a diopter into a standard matte box tray, this round sunshade/filter holder's tray-less design will fit a diopter of any thickness. The Zip Box's lightweight yet strong design features a unibody rubber shade with stainless steel components. The sunshade's wide design prevents vignetting even when using wide lenses and large camera sensors. Note: To ensure compatibility, use the outside lens diameter measurement, not the threaded filter ring size.
Compatible Lenses - Not a comprehensive list, check your lens diameter for compatibility
Cinema Lenses:
Arri / Zeiss Ultra Prime Distagon 16/20/24/28/32/40mm T1.9
Arri / Zeiss Ultra Prime Planar 50/65/85mm T1.9
Arri / Zeiss Ultra Prime Sonnar 100/135mm T1.9
Leica Summilux-C 18/21/29/35/40/50/65/75mm T1.4
Luma Tech Illumina S35 18/25/35/50/85mm T1.3
Luma Tech Illumina S35 135mm T1.8
Zeiss 70-200mm T2.9 Compact Zoom CZ.2
Canon Lenses:
Canon EF 300mm f/4L IS USM
Canon EF 400mm f/5.6L USM Features - Clamps onto lenses with an outside diameter of 3.5-3.7" (90-95mm)
- Holds one 138mm filter such as a diopter or polarizer
- Lightweight, durable, rubber and stainless steel construction
- Wide sunshade avoids vignetting on wide lenses
UPC: 606184853151 - 1-Stage Clamp-On 138mm Round Zip Box (100-105mm) Use the 1-Stage Clamp-On 138mm Round Zip Box (100-105mm) from Wooden Camera to attach one filter to the front of your lens. The Zip Box clamps onto lenses with an external front diameter of up to 3.9-4.1". No need to worry about sandwiching a diopter into a standard matte box tray, this round sunshade/filter holder's tray-less design will fit a diopter of any thickness. The Zip Box's lightweight yet strong design features a unibody rubber shade with stainless steel components. The sunshade's wide design prevents vignetting even when using wide lenses and large camera sensors. Note: To ensure compatibility, use the outside lens diameter measurement, not the threaded filter ring size.
Compatible Lenses - Not a comprehensive list, check your lens diameter for compatibility
Schneider-Kreuznach Cine-Xenar III 18mm/T2.2, 25mm/T2.2, 35mm/T2.1, 50mm/T2.0, 75mm/T2.0, 95mmT2.0
ARRI LDS Ultra Prime 12mm/T2.0, 14/16/20/24/28/32/40/50/65/85/100/135/180mm T1.9 Features - Clamps onto lenses with an outside diameter of 3.9-4.1" (100-105mm)
- Holds one 138mm filter such as a diopter or polarizer
- Lightweight, durable, rubber and stainless steel construction
- Wide sunshade avoids vignetting on wide lenses
UPC: 606184853168 - 1-Stage Clamp-On 138mm Round Zip Box (110-115mm) Use the 1-Stage Clamp-On 138mm Round Zip Box (110-115mm) from Wooden Camera to attach one filter to the front of your lens. The Zip Box clamps onto lenses with an external front diameter of up to 4.3-4.5". No need to worry about sandwiching a diopter into a standard matte box tray, this round sunshade/filter holder's tray-less design will fit a diopter of any thickness. The Zip Box's lightweight yet strong design features a unibody rubber shade with stainless steel components. The sunshade's wide design prevents vignetting even when using wide lenses and large camera sensors. Note: To ensure compatibility, use the outside lens diameter measurement, not the threaded filter ring size.
Compatible Lenses - Not a comprehensive list, check your lens diameter for compatibility
Angenieux HP 25-250mm
Angenieux Optimo 15-40mm & 28-76mm
Angenieux Optimo DP 16-42mm & 30-80mm
ARRI/Zeiss Master Primes T1.3: 14/16/21/25/27/32/35/40/50/65/75/100/135mm
ARRI/ Zeiss Lightweight Zoom 15.5-45mm
ARRI/ Zeiss Ultra Prime 14mm
ARRI/ Zeiss LDS Ultra Prime 14mm
ARRI/ Zeiss Standard Speed MKII 14mm
ARRI/ Zeiss Master Macro 100mm
Cooke 5/i 18/25/32/40/50/65/75/100mm
Cooke S4/i 14/16/18/21/25/27/32/35/40/50/65/75/100/135mm
Cooke Panchro/i 18mm
Focus Optics Ruby 14-24mm
Optica Elite S35 14mm - 200mm
RED Pro Primes 18mm-100mm
Schneider Cine-Xenar 18mm
Uniq Optics Signature Series 18mm-100mm
Zeiss Compact Prime CP.2 15mm-135mm
Zeiss Compact Prime CP.2 (Super Speed) 35mm-85mm
Zeiss Lightweight Zoom LWZ.2 15.5-45mm Features - Clamps onto lenses with an outside diameter of 4.3-4.5" (110-115mm)
- Holds one 138mm filter such as a diopter or polarizer
- Lightweight, durable, rubber and stainless steel construction
- Wide sunshade avoids vignetting on wide lenses
UPC: 606184853175 - Zip Box Adapter Ring Set (49 to 77mm) The Zip Box Adapter Ring Set (49 to 77mm) from Wooden Camera enables you to use clamp-on 80-85mm matte boxes with 49 to 77mm front-threaded lenses. This set includes rings to fit 49, 52, 55, 58, 62, 67, 72, and 77mm‐threaded lenses. The rings are compatible with Wooden Camera's 80-85mm Zip Boxes.
Features - Adapter rings screw onto lenses with 49-77mm threaded fronts
- The set includes 49, 52, 55, 58, 62, 67, 72, and 77mm adapters
- Designed to work with Wooden Camera 80-85mm Zip Box matte boxes
UPC: 606184852437 In the Box Bundle Items 1-Stage Clamp-On 138mm Round Zip Box (80-85mm) fzbserurwrcquruweqvruqeqfzctdcty 1-Stage Clamp-On 138mm Round Zip Box (90-95mm) 1-Stage Clamp-On 138mm Round Zip Box (100-105mm) 1-Stage Clamp-On 138mm Round Zip Box (110-115mm) Zip Box Adapter Ring Set (49 to 77mm) Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Kit with Four 1-Stage 138mm Round Zip Boxes & Adapter Rings in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 1-Stage Clamp-On 138mm Round Zip Box (80-85mm)
| Front Lens Diameter | Fits: 3.1-3.3" (80-85mm) | | Type | Clamp-On | | Filter Type | 138 mm round | | Total Filter Stages | 1 | | Dimensions (∅ x W) | 6.5 x 1.5" (16.5 x 3.8 cm) | | Weight | 4.8 oz (136 g) | | | | Box Dimensions (LxWxH) | 7.5 x 5.6 x 1.1" | - 1-Stage Clamp-On 138mm Round Zip Box (90-95mm)
| Front Lens Diameter | Fits: 3.5-3.7" (90-95mm) | | Type | Clamp-On | | Filter Type | 138 mm round | | Total Filter Stages | 1 | | Dimensions (∅ x W) | 6.5 x 1.5" (16.5 x 3.8 cm) | | Weight | 4.8 oz (136 g) | | | | Box Dimensions (LxWxH) | 6.55 x 6.3 x 1.45" | - 1-Stage Clamp-On 138mm Round Zip Box (100-105mm)
| Front Lens Diameter | Fits: 3.9-4.1" (100-105mm) | | Type | Clamp-On | | Filter Type | 138 mm round | | Total Filter Stages | 1 | | Dimensions (∅ x W) | 6.5 x 1.5" (16.5 x 3.8 cm) | | Weight | 4.8 oz (136 g) | | | | Box Dimensions (LxWxH) | 8.3 x 6.5 x 1.25" | - 1-Stage Clamp-On 138mm Round Zip Box (110-115mm)
| Front Lens Diameter | Fits: 4.3-4.5" (110-115mm) | | Type | Clamp-On | | Filter Type | 138 mm round | | Total Filter Stages | 1 | | Dimensions (∅ x W) | 6.5 x 1.5" (16.5 x 3.8 cm) | | Weight | 4.8 oz (136 g) | | | | Box Dimensions (LxWxH) | 8.3 x 2.85 x 1.75" | - Zip Box Adapter Ring Set (49 to 77mm)
| Exterior Dimensions | Each Ring:
3.3 x 0.3" (84 x 6.5 mm) | | Weight | Individual Rings:
49mm: 0.6 oz (16 g)
52/55/58mm: 0.5 oz (14 g)
62mm: 0.4 oz (12 g)
67mm: 0.35 oz (10 g)
72mm: 0.3 oz (8 g)
77mm: 0.2 oz (6 g)
Set Total:
3.3 oz (94 g) | | | | Box Dimensions (LxWxH) | 6.85 x 2.45 x 1.55" |
