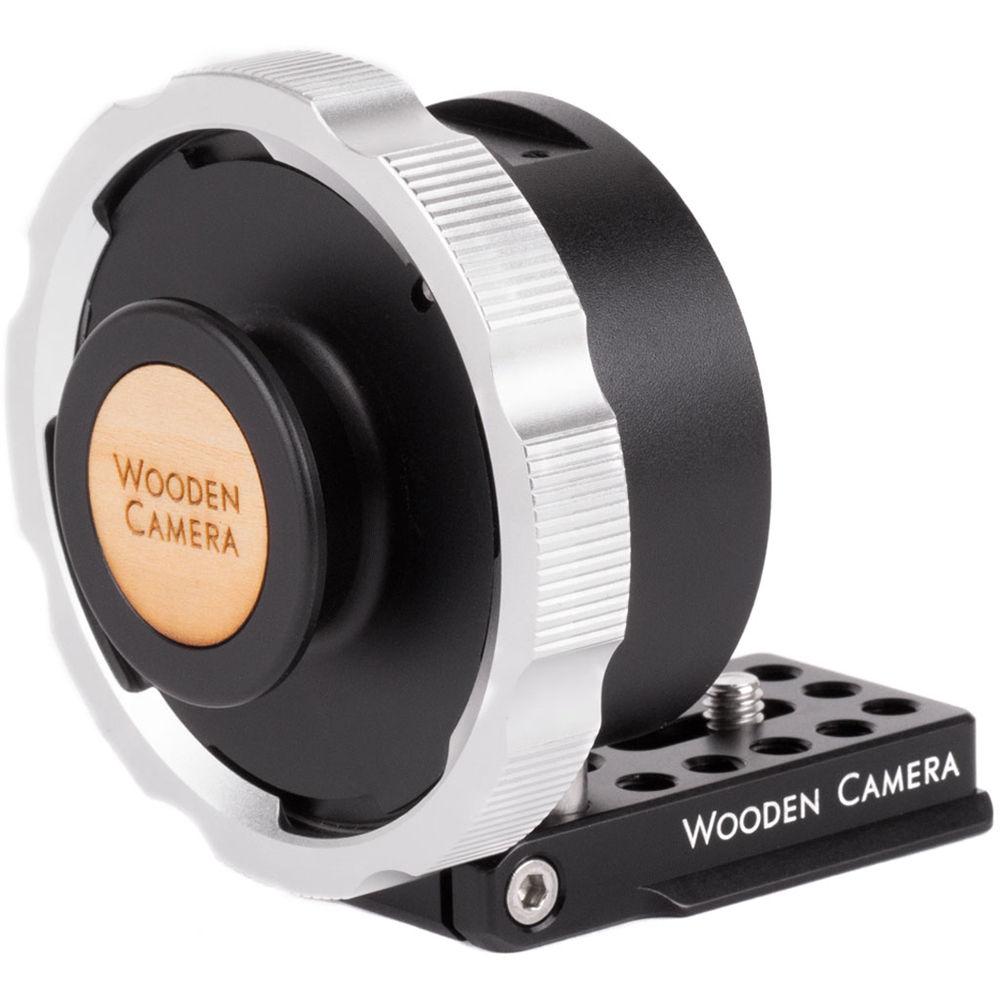

Product description The MFT to PL Mount Pro from Wooden Camera is a shimmable Micro Four Thirds lens mount adapter that enables you to mount cine-style PL mount lenses onto MFT cameras. The seven shims in the included set can be stacked to achieve the necessary thickness. The flange focus is factory set; the shims are only required if you discover your camera is out calibration

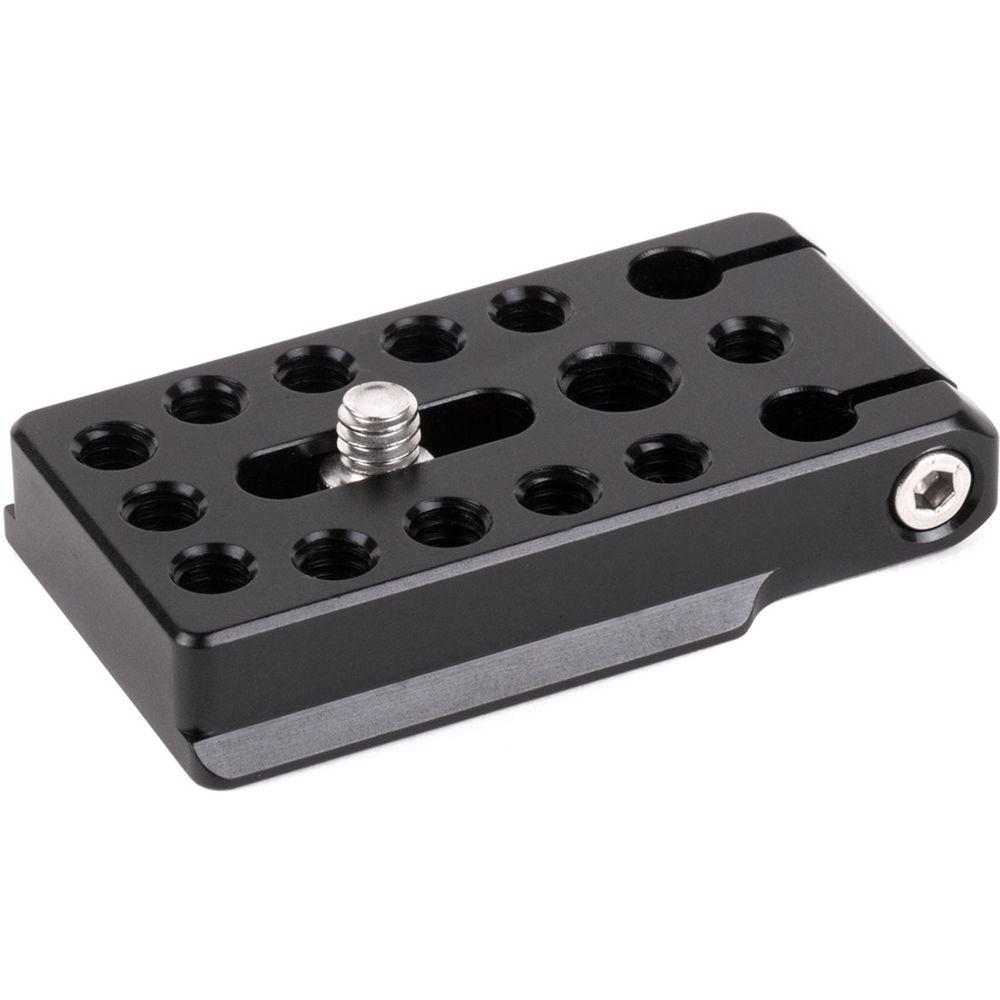

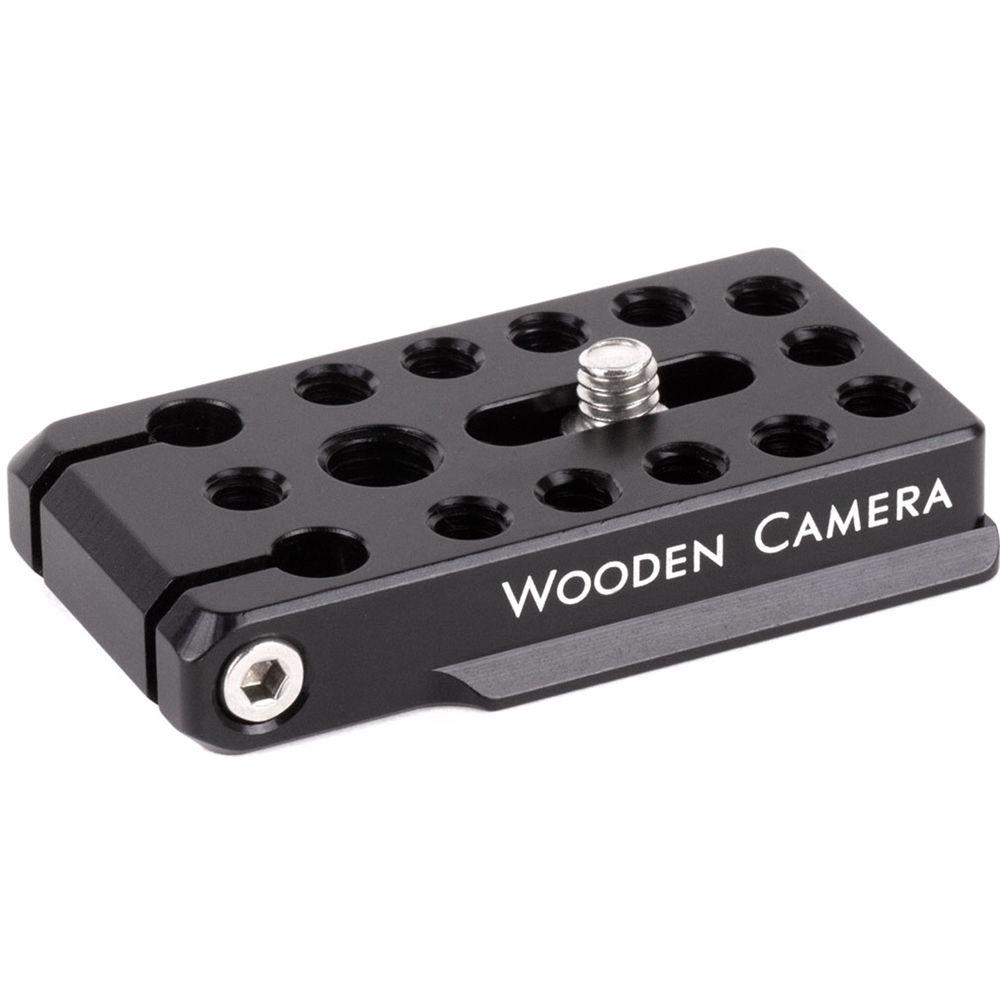

The adapter can be shimmed by loosening the six socket cap screws around the collar area, separating the two sections, and adding color-coded shims of various thicknesses. The back focus can be checked using a collimator or a wide lens focused to infinity. The mount features a removable foot for direct attachment to a tripod or other support, eliminating strain on the camera. A PL port cap is also included to prevent dust from entering the camera's sensor area when a lens is not attached. - Removable 1/4"-20–threaded foot for attaching to a tripod plate or other support
- Set of seven stackable shims included for adjusting the back focus
- The flange focus is factory set; the shims are only needed if your camera is out of calibration
- A PL mount port cap is included; it can be used to prevent dust from entering the camera when there isn't a lens mounted

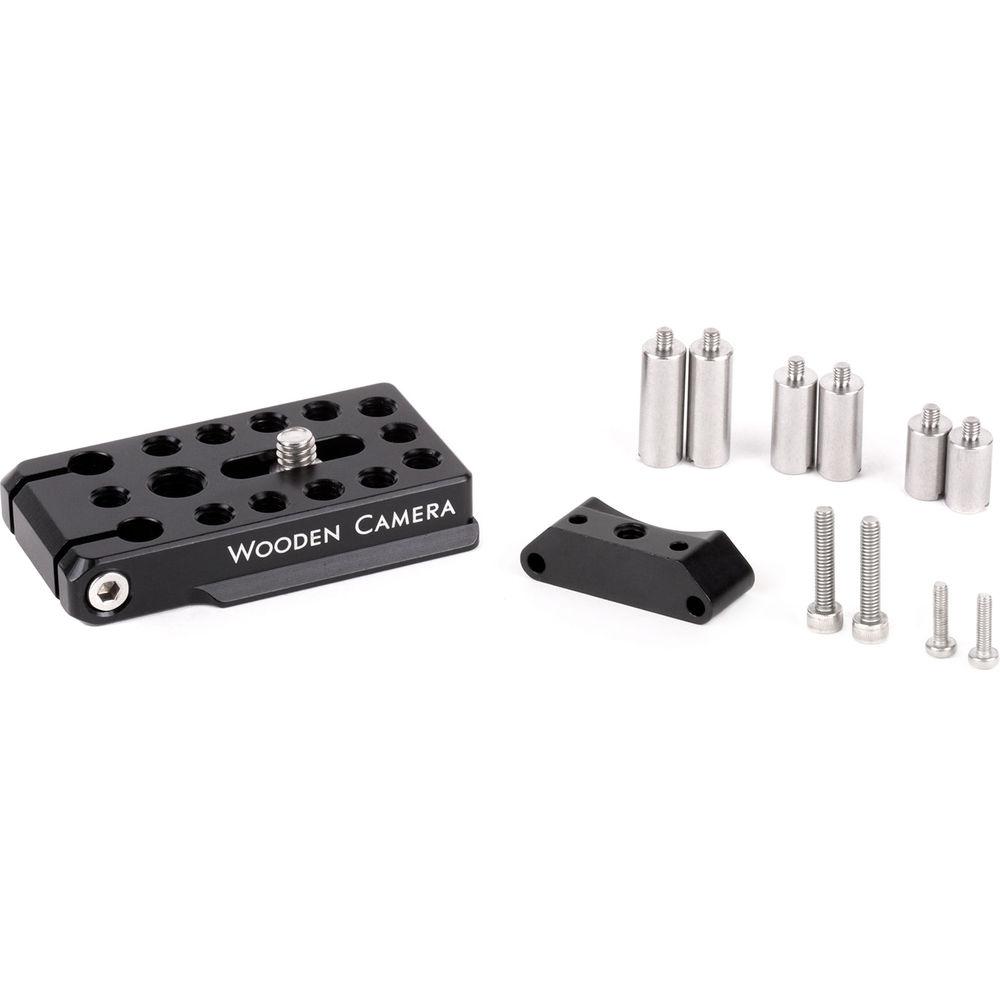

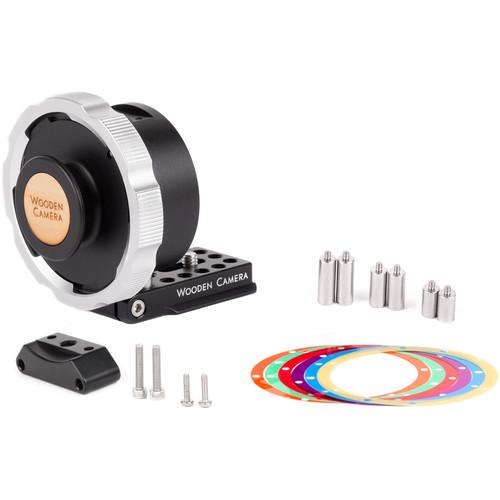

UPC: 606184852628 In the Box Wooden Camera MFT to PL Mount Pro for MFT Cameras 7 x Shims 2 x M4 Socket Cap Screws PL Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera MFT to PL Mount Pro for MFT Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 233500 Specs | Shim Thickness | Silver: 0.0127 mm (0.0005")
Amber: 0.0254 mm (0.001")
Purple: 0.0381 mm (0.0015")
Red: 0.0508 mm (0.002")
Green: 0.0762 mm (0.003")
Tan: 0.1016 mm (0.004")
Blue: 0.127 mm (0.005") | | Support | Detachable 1/4"-20 foot | | Dimensions | 3.4 x 3.2 x 1.9" (85.1 x 81.8 x 48 mm) | | Weight | 8.8 oz (251 g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 4.0 x 3.5 x 2.5" |
