Product description

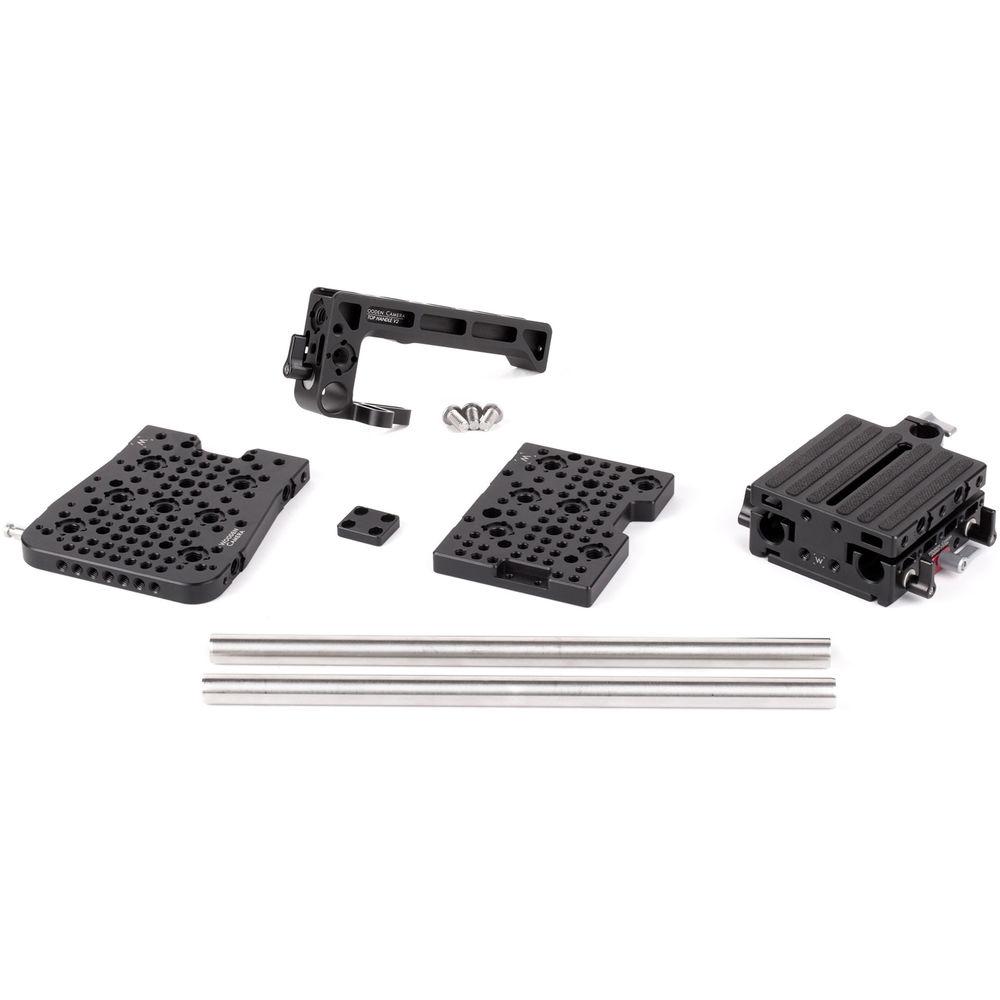

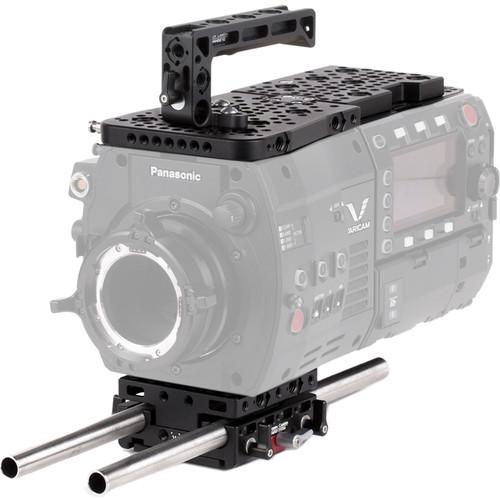

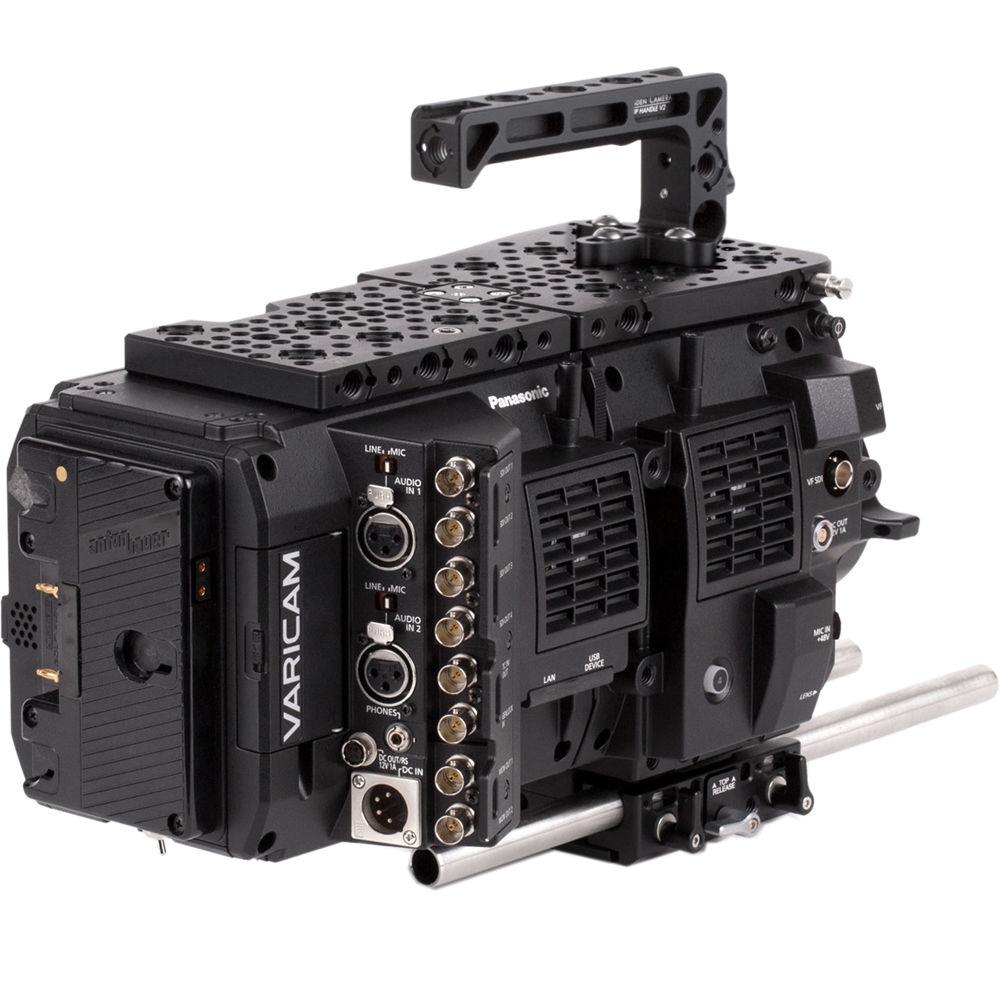

• Top Plate for Panasonic VariCam 35 Brain Unit (Front) The Wooden Camera Top Plate is for use with the front camera module of the Panasonic VariCam 35 brain unit. It features arrays of 1/4"-20 holes in standard spacing and multiple 3/8"-16 holes for large accessories. The ARRI accessory mount is also available in several places (3/8"-16 screw hole with locating pins adjacent). UPC: 702534253050
• Top Plate for Panasonic VariCam 35 Recorder Unit (Back) The Wooden Camera Top Plate is for use with the rear camera module of the Panasonic VariCam 35 recorder unit. It features arrays of 1/4"-20 holes in standard spacing and multiple 3/8"-16 holes for large accessories. The ARRI accessory mount is also available in several places (3/8"-16 screw hole with locating pins adjacent). The included link piece can be installed to bind the front and back plates together. Note: Front plate sold separately UPC: 702534253067
• Unified Baseplate for FS5, EVA-1, VariCam LT, VariCam 35 The Wooden Camera Unified Baseplate supports 15mm LWS rods at the correct lens height, and offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.

  The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Sony FS5 and Panasonic EVA-1, VariCam LT, and VariCam 35. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.

  The Baseplate provides two quick release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.

  The Dovetail Camera Plate features a long slot along its center that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" (70mm) apart. It also has a non-slip rubber surface that will prevent the camera from twisting.

  The Dovetail Camera Plate has an ARCA Swiss standard dovetail compatible with many third-party products. It also has threaded 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates. The Lower Quick Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridgeplates, such as the Wooden Camera Unified Bridgeplates.

  The Unified Baseplate can also be upgraded for VCT-14 compatible mounting options. Simply attach it to the optional Unified VCT Wedge Plate, which can then be mounted on the Unified VCT-14 Tripod Plate, also sold separately. The Unified Baseplate is backward compatible with Wooden Camera's original Quick Dovetails (Standard, DSLR, and Large).
  Key Features
  • • Supports 15mm LWS rods at the correct lens height
    • Offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit (for lens adapter support)
    • Includes the Core Unit, Lower Quick Dovetail tripod plate, and Dovetail Camera Plate
    • Two quick release options—remove Core Unit or remove Dovetail Camera Plate
    • Core Unit features a dovetail on the bottom, compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig
    • Dovetail Camera Plate features an ARCA Swiss standard dovetail and threaded holes for attaching to gimbals or other compatible tripods plates
    • Lower Quick Dovetail offers threaded holes for attaching to tripod plates or ARRI standard bridgeplates
    • Long slot along the center allows multiple screws to be attached to the camera, set up to 2.8" (70mm) apart
    • Anti-twist, non-slip rubber surface
    • Upgradable for VCT-14 compatible mounting options
    • Additional Lower Quick Dovetail and Dovetail Camera Plates can be purchased for quick swap capability
    • Backward compatible with original Wooden Camera Quick Dovetail
  UPC: 702534256495
• 15mm Support Rod (12") This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106123
• WC-153900 Top Handle (Cheese) The Wooden Camera WC-153900 Top Handle (Cheese) is used for securely carrying and stabilizing the camera during hand-held shooting. It bolts on to two 1/4-20 holes spaced 1.4" (36mm) apart center. The cheese grip handle bar features an array of 1/4-20 and 3/8-16 holes in standard spacing for accessory mounting. UPC: 610079105713

• 6 M4 x 14mm Socket Cap Screw

• Tape Hook

• Limited 1-Year Warranty

• 4 M4 x 14mm Socket Cap Screw

• 1 x 1/4"-20 x 1/2" Socket Cap Screw

• 4 x 6mm M4 Socket Cap Screw

• Link Piece

• Limited 1-Year Warranty

• Unified Baseplate Core Unit (No Dovetails)

• Unified Baseplate Camera Dovetail Plate for FS5, VariCam LT, VariCam 35

• Unified Baseplate Lower Quick Dovetail

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2 x 1/4-20 x 1/2" Screw

• 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Top Plate for Panasonic VariCam 35 Brain Unit (Front)

  For Use with	Panasonic VariCam 35 brain unit
  Dimensions	5.4 x 5.1 x 0.6" (13.7 x 13.0 x 1.5 cm)
  Weight	10.0 oz (283.5 g)

• Top Plate for Panasonic VariCam 35 Recorder Unit (Back)

  For Use with	Panasonic VariCam 35 recorder unit
  Dimensions	4.8 x 3.6 x 0.6" (12.2 x 9.1 x 1.5 cm)
  Weight	9.0 oz (255.1 g)

  Box Dimensions (LxWxH)	7.0 x 4.0 x 1.5"

• Unified Baseplate for FS5, EVA-1, VariCam LT, VariCam 35

  Dimensions	2 x 6 x 6" (5 x 15 x 15 cm)
  Weight	1.1 lb (0.5 kg)

  Box Dimensions (LxWxH)	5.1 x 4.7 x 1.9"

• 15mm Support Rod (12")

  Rod Size	15 mm
  Rod Length	12" (30.5 cm)

  Box Dimensions (LxWxH)	12.05 x 1.35 x 0.6"

• WC-153900 Top Handle (Cheese)

  Dimensions	4.8 x 2.7 x 1.9" (121.92 x 6.86 x 4.82 mm)
  Weight	0.4 lb (181.43 g)

  Box Dimensions (LxWxH)	7.7 x 4.35 x 2.3"
