User Manual for Wooden Camera PL Modification Kit Click to enlarge the picture
Contents of the user manual for the Wooden Camera PL Modification Kit
- Product category: Lens Mount Adapters Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Lens Mount Adapters
 |
User manual for the Wooden Camera PL Modification Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

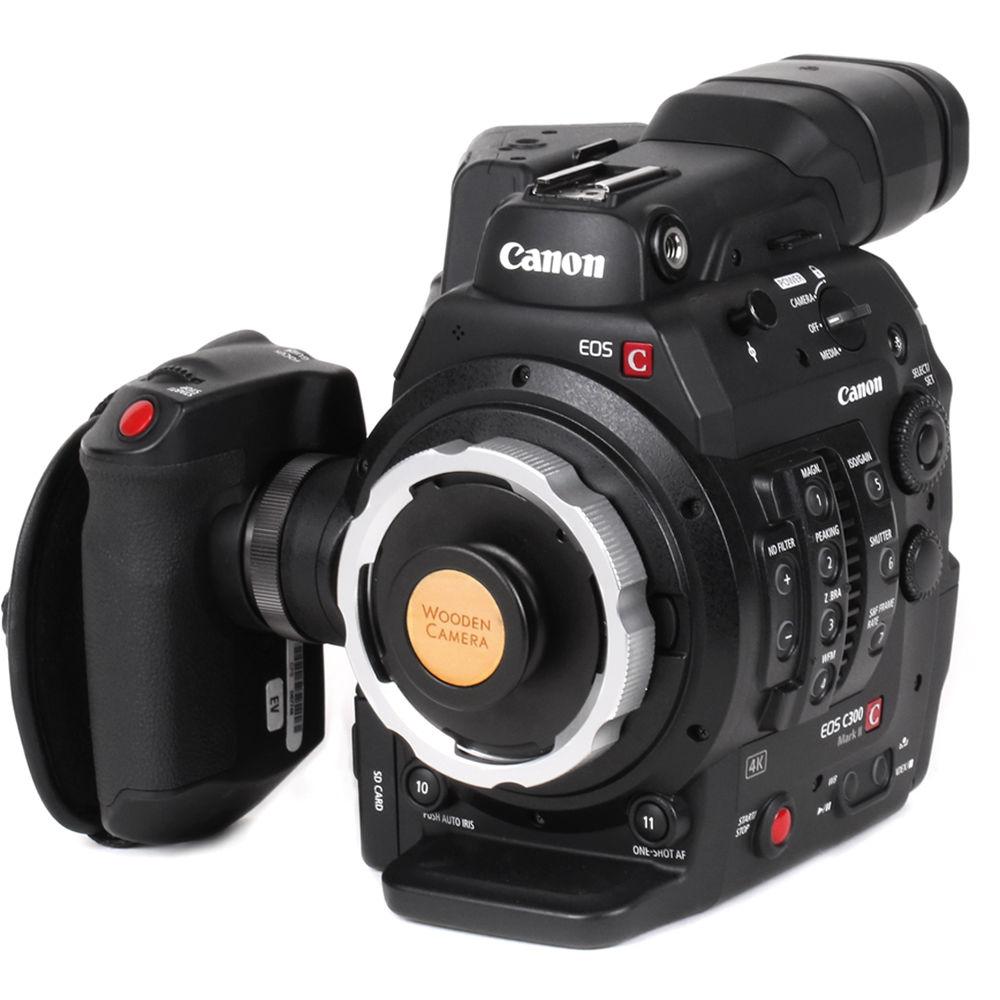

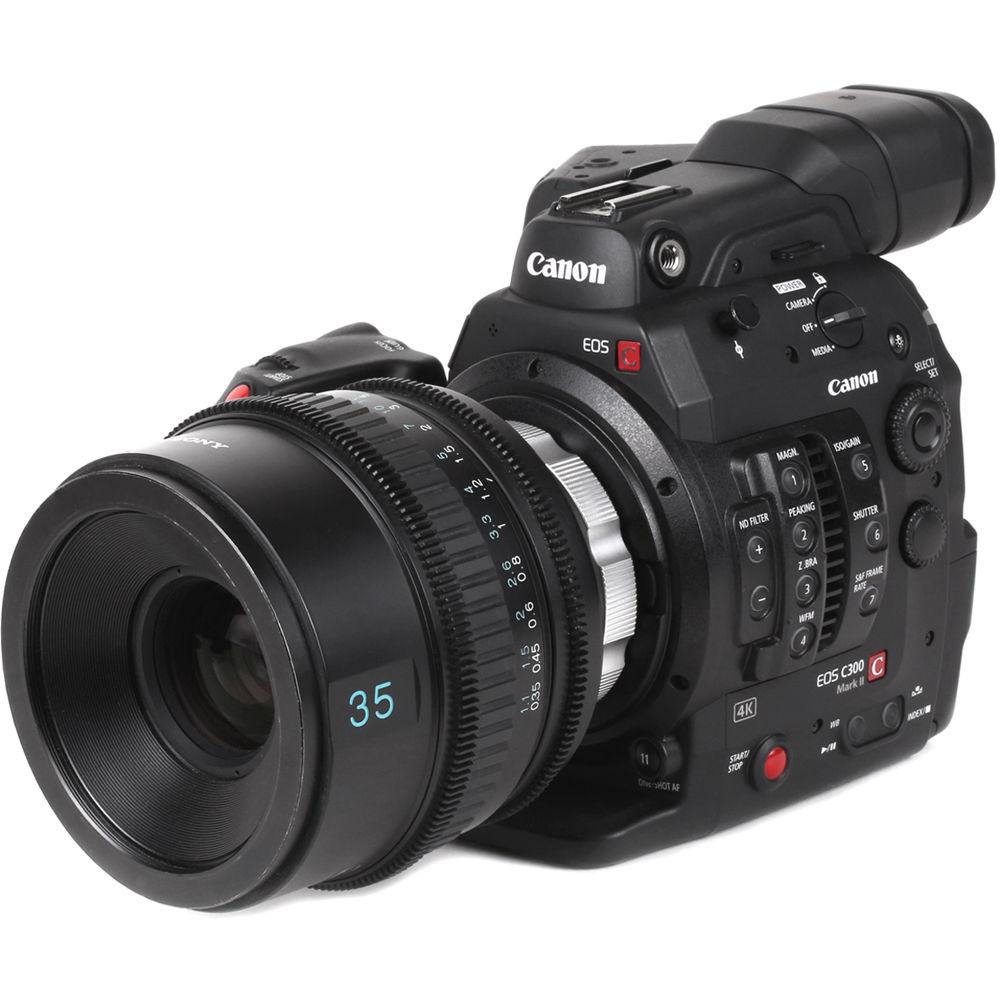

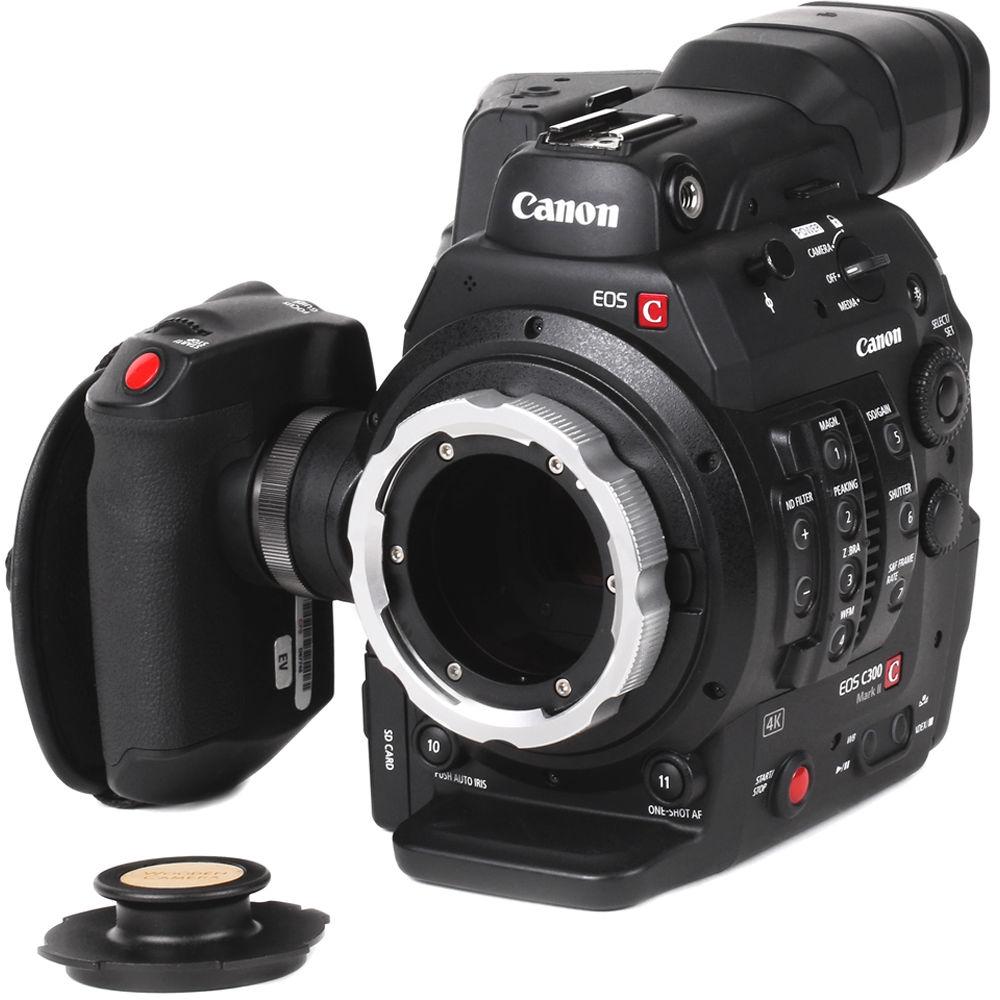

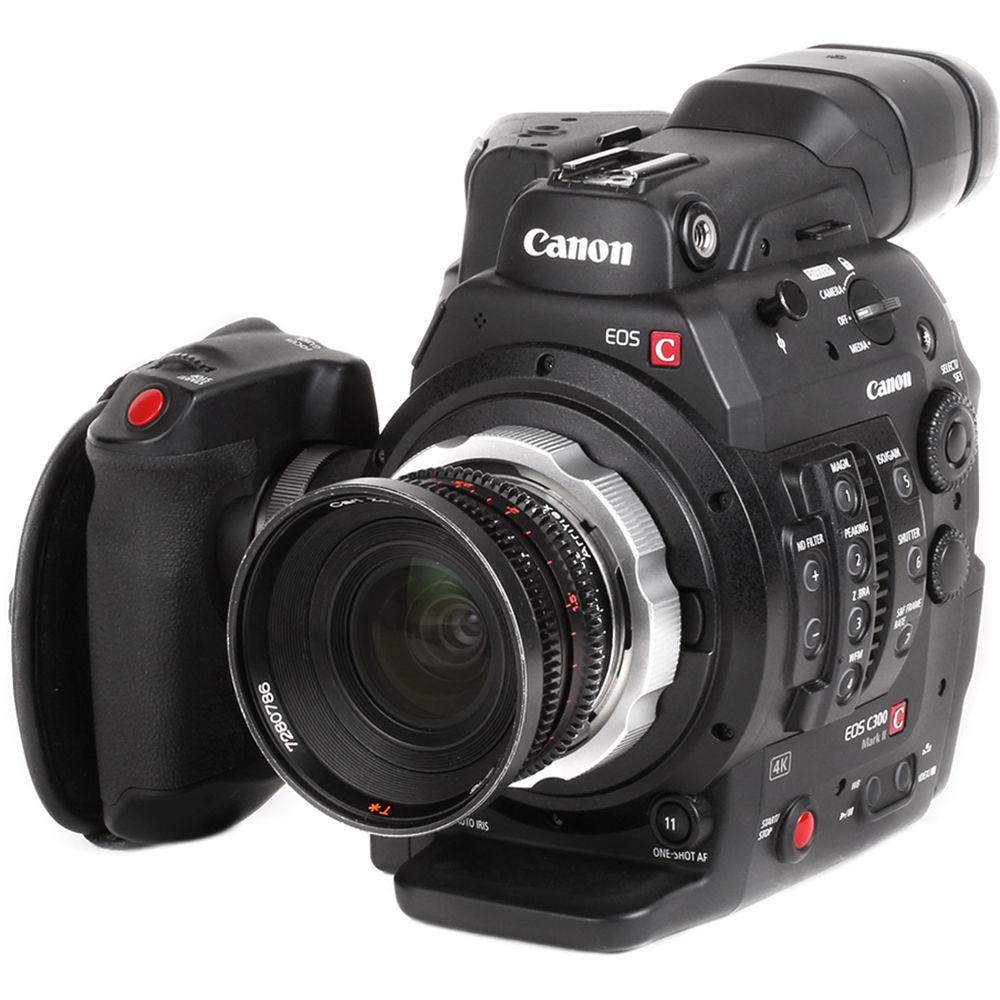

Product description Expand your lens choices to include most cine-style PL lenses by replacing your Canon EOS C300 Mk II camera's EF lens mount with the Wooden Camera PL Modification Kit. The kit includes a set of seven shims for aligning the back focus, along with all necessary tools and hardware.The durable PL mount is constructed from aluminum and includes a PL port cap for keeping dust from drifting into your camera while the lens is removed. This modification is reversible, enabling you to use PL lenses on one project and EF Mount glass on another as you choose.This modification kit is not compatible with the Canon C100, C100 Mk II, C200/200B, C300, C500, or C700. Note: While this modification is compatible with the vast majority of PL lenses, the C300 Mk II camera's ND filter turret prevents the use of lenses with a rear protrusion longer than 1.3" (measured from the PL flange). - Features
-
- Enables the use of cine-style PL lenses with your Canon EOS C300 Mk II camera
- Includes a set of seven shims, all required tools, and a PL port cap
- Sturdy aluminum construction
- Shim Set
-
- Silver: 0.0005"
- Amber: 0.001"
- Purple: 0.0015"
- Red: 0.002"
- Green: 0.003"
- Tan: 0.004"
- Blue: 0.005"
- Non-Compatible Lenses
-
- PL lenses with a rear protrusion longer than 1.3"
- Angenieux Optimo DP Rouge 16-42mm
- Angenieux Optimo DP Rouge 30-80mm

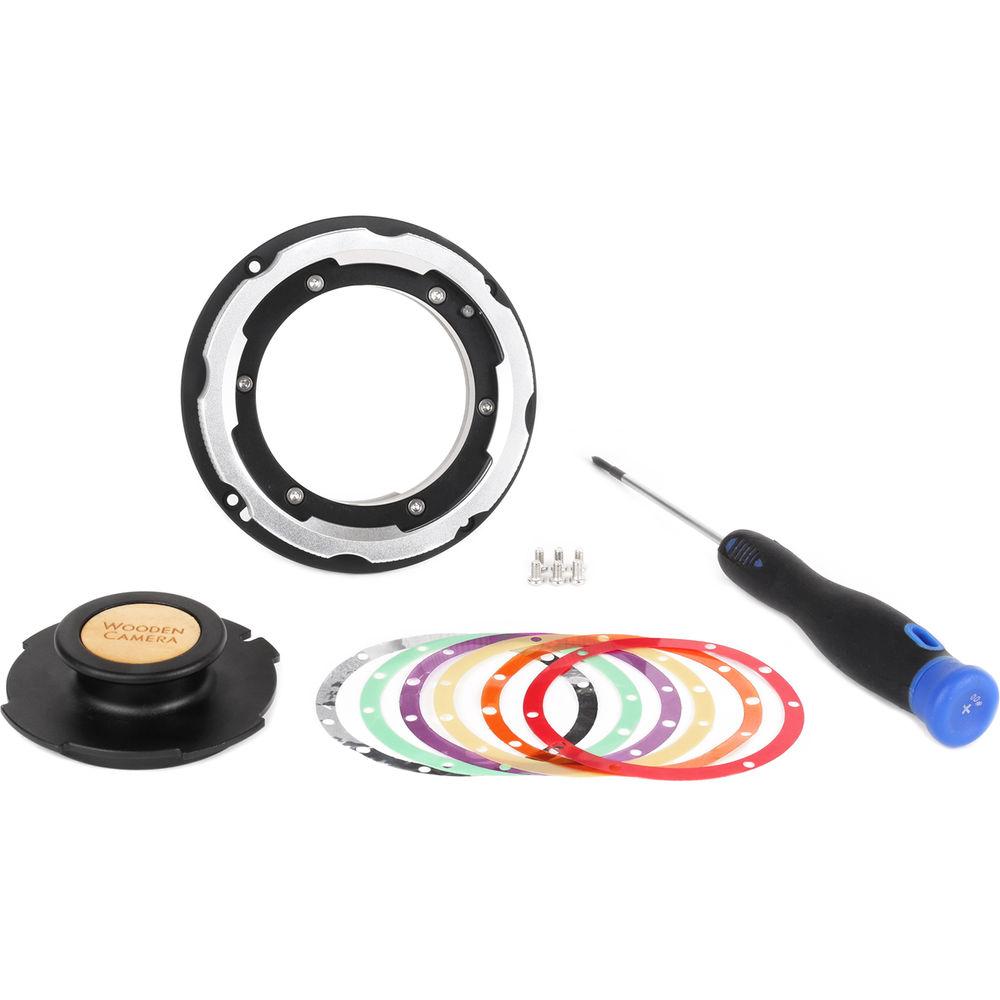

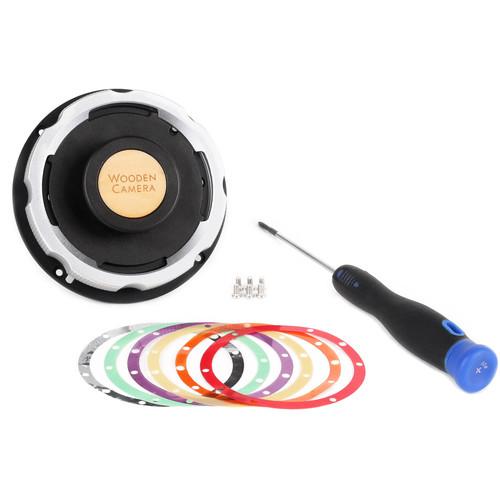

UPC: 606184856725 In the Box Wooden Camera PL Modification Kit (Canon C300 Mk II) 6 x M2.5 Socket Cap Screw 7 x Shim Jeweler's Screwdriver 6 x M2.6 Phillips Screw (Spare Body Screw) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera PL Modification Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 262100 Specs | Material of Construction | Aluminum | | Adapter | Canon EF to ARRI PL | | Shim Thickness | Silver: 0.0005" / 0.0127 mm
Amber: 0.001" / 0.0254 mm
Purple: 0.0015" / 0.0381 mm
Red: 0.002" / 0.0508 mm
Green: 0.003" / 0.0762 mm
Tan: 0.004" / 0.1016 mm
Blue: 0.005" / 0.127 mm | | Dimensions | 3.4 x 3.2 x 1.9" / 85.1 x 81.8 x 48 mm | | Weight | 8.9 oz / 251 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 2.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
