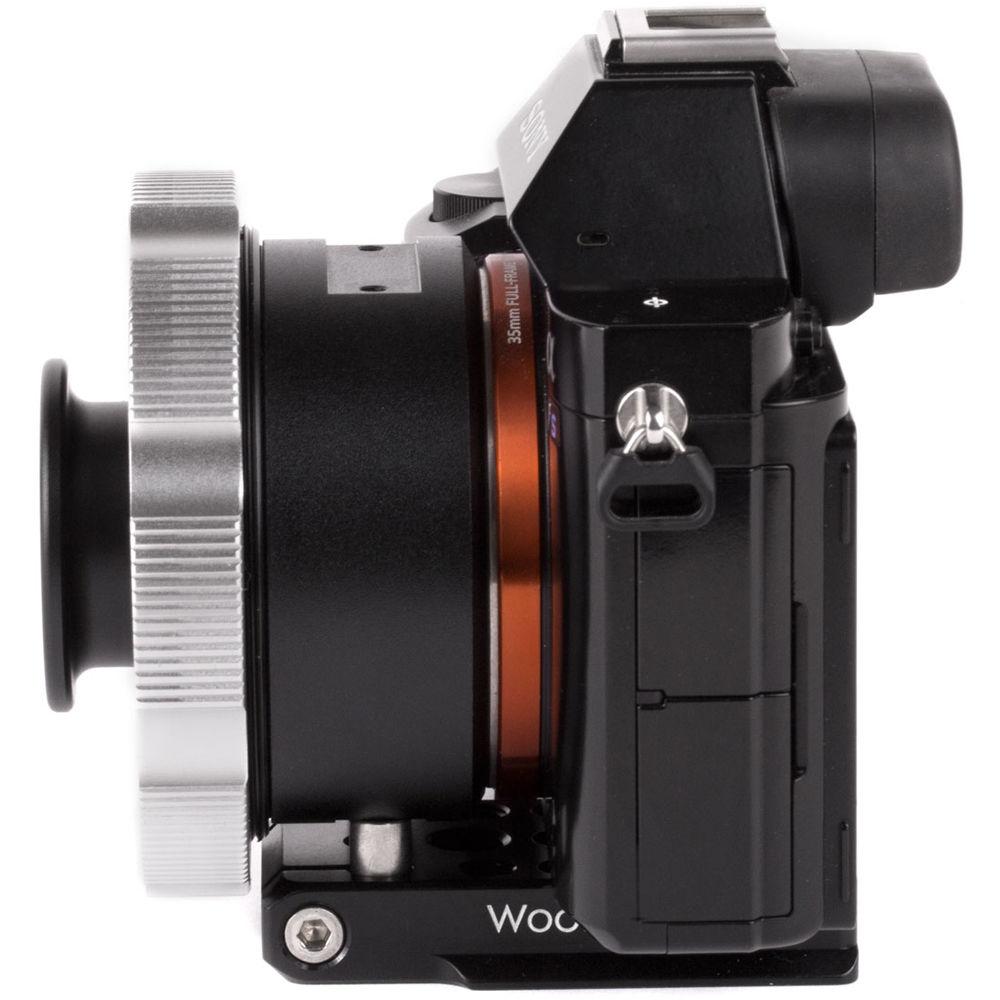

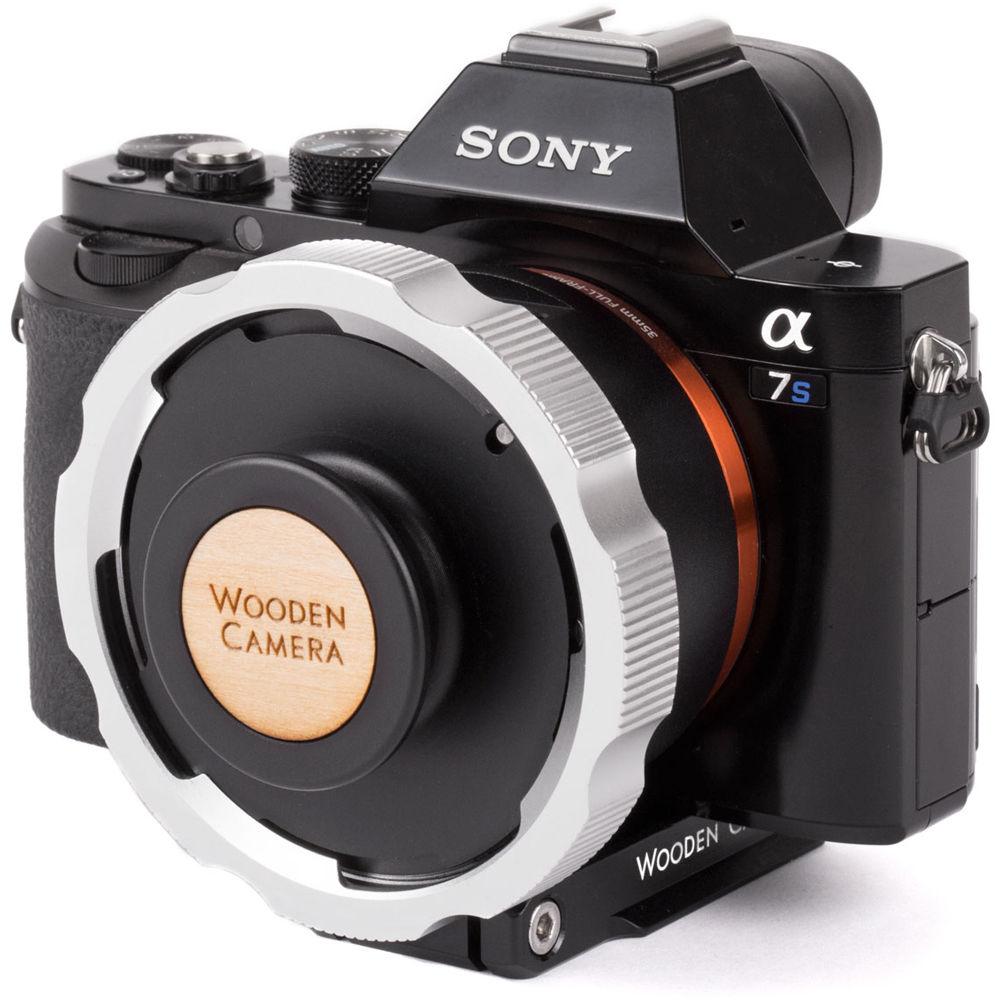

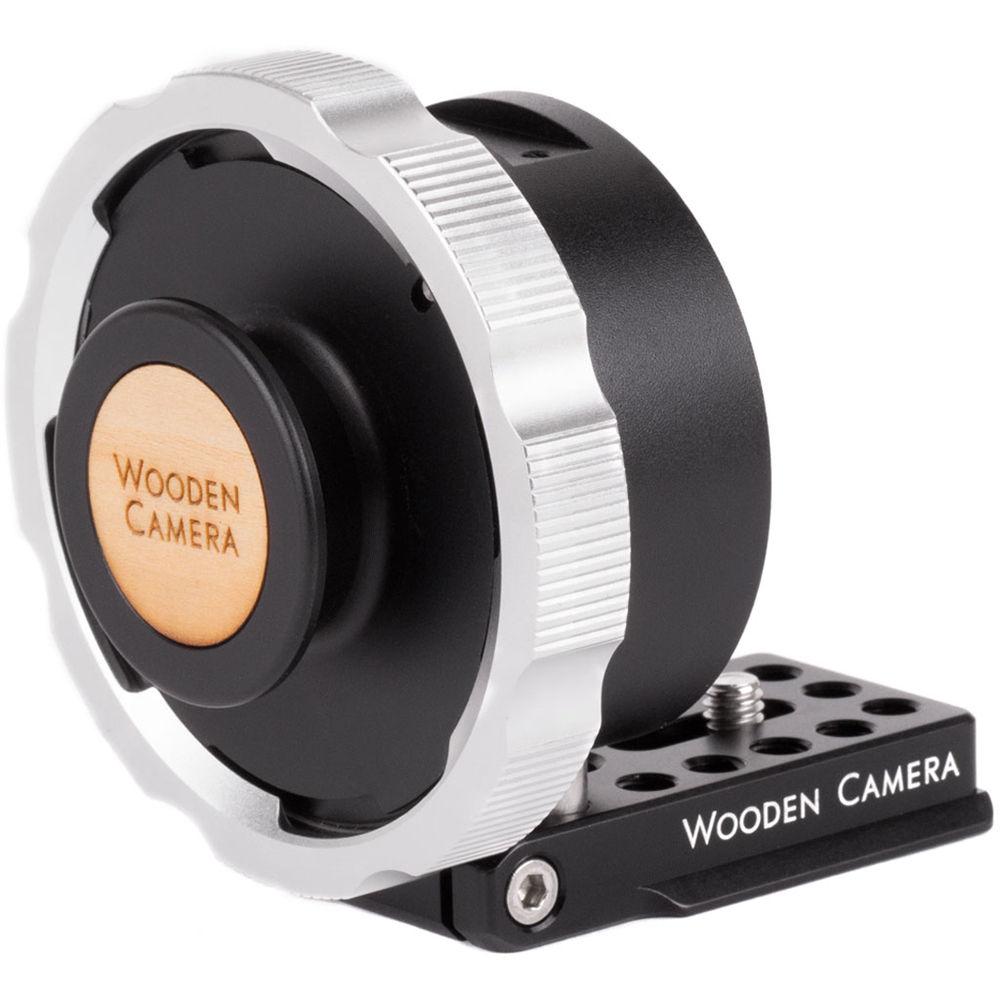

Product description Use this PL to Sony E Mount Pro Adapter from Wooden Camera to adapt the E Mount on your Sony camera to accept cine-style PL lenses. The removable 1/4"-20 support foot serves as a stress relief, transferring the weight of the lens away from the mount and onto your tripod or WC baseplate. The PL to Sony E Mount Pro Adapter features a smaller support foot than the Wooden Camera PL to E Mount adapter intended for the a7 series, and it will work with any Sony E Mount camera. This adapter includes a set of color-coded, stackable shims for adjusting your flange focal distance if your camera is out of calibration. The included PL lens port cap will help keep your camera's sensor dust free when no lens is attached to the mount. Features - This adapter is compatible with any Sony E Mount camera, including the FS5/7/100/700, the Alpha Series, and more.

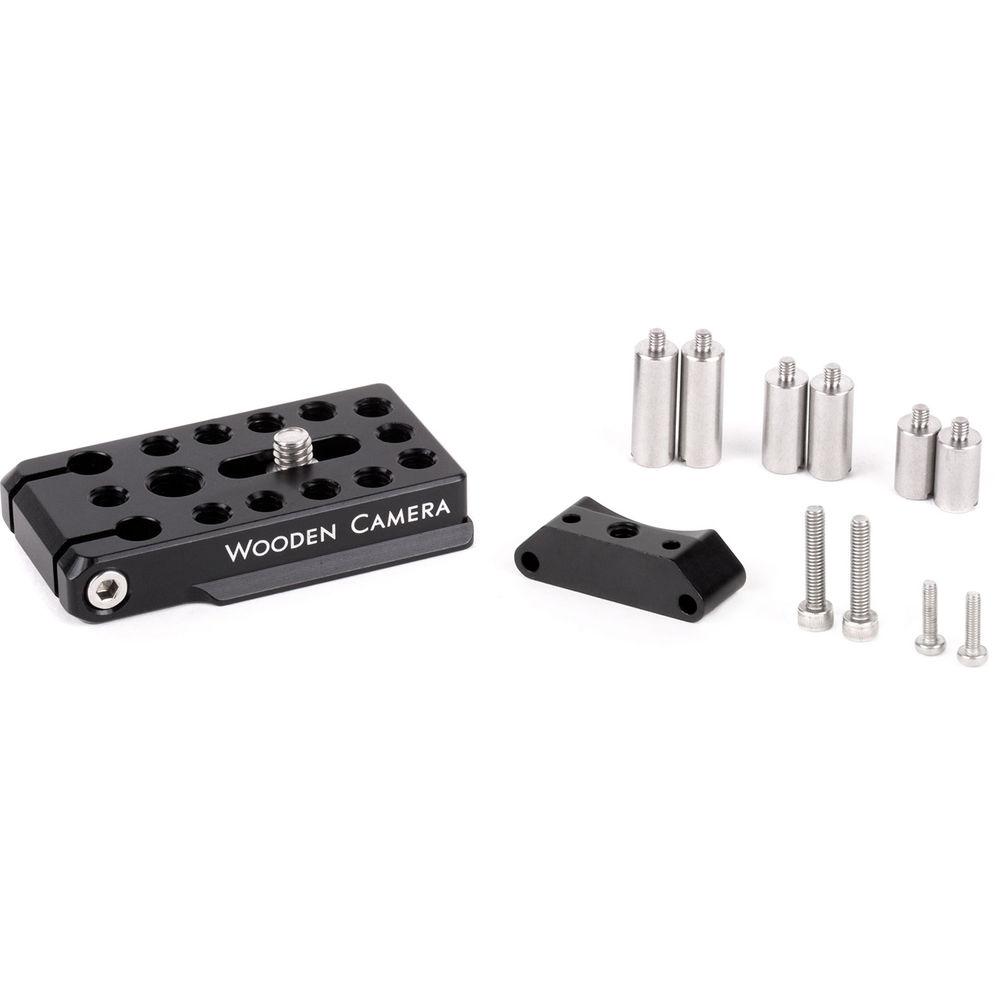

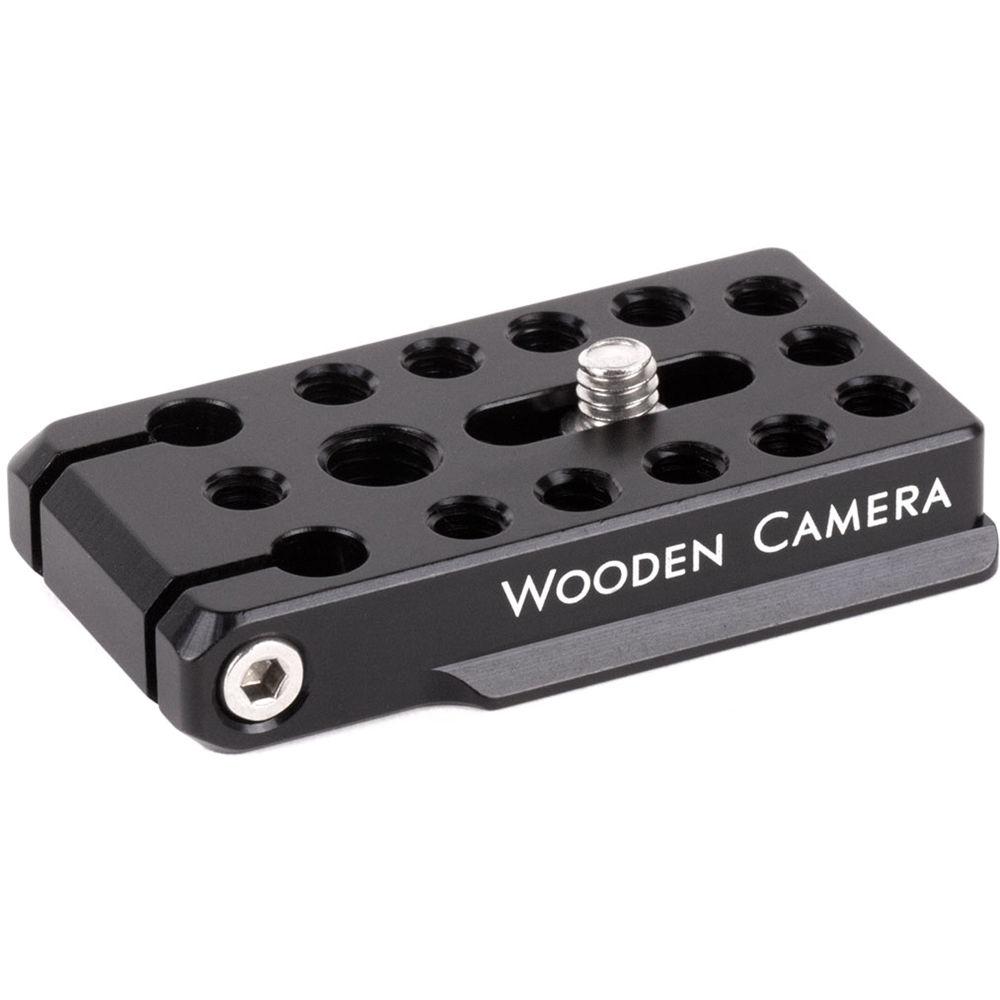

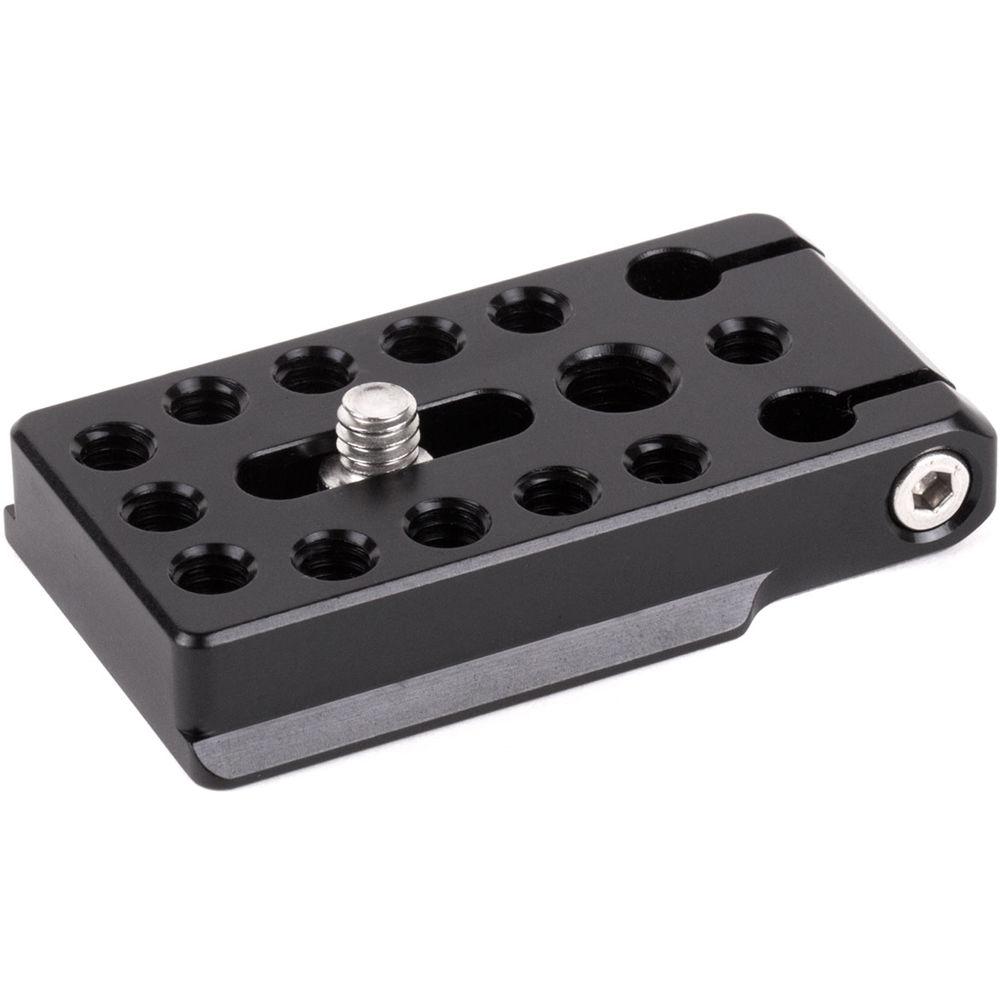

- The removable 1/4"-20 support foot acts as a stress relief and can be attached to a tripod. It may also be connected to the Wooden Camera FS5/FS7 Unified Baseplate using the WC Unified Lens Adapter Support Kit (neither included).
- Should your camera be out of calibration, use the set of seven shims to adjust the flange focus distance, then check the back focus using a collimator or a wide lens set at infinity.

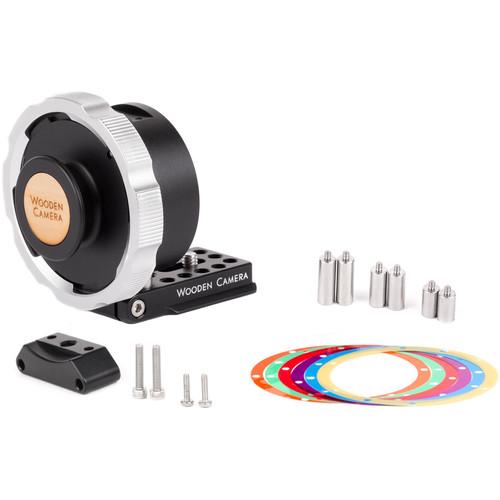

UPC: 606184852611 In the Box Wooden Camera PL to Sony E Mount Pro Adapter 2 x M4x20mm Socket Cap Screws PL Lens Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera PL to Sony E Mount Pro Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 233400 Specs | | | Camera Mount | Sony E | | Lens Mount | PL Mount | | | | Material | Aluminum, Stainless Steel | | Tripod Mounting Thread | 1/4"-20 Female | | Dimensions | H: 3.4 x W: 3.2 x D: 1.9" / H: 85.1 x W: 81.8 x D: 48.0 mm | | Weight | 0.6 lb / 251 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.3 x 5.15 x 2.45" |
