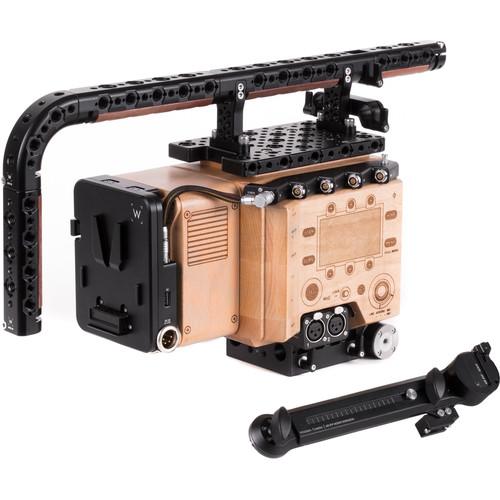

User Manual for Wooden Camera Pro Accessory Kit for Sony VENICE Click to enlarge the picture
Contents of the user manual for the Wooden Camera Pro Accessory Kit for
- Product category: Camcorder Supports & Rigs Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Camcorder Supports & Rigs
|
User manual for the Wooden Camera Pro Accessory Kit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|
Product description Equip your Sony VENICE with the Wooden Camera Pro Accessory Kit to set it up for professional cinema and video production. The top plate has many threaded mounting points of the 1/4"-20, 3/8"-16, and ARRI-standard variety. 15mm LWS accessories can be attached by locking separately available 15mm rods into the Solid Baseplate. Audio can be routed in via the conventional XLR connections on the A-Box, which also supports phantom power from the camera. The Master Top Handle can be reconfigured using the included segments to accommodate the VENICE with or without the external R7 recorder. Attach the AIR EVF Extension Arm for greater flexibility for EVF placement. Lastly, the D-Box has a V-mount for a battery, and a slim power distribution bracket that conveniently rests atop the camera. - Solid Baseplate for Sony VENICE, F55 & F5 Rig up your Sony VENICE, F55, or F5 with this Solid Baseplate from Wooden Camera. Featuring an ARRI-standard rosette on each side, as well as 15mm LWS openings for pass-through rods, this fixed baseplate makes it easy to add accessories such as a lens support, follow focus, or matte box to your setup. There are two rod clamps on each side, so if you prefer you can use two sets of rods, one in the front and one in the back. The Solid Baseplate brings the camera up to the correct lens height when using a separately available ARRI-standard bridge plate such as the 19mm or 15mm Unified Bridgeplate. UPC: 606184855797
- Air EVF Extension Arm for Sony Venice DVF-EL200 EVF The Wooden Camera Air EVF Extension Arm for Sony VENICE DVF-EL200 EVF is a lightweight extension arm that mounts on Wooden Camera's AIR EVF Mount and also on the Sony viewfinder mount. The extension is 10.5" long and features 4" of additional extension, which makes it well suited for shooting when your camera is mounted on a tripod.
The extension slides securely into the Wooden Camera Air EVF mount or the original Sony EVF Mount. Then slide your EVF into the end of the extension. A built-in friction knuckle enables adjusting the angle of the EVF without having to loosen and tighten a thumbscrew. The arm also features an eyepiece leveler attachment point compatible with ARRI or other third-party eyepiece leveler rods. There are no tools required to install, operate, or remove the extension arm. - Compatible with Wooden Camera and Sony EVF mount for Sony VENICE
- Extends from 10.5 to 14.5"
- Enables adjusting the tilt angle of an attached Sony VENICE EVF (not included) without having to loosen or tighten the friction knob to make adjustments
UPC: 606184855810 - Top Plate for Sony Venice
- A-Box (Sony Venice)
- Master Top Handle for ARRI ALEXA Mini/Canon C700
- D-Box for Sony VENICE (V-Mount)
In the Box Bundle Items Top Plate for Sony Venice fyfcrebauutqxvywfrxa Solid Baseplate for Sony VENICE, F55 & F5 A-Box (Sony Venice) fyfcrebauutqxvywfrxa Master Top Handle for ARRI ALEXA Mini/Canon C700 Air EVF Extension Arm for Sony Venice DVF-EL200 EVF D-Box for Sony VENICE (V-Mount) Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Pro Accessory Kit for Sony VENICE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Top Plate for Sony Venice
| | | Box Dimensions (LxWxH) | 7.0 x 4.4 x 0.85" | - Solid Baseplate for Sony VENICE, F55 & F5
| Compatibility | Sony VENICE, F55, and F5 | | Rod Compatibility | LWS 15 mm | | Rosettes | 2 x ARRI-Standard Rosettes | | Dimensions | 4.75 x 4.75 x 1.25" / 119.4 x 119.4 x 31.8 mm | | Weight | 0.9 lb / 410 g | | | | Box Dimensions (LxWxH) | 5.1 x 5.0 x 1.5" | - A-Box (Sony Venice)
| | | Box Dimensions (LxWxH) | 5.0 x 3.0 x 1.5" | - Master Top Handle for ARRI ALEXA Mini/Canon C700
| | | Box Dimensions (LxWxH) | 6.9 x 4.2 x 2.6" | - Air EVF Extension Arm for Sony Venice DVF-EL200 EVF
| Dimensions | 10.5 x 1.5 x 2.5" / 26.67 x 3.81 x 6.35 cm | | Weight | 7.13 oz / 202 g | | | | Box Dimensions (LxWxH) | 10.4 x 2.5 x 1.2" | - D-Box for Sony VENICE (V-Mount)
| | | Box Dimensions (LxWxH) | 8.8 x 6.4 x 4.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
