User Manual for Wooden Camera Pro Lens Mount Adapter for ARRI PL-Mount Lens to FUJIFILM X-Mount Camera Click to enlarge the picture
Contents of the user manual for the Wooden Camera Pro Lens Mount Adapter
- Product category: Lens Mount Adapters Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Lens Mount Adapters
 |
User manual for the Wooden Camera Pro Lens Mount Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

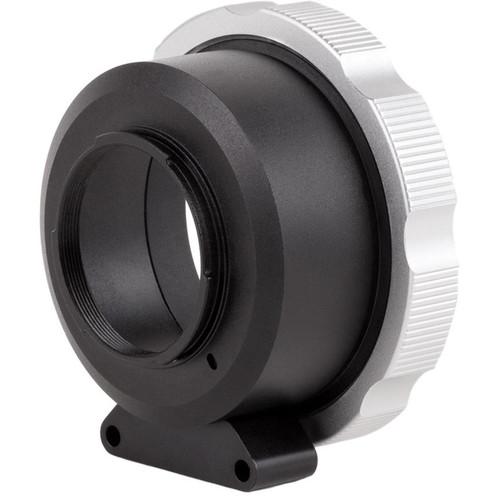

Product description This Wooden Camera Pro Lens Mount Adapter allows an ARRI PL-mount lens to be coupled with a FUJIFILM X-mount camera. It is designed to enable focusing to infinity and is constructed from aluminum alloy to provide a durable, yet lightweight camera-to-lens connection. An included Wooden Camera Lens Mount Shim Set provides the ability to adjust the flange focal distance of an attached camera and lens, helping to ensure that video or images are sharply rendered when using this lens mount adapter.

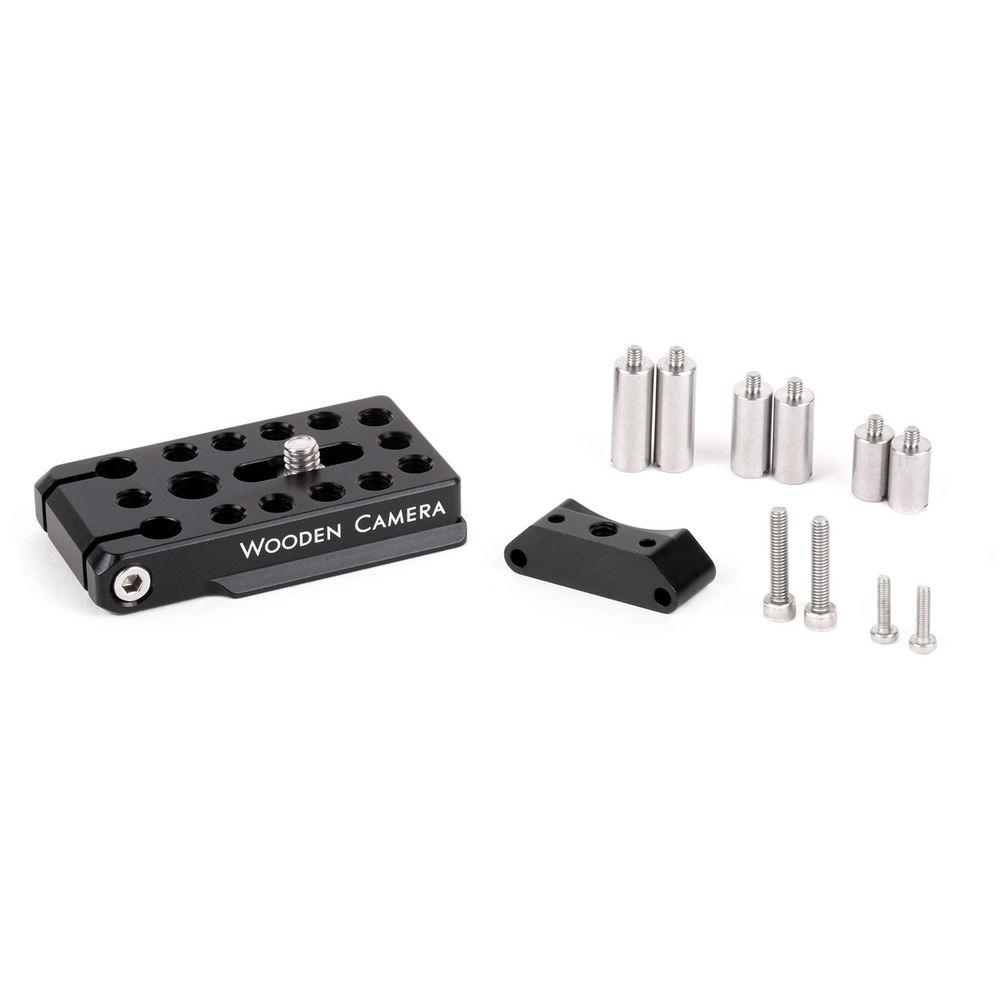

To help prevent stress on the camera mount, this Pro Lens Mount Adapter also includes a Wooden Camera Lens Adapter Universal Support Foot as well as a Wooden Camera Lens Adapter Foot. The Lens Adapter Universal Support Foot features a 1/4"-20 camera mount, twelve 1/4"-20 accessory threads throughout its surface as well as a 3/8"-16 accessory thread, plus three pairs of extension posts to fasten the lens mount adapter while aligning it to the camera mount. For attachment to tripods or quick release plates with 1/4"-20 mounts, the Lens Adapter Foot is tapped with a 1/4"-20 accessory thread. The Lens Adapter Foot is also tapped with holes to accommodate its included Phillips screws and socket cap screws that together, can also allow it to connect an attached lens mount adapter to select video support rigs. -
- Allows an ARRI PL-mount lens to be used with a FUJIFILM X-mount camera
- Attached lens can focus to infinity
- Aluminum-alloy construction provides a lightweight camera-to-lens connection
- Lens Mount Shim Set provides the ability to adjust the flange focal distance of an attached camera and lens to help ensure that video or images are sharply rendered
- Lens Adapter Universal Support Foot or Lens Adapter Foot to help prevent stress on the camera mount if the supported camera and lens combination is to be placed on video support rig or tripod
- Screwdrivers for installation or removal of shims, Lens Adapter Universal Support Foot, or Lens Adapter Foot
- PL Mount Cap to protect the interior of a camera when the adapter is mounted on it without a lens

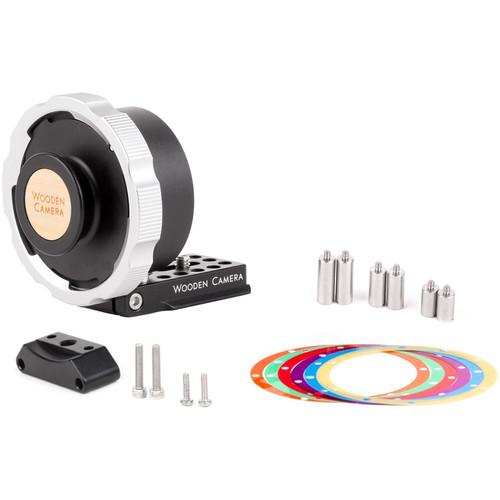

UPC: 606184857661 In the Box Wooden Camera Pro Lens Mount Adapter for ARRI PL-Mount Lens to FUJIFILM X-Mount Camera 2 x Screwdrivers PL Mount Cap Lens Adapter Universal Support Foot Lens Adapter Foot for Pocket Cage Lens Mount Shim Set (Round) urxedyfwy Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Pro Lens Mount Adapter for ARRI PL-Mount Lens to FUJIFILM X-Mount Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 268900 Specs | | | Camera Mount | Fujifilm X | | Lens Mount | ARRI PL | | | | Material | Aluminum | | Dimensions | H: 3.4 x W: 3.2 x D: 1.9" / H: 85.1 x W: 81.8 x D: 48.0 mm | | Weight | 8.85 oz / 251 g | | | | Package Weight | 0.695 lb | | Box Dimensions (LxWxH) | 5.3 x 4.6 x 2.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
