User Manual for Wooden Camera Quick Cage for ARRI Alexa Mini with 15mm Lightweight Baseplate Click to enlarge the picture
Contents of the user manual for the Wooden Camera Quick Cage for ARRI
- Product category: Camcorder Supports & Rigs Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Camcorder Supports & Rigs
|
User manual for the Wooden Camera Quick Cage for ARRI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

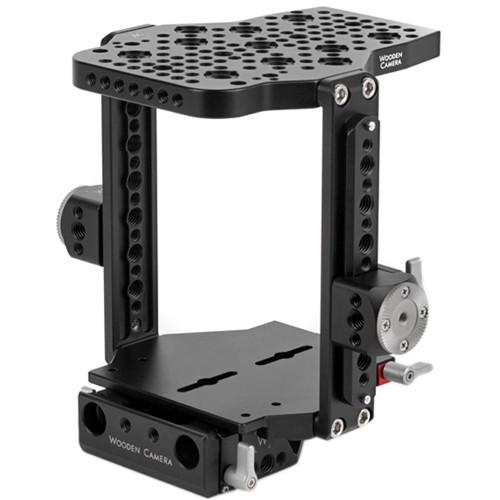

Product description The Wooden Camera Quick Cage is a form-fitting cage for the ARRI Alexa Mini. It attaches to the camera with the help of four M4 screws on top and four M4 screws on the bottom, making it extremely secure. The M4 hole pattern found on the camera body is present on the cage top plate. This allows for attachment of ARRI brand handles and accessories. Arrays of 1/4-20 holes in standard spacing and multiple 3/8"-16 holes are available for large accessories. In addition, 3/8"-16 holes with adjacent locating pins are available for ARRI accessories in several places.The cage side pieces feature NATO standard accessory rails with spring-loaded safety pins on each end to prevent accidental removal. The NATO rails also feature 1/4"-20 and 3/8"-16 holes. Clamped to the side rails are two NATO rosettes (ARRI) that adapt an ARRI standard rosette to quick-release NATO rail.The included 15mm lightweight baseplate can attach to any tripod plate or ARRI standard bridgeplate. When studio rods are not needed, a dovetail clamp (such as the WC Quick Dovetail) can be added instead to interface with ARRI dovetails or shoulder rigs. The WC 15mm LW Rod Clamp (sold separately) can be attached to the rear of the Quick Dovetail for independent rear rod support. UPC: 702534254156 In the Box Wooden Camera Quick Cage for ARRI Alexa Mini with 15mm Lightweight Baseplate Top Plate 2 x NATO Rail QR Plate Baseplate 2 x ARRI Rosette 4 x M4x8mm Socket Low Head 4 x M4x14mm Socket Cap 8 x 1/4"-20 x 1/2 Socket Cap M2.5 Allen Wrench M3 Allen Wrench 3/16" Allen Wrench Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Quick Cage for ARRI Alexa Mini with 15mm Lightweight Baseplate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 207200 Specs | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 8.8 x 6.4 x 2.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
