User Manual for Wooden Camera Quick Kit for Blackmagic Cinema Camera Click to enlarge the picture
Contents of the user manual for the Wooden Camera Quick Kit for Blackmagic
- Product category: Camcorder Supports & Rigs Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Camcorder Supports & Rigs
|
User manual for the Wooden Camera Quick Kit for Blackmagic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

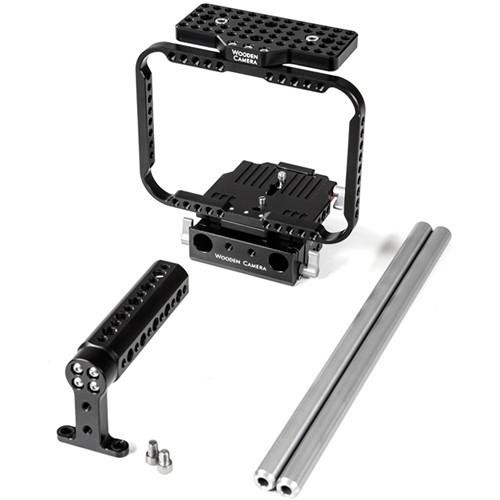

Product description The Wooden Camera Quick Kit for Blackmagic Cinema Camera includes a 15mm rod mount baseplate/cage assembly, a top handle, and pair of 12" 15mm rods. The baseplate/cage is a single unit, featuring 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's compatible with standard tripod plates and ARRI standard bridgeplates.
The cage lines up to the front of the camera, and a top plate with 1/4"-20 and 3/8"-16 threads positions on top. The top handle features 1/4"-20 and 3/8"-16 threads and a 19mm rod slot on one end. It can be attached positioned forward or backward, allowing you to use an optional 19mm rod in front of the camera or behind it. - Quick Cage for Blackmagic Cinema Camera with 15mm Lightweight Rod Clamp The Wooden Camera Quick Cage with 15mm Lightweight Rod Clamp turns the Blackmagic Cinema Camera into a production-ready tool. It attaches to the camera with the help of 2 screws on the top and 1 locating pin and screw on the bottom, making the setup secure. The sleek and functional design leaves all of the camera's vital features easily accessible, such as the SSD door, LCD touch screen, and input/output ports. The cage frame contours to the body without adding any width. It keeps the controls at your fingertips like the REC button at the right index finger and Focus and Iris at your thumbs.This cage includes a lightweight 15mm support baseplate.
- 1/4-20 holes in standard spacing (9mm center to center)
- 3/8-16 holes in ARRI standard spacing (50mm center to center)
- WC-153900 Top Handle (Cheese) The Wooden Camera WC-153900 Top Handle (Cheese) is used for securely carrying and stabilizing the camera during hand-held shooting. It bolts on to two 1/4-20 holes spaced 1.4" (36mm) apart center. The cheese grip handle bar features an array of 1/4-20 and 3/8-16 holes in standard spacing for accessory mounting. UPC: 610079105713
- 15mm Support Rod (12") This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106123
In the Box Bundle Items Quick Cage for Blackmagic Cinema Camera with 15mm Lightweight Rod Clamp reeazctqvvzdutsf WC-153900 Top Handle (Cheese) 2 x 15mm Support Rod (12")
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Quick Kit for Blackmagic Cinema Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Quick Cage for Blackmagic Cinema Camera with 15mm Lightweight Rod Clamp
| For Use with | Blackmagic Cinema Camera | | Hole Pattern | 1/4"-20 holes in standard spacing (9 mm center to center)
3/8"-16 holes in ARRI standard spacing (50 mm center to center) | | | | Box Dimensions (LxWxH) | 5.7 x 5.5 x 2.2" | - WC-153900 Top Handle (Cheese)
| Dimensions | 4.8 x 2.7 x 1.9" (121.92 x 6.86 x 4.82 mm) | | Weight | 0.4 lb (181.43 g) | | | | Box Dimensions (LxWxH) | 7.7 x 4.35 x 2.3" | - 15mm Support Rod (12")
| Rod Size | 15 mm | | Rod Length | 12" (30.5 cm) | | | | Box Dimensions (LxWxH) | 12.05 x 1.35 x 0.6" |
