User Manual for Wooden Camera Quick Kit for DSLR Click to enlarge the picture
Contents of the user manual for the Wooden Camera Quick Kit for DSLR
- Product category: DSLR Video Supports & Rigs Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera DSLR Video Supports & Rigs
|
User manual for the Wooden Camera Quick Kit for DSLR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

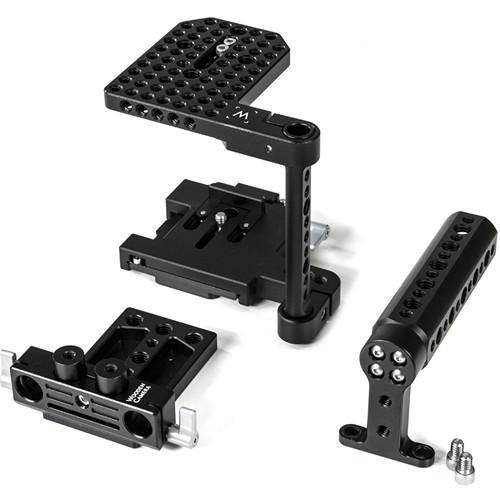

Product description The medium Wooden Camera Quick Kit for DSLR prepares your medium-sized DSLR camera, such as the Canon 5D Mark III and Nikon D810, for video production use by outfitting it with a quick-release and height-adjustable camera cage, 15mm rod support, and top handle. The camera cage features a minimalist design that maintains access to all vital controls on sides and rear of the camera, including flip-out and articulating LCD screens. Threaded 1/4"-20 and 3/8"-16 holes on the arm and top of the cage enable you to attach a variety of accessories.
The camera cage features a quick-release interface for attachment and removal from the included LWS 15mm rod support base. The base features a quick-release dovetail interface compatible with ARRI standard bride plates, allowing you to quick attach and remove the entire rig, complete with optional 15mm rods and rod-mounted accessories, from a tripod. Also included is a top handle that bolts onto the top of the cage for secure camera carrying and provides additional 1/4"-20 and 3/8"-16 threaded holes. - Quick Cage for DSLR (Medium)
- Product Demo 1
- Product Demo 2
The medium Wooden Camera Quick Cage for DSLR is a quick-release, height-adjustable cage that fits medium-sized DSLR cameras, such as the Canon 5D Mark III, Canon 6D, and Nikon D810. Your camera cage mounts securely in the case via a low profile 1/4"-20 screw on bottom and a shoe pinch on top. Sporting a minimalist design, the cage maintains access to all vital controls on the sides and rear of the camera, including flip-out and articulating LCD screens. Threaded 1/4"-20 and 3/8"-16 holes on the arm and top of the cage enable you to attach a variety of accessories. The cage includes a quick-release dovetail plate to attach to tripod plates, existing 15mm support bases, or any ARRI standard bridge plate. - Key Features
-
- Height-adjustable camera cage for medium-sized DSLRs
- 1/4"-20 and 3/8"-16 accessory threads on top plate and side arm
- 1/4"-20 camera screw and shoe pinch for secure camera mounting
- Maintains access to vital camera controls and rear LCD screen
- Quick-release dovetail plate (compatible with ARRI standard bridge plates)
- DSLR 15mm Base The DSLR 15mm Base from Wooden Camera is a height-adjustable baseplate attachment that provides 15mm lightweight rods at the correct lens height for DSLR cameras when combined with the Quick Cage (DSLR, Small) and Quick Cage (DSLR, Medium). The baseplate can attach to any tripod plate or ARRI standard bridgeplate. Note: Quick Cage (Small and Medium) are sold separately.
- WC-153900 Top Handle (Cheese) The Wooden Camera WC-153900 Top Handle (Cheese) is used for securely carrying and stabilizing the camera during hand-held shooting. It bolts on to two 1/4-20 holes spaced 1.4" (36mm) apart center. The cheese grip handle bar features an array of 1/4-20 and 3/8-16 holes in standard spacing for accessory mounting. UPC: 610079105713
In the Box Bundle Items Quick Cage for DSLR (Medium) reeazctqvvzdutsf - Quick-Release Dovetail Plate
- 1/4"-20 Low Profile Screw
DSLR 15mm Base - 2 x 1/4" to 20 x 1/2" Socket Cap Screw
WC-153900 Top Handle (Cheese) User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Quick Kit for DSLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Quick Cage for DSLR (Medium)
| Accessory Mount Threads | 1/4"-20 holes in standard spacing (9 mm center to center)
3/8"-16 holes in ARRI standard spacing (50 mm center to center) | | Dimensions | 7.6 x 4.8 x 4.4" (19.37 x 12.22 x 11.05 cm) | | Weight | 1.1 lb (484 g) | | | | Box Dimensions (LxWxH) | 8.0 x 4.9 x 0.4" | - DSLR 15mm Base
| | | Box Dimensions (LxWxH) | 4.3 x 4.3 x 1.1" | - WC-153900 Top Handle (Cheese)
| Dimensions | 4.8 x 2.7 x 1.9" (121.92 x 6.86 x 4.82 mm) | | Weight | 0.4 lb (181.43 g) | | | | Box Dimensions (LxWxH) | 7.7 x 4.35 x 2.3" |
