Product description

• Quick Cage for DSLR (Large)
  • Product Demo 1
  • Product Demo 2

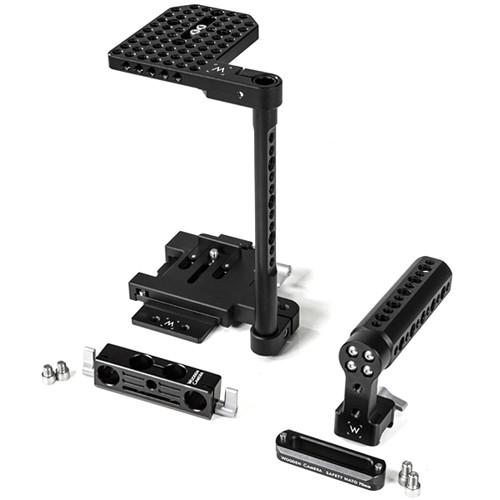

  The large Wooden Camera Quick Cage for DSLR is a quick-release, height-adjustable cage that fits large-sized DSLR cameras, such as the Canon 1D C, Canon 1D X, and Nikon D5, as well as most cameras with battery grips installed. Your camera cage mounts securely in the case via a low profile 1/4"-20 screw on bottom and a shoe pinch on top. Sporting a minimalist design, the cage maintains access to all vital controls on the sides and rear of the camera, including flip-out and articulating LCD screens. Threaded 1/4"-20 and 3/8"-16 holes on the arm and top of the cage enable you to attach a variety of accessories. The cage includes a quick-release dovetail plate to attach to tripod plates, existing 15mm support bases, or any ARRI standard bridge plate.
  Key Features
  • • Height-adjustable camera cage for large-sized DSLRs
    • 1/4"-20 and 3/8"-16 accessory threads on top plate and side arm
    • 1/4"-20 camera screw and shoe pinch for secure camera mounting
    • Maintains access to vital camera controls and rear LCD screen
    • Quick-release dovetail plate (compatible with ARRI standard bridge plates)
• DSLR 15mm Bracket The DSLR 15mm Bracket from Wooden Camera provides 15mm lightweight rods at the correct lens height for larger DSLR cameras when combined with Quick Cage (DSLR, Large). Note: Quick Cage sold separately. UPC: 700987993431
• NATO Handle Kit (Plus, 70mm Rail) This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 2.8" / 70mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.

  The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.

  The NATO rail can be attached to any two 1/4"-20 threads positioned up to 42mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism.
  NATO Quick Release
  • The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.
  Rosette Based Rotating Grip
  • The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.
  Sideways 15mm Rod Clamp
  • The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.
  Front/Rear Rod Openings
  • A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.
  Integrated Cold Shoe
  • A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.
  Accessory Threads
  • 1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.
  Optional Front Rod Clamp
  • Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
  UPC: 700987994629

• Quick-Release Dovetail Plate

• 1/4"-20 Low Profile Screw

• Limited 1-Year Warranty

• 2 x 1/4 to 20 x 1/2 Socket Cap Screw

• Limited 1-Year Warranty

• NATO Handle (Plus)

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Quick Cage for DSLR (Large)

  Accessory Mount Threads	1/4"-20 holes in standard spacing (9 mm center to center) 3/8"-16 holes in ARRI standard spacing (50 mm center to center)
  Dimensions	9 x 6 x 2" (12.86 x 15.24 x 5.08 cm)
  Weight	1.2 lb (538 g)

  Box Dimensions (LxWxH)	7.9 x 3.7 x 1.5"

• DSLR 15mm Bracket

  Box Dimensions (LxWxH)	5.039 x 3.858 x 0.709"

• NATO Handle Kit (Plus, 70mm Rail)

  NATO Rail Length	2.8" / 70 mm
  Rail Mounting Distance	Up to 1.7" / 42 mm apart

  Box Dimensions (LxWxH)	7.75 x 4.3 x 2.25"
