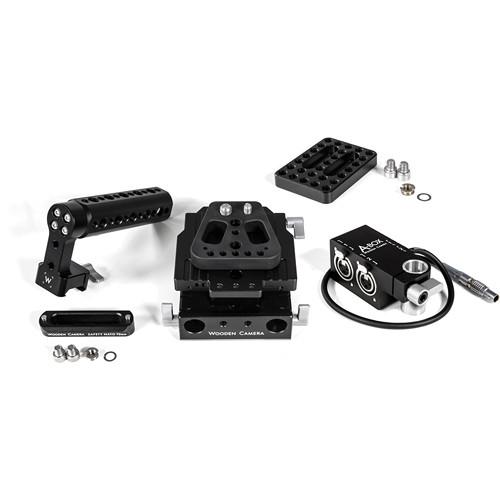

Product description The Wooden Camera Quick Kit for Ikonoskop A-Cam dll Camera features a quick-release baseplate for the Ikonoskop A-Cam dll Camera that provides 15mm LWS rod support at the correct lens height. This kit also includes a top plate with arrays of 1/4"-20 and 3/8"-16 holes in standard spacing, which is useful for attaching EVF mounts, handles, external monitors, and other accessories. A top handle is included as well, which attaches to the top plate via a NATO nail and adds additional accessory threads in addition to a sideways 15mm rod clamp, a front 15mm rod opening, and a rear 19mm rod opening. Rounding out the kit is an A-Box that adapts the 1/4" inputs at a right angle to two industry standard, balanced XLR inputs. The A-Box mounts on a 19mm rod or a 15mm when using an included 15mm adapter bushing.
Please see the links below for more information on the components of this kit. - Quick Base For Ikonoskop A-Cam dII Camera The Quick Base from Wooden Camera is designed for the Ikonoskop A-Cam dII Camera and provides lightweight 15mm passthrough rods. The baseplate can attach to any tripod plate or ARRI standard bridgeplate such as Bridgeplate (19mm) or Bridgeplate (15mm Studio). When rods are not needed, a Dovetail Clamp (sold separately) can be added instead to interface with 2060 Dovetails, Safety Dovetails, or Shoulder Rigs.
An additional Rod Clamp (15mm LW) (sold separately) can be attached to the rear of the Quick Dovetail for independent rear rod support.
To quick release out of dovetail/baseplate, simply turn thumbscrew and depress pin, move the camera towards the rear, and remove. - 1/4"-20 and 3/8"-16 holes for attaching accessories
- Quick-release slot based on ARRI standard dovetail
- 1/4"-20 and 3/8"-16 holes on bottom for attaching to tripod or bridgeplate
- Top Plate Kit for Ikonoskop Cameras The Top Plate Kit for Ikonoskop Cameras from Wooden Camera includes the Easy Plate and a special thread adapter. The adapter is inserted into the 3/8"-16 hole on the dII Camera's top and the two 1/4"-20 screws are used to seamlessly attach the Easy Plate to the camera.
The Easy Plate features 1/4"-20 mounting holes in standard spacing (0.35” / 9mm center to center). UPC: 700987993561 - NATO Handle Kit for Ikonoskop A-Cam dII The NATO Handle Kit from Wooden Camera is designed for quick release attaching and detaching on the Ikonoskop A-Cam dII camera without screws. To attach, depress pin, slide onto Safety NATO Rail, and tighten thumbscrew.
- Cheese grip with 19mm opening at rear
- Arrays of 1/4"-20 and 3/8"-16 holes provide mounting points for additional accessories
- A-Box Adapter Box for Ikonoscope Camera The Wooden Camera A-Box Adapter Box for Ikonoscope Camera features high-quality professional grade connectors and adapts one 5-pin Lemo connector to 2 balanced, 3-pin XLR female connectors.
- Comes with a bolt on a 19mm rod for attaching to any 3/8-16 threaded hole
- Rod hole is natively 19mm
UPC: 700987993271 In the Box Bundle Items Quick Base For Ikonoskop A-Cam dII Camera xfrbfwsevsvwxubufwcerzdqssswfxseyr - 2 x 1/4"-20 Low Profile Screw
- 2 x 3/8"-16 Low Profile Screw
- 1/4"-20 x 1/2" Socket Cap Screw
- 3/8"-16 x 1/2" Socket Cap Low Head Screw
Top Plate Kit for Ikonoskop Cameras - 3/8"-16 to 1/4"-20 Thread Adapter
NATO Handle Kit for Ikonoskop A-Cam dII xfrbfwsevsvwxubufwcerzdqssswfxseyr - 3/8"-16 to 1/4"-20 Thread Adapter
- 148800 NATO Handle (Cheese)
- WC-151300 Safety NATO Accessory Rail (70mm)
A-Box Adapter Box for Ikonoscope Camera xfrbfwsevsvwxubufwcerzdqssswfxseyr - WC-144900 19mm Bolt-On Rod
Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Quick Kit for Ikonoskop A-Cam dll Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - NATO Handle Kit for Ikonoskop A-Cam dII
| Dimensions | 4.8 x 4.0 x 3.2" (121.9 x 101.6 x 81.2 mm) | | Weight | 0.5 lb (0.2 kg) | - A-Box Adapter Box for Ikonoscope Camera
| Dimensions | 3.80 x 1.40 x 1.50" (96.52 x 35.56 x 38.10 mm) | | Weight | 0.50 lb (0.22 kg) | - Quick Base For Ikonoskop A-Cam dII Camera
- Top Plate Kit for Ikonoskop Cameras
