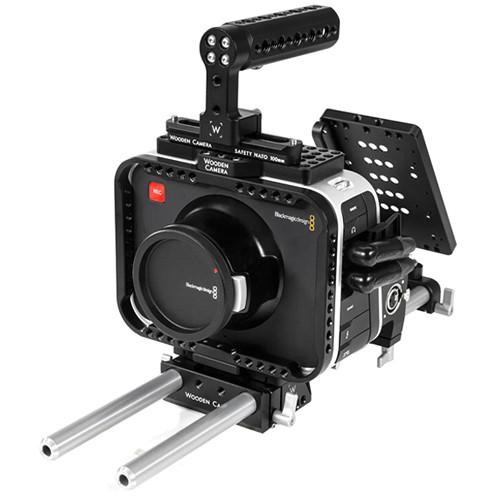

Product description The Wooden Camera Quick Kit Pro for Blackmagic Cinema Camera includes a quick-release cage for the Blackmagic Cinema Cameras that provides pass-through 15mm LWS rod support at the correct lens height. The cage baseplate can attach to any tripod plate or ARRI standard bridge plate and features an array of 1/4"-20 and 3/8"-16 threaded holes in standard spacing for attaching optional accessories such as EVF mounts, handles, external monitors, and more. A top handle kit is also included, which includes a quick release handle that attaches to the top of the cage via a NATO rail and adds additional accessory threads and a 19mm rod opening. A pair of 15"-long 15mm rods are provided that insert into the base of the case to support a follow focus, matte box, or other optional accessories.

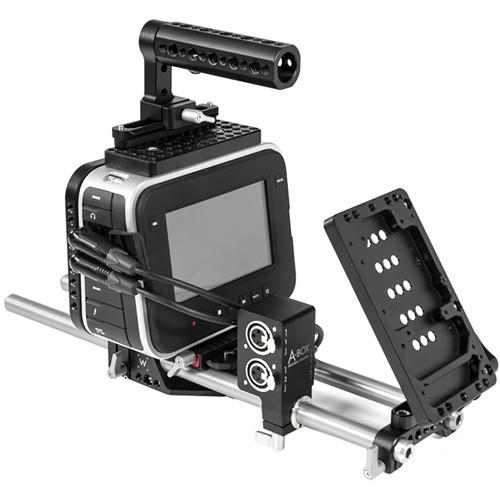

An included Battery Slide and 15mm LWS rod clamp combine to allow you to attach a V-Mount or Gold Mount battery plate to the 15mm support rods. An A-Box adapts the 1/4" inputs at a right angle to two industry standard, balanced XLR inputs. By default, the A-Box mounts onto a 19mm rod, but a 15mm adapter bushing is provided for use on 15mm support rods.
Please see the links below for more information on the components of this kit. - Quick Cage for Blackmagic Cinema Camera with 15mm Lightweight Rod Clamp The Wooden Camera Quick Cage with 15mm Lightweight Rod Clamp turns the Blackmagic Cinema Camera into a production-ready tool. It attaches to the camera with the help of 2 screws on the top and 1 locating pin and screw on the bottom, making the setup secure. The sleek and functional design leaves all of the camera's vital features easily accessible, such as the SSD door, LCD touch screen, and input/output ports. The cage frame contours to the body without adding any width. It keeps the controls at your fingertips like the REC button at the right index finger and Focus and Iris at your thumbs.This cage includes a lightweight 15mm support baseplate.
- 1/4-20 holes in standard spacing (9mm center to center)
- 3/8-16 holes in ARRI standard spacing (50mm center to center)
- NATO Handle Kit with Cheese Handle The Wooden Camera NATO Handle Kit with Cheese Handle is a quick release handle system that can be attached to anything that has on it two 1/4"-20 screw-holes spaced between 0 and 72mm apart. A 100mm long rail is the base of the system and is what attaches to the screw holes, and the handle dovetails onto rail. The rail can at all times stay where it's attached and the handle slipped on and off as needed. The handle features numerous 1/4" and 3/8" screw-holes in case you want to attach any accessory, like a Noga arm.
70mm and 150mm rails are separately available. UPC: 610079106024 - Battery Slide The Battery Slide from Wooden Camera is an adjustable mounting system for V-Mount, Gold Mount, QRC Gold Mount, and RED/BLUESHAPE battery plates. Multiple rows of pass-through holes allow the attachment of rod clamps, cheese plates, and other accessories.
In order to adjust the plate's position, the user only needs to apply firm pressure to tilt it into place. Sliding the plate into position is facilitated by an adjustable thumbscrew. Both these movements make the plate ideal for adjusting counterbalance and transitioning from studio to handheld position. UPC: 610079106451 - A-Box BMC-RA for Blackmagic Cinema Camera (Right-Angle 1/4" Connectors) Made specifically for the Blackmagic Cinema Camera, this Wooden Camera A-Box allows you to adapt two balanced XLR male connectors to the camera via two right-angle 1/4" balanced female connectors. It comes with a 1.5", bolt-on 19mm rod that has a threaded hole allowing attachment to 1/4"-20 threaded mounting holes. Note: This right-angle connector version will not work with the Wooden Camera BMC Cage. Please see the A-Box BMC model in such case. UPC: 700987993592
- 15mm Adapter Bushing The Wooden Camera 15mm Adapter Bushing allows you to adapt 19mm accessories to 15mm rod standards. UPC: 610079104990

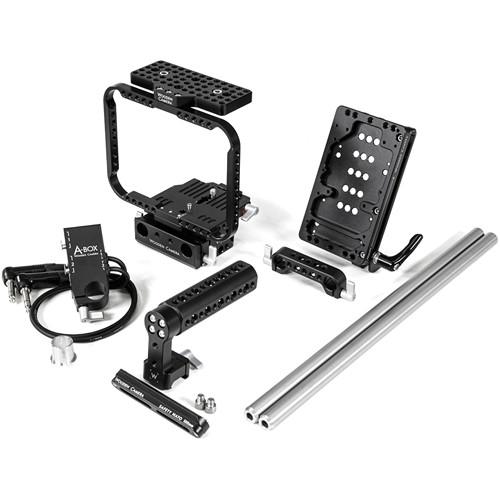

In the Box Bundle Items Quick Cage for Blackmagic Cinema Camera with 15mm Lightweight Rod Clamp astxctacsrdvffstvvxfvfrdzazttcruvxvwa NATO Handle Kit with Cheese Handle - 148800 NATO Handle (Cheese)
- WC-151400 Safety NATO Accessory Rail (100mm)
Battery Slide astxctacsrdvffstvvxfvfrdzazttcruvxvwa - 2 x 1/4"-20 x 1/4" Socket Cap Screw
- 6 x M3 x 14mm Pan Head Screws
- 4 x M3 x 12mm Pan Head Screws
- 4 x M3 x 8mm Pan Head Screws
- 4 x M3 x 8mm Phillips Flat Head Screws
A-Box BMC-RA for Blackmagic Cinema Camera (Right-Angle 1/4" Connectors) astxctacsrdvffstvvxfvfrdzazttcruvxvwa - WC-144900 19mm Bolt-On Rod
15mm Adapter Bushing
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Quick Kit Pro for Blackmagic Cinema Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Quick Cage for Blackmagic Cinema Camera with 15mm Lightweight Rod Clamp
| For Use with | Blackmagic Cinema Camera | | Hole Pattern | 1/4"-20 holes in standard spacing (9 mm center to center)
3/8"-16 holes in ARRI standard spacing (50 mm center to center) | | | | Box Dimensions (LxWxH) | 5.7 x 5.5 x 2.2" | - NATO Handle Kit with Cheese Handle
| Dimensions | 4.8 x 4 x 3.2" / 12 x 10 x 8 cm | | Weight | .5 lbs / .22 kg | | | | Box Dimensions (LxWxH) | 6.0 x 3.0 x 1.0" | - Battery Slide
| Dimensions | 6.0 x 4.5 x 1.8" (152.4 x 114.3 x 45.7 mm) | | Weight | 8 oz (226.8 g) | | | | Box Dimensions (LxWxH) | 8.7 x 6.4 x 2.3" | - A-Box BMC-RA for Blackmagic Cinema Camera (Right-Angle 1/4" Connectors)
| Dimensions | A-Box: 3.9 x 1.6 x 1.5" (9.8 x 4 x 3.8 cm)
19 mm Bolt-On Rod: 1.5" (3.8 cm) | | Weight | Approx. 10 oz (approx. 280 g) | | | | Box Dimensions (LxWxH) | 6.7 x 4.3 x 3.1" | - 15mm Adapter Bushing
| Dimensions | 0.764 x 0.913 x 0.913" (19.4 x 23.2 x 23.2 mm) | | Weight | 0.25 oz (7 g) | | | | Box Dimensions (LxWxH) | 4.0 x 3.0 x 2.0" |
