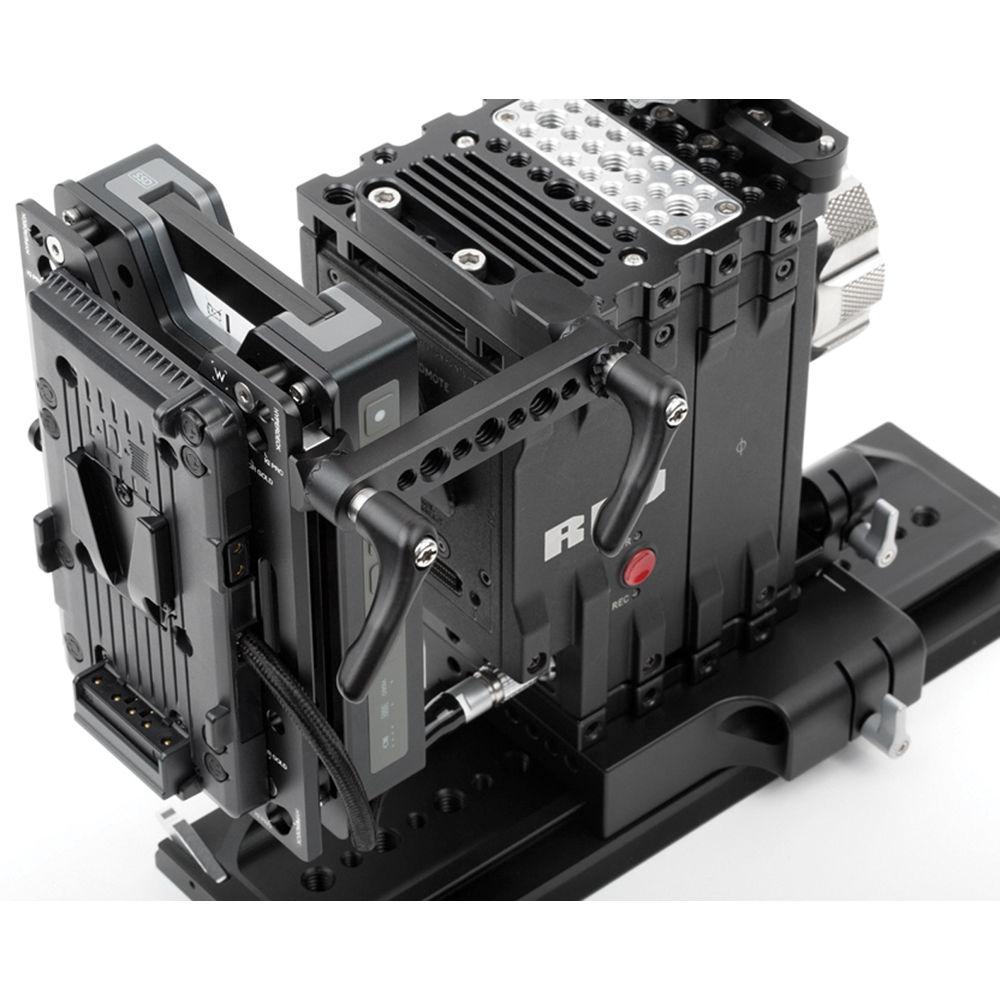

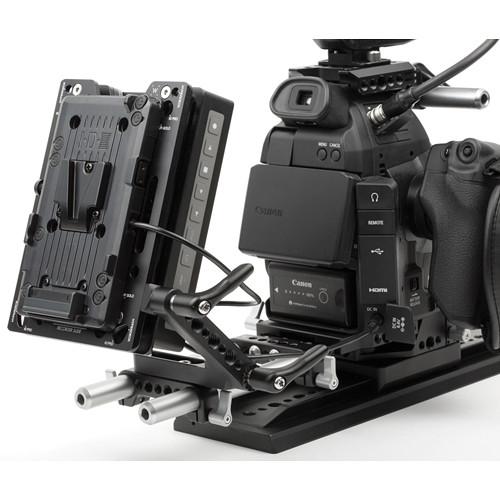

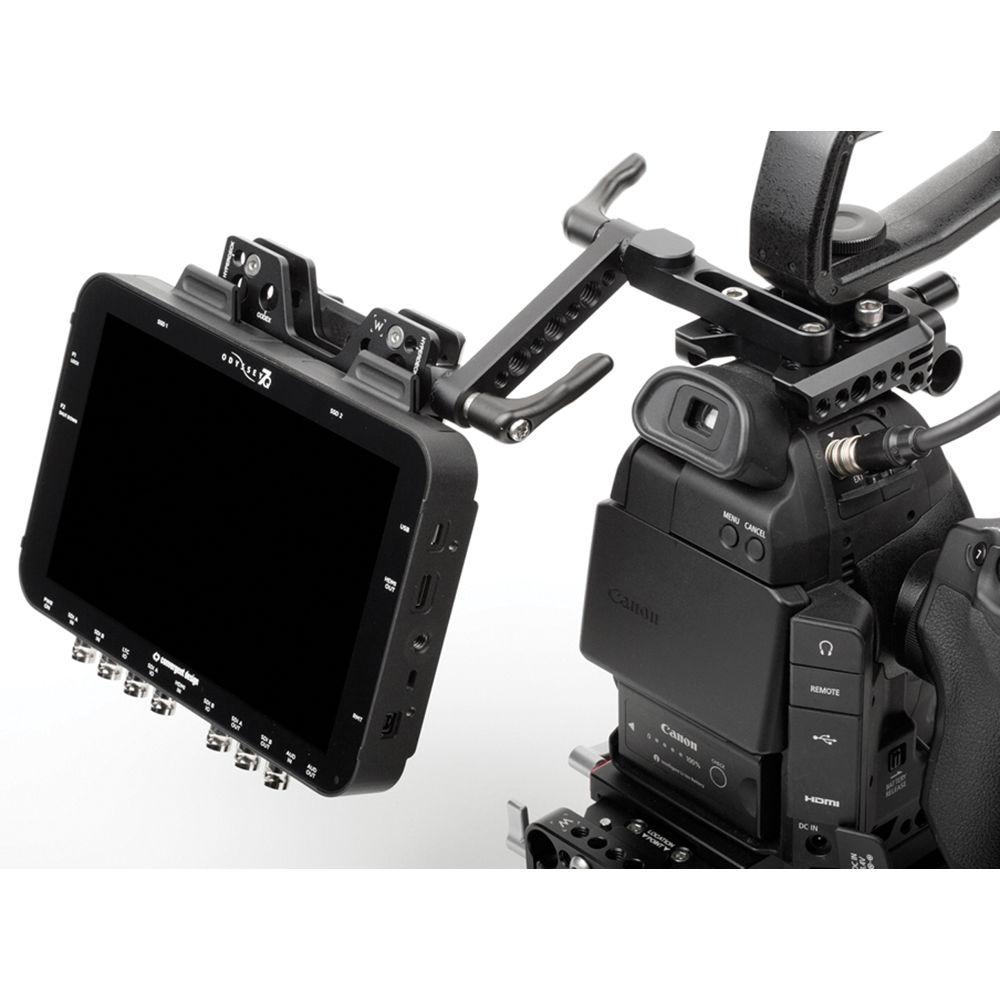

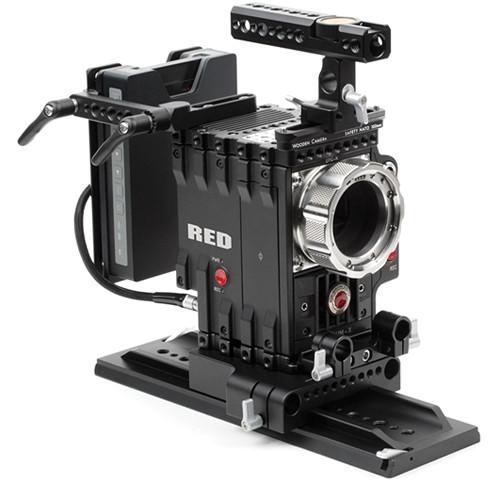

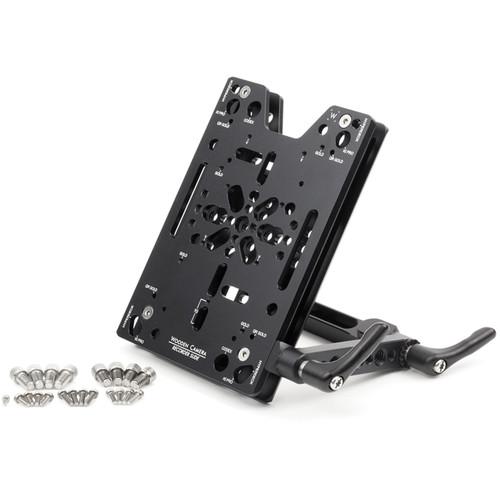

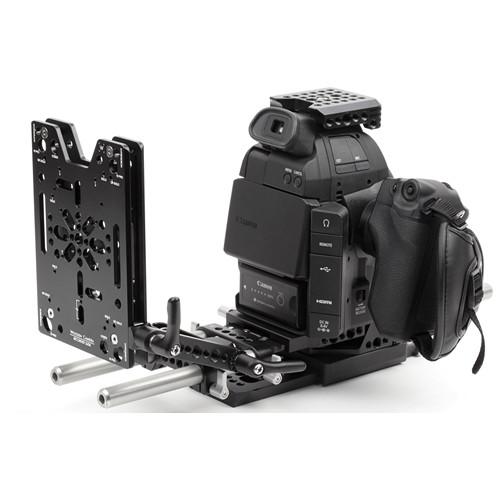

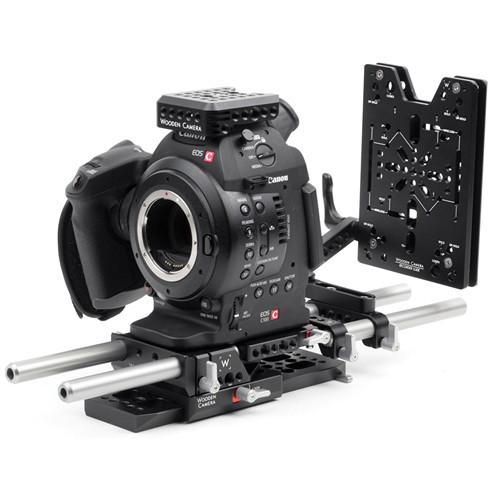

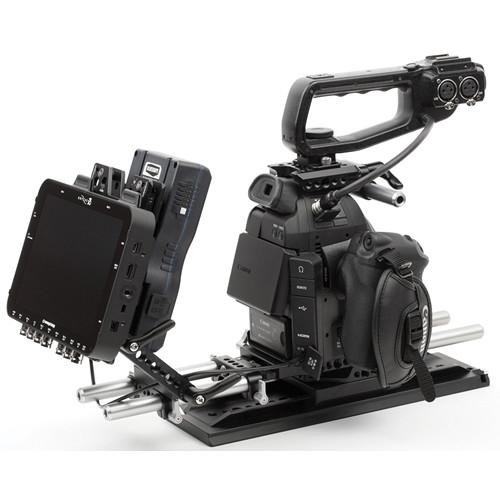

Product description The Recorder Slide from Wooden Camera is a dual mount accessory plate designed to attach a power plate to one side and an on-board recorder to the other. The plate features multiple mounting patterns for the Ki Pro, Hyperdeck, Codex, Odyssey 7Q, PIX 240, V-Mount & Gold Mount batteries, wireless audio receivers, and 1/4"-20 accessories (via both threaded and pass through holes).
An L-bracket is included with the slide to enable mounting of recorders like the Atomos Shogun, Pix-E5, and Pix-E7. Additionally, integrated dual rosette mounts and the plate's namesake sliding capability allow for positioning in nearly any direction.
The base of the Recorder Slide features a slotted design that allows for the attachment of two 1/4"-20 screw threads up to 36mm apart, center to center. This feature allows for the attachment of rod clamps, if the user requires them. - Compatibility
-
- Ki Pro
- Hyperdeck
- Codex
- Odyssey 7Q
- Pix240
- V-Mount
- Gold Mount
- Audio Wireless Receiver Boxes
- Miscellaneous 1/4"-20 Accessories
- Atomos Shogun
- Pix-E5
- Pix-E7
UPC: 702534252541 In the Box Wooden Camera Recorder Slide 8 x 1/4"-20 Screws 12 x Mini Screws L-Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Recorder Slide in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 191100 Specs | Threaded Holes | 1/4"-20 | | Unthreaded Holes | Yes | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 7.3 x 5.9 x 0.9" |
