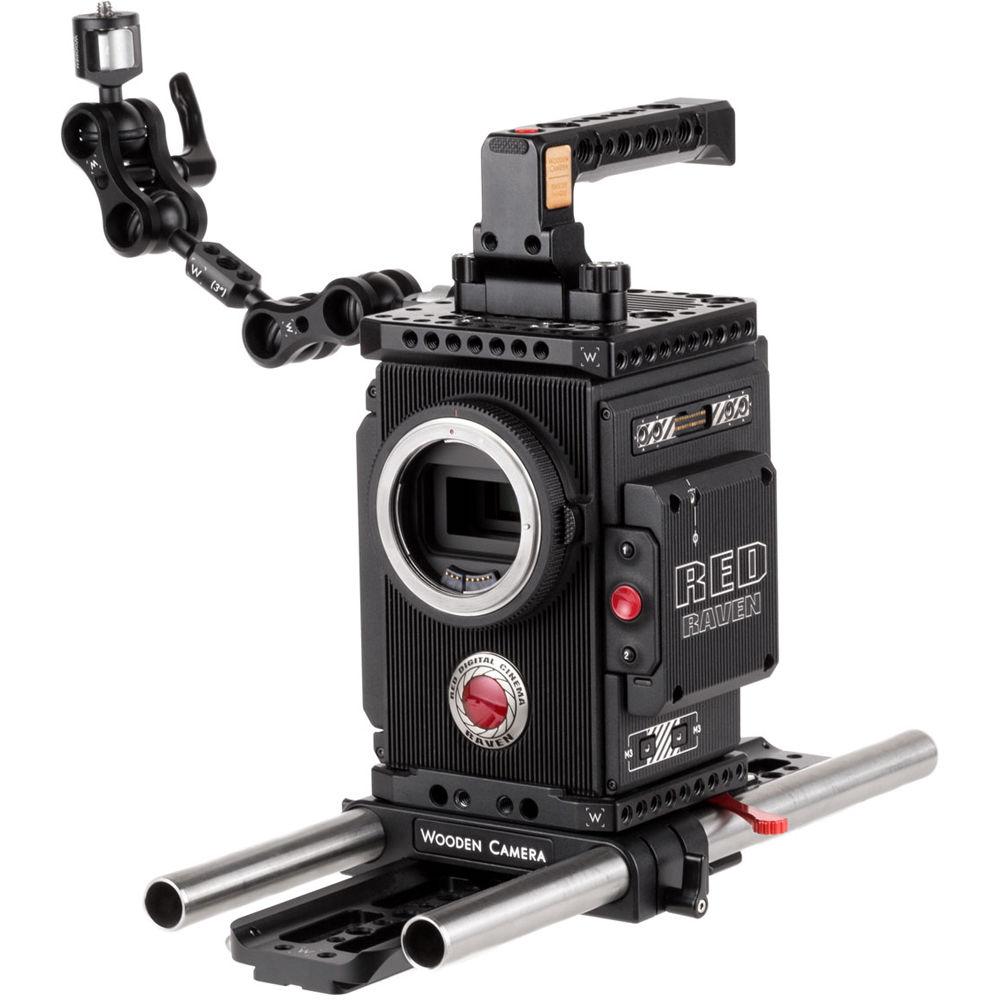

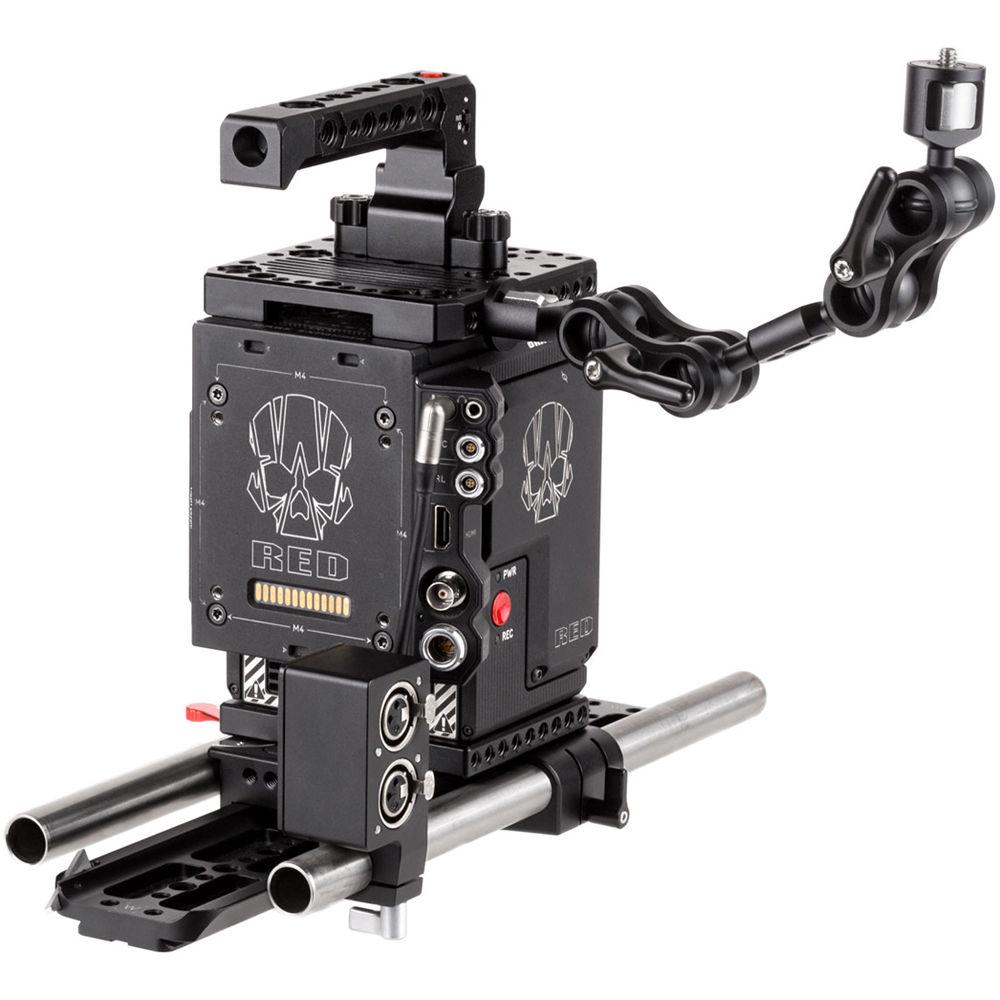

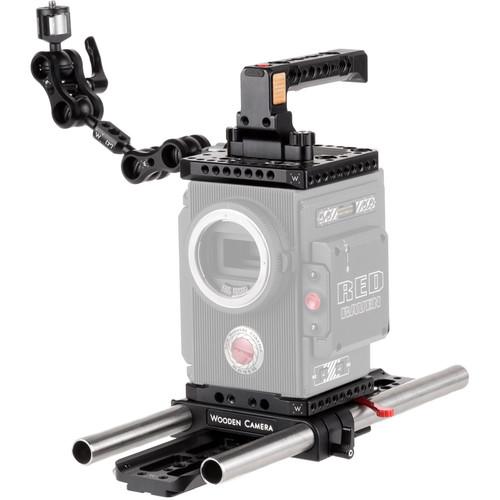

Product description Kit out your DSMC2 BRAIN, WEAPON, EPIC WEAPON, SCARLET WEAPON, or RAVEN with a professional array of shooting accessories with this 19mm RED DIGITAL CINEMA DSMC2 Accessory Kit from Wooden Camera. Included in the kit is an Easy Riser plate which has 1/4"-20 and 3/8"-16 mounting points on the bottom, provides 1/4"-20 holes on the side for attaching accessories, and also brings the camera up to correct lens height when using the included 19mm Unified Bridgeplate. The Unified Bridgeplate holds the two included 12"-long 19mm rods and attaches to the also included ARRI-standard 12" Safety Dovetail Plate.
On top of your camera, the included Pass-Through Top Plate provides a 26-pin LCD connection and a 3-pin interface for mounting the included Trigger Handle. The included 1/4"-20 to 1/4"-20 Ultra Arm Monitor Mount features a 3" extension connecting two double ball joint clamps, allowing for a monitor or accessory to be positioned in almost any orientation. On each side of the mount there are toolless 1/4"-20 screws with non-slip rubber pads to make accessory installation quick and easy. Lastly, the included A-Box plugs into the optional RED Base Expander Module and converts the 3.5mm microphone input into two XLR ports. Note: The separately available Base Expander Module is required for the A-Box to function. Phantom power is not available. - Easy Riser Plate for Select RED Cameras The Easy Riser Plate for Select RED Cameras from Wooden Camera is a riser shim plate designed to work with the RED Weapon, Scarlet Weapon, Raven, and any other DSMC2 camera. It may be used alongside the 19mm Bridgeplate, 15mm Studio, or other RED style bridge plates to achieve correct lens height studio rods. It may also be combined with the LW 15mm Bracket (Weapon/Scarlet-W/Raven) for lightweight rods at correct lens height.
It is important to note that this riser is also compatible with our original LW 15mm Bracket for the RED Epic/Scarlet. UPC: 702534255511 - Ultra Arm Monitor Mount (1/4"-20 to 1/4"-20, 3" Extension) This 1/4"-20 to 1/4"-20 Ultra Arm Monitor Mount from Wooden Camera features a 3" extension connecting two double ball-joint clamps. A lever in the center of each clamp locks the joints on it, and the mounting points on the ends of the arm attach to your gear easily at the turn of integrated tightening knobs. Both ends feature rubber pads for more secure support.
The Ultra Arm system is interchangeable. Wooden Camera offers a variety of optional end-points that install into the ball sockets of the arm. These include NATO clamps, NATO rails, shoe mounts, super clamps, and even a Preston mounting bracket. Additionally, the system is compatible with many 3rd-party 25mm ball mount systems. - Key Features
-
- Full range ball-joint articulation
- Integrated tightening knobs
- Rubber pads
- Interchangeable end-points support optional NATO clamps, NATO rails, shoe mounts, super clamps, and more (see Accessories tab)
- Also compatible with 3rd-party 25mm ball mount systems
UPC: 606184852444 - Unified Bridgeplate (19mm) The Wooden Camera Unified Bridgeplate (19mm) is an ARRI standard bridge plate with 19mm studio rods spaced 104mm center-to-center. It can be converted from RED standard height to ARRI standard height, making it compatible with any type of camera rig. The rubberized top coating prevents twisting and slotted design accommodates non-standard screw spacing.
When combined with Unified Baseplates, it offers correct rod height on cameras like the Sony FS7/FS5/F55/F5, Canon's C100 and C300 Mark II/C100/C300/C500, Blackmagic URSA Mini, Panasonic VariCam 35/VariCam LT, and risers for RED WEAPON/SCARLET-W/RAVEN/EPIC/SCARLET. UPC: 702534256563 - Safety Dovetail Plate (12") The 12" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations. UPC: 610079105492
- A-Box for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN The Wooden Camera A-Box for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN allows you to plug XLR audio sources into your RED DSMC2 camera body. It secures to your camera rig using the built-in 19mm rod clamp with or without the included 15mm rod bushing. A 1/4"-20 mounting solution using a 19mm cylinder is also included for mounting the A-Box without rods. UPC: 702534255771
- Pass-Through Top Plate for RED WEAPON/SCARLET-W/RAVEN
- Trigger Handle for RED WEAPON, SCARLET WEAPON, and RAVEN Cameras

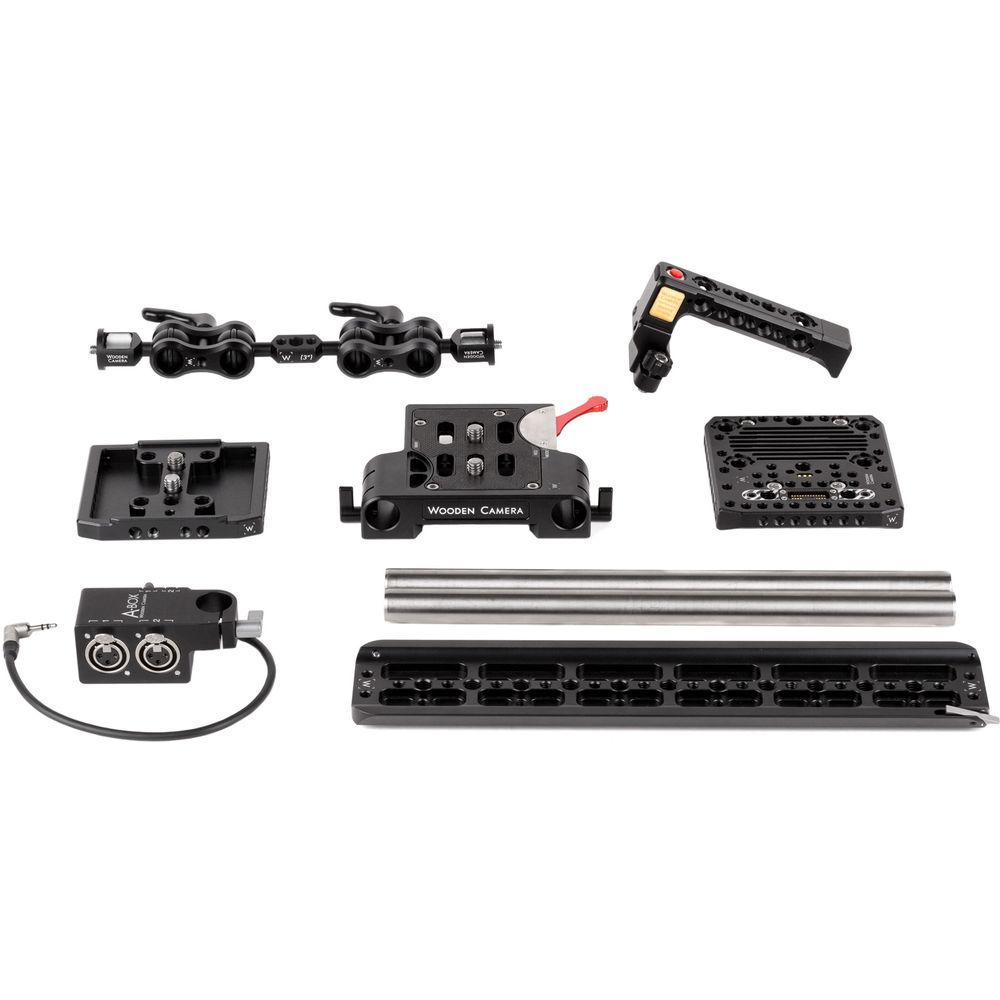

In the Box Bundle Items Pass-Through Top Plate for RED WEAPON/SCARLET-W/RAVEN duudrwqqwefdaczyywaawuyvutez Easy Riser Plate for Select RED Cameras - 2 x Captured 3/8"-16 Riser Screws
Trigger Handle for RED WEAPON, SCARLET WEAPON, and RAVEN Cameras Ultra Arm Monitor Mount (1/4"-20 to 1/4"-20, 3" Extension) Unified Bridgeplate (19mm) Safety Dovetail Plate (12") A-Box for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN - WC-144900 19mm Bolt-On Rod
Also Includes - 2 x 19mm Rods (12")
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera RED DIGITAL CINEMA DSMC2 Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Pass-Through Top Plate for RED WEAPON/SCARLET-W/RAVEN
| | | Box Dimensions (LxWxH) | 5.25 x 4.6 x 1.25" | - Easy Riser Plate for Select RED Cameras
| Dimensions | 0.5 x 4 x 4" / 12.7 x 177.8 x 177.8 mm | | Weight | 0.4 lb / 181 g | | | | Box Dimensions (LxWxH) | 4.75 x 3.85 x 0.8" | - Trigger Handle for RED WEAPON, SCARLET WEAPON, and RAVEN Cameras
| | | Kit Content | ( 1 ) x handle
( 2 ) x 1/4"-20 thumbscrew | | | | Box Dimensions (LxWxH) | 5.7 x 1.8 x 0.8" | - Ultra Arm Monitor Mount (1/4"-20 to 1/4"-20, 3" Extension)
| Top Mount | 1/4"-20 Stud | | Bottom Mount | 1/4"-20 Stud | | Points of Articulation | 4 | | Maximum Length | 9.5" / 24.1 cm | | Weight | 11.2 oz / 318 g | | | | Box Dimensions (LxWxH) | 6.95 x 2.75 x 2.2" | - Unified Bridgeplate (19mm)
| Dimensions (L x W x H) | 7 x 5 x 2" / 17.8 x 12.7 x 5.1 cm | | Weight | 1 lb / 0.45 kg | | | | Box Dimensions (LxWxH) | 8.8 x 6.35 x 2.2" | - Safety Dovetail Plate (12")
| Dimensions | 12.0 x 2.7 x 0.5" / 30.5 x 6.8 x 1.3 cm | | Weight | 0.9 lb / 0.4 kg | | | | Box Dimensions (LxWxH) | 12.2 x 3.6 x 0.5" | - A-Box for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN
| Inputs | 2 x XLR | | Outputs | 1 x 3.5 mm stereo analog audio | | Rod Clamp Type | 19 mm | | Cable Length | 7" / 17.8 cm | | Dimensions | 3 x 3 x 7" / 7.6 x 7.6 x 17.8 cm | | Weight | 0.8 lb / 363 g | | | | Box Dimensions (LxWxH) | 6.75 x 4.4 x 3.3" |
