User Manual for Wooden Camera RED Epic Scarlet Interchangeable Mount for Blackmagic Cinema Camera Click to enlarge the picture
Contents of the user manual for the Wooden Camera RED Epic Scarlet Interchangeable
- Product category: Lens Mount Adapters Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Lens Mount Adapters
 |
User manual for the Wooden Camera RED Epic Scarlet Interchangeable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

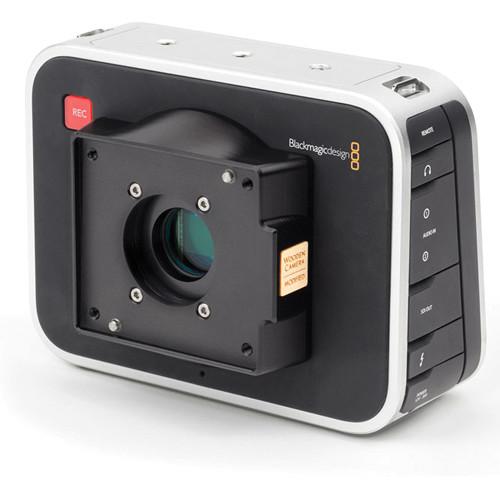

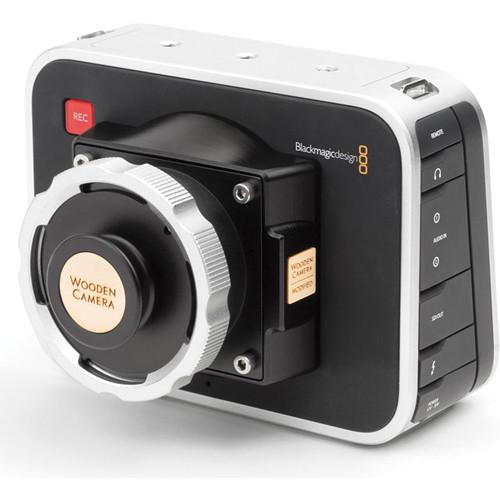

Product description Increase your lens mount versatility with the RED Epic/Scarlet Interchangeable Mount for Blackmagic Cinema Camera (MFT) from Wooden Camera. The adapter converts your Micro Four Thirds mount Blackmagic Cinema Camera to an interchangeable mount system compatible with RED Epic/Scarlet lens mounts. This lets you use optional RED, Wooden Camera, or other third party adapters to use a variety of lenses including as PL, Nikon, Canon, Leica, and BNCR. Important to note is that when using RED lens mounts, electronic control of the lenses will not be available.
Note: This Interchangeable Mount is compatible only with the Blackmagic Cinema Camera 2.5K with Micro Four Thirds lens mount. All other Blackmagic cameras are not compatible. - Installation
- In order to install the RED Epic/Scarlet mount, you must first remove the MFT mount, spring, button, and pin. once this is done, the Interchangeable Mount is install using the included four M3 screws and hex key.
- Flange Focus Adjustment
- For proper flange focus, this adapter requires the use of an included shim set. The correct shims should be selected based on standard collimation procedure.

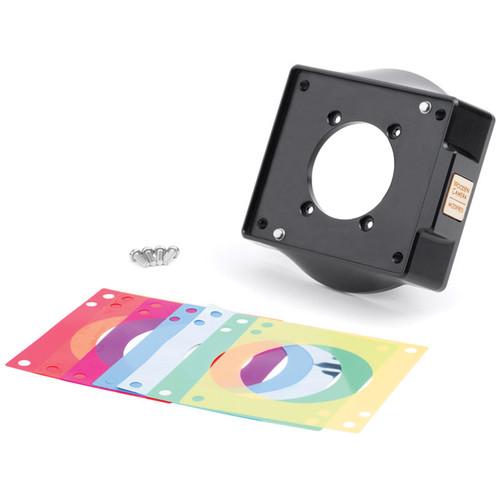

UPC: 700987994650 In the Box Wooden Camera RED Epic/Scarlet Interchangeable Mount for Blackmagic Cinema Camera (MFT) 4 x M3 Low Head Socket Cap Screws Hex Key Shim Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera RED Epic Scarlet Interchangeable Mount for Blackmagic Cinema Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 176000 Specs | Shim Thickness | Silver: 0.0005" (0.0127 mm)
Amber: 0.001" (0.0254 mm)
Purple: 0.0015" (0.0381 mm)
Red: 0.002" (0.0508 mm)
Green: 0.003" (0.0762 mm)
Tan: 0.004" (0.1016 mm)
Blue: 0.005" (0.127 mm) |
