Product description

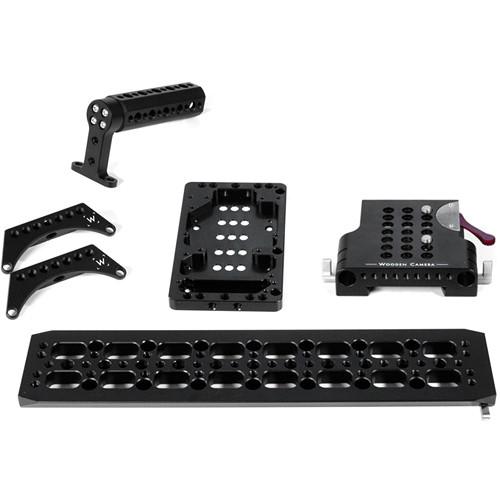

• Top Mount (Red One) The Top Mount (Red One) from Wooden Camera provides rows of 1/4"-20 holes in RED standard spacing allowing Rod Clamps, Handles, Battery Mounts, Safety NATO Rails, UVF Mount, and more to be attached. Additional 3/8"-16 holes are included on top center. UPC: 610079106734
• WC-153900 Top Handle (Cheese) The Wooden Camera WC-153900 Top Handle (Cheese) is used for securely carrying and stabilizing the camera during hand-held shooting. It bolts on to two 1/4-20 holes spaced 1.4" (36mm) apart center. The cheese grip handle bar features an array of 1/4-20 and 3/8-16 holes in standard spacing for accessory mounting. UPC: 610079105713
• Bolt On Battery Mount The Wooden Camera Bolt On Battery Mount attaches to a rig with included 1/4" screws and provides a mounting platform for V-mount, Gold-mount, and RED/Blueshape style battery plates. Additionally, rows of 1/4" threads and pass-through holes allow mounting rod clamps and other accessories. You can attach this battery mount directly to a rig or via any size-compatible adapter, whether from Wooden Camera or a third party. UPC: 610079106741
• WC-145300 ARRI Style Bridge Plate (15mm) The Wooden Camera WC-145300 ARRI Style Bridge Plate (15mm) features 15mm studio offset spacing (rods spaced 100mm center to center). Its height is compatible for use with the RED ONE camera. In addition, it can be used with the Universal Baseplate to adjust the lens height on the camera, or with the Easy Riser to adjust the lens height on the RED Epic and Scarlet cameras. UPC: 610079105133
• Safety Dovetail Plate (12") The 12" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations. UPC: 610079105492

• 2 x 1/4"-20 x 3/8" Socket Cap Screw

• Limited 1-Year Warranty

• 2 x 1/4-20 x 1/2" Screw

• 1-Year Warranty

• 2 x 1/4"-20 x 1/4" Socket Cap Screws

• 4 x M3 x 12mm Pan Head Screws

• 4 x #4 x 40 x 5/8 Pan Head Screws

• 2-Year Limited Warranty

• 2 x Riser Screw

• 1-Year Limited Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Top Mount (Red One)

  Box Dimensions (LxWxH)	5.0 x 2.0 x 0.7"

• WC-153900 Top Handle (Cheese)

  Dimensions	4.8 x 2.7 x 1.9" (121.92 x 6.86 x 4.82 mm)
  Weight	0.4 lb (181.43 g)

  Box Dimensions (LxWxH)	7.7 x 4.35 x 2.3"

• Bolt On Battery Mount

  Box Dimensions (LxWxH)	5.8 x 3.2 x 0.5"

• WC-145300 ARRI Style Bridge Plate (15mm)

  Dimensions	6.9 x 4.5 x 1.2" (175.26 x 114.3 x 30.48 mm)
  Weight	1.2 lb (0.54 kg)

  Box Dimensions (LxWxH)	6.0 x 5.0 x 2.0"

• Safety Dovetail Plate (12")

  Dimensions	12.0 x 2.7 x 0.5" / 30.5 x 6.8 x 1.3 cm
  Weight	0.9 lb / 0.4 kg

  Box Dimensions (LxWxH)	12.2 x 3.6 x 0.5"
