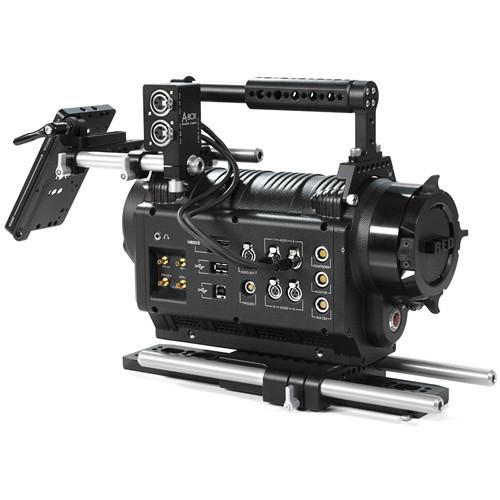

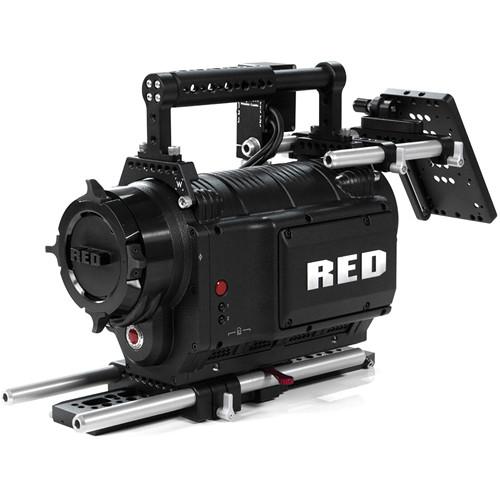

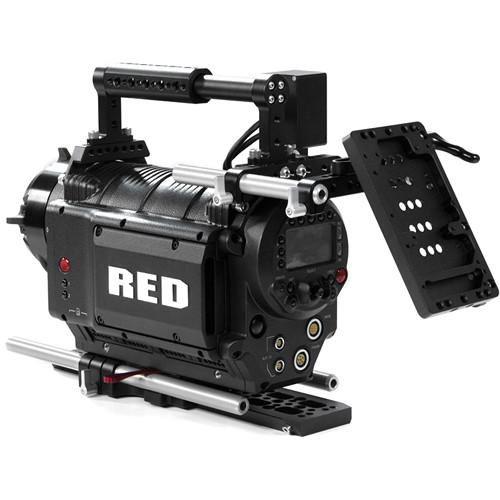

Product description Wooden Camera's RED ONE Pro Kit is a 19mm rod support package designed specifically for the RED ONE camera. It includes a bridge plate that features an ARRI-style dovetail interface and supports a pair of 12"-long 19mm rods at the correct lens height for use with industry-standard accessories such as follow focuses and matte boxes. For tripod mounting, a 12" dovetail plate is included, providing the extra length needed to help you properly balance your rig. In addition to the bridge plate and dovetail, the kit outfits the RED ONE with an extended top handle that features 1/4"-20 and 3/8"-16 accessory threads, and a 19mm rod assembly that adds 6"-long rods at the top rear of the camera. These rods are used support an included A-Box XLR to mini XLR audio adapter and a battery slide that accepts optional V-Mount or Gold Mount battery plates.
Please see the links below for more information on the components of this kit. - Top Mount (Red One) The Top Mount (Red One) from Wooden Camera provides rows of 1/4"-20 holes in RED standard spacing allowing Rod Clamps, Handles, Battery Mounts, Safety NATO Rails, UVF Mount, and more to be attached. Additional 3/8"-16 holes are included on top center. UPC: 610079106734
- 146300 Cheese Handle with Extension The Wooden Camera 146300 Cheese Handle with Extension is a length-adjustable handle for RED Epic and Scarlet cameras. When combined together, the top handle (cheese) and the extension allow for any combination of modules to be securely bolted together by four screws. This handle and extension unit comes with four 1/4-20 x 3/8" screws. Note: Cannot be directly attached from a brain to module adapter UPC: 610079106017
- WC-150400 Rod Clamp (19mm) The Wooden Camera WC-150300 Rod Clamp (19mm) is a versatile, compact, and lightweight unit. It can be attached to existing 0.74" (19mm) studio rods to provide 1/4-20 and 3/8-16 mounting points. This rod clamp can also be turned over and bolted to cheeseplates, cages, and battery plates.
- Attaches to existing 0.74" (19mm) studio rods
- Can also be used with cheeseplates, cages, and battery plates
- Compact and lightweight design
UPC: 610079106284 - Battery Slide The Battery Slide from Wooden Camera is an adjustable mounting system for V-Mount, Gold Mount, QRC Gold Mount, and RED/BLUESHAPE battery plates. Multiple rows of pass-through holes allow the attachment of rod clamps, cheese plates, and other accessories.
In order to adjust the plate's position, the user only needs to apply firm pressure to tilt it into place. Sliding the plate into position is facilitated by an adjustable thumbscrew. Both these movements make the plate ideal for adjusting counterbalance and transitioning from studio to handheld position. UPC: 610079106451 - A-Box for Red One Camera The Wooden Camera A-Box for Red One adapts industry standard balanced XLR male plugs to mini-XLR balanced plugs (female). The A-Box gives you more options in what kind of audio devices you can connect to your Red One Camera. The A-Box also comes with a bolt-on 19mm rod for attaching to any 1/4-20 threaded hole. UPC: 610079105041
- WC-145400 ARRI Style Bridge Plate (19mm) The Wooden Camera WC-145400 ARRI Style Bridge Plate (19mm) features 19mm studio spacing (rods spaced 104mm center to center). Its height is compatible for use with the RED ONE camera. In addition, it can be used with the Universal Baseplate to adjust the lens height on the camera, or with the Easy Riser to adjust the lens height on the RED Epic and Scarlet cameras.
- Safety Dovetail Plate (12") The 12" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations. UPC: 610079105492

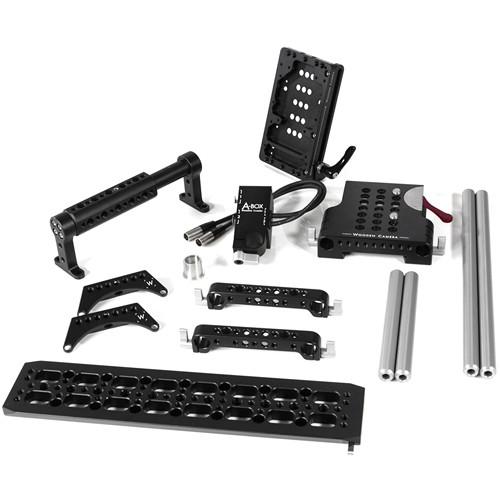

In the Box Bundle Items 2 x Top Mount (Red One) ywxbzbcrxxxwsvsfdrdtzfyxsard - 2 x 1/4"-20 x 3/8" Socket Cap Screw
146300 Cheese Handle with Extension 2 x WC-150400 Rod Clamp (19mm) ywxbzbcrxxxwsvsfdrdtzfyxsard Battery Slide - 2 x 1/4"-20 x 1/4" Socket Cap Screw
- 6 x M3 x 14mm Pan Head Screws
- 4 x M3 x 12mm Pan Head Screws
- 4 x M3 x 8mm Pan Head Screws
- 4 x M3 x 8mm Phillips Flat Head Screws
A-Box for Red One Camera ywxbzbcrxxxwsvsfdrdtzfyxsard WC-145400 ARRI Style Bridge Plate (19mm) ywxbzbcrxxxwsvsfdrdtzfyxsard Safety Dovetail Plate (12")
Also Includes - 2 x 19mm Rod (6")
- 2 x 19mm Rod (12")
Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera RED ONE Pro Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Top Mount (Red One)
| | | Box Dimensions (LxWxH) | 5.0 x 2.0 x 0.7" | - 146300 Cheese Handle with Extension
| Dimensions | 5.5 x 2.8 x 1.9" (139.7 x 71.12 x 48.26 mm) | | Weight | 0.6 lb (0.27 kg) | | | | Box Dimensions (LxWxH) | 6.1 x 4.3 x 1.3" | - WC-150400 Rod Clamp (19mm)
| Dimensions | 6.2 x 1.2 x 0.6" (15.74 x 3.04 x 1.52 cm) | | Weight | 0.2 lb (0.09 kg) | | | | Box Dimensions (LxWxH) | 6.0 x 2.0 x 1.0" | - Battery Slide
| Dimensions | 6.0 x 4.5 x 1.8" (152.4 x 114.3 x 45.7 mm) | | Weight | 8 oz (226.8 g) | | | | Box Dimensions (LxWxH) | 8.7 x 6.4 x 2.3" | - A-Box for Red One Camera
| | | Box Dimensions (LxWxH) | 7.7 x 4.3 x 2.3" | - WC-145400 ARRI Style Bridge Plate (19mm)
| Dimensions | 7.2 x 4.5 x 1.2" (182.88 x 114.3 x 30.48 mm) | | Weight | 1.2 lb (0.54 kg) | | | | Box Dimensions (LxWxH) | 5.0 x 4.5 x 1.0" | - Safety Dovetail Plate (12")
| Dimensions | 12.0 x 2.7 x 0.5" / 30.5 x 6.8 x 1.3 cm | | Weight | 0.9 lb / 0.4 kg | | | | Box Dimensions (LxWxH) | 12.2 x 3.6 x 0.5" |
