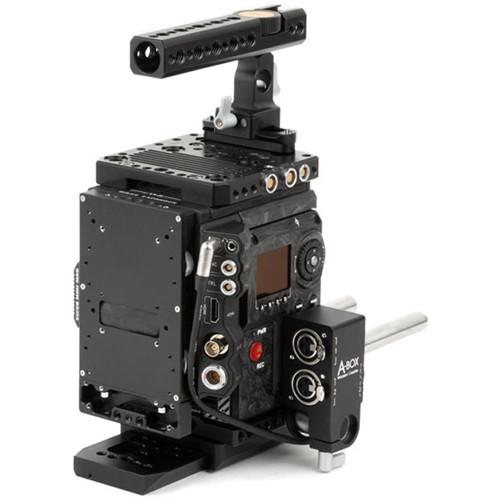

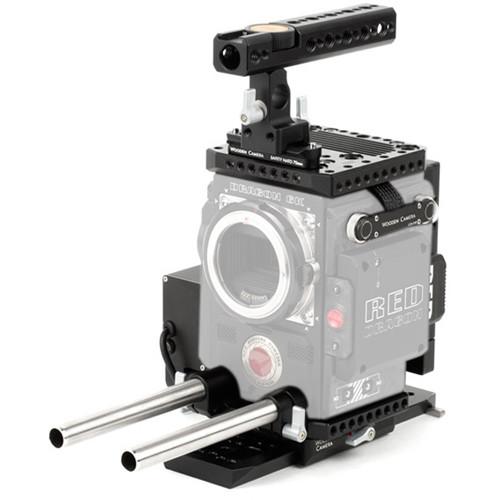

Product description The RED Weapon/Raven Advanced Accessory Kit from Wooden Camera is a camera support package for the RED Weapon Dragon, Epic-W, Scarlet-W, and RED Raven cameras. It includes an Easy Top plate, Easy Riser plate, lightweight 15mm bracket with two 6" 15mm rods, NATO handle kit, dovetail clamp, 8" safety dovetail, A-Box, and a quick back. The Easy Riser baseplate has 1/4-20 and 3/8-16 mounting points on the bottom and 1/4-20 holes on the side for attaching accessories. The riser brings the camera up to correct lens height when using a bridgeplate built to RED standards (not included).The lightweight 15mm bracket attaches to the Easy Riser plate to hold the two 15mm rods at the correct lens height. On the top of the camera, the Easy Top plate converts the LCD pogo interfaces to two standard 16-pin LEMOs, which can be rotated in increments of 45°. Additionally, a 3-pin Fischer is located on the side of the top plate and can be used with any ARRI standard remote trigger.The NATO Handle Kit is a quick-release handle that attaches to the top plate via 1/4"-20 threads. It is comprised of a NATO Handle (Plus) and 2.8" NATO rail. Its rotating top grip allows the handle to be quickly turned forward for balanced carrying. It offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.The dovetail clamp on the bottom is an ARRI standard interface that attaches to the 8" safety dovetail to allow for quick installation and removal, as well as counterbalancing. The A-Box allows two XLR microphones to be plugged into the camera while using the base expander module (available separately). The quick back allows for any standard V-Mount or Gold Mount plate to be attached to the back of the RED camera. - Easy Riser Plate for Select RED Cameras The Easy Riser Plate for Select RED Cameras from Wooden Camera is a riser shim plate designed to work with the RED Weapon, Scarlet Weapon, Raven, and any other DSMC2 camera. It may be used alongside the 19mm Bridgeplate, 15mm Studio, or other RED style bridge plates to achieve correct lens height studio rods. It may also be combined with the LW 15mm Bracket (Weapon/Scarlet-W/Raven) for lightweight rods at correct lens height.
It is important to note that this riser is also compatible with our original LW 15mm Bracket for the RED Epic/Scarlet. UPC: 702534255511 - NATO Handle Kit (Plus, 70mm Rail) This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 2.8" / 70mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.
The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.
The NATO rail can be attached to any two 1/4"-20 threads positioned up to 42mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism. - NATO Quick Release
- The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.
- Rosette Based Rotating Grip
- The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.
- Sideways 15mm Rod Clamp
- The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.
- Front/Rear Rod Openings
- A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.
- Integrated Cold Shoe
- A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.
- Accessory Threads
- 1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.
- Optional Front Rod Clamp
- Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
UPC: 700987994629 - Dovetail Clamp The Wooden Camera Dovetail Clamp allows you to attach cameras, baseplates, or accessories to an ARRI standard dovetail. It features slots at multiple locations for inserting mounting screws from underneath, and comes with two 3/8"-16 and two 1/4"-20 low profile screws. UPC: 610079106468
- Safety Dovetail Plate (8") The 8" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations. UPC: 610079106338
- A-Box for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN The Wooden Camera A-Box for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN allows you to plug XLR audio sources into your RED DSMC2 camera body. It secures to your camera rig using the built-in 19mm rod clamp with or without the included 15mm rod bushing. A 1/4"-20 mounting solution using a 19mm cylinder is also included for mounting the A-Box without rods. UPC: 702534255771
- Quick Back Plate for RED WEAPON, SCARLET, and RAVEN This Quick Back Plate from Wooden Camera is designed to allow any standard V-Mount or Gold Mount plate to be attached to the back of RED WEAPON, SCARLET WEAPON, RAVEN, Base Expander, and REDvolt Expander.
Installation of the back is easy and requires no tools: Simply turn the four knurled knobs to attach the back and lock it in place. For users with older equipment, the back is designed to be compatible with previous battery plates for EPIC and SCARLET, which will help users switch from or between older and newer models. UPC: 702534255542 - 15mm Support Rod (6") This is a single, 6" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106109
- Easy Top Plate for RED WEAPON Camera
- 15mm LWS Rods Bracket for RED Weapon Camera

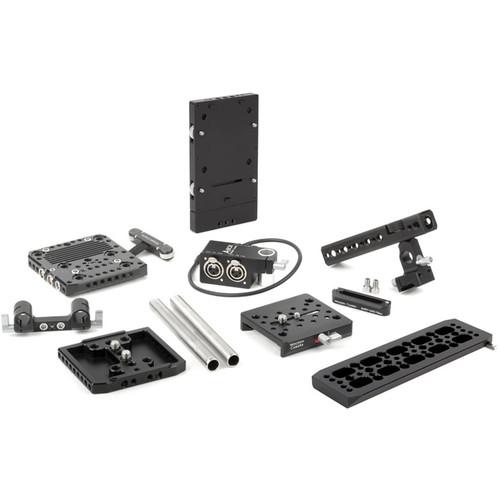

In the Box Bundle Items Easy Top Plate for RED WEAPON Camera tzfebfsswexcbdsvuxtxuv Easy Riser Plate for Select RED Cameras tzfebfsswexcbdsvuxtxuv - 2 x Captured 3/8"-16 Riser Screws
15mm LWS Rods Bracket for RED Weapon Camera NATO Handle Kit (Plus, 70mm Rail) Dovetail Clamp - 2 x 3/8"-16 Low Profile Screw
- 2 x 1/4"-20 Low Profile Screw
Safety Dovetail Plate (8") A-Box for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN - WC-144900 19mm Bolt-On Rod
Quick Back Plate for RED WEAPON, SCARLET, and RAVEN - 4 x M3 x 5mm Socket Screws
- 4 x M3 x 8mm Phillips Screws
- 4 x M3 x 12mm Phillips Screws
2 x 15mm Support Rod (6") Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera RED Weapon Raven Advanced Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Easy Top Plate for RED WEAPON Camera
| | | Box Dimensions (LxWxH) | 5.5 x 4.5 x 0.5" | - Easy Riser Plate for Select RED Cameras
| Dimensions | 0.5 x 4 x 4" / 12.7 x 177.8 x 177.8 mm | | Weight | 0.4 lb / 181 g | | | | Box Dimensions (LxWxH) | 4.75 x 3.85 x 0.8" | - 15mm LWS Rods Bracket for RED Weapon Camera
| | | Box Dimensions (LxWxH) | 4.8 x 2.25 x 0.05" | - NATO Handle Kit (Plus, 70mm Rail)
| NATO Rail Length | 2.8" / 70 mm | | Rail Mounting Distance | Up to 1.7" / 42 mm apart | | | | Box Dimensions (LxWxH) | 7.75 x 4.3 x 2.25" | - Dovetail Clamp
| Dimensions | 3.5 x 4 x 0.8" (9 x 10 x 2 cm) | | Weight | 0.4 lb ( lb (164 g) | | | | Box Dimensions (LxWxH) | 4.9 x 3.85 x 1.0" | - Safety Dovetail Plate (8")
| Dimensions | 8.0 x 2.7 x 0.5" / 20.3 x 6.8 x 1.3 cm | | Weight | 0.6 lb / 0.3 kg | | | | Box Dimensions (LxWxH) | 9.0 x 2.8 x 0.65" | - A-Box for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN
| Inputs | 2 x XLR | | Outputs | 1 x 3.5 mm stereo analog audio | | Rod Clamp Type | 19 mm | | Cable Length | 7" / 17.8 cm | | Dimensions | 3 x 3 x 7" / 7.6 x 7.6 x 17.8 cm | | Weight | 0.8 lb / 363 g | | | | Box Dimensions (LxWxH) | 6.75 x 4.4 x 3.3" | - Quick Back Plate for RED WEAPON, SCARLET, and RAVEN
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 7.6 x 3.95 x 1.0" | - 15mm Support Rod (6")
| Rod Size | 15 mm | | Rod Length | 6" (15 cm) | | | | Box Dimensions (LxWxH) | 6.1 x 2.0 x 1.5" |
