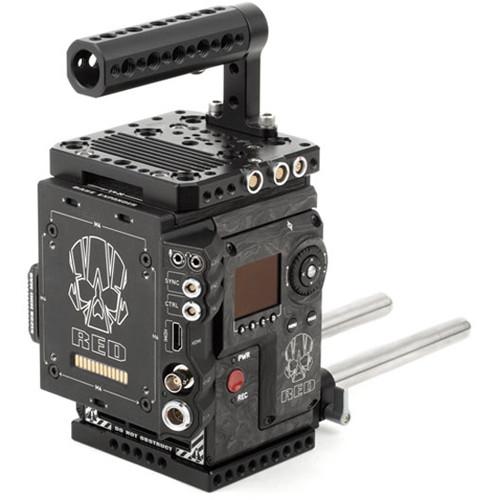

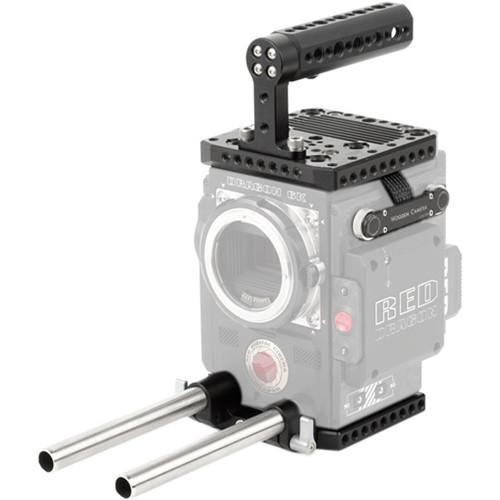

Product description The RED Weapon/Raven Accessory Kit from Wooden Camera is a basic camera support package for the RED Weapon and RED Raven cameras. It includes an Easy Top plate, an Easy Riser plate, a lightweight 15mm bracket with two 6" 15mm rods, and a cheese top handle.The Easy Riser baseplate has 1/4-20 and 3/8-16 mounting points on the bottom and 1/4-20 holes on the side for attaching accessories. The riser brings the camera up to correct lens height when using a bridgeplate built to RED standards. The lightweight 15mm bracket attaches to the Easy Riser plate to hold the two 15mm rods at the correct lens height.On the top of the camera, the Easy Top plate converts the LCD pogo interfaces to two standard 16-pin LEMOs which can be rotated in increments of 45°. Additionally, a 3-pin Fischer is located on the side of the top plate and can be used with any ARRI standard remote trigger. The cheese top handle bolts on for secure camera carrying, and also provides 1/4-20 and 3/8-16 mounting points for attaching accessories. - Easy Riser Plate for Select RED Cameras The Easy Riser Plate for Select RED Cameras from Wooden Camera is a riser shim plate designed to work with the RED Weapon, Scarlet Weapon, Raven, and any other DSMC2 camera. It may be used alongside the 19mm Bridgeplate, 15mm Studio, or other RED style bridge plates to achieve correct lens height studio rods. It may also be combined with the LW 15mm Bracket (Weapon/Scarlet-W/Raven) for lightweight rods at correct lens height.
It is important to note that this riser is also compatible with our original LW 15mm Bracket for the RED Epic/Scarlet. UPC: 702534255511 - WC-153900 Top Handle (Cheese) The Wooden Camera WC-153900 Top Handle (Cheese) is used for securely carrying and stabilizing the camera during hand-held shooting. It bolts on to two 1/4-20 holes spaced 1.4" (36mm) apart center. The cheese grip handle bar features an array of 1/4-20 and 3/8-16 holes in standard spacing for accessory mounting. UPC: 610079105713
- 15mm Support Rod (6") This is a single, 6" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106109
- Easy Top Plate for RED WEAPON Camera
- 15mm LWS Rods Bracket for RED Weapon Camera

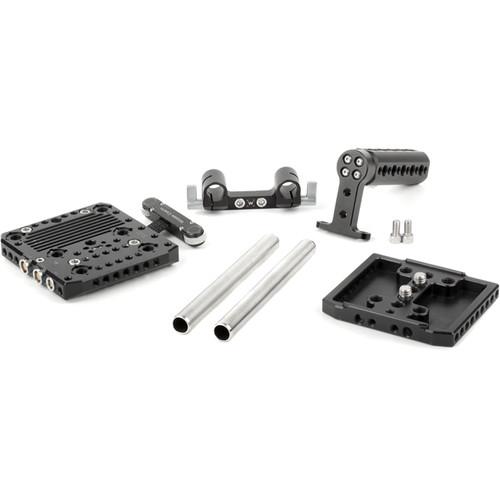

In the Box Bundle Items Easy Top Plate for RED WEAPON Camera yedbxvaeseewfevdrvaaewxsxtrevufyasrwb Easy Riser Plate for Select RED Cameras - 2 x Captured 3/8"-16 Riser Screws
15mm LWS Rods Bracket for RED Weapon Camera WC-153900 Top Handle (Cheese) 2 x 15mm Support Rod (6") Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera RED Weapon Raven Basic Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Easy Top Plate for RED WEAPON Camera
| | | Box Dimensions (LxWxH) | 5.5 x 4.5 x 0.5" | - Easy Riser Plate for Select RED Cameras
| Dimensions | 0.5 x 4 x 4" / 12.7 x 177.8 x 177.8 mm | | Weight | 0.4 lb / 181 g | | | | Box Dimensions (LxWxH) | 4.75 x 3.85 x 0.8" | - 15mm LWS Rods Bracket for RED Weapon Camera
| | | Box Dimensions (LxWxH) | 4.8 x 2.25 x 0.05" | - WC-153900 Top Handle (Cheese)
| Dimensions | 4.8 x 2.7 x 1.9" (121.92 x 6.86 x 4.82 mm) | | Weight | 0.4 lb (181.43 g) | | | | Box Dimensions (LxWxH) | 7.7 x 4.35 x 2.3" | - 15mm Support Rod (6")
| Rod Size | 15 mm | | Rod Length | 6" (15 cm) | | | | Box Dimensions (LxWxH) | 6.1 x 2.0 x 1.5" |
