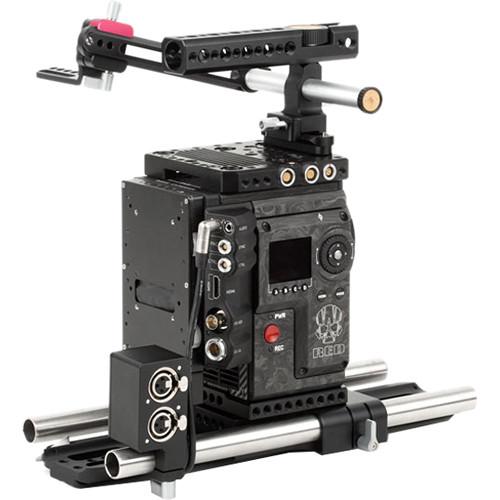

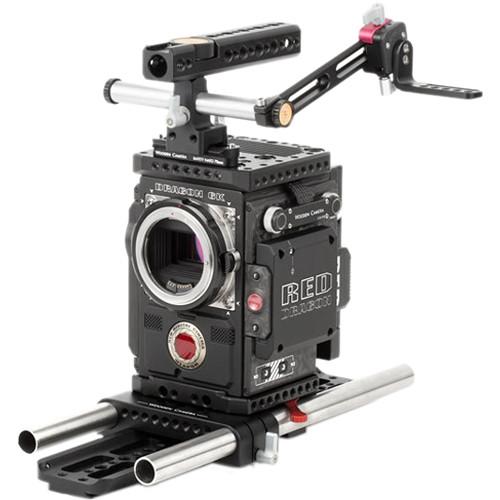

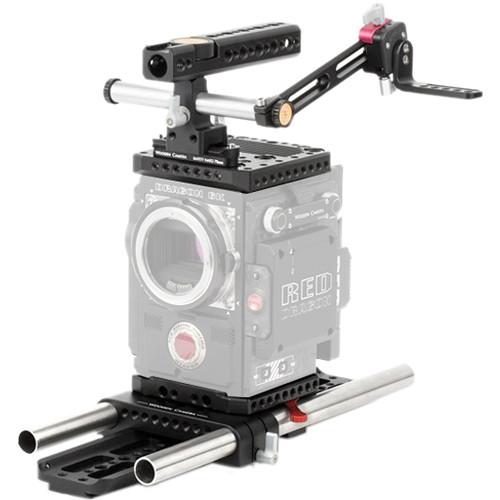

Product description The RED Weapon/Raven Advanced Accessory Kit from Wooden Camera is a camera support package for the RED Weapon Dragon and RED Raven cameras. It includes an Easy Top plate, Easy Riser plate, Bridgeplate with 19mm spacing, two 12" 19mm rods, NATO Handle Kit (Plus, 70mm), UVF mount, 12" Safety Dovetail, A-Box, and Quick Back.The Easy Riser baseplate has 1/4-20 and 3/8-16 mounting points on the bottom and 1/4-20 holes on the side for attaching accessories. The riser brings the camera up to correct lens height when using the included ARRI-style bridgeplate. This bridgeplate with 19mm studio offset spacing holds the two 12" 19mm rods and attaches to the safety dovetail.On the top of the camera, the Easy Top plate converts the LCD pogo interfaces to two standard 16-pin LEMOs which can be rotated in increments of 45°. Additionally, a 3-pin Fischer is located on the side of the top plate and can be used with any ARRI standard remote trigger.The NATO Handle Kit is a quick-release handle that attaches to the top plate via 1/4"-20 threads. It is comprised of a NATO Handle (Plus) and 2.8" NATO rail. Its rotating top grip allows the handle to be quickly turned forward for balanced carrying. It offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.The UVF mount attaches to the 15mm opening on the NATO Handle (Plus) and holds the RED Bomb EVF as well as most standard 3rd party EVFs. The A-Box allows for two XLR microphones to be plugged into the camera while using the base expander module (available separately). The quick back allows for any standard V-Mount or Gold Mount plate to be attached to the back of the RED camera. - Easy Riser Plate for Select RED Cameras The Easy Riser Plate for Select RED Cameras from Wooden Camera is a riser shim plate designed to work with the RED Weapon, Scarlet Weapon, Raven, and any other DSMC2 camera. It may be used alongside the 19mm Bridgeplate, 15mm Studio, or other RED style bridge plates to achieve correct lens height studio rods. It may also be combined with the LW 15mm Bracket (Weapon/Scarlet-W/Raven) for lightweight rods at correct lens height.
It is important to note that this riser is also compatible with our original LW 15mm Bracket for the RED Epic/Scarlet. UPC: 702534255511 - WC-145400 ARRI Style Bridge Plate (19mm) The Wooden Camera WC-145400 ARRI Style Bridge Plate (19mm) features 19mm studio spacing (rods spaced 104mm center to center). Its height is compatible for use with the RED ONE camera. In addition, it can be used with the Universal Baseplate to adjust the lens height on the camera, or with the Easy Riser to adjust the lens height on the RED Epic and Scarlet cameras.
- 19mm Support Rod (12") This is a single, 12" long 19mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106192
- NATO Handle Kit (Plus, 70mm Rail) This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 2.8" / 70mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.
The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.
The NATO rail can be attached to any two 1/4"-20 threads positioned up to 42mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism. - NATO Quick Release
- The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.
- Rosette Based Rotating Grip
- The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.
- Sideways 15mm Rod Clamp
- The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.
- Front/Rear Rod Openings
- A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.
- Integrated Cold Shoe
- A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.
- Accessory Threads
- 1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.
- Optional Front Rod Clamp
- Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
UPC: 700987994629 - UVF Mount (No Clamp) The Wooden Camera UVF Mount allows you to support an EVF or monitor from an available 15mm rod port on your rig. It is similar to the UVF v2 Mount but doesn't include a 15mm rod clamp. Instead, it is designed to be used with top handles or other on-camera hardware that have a rod clamp built-in. It features a NATO rail kit, UVF v2 sled, and L-bracket that combine to offer tilt, horizontal, and vertical adjustments for positioning your EVF or monitor.
The NATO rail kit consists of a 15mm rod with a 4" NATO rail attached. The rod portion slots into a sideways-oriented rod clamp on your top handle or rig, allowing for tilt and distance adjustment. The included UVF v2 sled slides onto the NATO rail, securing into place using a thumbscrew, and provides attachment points for the L-bracket. The Sled can also attach to any NATO-standard rail.
Your EVF or monitor attaches to the L-bracket, which supports devices with two 1/4"-20 screw holes spaced between 25mm and 36mm center to center. An adapter for using Alphatron, SmallHD, and other viewfinders with a single 1/4"-20 thread comes included. A safety pin at the end of the NATO rail prevents the mounting bracket and your monitor or EVF from accidental removal. -
- UVF Mount without 15mm rod clamp
- Use with top handles or rigs with a built-in sideways-oriented 15mm rod clamp
- Accepts most EVFs and on-screen monitors
- Tension thumbscrew to adjust tilt
- NATO rail kit with 15mm rod and 4" NATO rail
- UVF v2 sled attaches to any NATO compatible rail
- Safety pin prevents accidental removal
- L-bracket supports to two 1/4"-20 screw holes spaced between 25mm and 36mm center to center
- Adapter for devices with single 1/4"-20 screw hole
- Quick installation and removal
- Screws and Allen wrenches included
UPC: 700987995046 - Safety Dovetail Plate (12") The 12" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations. UPC: 610079105492
- A-Box for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN The Wooden Camera A-Box for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN allows you to plug XLR audio sources into your RED DSMC2 camera body. It secures to your camera rig using the built-in 19mm rod clamp with or without the included 15mm rod bushing. A 1/4"-20 mounting solution using a 19mm cylinder is also included for mounting the A-Box without rods. UPC: 702534255771
- Quick Back Plate for RED WEAPON, SCARLET, and RAVEN This Quick Back Plate from Wooden Camera is designed to allow any standard V-Mount or Gold Mount plate to be attached to the back of RED WEAPON, SCARLET WEAPON, RAVEN, Base Expander, and REDvolt Expander.
Installation of the back is easy and requires no tools: Simply turn the four knurled knobs to attach the back and lock it in place. For users with older equipment, the back is designed to be compatible with previous battery plates for EPIC and SCARLET, which will help users switch from or between older and newer models. UPC: 702534255542 - Easy Top Plate for RED WEAPON Camera

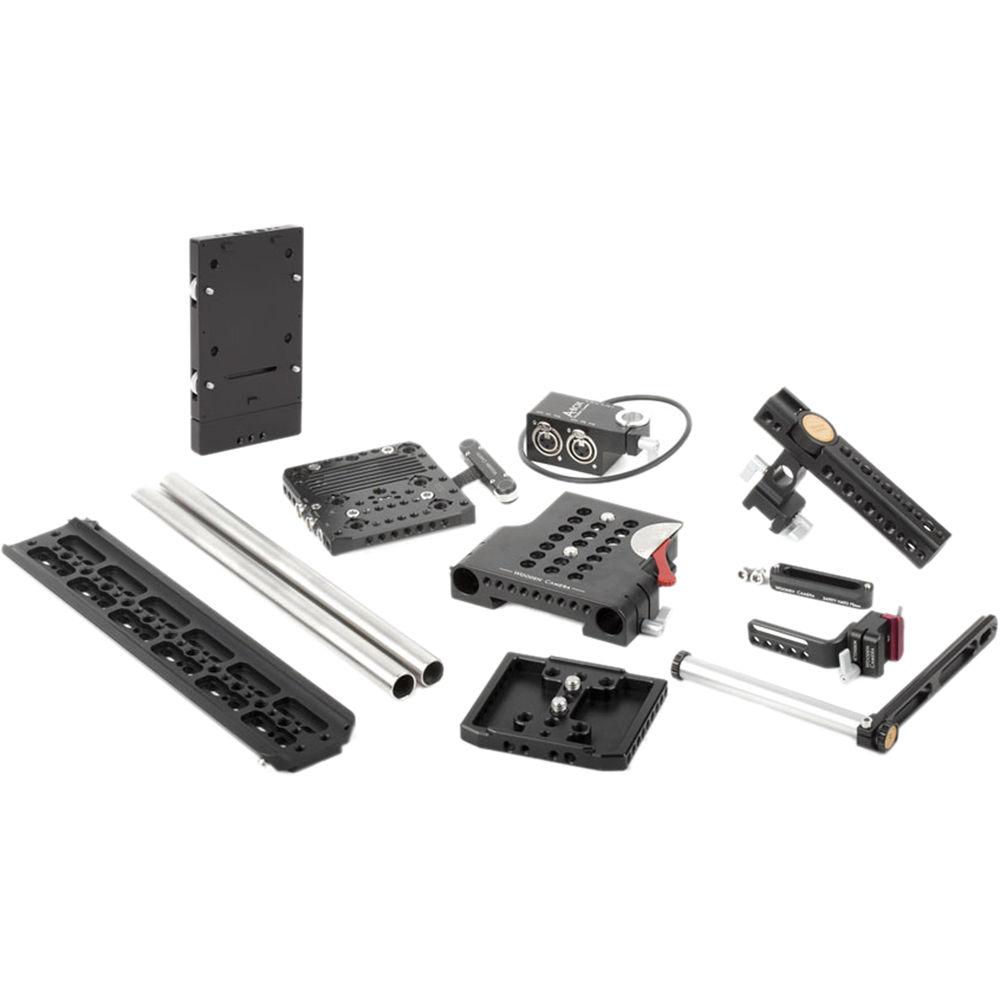

In the Box Bundle Items Easy Top Plate for RED WEAPON Camera xsxrtzwtwatdztfvvvvffawr Easy Riser Plate for Select RED Cameras - 2 x Captured 3/8"-16 Riser Screws
WC-145400 ARRI Style Bridge Plate (19mm) 2 x 19mm Support Rod (12") NATO Handle Kit (Plus, 70mm Rail) UVF Mount (No Clamp) - Alpha Adapter for Single 1/4"-20 Screw Hole
- 2 x #6-32 x 1/2" Flat Head Screw
- 2 x 1/4"-20 x 3/8" Socket Cap Screw
- 1/4"-20 x 1/4" Socket Cap Screw
Safety Dovetail Plate (12") A-Box for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN xsxrtzwtwatdztfvvvvffawr - WC-144900 19mm Bolt-On Rod
Quick Back Plate for RED WEAPON, SCARLET, and RAVEN xsxrtzwtwatdztfvvvvffawr - 4 x M3 x 5mm Socket Screws
- 4 x M3 x 8mm Phillips Screws
- 4 x M3 x 12mm Phillips Screws
Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera RED Weapon Raven Pro Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Easy Top Plate for RED WEAPON Camera
| | | Box Dimensions (LxWxH) | 5.5 x 4.5 x 0.5" | - Easy Riser Plate for Select RED Cameras
| Dimensions | 0.5 x 4 x 4" / 12.7 x 177.8 x 177.8 mm | | Weight | 0.4 lb / 181 g | | | | Box Dimensions (LxWxH) | 4.75 x 3.85 x 0.8" | - WC-145400 ARRI Style Bridge Plate (19mm)
| Dimensions | 7.2 x 4.5 x 1.2" (182.88 x 114.3 x 30.48 mm) | | Weight | 1.2 lb (0.54 kg) | | | | Box Dimensions (LxWxH) | 5.0 x 4.5 x 1.0" | - 19mm Support Rod (12")
| Rod Size | 19 mm | | Rod Length | 12" (30.5 cm) | | | | Box Dimensions (LxWxH) | 12.7 x 1.3 x 0.75" | - NATO Handle Kit (Plus, 70mm Rail)
| NATO Rail Length | 2.8" / 70 mm | | Rail Mounting Distance | Up to 1.7" / 42 mm apart | | | | Box Dimensions (LxWxH) | 7.75 x 4.3 x 2.25" | - UVF Mount (No Clamp)
| NATO Rail Length | 4" (10.16 cm) | | Dimensions | 6.7 x 0.9 x 0.6" (16.99 x 2.16 x 1.56 cm) | | Weight | 7.8 oz (222 g) | | | | Box Dimensions (LxWxH) | 8.8 x 6.4 x 2.3" | - Safety Dovetail Plate (12")
| Dimensions | 12.0 x 2.7 x 0.5" / 30.5 x 6.8 x 1.3 cm | | Weight | 0.9 lb / 0.4 kg | | | | Box Dimensions (LxWxH) | 12.2 x 3.6 x 0.5" | - A-Box for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN
| Inputs | 2 x XLR | | Outputs | 1 x 3.5 mm stereo analog audio | | Rod Clamp Type | 19 mm | | Cable Length | 7" / 17.8 cm | | Dimensions | 3 x 3 x 7" / 7.6 x 7.6 x 17.8 cm | | Weight | 0.8 lb / 363 g | | | | Box Dimensions (LxWxH) | 6.75 x 4.4 x 3.3" | - Quick Back Plate for RED WEAPON, SCARLET, and RAVEN
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 7.6 x 3.95 x 1.0" |
