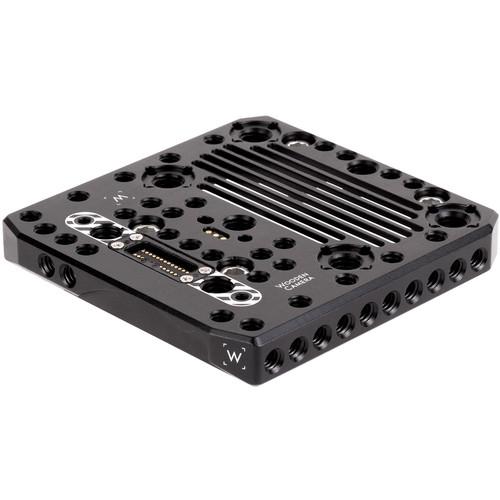

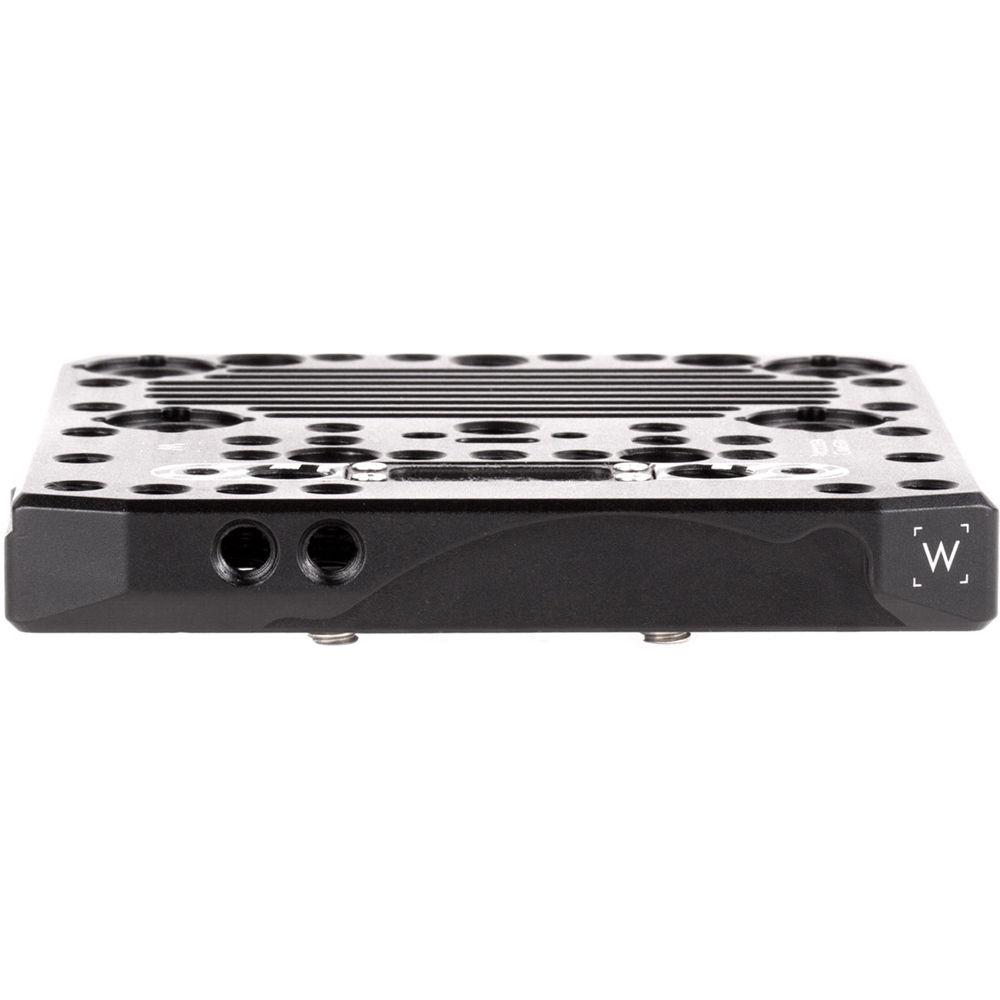

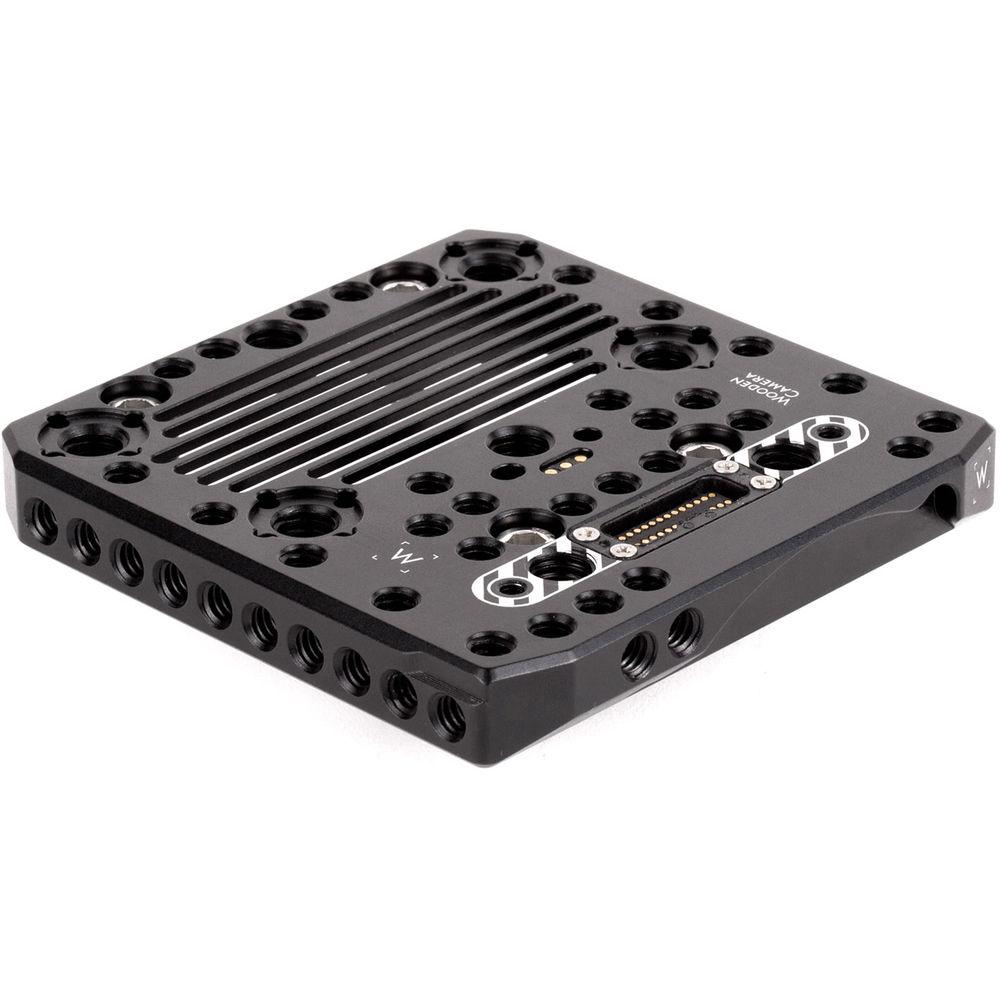

Product description Attach accessories like a top handle, safety arm, LCD, or EVF to the top of your RED DSMC2 camera with this Revolva Pass-Through Top Plate from Wooden Camera. It is compatible with the RED MONSTRO, HELIUM, GEMINI, WEAPON, EPIC WEAPON (EPIC-W), SCARLET WEAPON (SCARLET-W), RAVEN, and other DSMC2 cameras.
A small cutout on the front of the plate allows it to be used with the KipperTie Revolva EF or PL lens mount. The top plate features numerous 1/4"-20 and 3/8"-16 threads, multiple ARRI accessory mount points, a 26-pin LCD pass-through connection, and a 3-pin trigger handle pass-through interface. Four 1/4"-20 captive screws are included to attach the plate to the top of the camera. - Compatible with RED DSMC2 MONSTRO, HELIUM, GEMINI, WEAPON, EPIC WEAPON (EPIC-W), SCARLET WEAPON (SCARLET-W), RAVEN, and other DSMC2 cameras
- Compatible with the KipperTie Revolva EF or PL lens mount thanks to a cutout on the front of the plate
- Provides multiple 1/4"-20 and 3/8"-16 mounting threads and ARRI standard accessory mounts
- 26-pin LCD and 3-pin trigger handle interfaces allow pass-through communication
- Attach a top handle, safety NATO arm, LCD monitor, EVF, or other accessories
- Attaches to top of camera with four included 1/4"-20 captive screws
UPC: 606184857173 In the Box Wooden Camera Revolva Pass-Through Top Plate for RED DSMC2 Cameras 4 x 1/4"-20 Captive Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Revolva Pass-Through Top Plate for RED DSMC2 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 264900 Specs | Material of Construction | Not Supplied by Manufacturer | | Mounting | 1/4"-20 and 3/8"-16 Threaded Holes
ARRI Standard Accessory Mounts | | Pass-Through | 1 x 26-Pin LCD
1 x 3-Pin Trigger Handle | | Weight | Not Supplied by Manufacturer | | Dimensions | Not Supplied by Manufacturer | | | | Package Weight | 0.41 lb | | Box Dimensions (LxWxH) | 5.05 x 4.95 x 0.85" |
