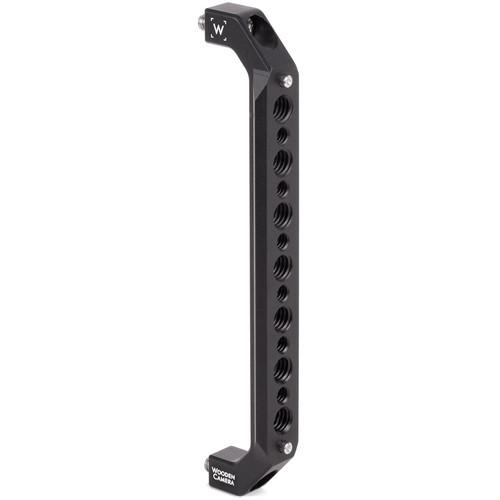

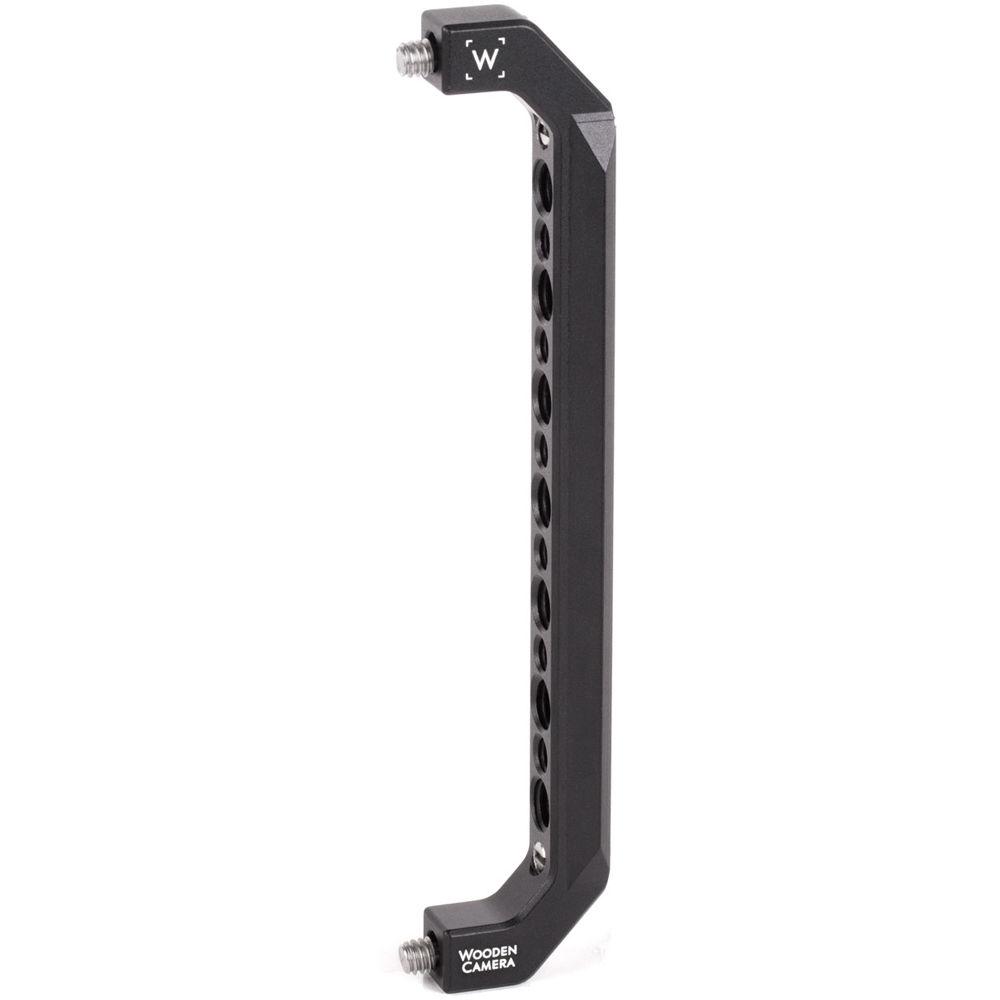

Product description This Safety NATO Arm for Select RED Cameras from Wooden Camera is an accessory rail featuring spring-loaded pins on each end to prevent inadvertent accessory detachment. This arm has dual mounting functions—slide and fasten NATO-mount accessories along the rail, and mount screw-in items to the alternating 1/4"-20 and 3/8"-16–threaded holes. Two captive 1/4"-20 screws are included for mounting the Safety NATO Arm to the top and bottom plates (plates not included.) Note: A WEAPON/EPIC/SCARLET/RAVEN Easy Top or Pass-Through Top Plate, and an Easy Riser are required for properly attaching this NATO arm. Compatible RED Cameras Additional Features - Can mount accessories two ways—on the NATO rail or via 1/4"-20 and 3/8"-16-threaded holes
- Spring-loaded safety pins on both ends prevent NATO accessories from sliding off the rail
- The arm's two 1/4"-20 mounting screws are captive, reducing the chance of misplacing them
UPC: 606184852017 In the Box Wooden Camera Safety NATO Arm for Select RED Cameras 2 x 1/4"-20 x 1/2" Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Safety NATO Arm for Select RED Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 227700 Specs | Material of Construction | Aluminum | | Threaded Holes | Multiple 1/4"-20 and 3/8"-16 | | Dimensions (DxWxH) | 1 x 2 x 8" (25.4 x 50.8 x 203.2 mm) | | Weight | 3.2 oz (91 g) | | | | Package Weight | 0.18 lb | | Box Dimensions (LxWxH) | 7.15 x 1.9 x 1.0" |
