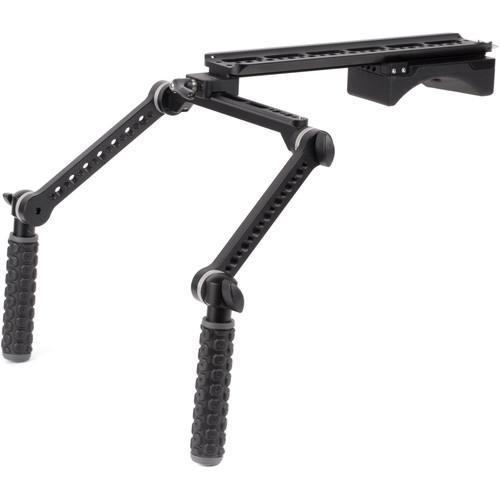

User Manual for Wooden Camera Shoulder Rig v2 Premium with Rosette Arms & Handles Click to enlarge the picture
Contents of the user manual for the Wooden Camera Shoulder Rig v2 Premium
- Product category: Camcorder Supports & Rigs Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Camcorder Supports & Rigs
|
User manual for the Wooden Camera Shoulder Rig v2 Premium contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|
Product description The Wooden Camera Shoulder Rig v2 Premium offers adjustable support for shoulder-mounted shooting and includes a pair of rubber rosette handles and rosette extension arms that position the grips at a more comfortable distance away from your body. The rig is based on an ARRI standard dovetail and a crossbar with ARRI rosettes for attaching the included handles or rosette arms. Compared to the Crossbar included with the original Shoulder Rig, the Crossbar v2 has a new design that allows it to be quickly adjusted left to right on a NATO standard rail by loosening a center thumbscrew. Another improvement sees an Arca-Swiss style dovetail added to the underside of the ARRI dovetail plate, allowing an included shoulder pad to be adjusted forwards and backwards. Threaded 1/4"-20 and 3/8"-16 holes on the components are provided for attaching accessories such as monitors, rod clamps, cheeseplates, and battery mounts. Additioanlly, the NATO-style Crossbar v2 provides a convent platform for attaching Wooden Camera's NATO Lock Magic Arm or other NATO-style accessories. - Key Features
-
- ARRI standard dovetail
- Crossbar v2 with NATO rail for left/right adjustment
- Shoulder Pad v2 attaches to Arca-Swiss style rail on underside of dovetail for forward/backward adjustment
- Rosette Handles with rubber grip
- Rosette Arms
- 1/4"-20 and 3/8"-16 accessories threads on components
UPC: 702534253845 In the Box Wooden Camera Shoulder Rig v2 Premium with Rosette Arms & Handles (Rubber) Dovetail Plate V2 Arca Swiss Shoulder Pad Crossbar V2 Kit with Clamp 2 x WC-150900 Rosette Hand Grip (Black Rubber, ARRI) 2 x WC-150600 Rosette Arm 2 x 1/4"-20 x 3/8" Socket Cap Screw 1/4"-20 x 3/4" Button Head Screw 3/16 Allen Wrench 5/32 Allen Wrench Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Shoulder Rig v2 Premium with Rosette Arms & Handles in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 204100 Specs | Mounting Interface | ARRI standard dovetail | | Accessory Mounting Threads | 1/4"-20 and 3/8"-16 | | | | Package Weight | 4.265 lb | | Box Dimensions (LxWxH) | 16.75 x 6.45 x 4.35" |
