Wooden Camera Sony F55 F5 Unified

Search your instruction manual in PDF to download

User Manual for Wooden Camera Sony F55 F5 Unified Accessory Kit

Click to enlarge the picture
Wooden Camera Sony F55 F5 Unified Accessory Kit Contents of the user manual for the Wooden Camera Sony F55 F5 Unified
  • Product category: Camcorder Supports & Rigs Wooden Camera
  • Brand: Wooden Camera
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Wooden Camera Camcorder Supports & Rigs

Wooden Camera Sony F55 F5 Unified Accessory Kit Wooden Camera Sony F55 F5 Unified Accessory Kit Wooden Camera Sony F55 F5 Unified Accessory Kit
User manual for the Wooden Camera Sony F55 F5 Unified contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Wooden Camera product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!



Product description

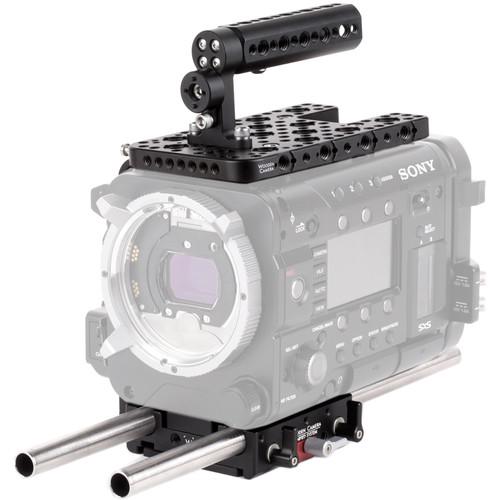

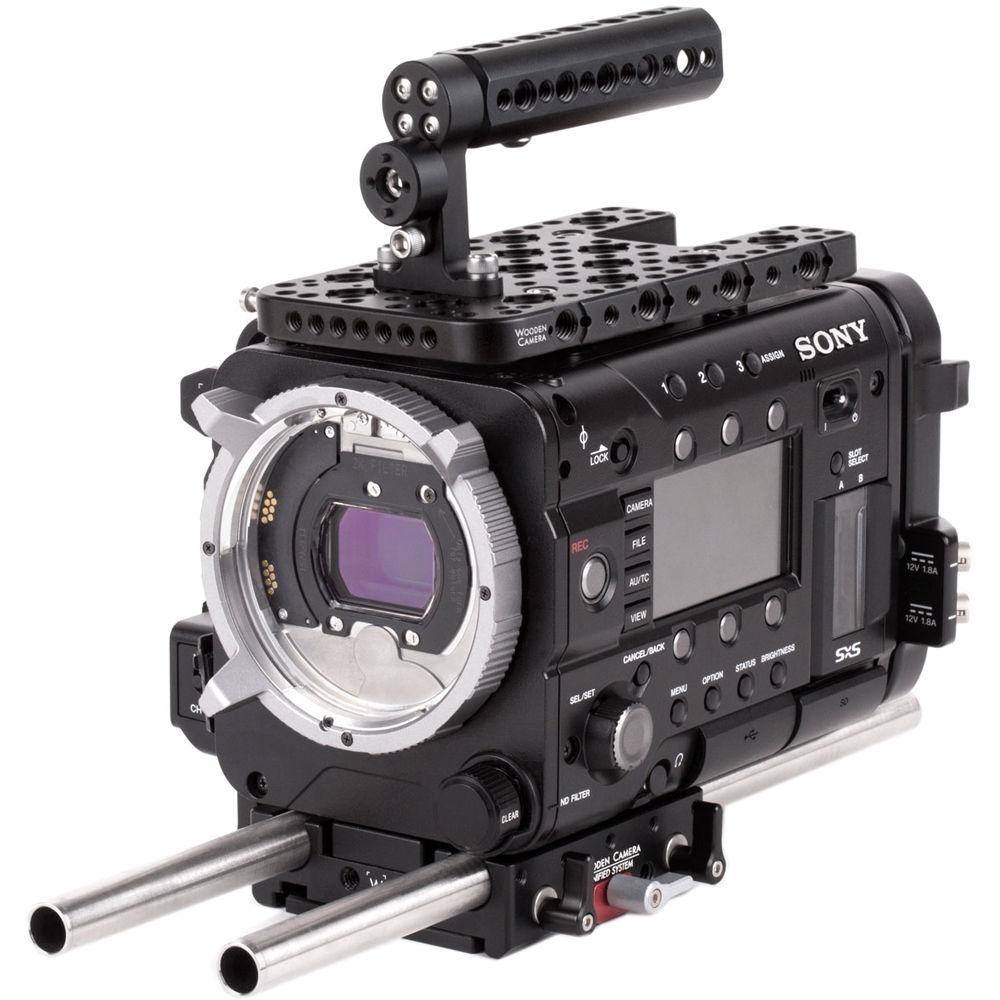

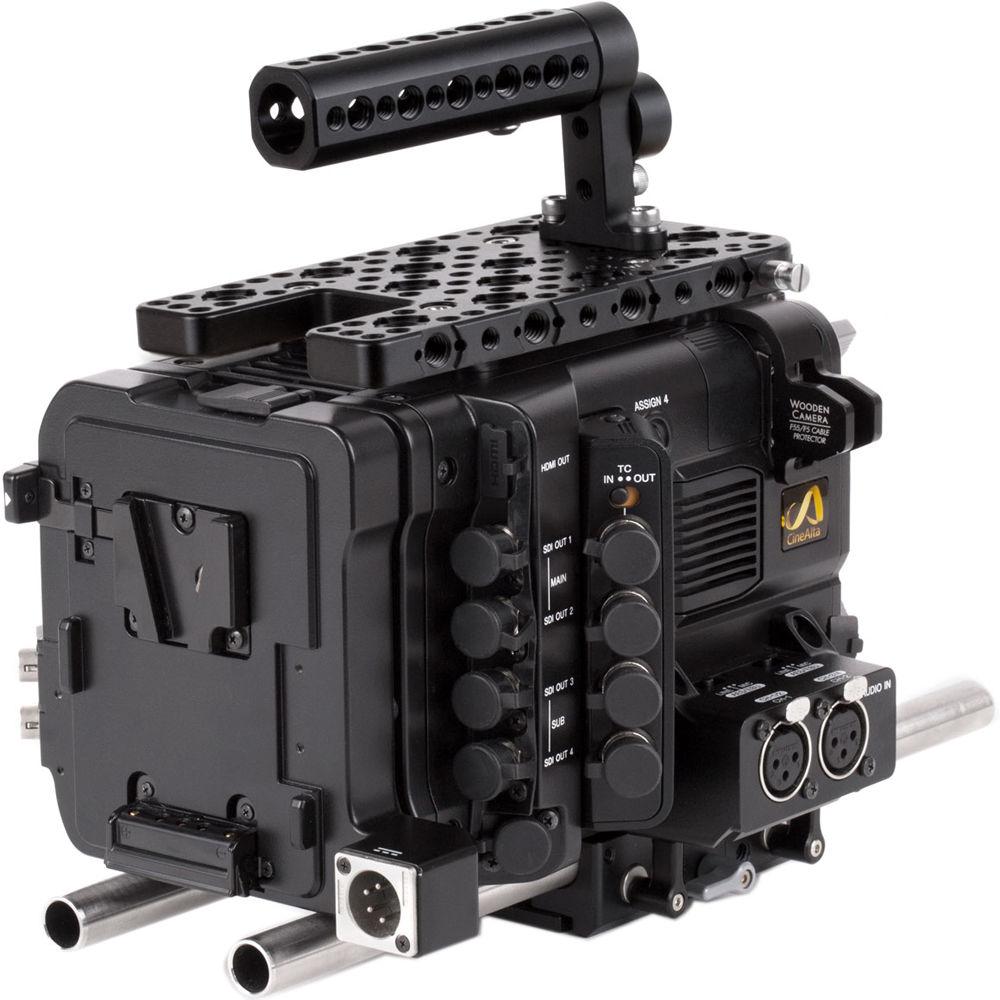

The Sony F55/F5 Unified Accessory Kit (Base) from Wooden Camera is a camera support kit designed for the Sony F55 & F5 Cameras and utilizes the Unified Baseplate System. The kit includes top plate, unified baseplate, two 15mm rods, top handle (cheese), Sony F55/F5 Cable Protector, and Sony EVF Bracket.The top plate is a camera cheese plate for secure accessory attachment, while the unified baseplate is a quick-release camera baseplate for holding the two included 12” long 15mm rods at the correct lens height. The top cheese handle is a bolt-on top handle that attaches to the top plate for secure camera carrying. The Sony F55/F5 Cable Protector provides EVF cable protection, and the Sony EVF Bracket allows attachment of the original Sony viewfinder mount.
  • Top Plate for Sony F55 & F5 Cameras The Wooden Camera Top Plate is a top cheeseplate for the Sony F55 and F5 Cameras that contours to the shape of the camera body and leaves the vent area open. Hence, the original Sony focus hook can remain attached to the camera. The stopper screw in the front prevents accidental unlocking of the FZ mount. The plate provides rows of 1/4"-20 and 3/8"-16 holes for attaching handles, UVF Mount v2, rod clamps, and more. Additional screw holes allow attachment of the original Sony F55 handle.
    • 1/4" threads in standard spacing (9mm center to center)
    • 3/8" threads in ARRI standard spacing (50mm center to center)
    UPC: 700987993493
  • Unified Baseplate for URSA Mini, F55, F5 The Wooden Camera Unified Baseplate supports 15mm LWS rods at the correct lens height, and offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.

    The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Blackmagic URSA Mini and Sony F55/F5. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.

    The Baseplate provides two quick release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.

    The Dovetail Camera Plate features a long slot along its center that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" (70mm) apart. It also has a non-slip rubber surface that will prevent the camera from twisting.

    The Dovetail Camera Plate has an ARCA Swiss standard dovetail compatible with many third-party products. It also has threaded 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates. The Lower Quick Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridgeplates, such as the Wooden Camera Unified Bridgeplates.

    The Unified Baseplate can also be upgraded for VCT-14 compatible mounting options. Simply attach it to the optional Unified VCT Wedge Plate, which can then be mounted on the Unified VCT-14 Tripod Plate, also sold separately. The Unified Baseplate is backward compatible with Wooden Camera's original Quick Dovetails (Standard, DSLR, and Large).
      Key Features
      • Supports 15mm LWS rods at the correct lens height
      • Offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit (for lens adapter support)
      • Includes the Core Unit, Lower Quick Dovetail tripod plate, and Dovetail Camera Plate
      • Two quick release options—remove Core Unit or remove Dovetail Camera Plate
      • Core Unit features a dovetail on the bottom, compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig
      • Dovetail Camera Plate features an ARCA Swiss standard dovetail and threaded holes for attaching to gimbals or other compatible tripods plates
      • Lower Quick Dovetail offers threaded holes for attaching to tripod plates or ARRI standard bridgeplates
      • Long slot along the center allows multiple screws to be attached to the camera, set up to 2.8" (70mm) apart
      • Anti-twist, non-slip rubber surface
      • Upgradable for VCT-14 compatible mounting options
      • Additional Lower Quick Dovetail and Dovetail Camera Plates can be purchased for quick swap capability
      • Backward compatible with original Wooden Camera Quick Dovetail
    UPC: 702534256471
  • 15mm Support Rod (12") This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106123
  • WC-153900 Top Handle (Cheese) The Wooden Camera WC-153900 Top Handle (Cheese) is used for securely carrying and stabilizing the camera during hand-held shooting. It bolts on to two 1/4-20 holes spaced 1.4" (36mm) apart center. The cheese grip handle bar features an array of 1/4-20 and 3/8-16 holes in standard spacing for accessory mounting. UPC: 610079105713
  • Sony F55/F5 EVF Cable Protector Install the Wooden Camera Sony F55/F5 Cable Protector to protect your camera's delicate EVF cable from being bumped while it is plugged in. While the metal surround protects the cable, it does not impede the cable release levers, so you can still easily detach the cable when necessary. Included with the cable protector are screws for attaching the protector with or without a top plate installed on your camera. UPC: 702534251711
  • Sony EVF Bracket The Sony EVF Bracket from Wooden Camera allows attachment of an original Sony viewfinder mount. It can be attached to the front of the Top Handle or NATO Handle by using 2 screws. Note: Sony viewfinder mounts can be found on Sony F55/F5 handles or older Sony Betacams. UPC: 700987993608

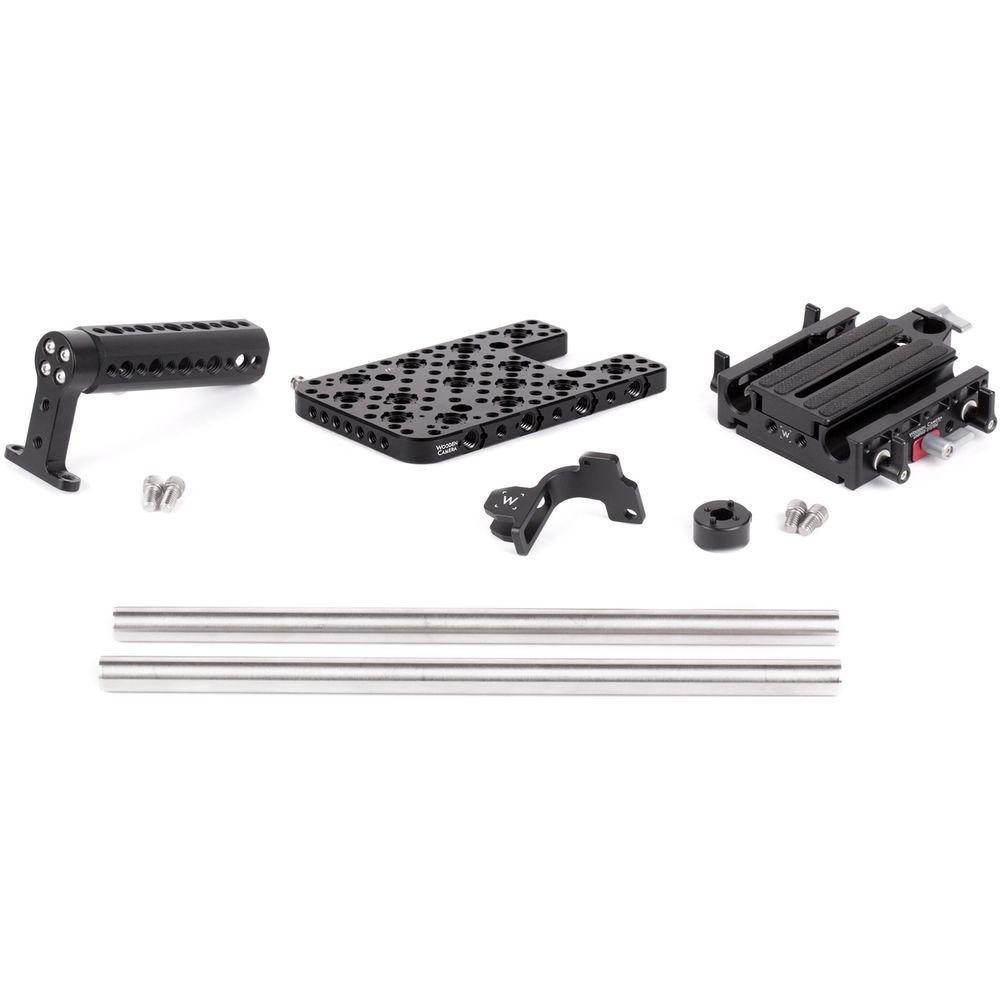

In the Box Bundle Items Top Plate for Sony F55 & F5 Cameras swxfsxwcyfsbse
  • 1/4" to 20 x 3/8" Socket Cap Screw
  • Limited 1-Year Warranty
Unified Baseplate for URSA Mini, F55, F5
  • Unified Baseplate Core Unit (No Dovetails)
  • Unified Baseplate Camera Dovetail Plate for URSA Mini, F5, F55
  • Unified Baseplate Lower Quick Dovetail
  • Limited 1-Year Warranty
2 x 15mm Support Rod (12") swxfsxwcyfsbse
  • Limited 1-Year Warranty
WC-153900 Top Handle (Cheese)
  • 2 x 1/4-20 x 1/2" Screw
  • 1-Year Warranty
Sony F55/F5 EVF Cable Protector
  • 1/4"-20 x 1/2 Socket Cap
  • M2.6 Philips Head Screw
  • 4 x 1/4"-20 x 5/8 Socket Cap Screws
  • 4 x 1/4" Washers
  • Limited 1-Year Warranty
Sony EVF Bracket
  • 1/4"-20 x 3/8" Socket Cap Screw
  • Limited 1-Year Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the Wooden Camera Sony F55 F5 Unified Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Top Plate for Sony F55 & F5 Cameras
    Box Dimensions (LxWxH) 7.2 x 3.6 x 0.2"
  • Unified Baseplate for URSA Mini, F55, F5
    Dimensions 2 x 6 x 6" (5 x 15 x 15 cm)
    Weight 0.8 lb (363 g)
    Box Dimensions (LxWxH) 5.4 x 5.3 x 1.75"
  • 15mm Support Rod (12")
    Rod Size 15 mm
    Rod Length 12" (30.5 cm)
    Box Dimensions (LxWxH) 12.05 x 1.35 x 0.6"
  • WC-153900 Top Handle (Cheese)
    Dimensions 4.8 x 2.7 x 1.9" (121.92 x 6.86 x 4.82 mm)
    Weight 0.4 lb (181.43 g)
    Box Dimensions (LxWxH) 7.7 x 4.35 x 2.3"
  • Sony F55/F5 EVF Cable Protector
    Dimensions 1.8 x 1.5 x 2.4" / 45.2 x 38.6 x 60.7 mm
    Weight 3 oz / 86 g
    Box Dimensions (LxWxH) 3.0 x 3.0 x 1.0"
  • Sony EVF Bracket
    Box Dimensions (LxWxH) 5.0 x 4.0 x 1.0"
