Wooden Camera Sony FS5 Unified Accessory

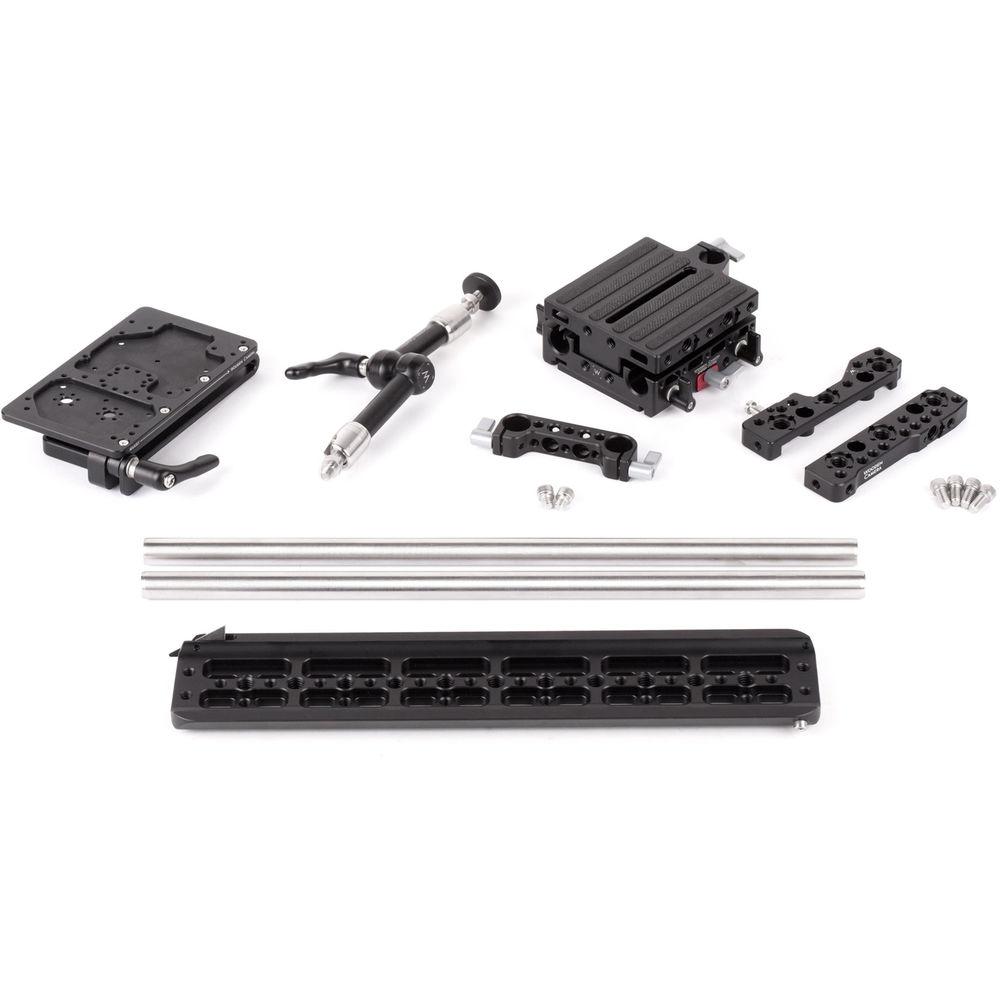

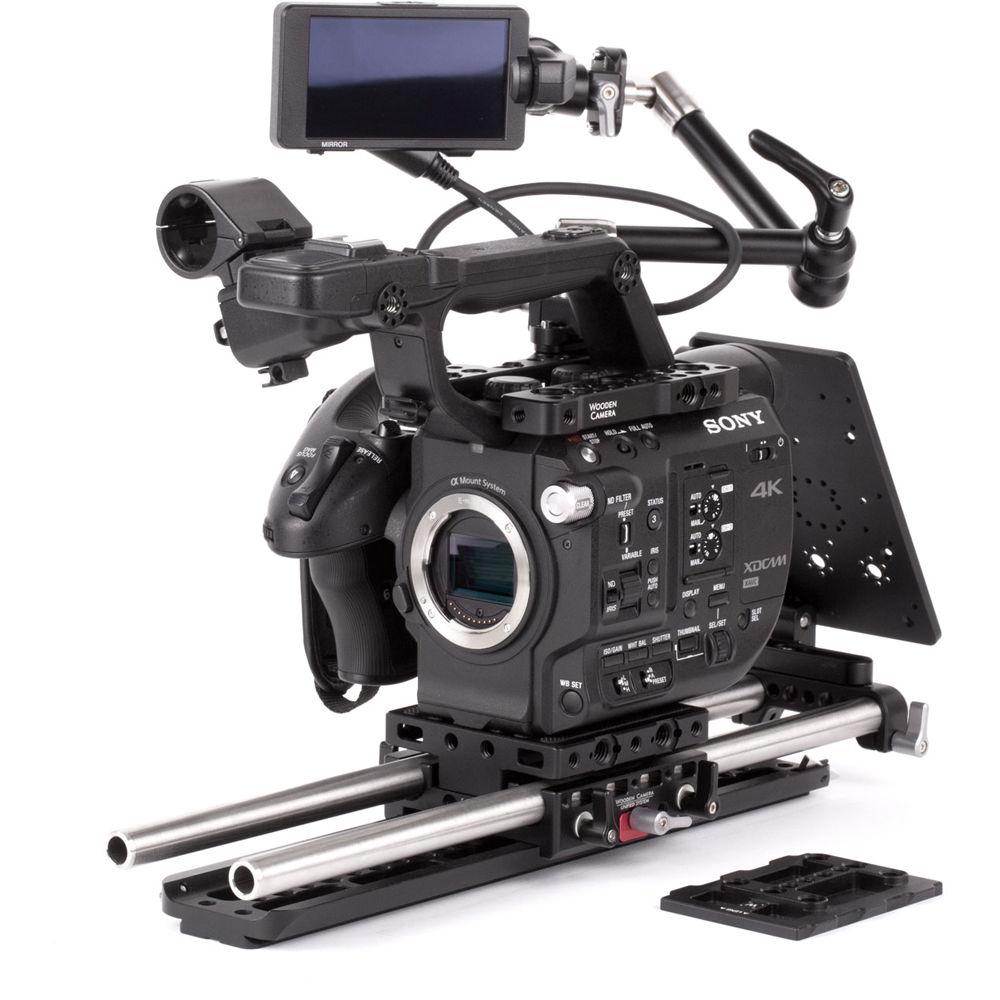

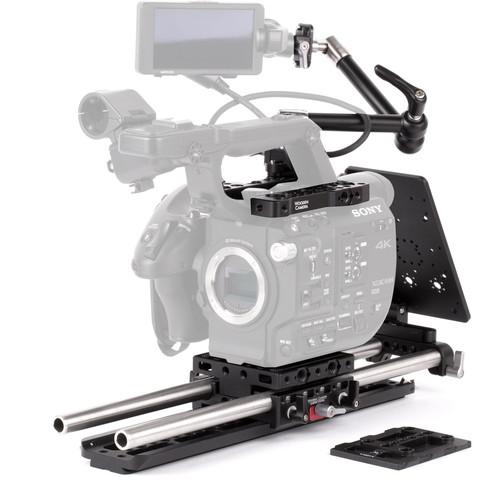

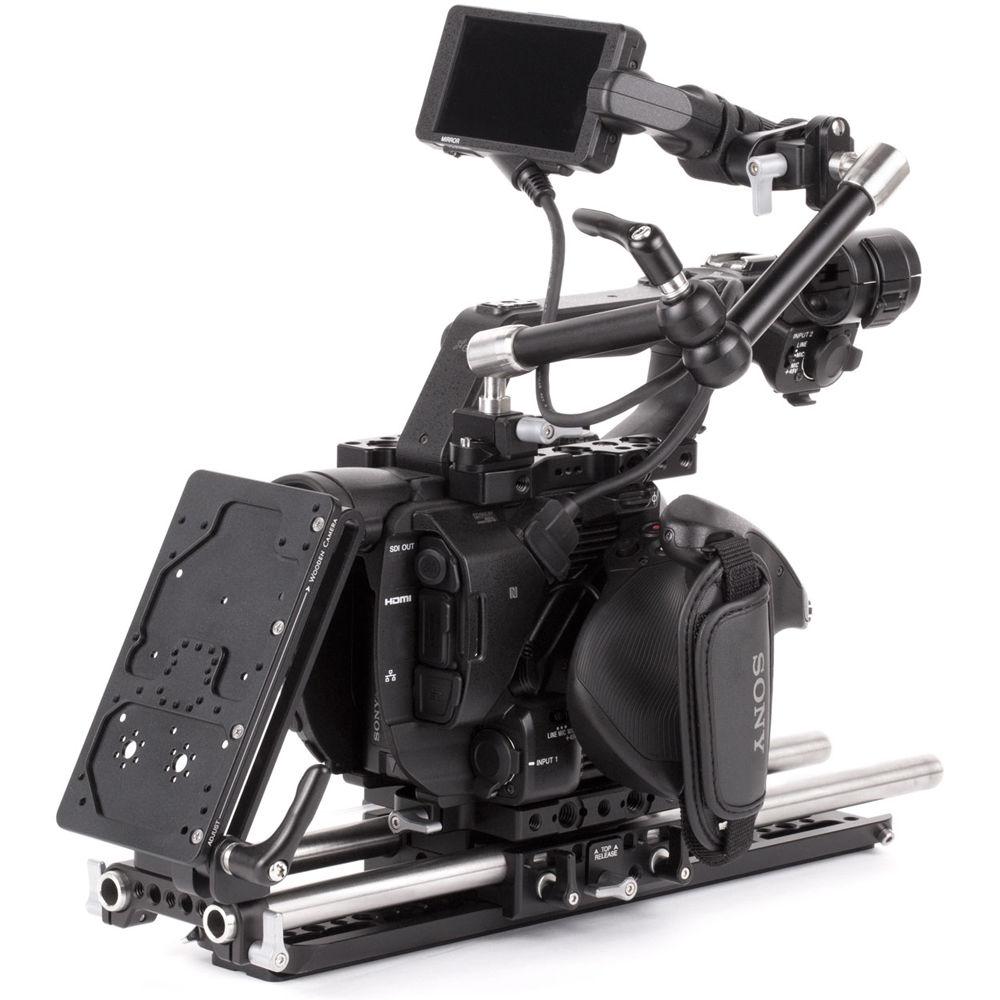

User Manual for Wooden Camera Sony FS5 Unified Accessory Kit

• Product category: Camcorder Supports & Rigs Wooden Camera
• Brand: Wooden Camera
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Wooden Camera Camcorder Supports & Rigs

Product description

• Top Plate for Sony FS5 Camera The Top Plate for Sony FS5 Camera from Wooden Camera is designed to unobtrusively mount to the top of your FS5, while providing a versatile array of mounting threads for nearly any accessory.

  The design of the top plate allows the original handle to remain installed on the camera body. It features multiple 1/4"-20 and 3/8"-16 female threads for precise positioning of magic arms, lights, audio gear, monitors, and more. There are also multiple ARRI-Standard accessory mounts in several positions on the plate, featuring a 3/8'-16 threaded hole with adjacent locating pins. A tape hook is also included with the plate and it is important to note that the Sony cable guide should be removed and installed on the side of this plate. UPC: 702534255733
• Unified Baseplate for FS5, EVA-1, VariCam LT, VariCam 35 The Wooden Camera Unified Baseplate supports 15mm LWS rods at the correct lens height, and offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.

  The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Sony FS5 and Panasonic EVA-1, VariCam LT, and VariCam 35. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.

  The Baseplate provides two quick release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.

  The Dovetail Camera Plate features a long slot along its center that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" (70mm) apart. It also has a non-slip rubber surface that will prevent the camera from twisting.

  The Dovetail Camera Plate has an ARCA Swiss standard dovetail compatible with many third-party products. It also has threaded 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates. The Lower Quick Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridgeplates, such as the Wooden Camera Unified Bridgeplates.

  The Unified Baseplate can also be upgraded for VCT-14 compatible mounting options. Simply attach it to the optional Unified VCT Wedge Plate, which can then be mounted on the Unified VCT-14 Tripod Plate, also sold separately. The Unified Baseplate is backward compatible with Wooden Camera's original Quick Dovetails (Standard, DSLR, and Large).
  Key Features
  • • Supports 15mm LWS rods at the correct lens height
    • Offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit (for lens adapter support)
    • Includes the Core Unit, Lower Quick Dovetail tripod plate, and Dovetail Camera Plate
    • Two quick release options—remove Core Unit or remove Dovetail Camera Plate
    • Core Unit features a dovetail on the bottom, compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig
    • Dovetail Camera Plate features an ARCA Swiss standard dovetail and threaded holes for attaching to gimbals or other compatible tripods plates
    • Lower Quick Dovetail offers threaded holes for attaching to tripod plates or ARRI standard bridgeplates
    • Long slot along the center allows multiple screws to be attached to the camera, set up to 2.8" (70mm) apart
    • Anti-twist, non-slip rubber surface
    • Upgradable for VCT-14 compatible mounting options
    • Additional Lower Quick Dovetail and Dovetail Camera Plates can be purchased for quick swap capability
    • Backward compatible with original Wooden Camera Quick Dovetail
  UPC: 702534256495
• Safety Dovetail Plate (12") The 12" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations. UPC: 610079105492
• 15mm Rod Clamp The Wooden Camera 15mm Rod Clamp attaches to 15mm rods to add 1/4"-20 screw-holes to your camera rig. Among the variety of accessories that can be mounted to these screw-holes is Wooden Camera's QB Battery Back Plate. This plate comes in different versions, each designed to have a different type of battery plate and ultimately battery attached to it. With these attached, the QB Battery Back Plate can be mounted right onto the screw-holes of the Rod Clamp. The ability to attach so is especially useful when you have no way of mounting a battery directly onto your camera and as an alternative are looking for a way to get the battery near the camera (so you can connect the two). UPC: 610079106260
• Battery Slide The Battery Slide from Wooden Camera is an adjustable mounting system for V-Mount, Gold Mount, QRC Gold Mount, and RED/BLUESHAPE battery plates. Multiple rows of pass-through holes allow the attachment of rod clamps, cheese plates, and other accessories.

  In order to adjust the plate's position, the user only needs to apply firm pressure to tilt it into place. Sliding the plate into position is facilitated by an adjustable thumbscrew. Both these movements make the plate ideal for adjusting counterbalance and transitioning from studio to handheld position. UPC: 610079106451
• NATO Lock Magic Arm (11") The 11" NATO Lock Magic Arm from Wooden Camera is an articulating arm with a NATO standard quick release and clamp on each end, ratcheting center thumbscrew with rosette, and stainless steel ball-joint construction. The rail portion can bolt into a 1/4"-20 or 3/8"-16 hole using the included screws. A set screw can also be installed to prevent twisting. The rail is also threaded for 1/4"-20 and 3/8"-16 so accessories can screw into it.

  The clamp portion of the kit can also bolt into a 1/4"-20 or 3/8"-16 hole using the included screws and it is also threaded for 1/4"-20 and 3/8"-16 so accessories can screw into it.

  This 11" articulating arm is ideal for attaching LCDs, lights, audio recorders, and similar accessories. It is compatible with RED Swat rails, Zacuto Z-rails, and other 3rd party NATO products.

• 4 x 1/4"-20 x 1/2" Screws

• Limited 1-Year Warranty

• Unified Baseplate Core Unit (No Dovetails)

• Unified Baseplate Camera Dovetail Plate for FS5, VariCam LT, VariCam 35

• Unified Baseplate Lower Quick Dovetail

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2 x 1/4"-20 x 1/4" Screws

• 2 x 1/4"-20 x 3/4" Screws

• 1-Year Limited Warranty

• 2 x 1/4"-20 x 1/4" Socket Cap Screw

• 6 x M3 x 14mm Pan Head Screws

• 4 x M3 x 12mm Pan Head Screws

• 4 x M3 x 8mm Pan Head Screws

• 4 x M3 x 8mm Phillips Flat Head Screws

• Limited 1-Year Warranty

Also Includes

• 2 x 15mm Support Rod (15")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Top Plate for Sony FS5 Camera

  Thread Size	1/4"-20 & 3/8"-16
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	5.45 x 3.15 x 1.3"

• Unified Baseplate for FS5, EVA-1, VariCam LT, VariCam 35

  Dimensions	2 x 6 x 6" (5 x 15 x 15 cm)
  Weight	1.1 lb (0.5 kg)

  Box Dimensions (LxWxH)	5.1 x 4.7 x 1.9"

• Safety Dovetail Plate (12")

  Dimensions	12.0 x 2.7 x 0.5" / 30.5 x 6.8 x 1.3 cm
  Weight	0.9 lb / 0.4 kg

  Box Dimensions (LxWxH)	12.2 x 3.6 x 0.5"

• 15mm Rod Clamp

  Dimensions	4.4 x 1 x .6" (11 x 2.5 x 1.5 cm)
  Weight	.2 lbs (91 g)

  Box Dimensions (LxWxH)	3.0 x 1.95 x 1.0"

• Battery Slide

  Dimensions	6.0 x 4.5 x 1.8" (152.4 x 114.3 x 45.7 mm)
  Weight	8 oz (226.8 g)

  Box Dimensions (LxWxH)	8.7 x 6.4 x 2.3"

• NATO Lock Magic Arm (11")

  Compatibility	RED Swat rails Zacuto Z-rails Other 3rd party NATO products
  Length	11" (27.9 cm)

  Box Dimensions (LxWxH)	7.55 x 7.2 x 1.25"
