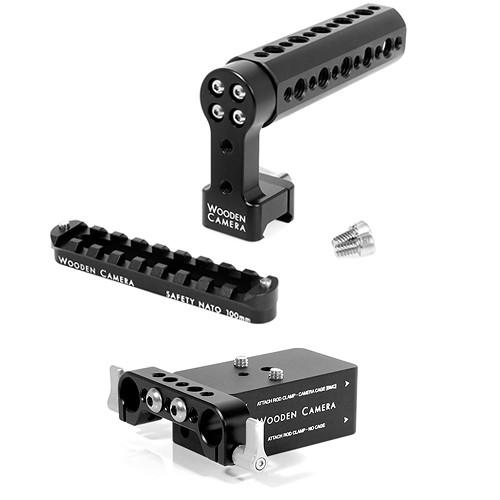

User Manual for Wooden Camera Starters Kit for the Blackmagic Camera Click to enlarge the picture
Contents of the user manual for the Wooden Camera Starters Kit for the
- Product category: Camcorder Supports & Rigs Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Camcorder Supports & Rigs
|
User manual for the Wooden Camera Starters Kit for the contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|
Product description The Wooden Camera Starters Kit for the Blackmagic Camera, a kit from , equips the top and bottom of the camera to form a tripod mount setup.
A multi-threaded top handle attaches to the top of the camera, and a mini baseplate, with 1/4" and 3/8" tripod-mounting threads underneath it attaches to the bottom. The baseplate features a 15mm rod clamp that accepts 15mm rods. You can add a pair of rods and mount a follow focus and matte box onto them. - Wooden Camera NATO Handle Kit with Cheese Handle The Wooden Camera NATO Handle Kit with Cheese Handle is a quick release handle system that can be attached to anything that has on it two 1/4"-20 screw-holes spaced between 0 and 72mm apart. A 100mm long rail is the base of the system and is what attaches to the screw holes, and the handle dovetails onto rail. The rail can at all times stay where it's attached and the handle slipped on and off as needed. The handle features numerous 1/4" and 3/8" screw-holes in case you want to attach any accessory, like a Noga arm.
70mm and 150mm rails are separately available. UPC: 610079106024 - Wooden Camera Mini Baseplate for the Blackmagic Camera The Wooden Camera Mini Baseplate for the Blackmagic Camera is a rod support system for the Blackmagic Camera. The camera attaches on top to make use of a 15mm Rod Clamp connected to the front of the plate. Rods can be installed into the clamp and a follow focus and a matte box mounted onto them for use with the camera. A second clamp can optionally be connected to the rear of the plate for additional rod support. The clamps can be mounted normally or upside-down to accommodate different lens heights. The plate can also be used to mount tripods, via 1/4" and 3/8" threads on its underside.
Alternative to attaching the camera directly onto the plate, it can instead be placed in Wooden Camera's Blackmagic Camera Cage and the cage attached. A set of screws comes included for mounting the cage. The cage is sold separately. UPC: 610079106383 In the Box - NATO Handle Kit with Cheese Handle vbzvzsfetyyubwsaqfrasafrxaxzbfs
- 148800 NATO Handle (Cheese)
- WC-151400 Safety NATO Accessory Rail (100mm)
- 2 x 1/4"-20 x 3/8" Screw
- 1-Year Limited Warranty
- Mini Baseplate for the Blackmagic Camera
Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Starters Kit for the Blackmagic Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Wooden Camera NATO Handle Kit with Cheese Handle
| Dimensions | 4.8 x 4 x 3.2" / 12 x 10 x 8 cm | | Weight | .5 lbs / .22 kg | | | | Box Dimensions (LxWxH) | 6.0 x 3.0 x 1.0" | - Wooden Camera Mini Baseplate for the Blackmagic Camera
| Mount Types | 2x 15 mm rod openings
1/4"-20 screw and a pin for attaching the camera
2x 1/4"-20 and 2x 3/8"-16 threads for mounting tripods | | Dimensions | 1.8 x 1.3 x 3.1" (4.5 x 3.3 x 8 cm) | | Weight | .4 lb (.18 kg) | | | | Box Dimensions (LxWxH) | 4.0 x 3.5 x 1.5" |
