Wooden Camera UFF-1 Universal Follow Focus

Search your instruction manual in PDF to download

User Manual for Wooden Camera UFF-1 Universal Follow Focus

Click to enlarge the picture
Wooden Camera UFF-1 Universal Follow Focus Contents of the user manual for the Wooden Camera UFF-1 Universal Follow Focus
  • Product category: Follow Focus Systems Wooden Camera
  • Brand: Wooden Camera
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Wooden Camera Follow Focus Systems

Wooden Camera UFF-1 Universal Follow Focus Wooden Camera UFF-1 Universal Follow Focus Wooden Camera UFF-1 Universal Follow Focus Wooden Camera UFF-1 Universal Follow Focus
User manual for the Wooden Camera UFF-1 Universal Follow Focus contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Wooden Camera product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!



Product description

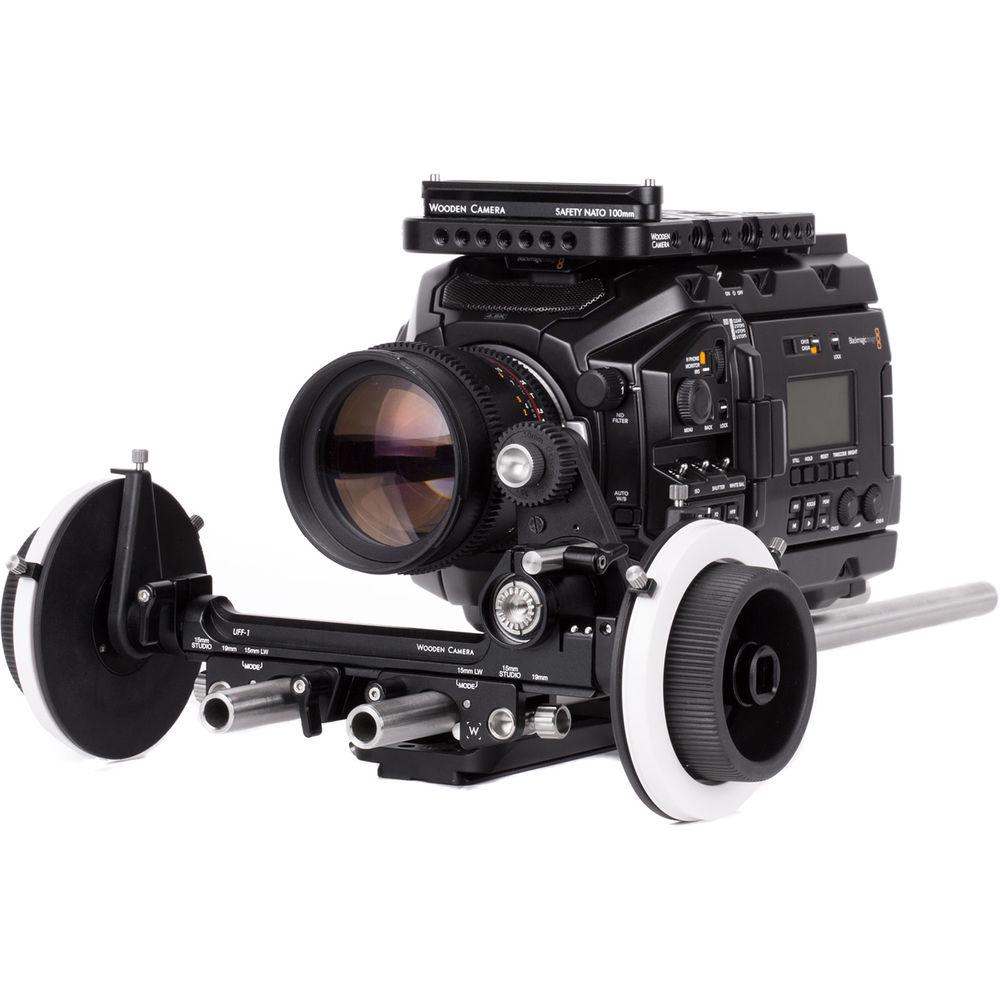

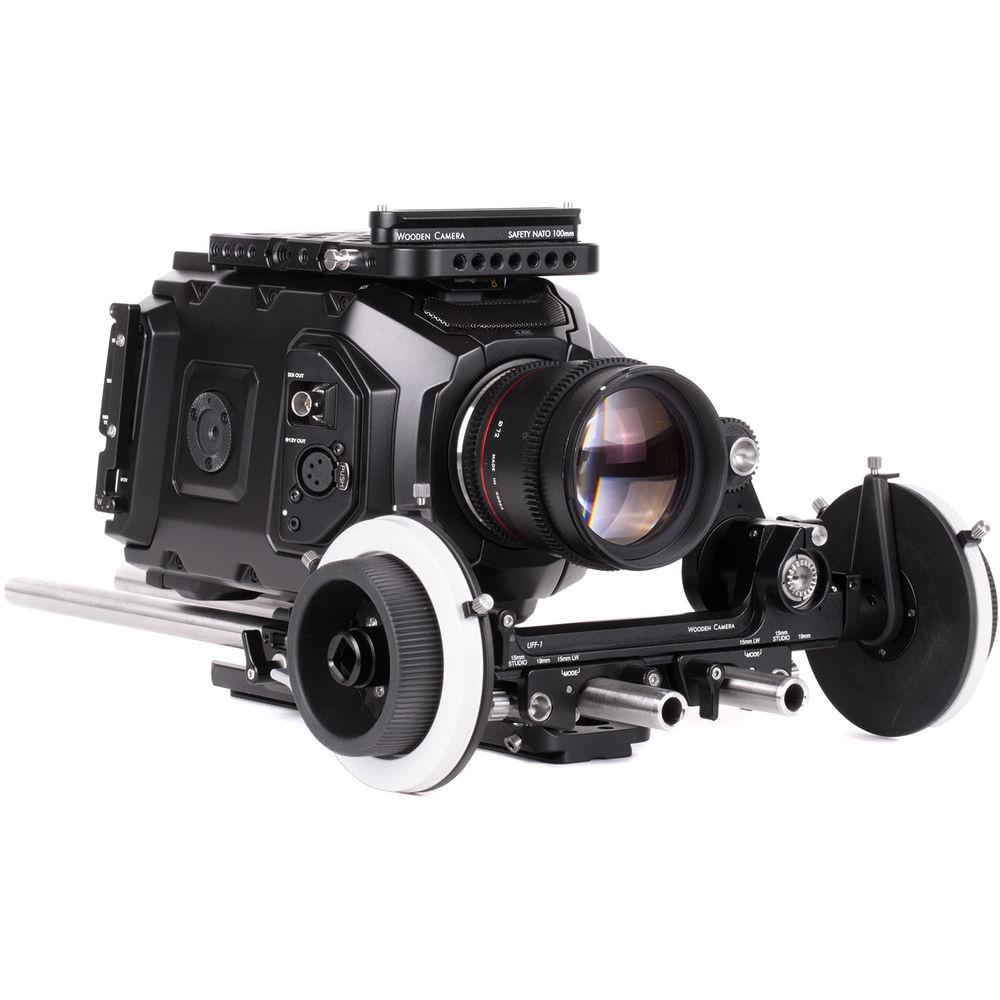

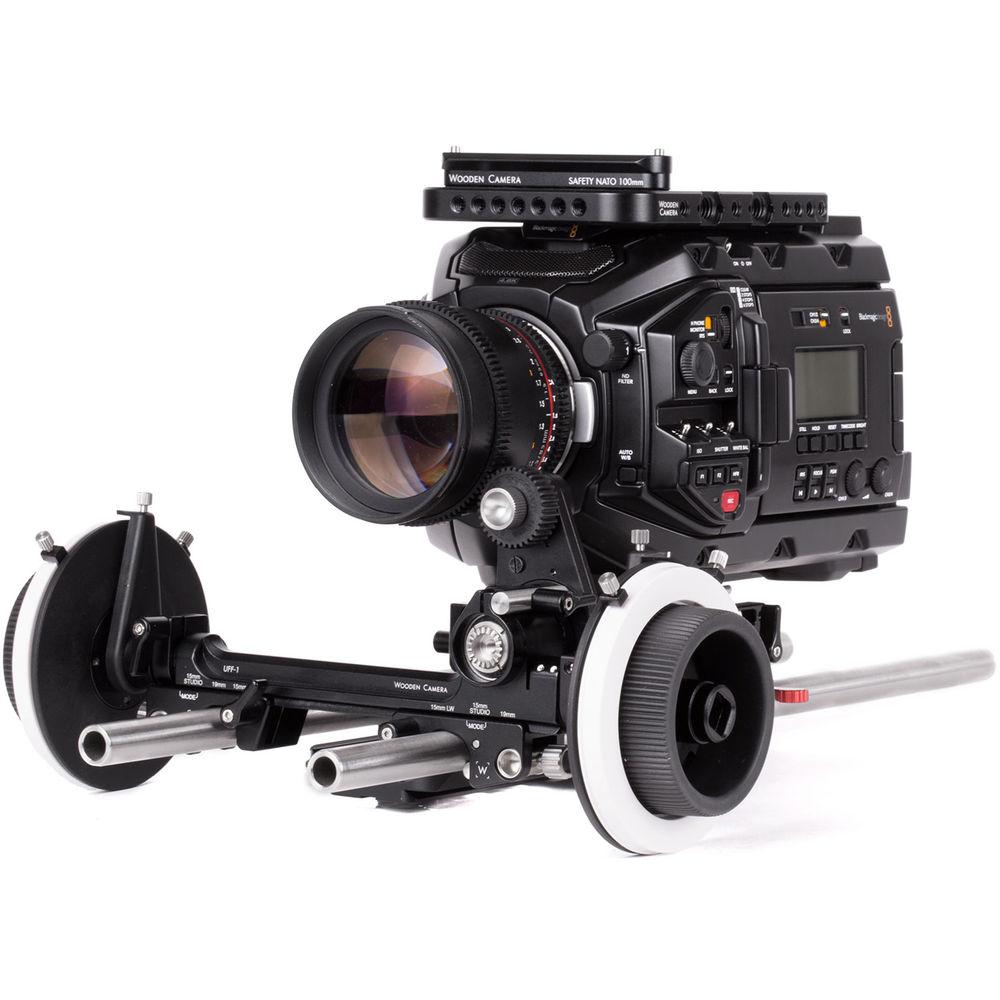

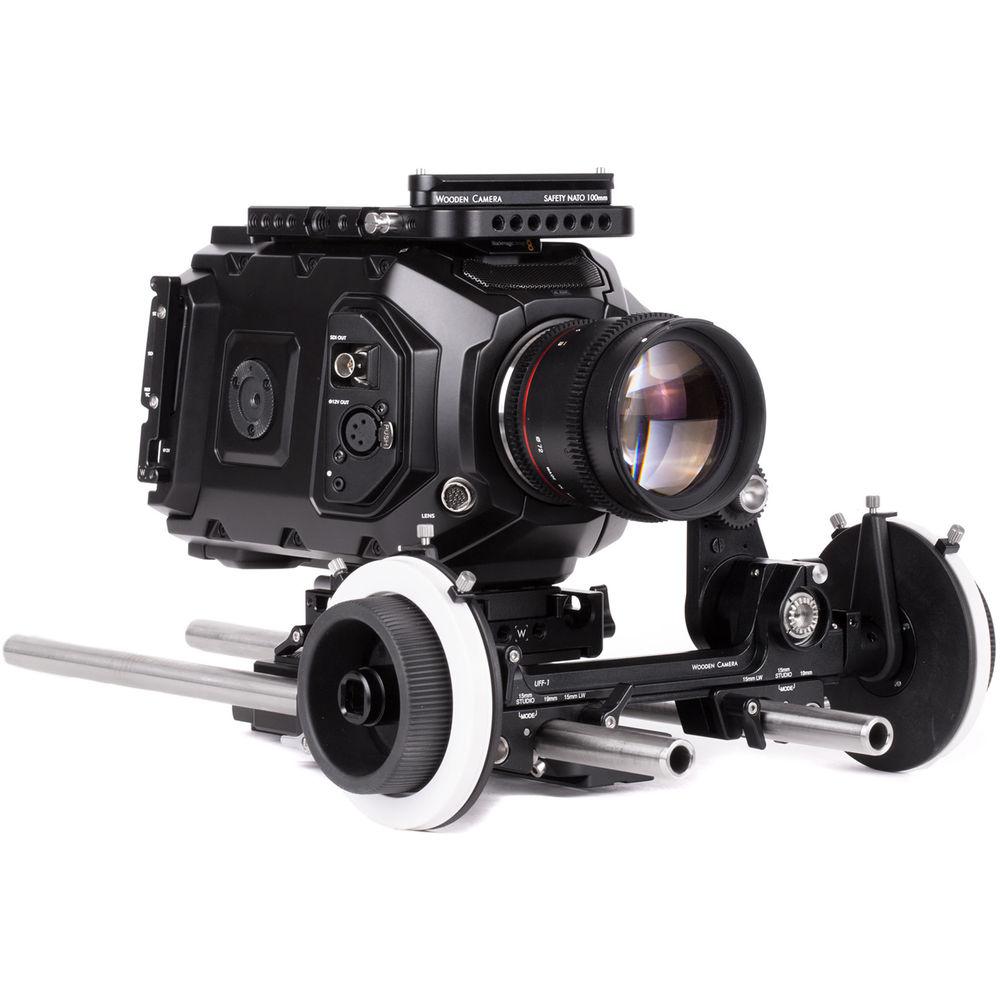

Wooden Camera's UFF-1 Universal Follow Focus is designed to fit on any of the three major rod standards, 15mm LWS, 15mm studio, and 19mm studio without rod adapters. The UFF-1 achieves this through movable rod clamps that lock into marked positions along the follow focus' bridge. The swinging arm allows lenses of multiple sizes to be used, and provides extra reach for using with the studio rod standards. Drive gears can be mounted to either side of the arm, and the arm itself can be mounted to either side of the gear drive.The pro version of the UFF-1 includes a bevy of accessories that can have an AC or operator pulling focus in nearly any situation. Dual handwheels allow for focus pulls from either side of the camera. Ten marking disks are included, so you'll always have a fresh one ready. For DSLR lenses, or pulling focus while operating the camera, two hard-stop disks are included as well. These disks have two movable hard stops for setting focus marks. Using the included handwheel extension, you can extend one of the handwheels further away from the camera to accommodate for larger lenses. Using the ARRI-standard accessory ports on either handwheel, the included focus whip or crank can be attached. The crank has a pass-through accessory port, so both accessories can be attached simultaneously to the same handwheel.Five focus drive gears are included. 0.5 and 0.6 MOD gears for driving Canon and Fujinon ENG lenses, respectively, as well as small and large-diameter 0.8 MOD gears for driving standard cinema lenses. For DSLR lenses that are not geared, a friction gear is included. The UFF-1 and all included accessories come packaged inside custom-cut foam that can fit in a separately available Pelican 1500 hard case, for protection during storage and transport. UPC: 606184853724 In the Box Wooden Camera UFF-1 Universal Follow Focus (Pro)

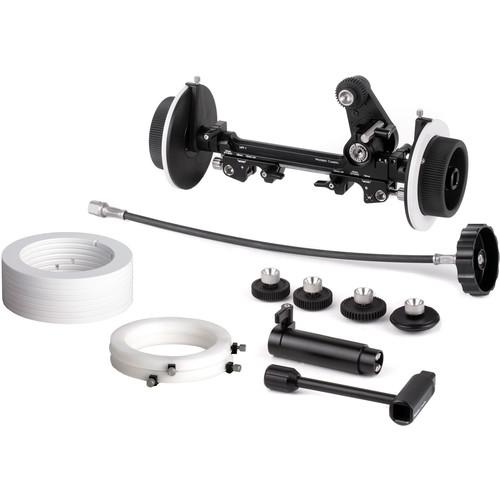

  • Adjustable Bridge with Rod Clamps
  • 2 x Handwheel
  • 2 x Hard Stop Disk
  • 10 x Standard Marking Disks
  • Handwheel Extension
  • Focus Whip
  • Speed Crank
  • 5 x Focus Drive Gears
  • Custom-Cut Foam Insert
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Wooden Camera UFF-1 Universal Follow Focus in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Wooden Camera UFF-1 Specs

    Included Drive Gear 0.5 / 0.6 / 0.8 MOD and Friction Gear
    Rod Compatibility 15 mm LWS, Studio
    19 mm Studio
    Number of Sides Double-Sided
    Built-In Hardstops None
    Witness/Index Mark Yes
    Marking Disk Yes
    Switchable Handwheel Speed No
    Package Weight 5.3 lb
    Box Dimensions (LxWxH) 18.2 x 12.1 x 5.7"

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 73 owners. Add your rating and experience with the product.
