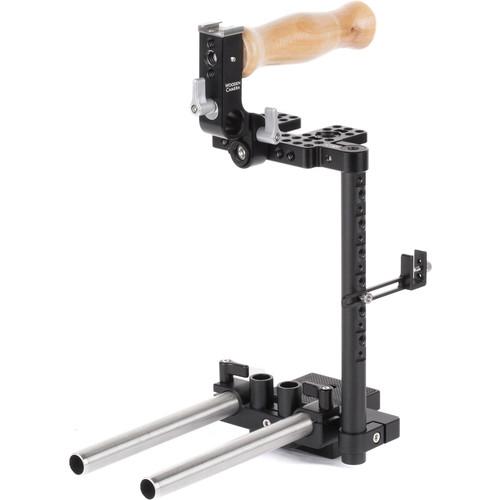

User Manual for Wooden Camera Unified Accessory Kit for Nikon D810 D800 Click to enlarge the picture
Contents of the user manual for the Wooden Camera Unified Accessory Kit for
- Product category: DSLR Video Supports & Rigs Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera DSLR Video Supports & Rigs
|
User manual for the Wooden Camera Unified Accessory Kit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|
Product description This Wooden Camera Unified Accessory Kit for Nikon D810/D800 is the base configuration and includes the Wooden Camera Unified DSLR Cage with Wood Grip and a pair of 6"-long 15mm support rods. It works with your Nikon D810 or D800 camera, providing you with an armored half cage with HDMI clamp and support rods for mounting accessories. - Unified DSLR Cage with Wood Grip (Large) Build up your DSLR camera for professional video and cinema production with Wooden Camera's large Unified DSLR Cage with Wood Grip. The cage itself surrounds your camera on three sides, adding a measure of protection to larger DSLR cameras like Canon's 1D series or Nikon's D3, D4, and D5 bodies. The Unified Cage also fits smaller DSLR or mirrorless cameras with an installed battery grip.Both 1/4"-20 and 3/8"-16 threaded holes line the top and sides of the cage for securing accessories such as articulating arms. The top of the cage leaves the space above the camera's accessory shoe unobstructed for mounting audio accessories such as XLR adapters. A height-adjustable, dual-rod clamp enables you to mount 15mm rods for supporting accessories like matte boxes and follow focus units.An HDMI cable clamp on the cage's vertical post protects the camera's HDMI port from cable snags. The kit also includes all necessary mounting screws and an articulating wood-grip top handle.
- Compatibility
- DSLR cameras 5" or taller
Canon 1D Mk IV, 1D Mk III, 1D X Mk II, 1D X, 1D C
Nikon D850, D810, D800, D5, D4S, D4, D3X
DSLR cameras with an installed battery grip such as the Sony Alpha series or Fujifilm X-H1 - Reversible Top Handle
- The reversible top handle has a wood grip which provides additional ways to comfortably handhold your camera. A cold shoe at the top can be used to mount a microphone, monitor, or other camera-top accessory. The handle folds for travel and can be alternately secured onto the left vertical rod for a secondary grip.
- 15mm LWS Rod Support
- 15mm LWS rods can be secured using the integrated rod clamp. The rod height is adjustable to ensure correct optical axis placement for matte boxes and follow focuses.
UPC: 606184853625 - 15mm Support Rod (6") This is a single, 6" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106109
In the Box Bundle Items Unified DSLR Cage with Wood Grip (Large) becszvyxrwrzbduwsfrqfqybrefz - Wooden Top Handle Grip for Unified DSLR Cage
2 x - Low-Profile Screw (1/4''-20)
2 x 15mm Support Rod (6") Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Unified Accessory Kit for Nikon D810 D800 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Unified DSLR Cage with Wood Grip (Large)
| Accessory Mounting | Multiple:
1/4"-20 threads
3/8"-16 threads
ARRI anti-twist mounts
Manfrotto anti-twist mounts | | Rod Standard | 15 mm LWS | | Rod Length | 7.6" / 194 mm | | Dimensions | 11.5 x 4.5 x 6" / 29.2 x 11.4 x 15.2 cm | | Weight | 1.3 lb / 590 g | | | | Box Dimensions (LxWxH) | 9.1 x 6.4 x 2.0" | - 15mm Support Rod (6")
| Rod Size | 15 mm | | Rod Length | 6" (15 cm) | | | | Box Dimensions (LxWxH) | 6.1 x 2.0 x 1.5" |
