User Manual for Wooden Camera Unified Cage Click to enlarge the picture
Contents of the user manual for the Wooden Camera Unified Cage
- Product category: Camcorder Supports & Rigs Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Camcorder Supports & Rigs
 |
User manual for the Wooden Camera Unified Cage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

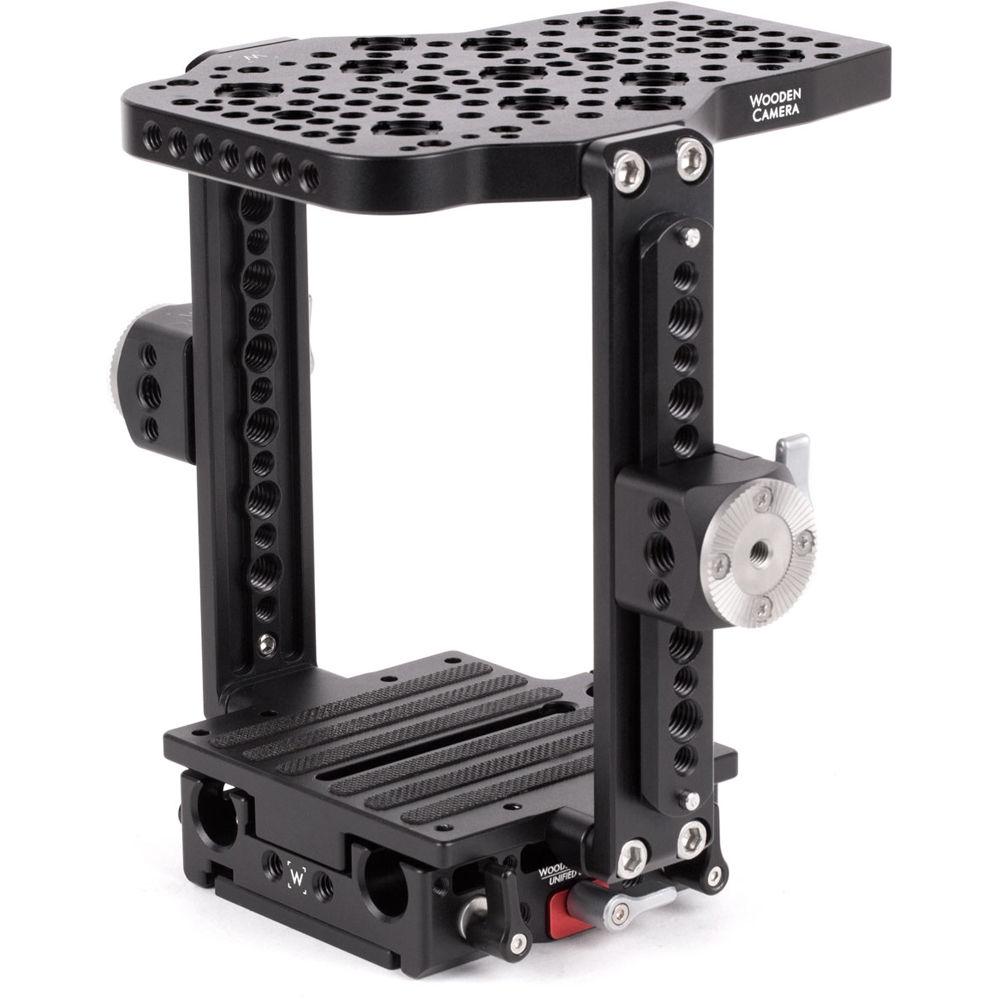

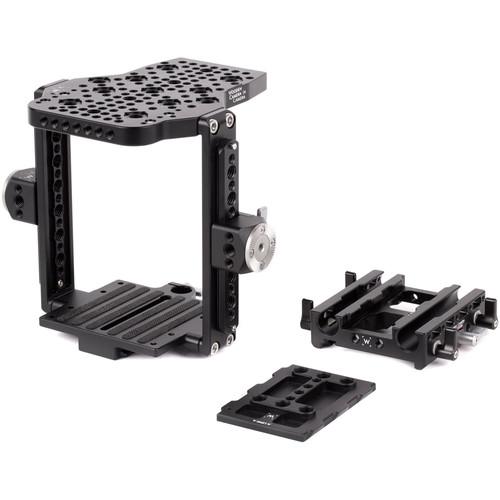

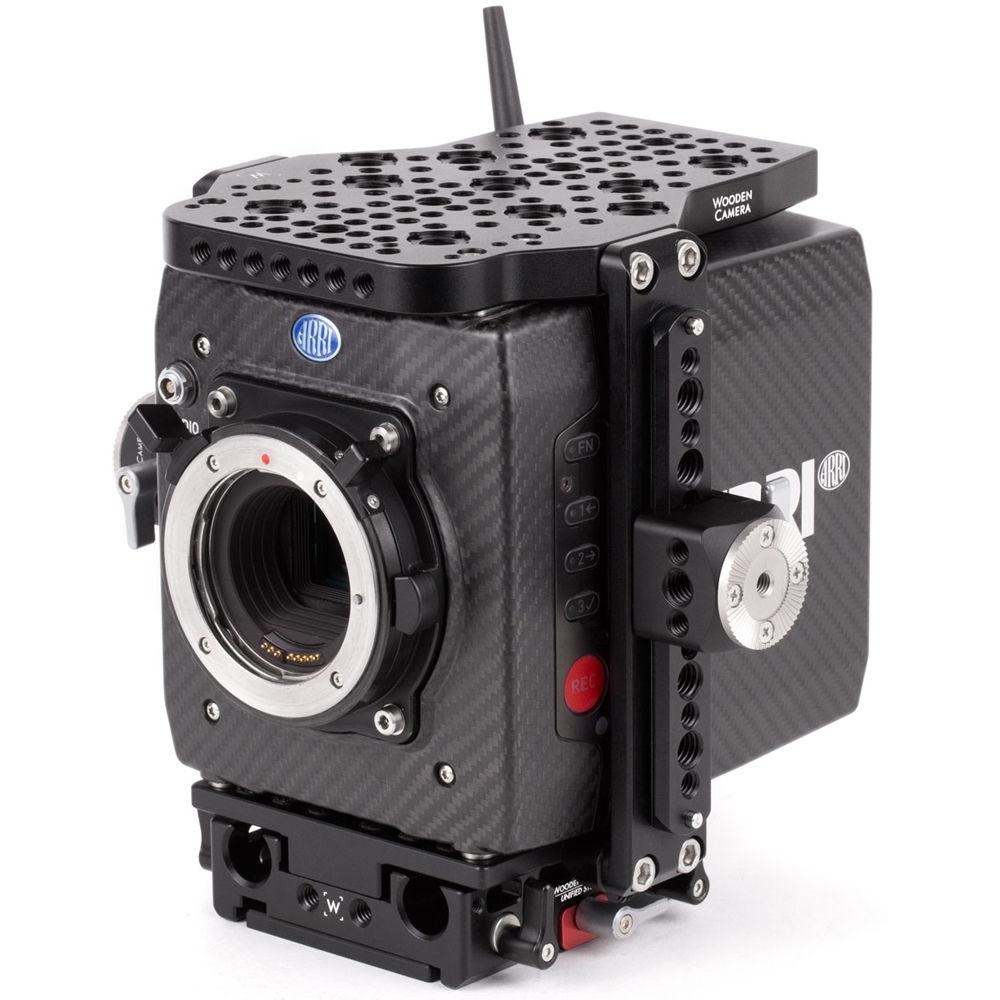

Product description The Unified Cage (Alexa Mini + LW) from Wooden Camera is a form fitting cage plus a 15mm lightweight baseplate for the ARRI Alexa Mini. It attaches securely by four M4 screws on top and four M4 screws on the bottom. The M4 hole pattern found on the camera body is present on the cage top plate. This allows for attachment of ARRI brand handles and accessories. It features arrays of 1/4-20” holes in standard spacing and multiple 3/8-16” holes for accessories.
The cage also has a lightweight 15mm support baseplate that allows for 15mm pass-through rods. The bottom of the baseplate is comprised of the Lower Quick Dovetail which has 1/4-20” and 3/8-16” threaded holes for attaching to a tripod plate or ARRI standard bridgeplate such as Unified Bridgeplate (19mm or 15mm Studio, sold separately). To remove the camera from the included Lower Quick Dovetail and take the 15mm lightweight rods with you, unlock the left thumbscrew, slide the baseplate backwards a short distance, and lift up. This action exposes an integrated ARRI dovetail slot on the bottom which can attach directly to any 2060 dovetails, safety dovetails, or shoulder rigs.The cage side pieces feature NATO standard accessory rails with spring-loaded safety pins on each end to prevent accidental removal. The NATO rails also feature 1/4-20” and 3/8-16” holes. Clamped to the side rails are two NATO Rosettes (ARRI) which adapt an ARRI standard rosette to a quick-release NATO rail. Furthermore, this Unified Cage can be attached to the Unified VCT Wedge Plate, providing easy counterbalance ability while on the shoulder. This could then be attached to the Unified VCT-14 Tripod Plate which would be attached to the tripod head. Note: Unified Baseplate is backwards compatible with the Quick Dovetail (standard) and Quick Dovetail (DSLR, large). UPC: 606184851935 In the Box Wooden Camera Unified Cage (Alexa Mini+LW) 4 x M4 x 8mm Socket Cap Screw 4 x M4 x 14mm Socket Cap Screw 8 x 1/4-20 x 3/8" Socket Cap Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Unified Cage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 226900 Specs | Dimensions | 6 x 4 x 7" (15 x 10 x 18 cm) | | Weight | 2.6 lb (1.2 kg) | | | | Package Weight | 2.715 lb | | Box Dimensions (LxWxH) | 7.7 x 7.5 x 2.45" |
