User Manual for Wooden Camera Unified Cage Click to enlarge the picture
Contents of the user manual for the Wooden Camera Unified Cage
- Product category: Camcorder Supports & Rigs Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Camcorder Supports & Rigs
|
User manual for the Wooden Camera Unified Cage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

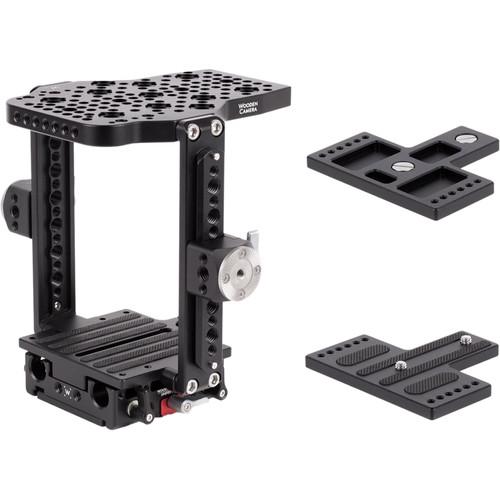

Product description The Wooden Camera Unified Cage (Phantom VEO + LW) is a form fitting cage plus 15mm lightweight baseplate for the Phantom VEO cameras. It includes two adapter plates that attach via two 1/4"-20 screws and four M4 screws. The cage features a standard ARRI M4 hole pattern for attachment of ARRI handles and accessories. It also features 1/4"-20 holes in standard spacing and multiple 3/8”-16 holes for large accessories. The ARRI accessory mount is also available in several places (3/8”-16 screw hole with locating pins adjacent).The cage side pieces feature NATO standard accessory rails with spring-loaded safety pins on each end to prevent accidental removal. The NATO rails also feature 1/4"-20 and 3/8”-16 holes. The cage also comes with two NATO Rosettes (ARRI) that are clamped to the side rails. These rails adapt an ARRI standard rosette to a quick-release NATO rail.The Unified Cage (Phantom VEO + LW) includes a lightweight 15mm support baseplate that can attach to any tripod plate or ARRI standard bridgeplate such as the Unified Bridgeplate (19mm) or Unified Bridgeplate (15mm Studio). When studio rods are not needed, a dovetail clamp can be added to interface with 2060 Dovetails, Safety Dovetails, or Shoulder Rigs. UPC: 606184852871 In the Box Wooden Camera Unified Cage (Phantom VEO + LW) 8 x M4 x 8mm Socket Cap Screws 8 x 1/4"-20 x 1/2" Socket Cap Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Unified Cage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 240200 Specs | | | Dimensions | 4 x 7 x 6" (101.6 x 177.8 x 152.4 mm) | | Weight | 2.6 lb (1.17 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
