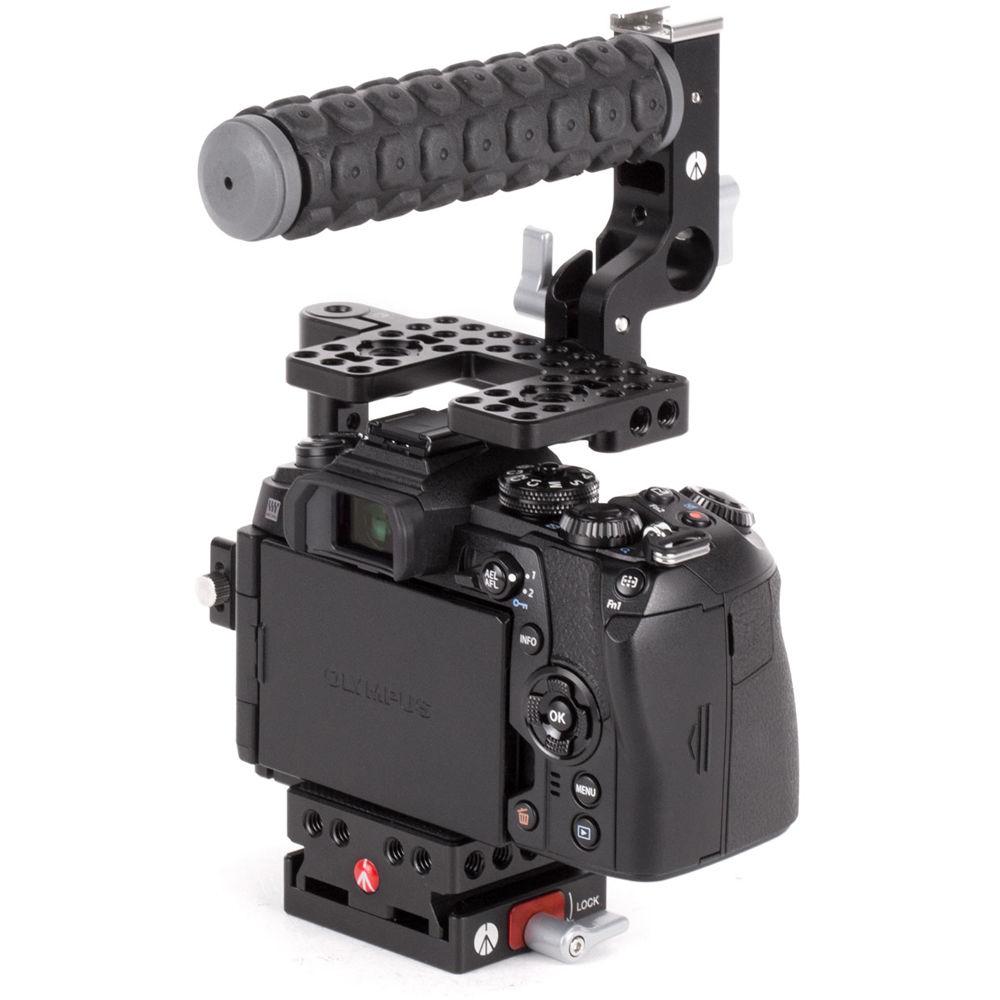

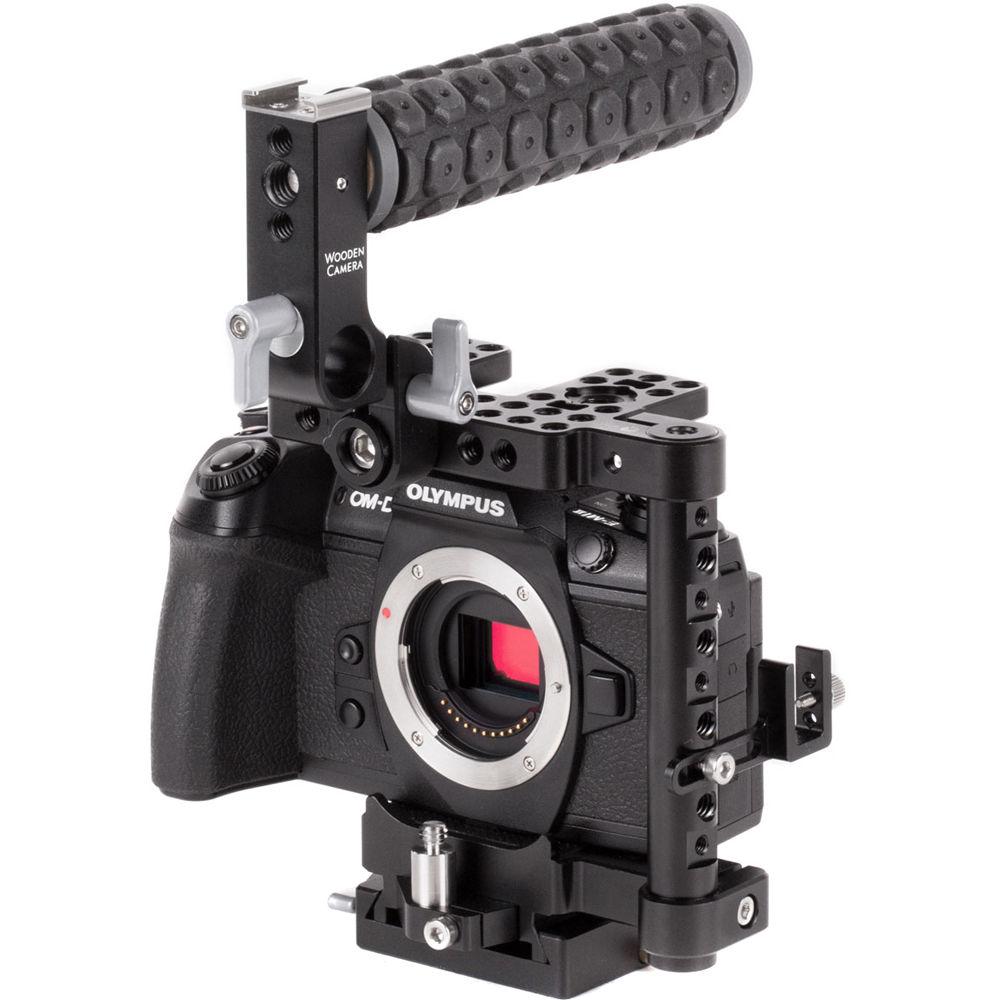

User Manual for Wooden Camera Unified DSLR Cage with Rubber-Grip Handle Click to enlarge the picture
Contents of the user manual for the Wooden Camera Unified DSLR Cage with
- Product category: DSLR Video Supports & Rigs Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera DSLR Video Supports & Rigs
 |
User manual for the Wooden Camera Unified DSLR Cage with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|
Product description Build up your DSLR or mirrorless camera for professional video and cinema production with the small Unified DSLR Cage with Rubber Grip from Wooden Camera. The cage itself surrounds your camera on three sides, adding a measure of protection to mirrorless cameras like Sony's a7 series and Panasonic's GH series, as well as smaller DSLR cameras like Canon's Rebel line and Nikon's D3000, D5000, and D7000 lines.Both 1/4"-20 and 3/8"-16 threaded holes line the top and sides of the Unified DSLR Cage for securing accessories such as articulating arms. The top of the cage leaves the space above the camera's accessory shoe unobstructed for mounting audio accessories such as XLR adapters. An HDMI cable clamp is integrated with the cage's vertical post to protect the camera's HDMI port from cable snags, as well as all necessary mounting screws and an articulating rubber-grip handle. - Compatibility
- DSLR cameras up to 4" tall
Canon T5i, T4i, T3i, T2i, 60D, 550D
Nikon D7000 D7100, D5500, D5300, D5200, D5100, D3400, D3300, D3100, D90
Olympus OM-D E-M1 Mk II
Panasonic GH5S, GH4, GH3, GH2
Sony a9, a7R III, a7 III, a7R II, a7S II, a7 II, a7S, a7R, a7, a6500, a6300, a6000 - Reversible Top Handle with Rubber Grip
- The cage's reversible top handle with a rubber grip provides additional ways to comfortably handhold your camera. A cold shoe at the top can be used to mount a microphone, monitor, or other camera-top accessory. The handle folds down when packing your bag and can be alternately secured onto the left vertical rod for a secondary grip.
- Manfrotto Quick Release Compatibility
- The base of the cage is a Manfrotto quick release dovetail which can directly secure your camera to Manfrotto standard quick release plates and tripod heads. Quick release functionality works the same as existing Manfrotto plates. Simply turn the thumbscrew and depress the release pin to slide the plate backward out of the base.
- Built-In Lens Adapter Support
- A built-in lens adapter support system is integrated into the base. This provides extra security when attaching lens adapters with 1/4"-20 threads on the bottom, like the separately available Wooden Camera PL adapters and most Metabones adapters.
- 15mm LWS Rod Support
- With the seamless addition of Wooden Camera's Unified DSLR 15mm Baseplate, you can add 15mm LWS rods for accessorizing your DSLR or mirrorless camera. Additionally, the Baseplate adds ARRI dovetail compatibility while maintaining all quick release functionality of the DSLR cage itself.

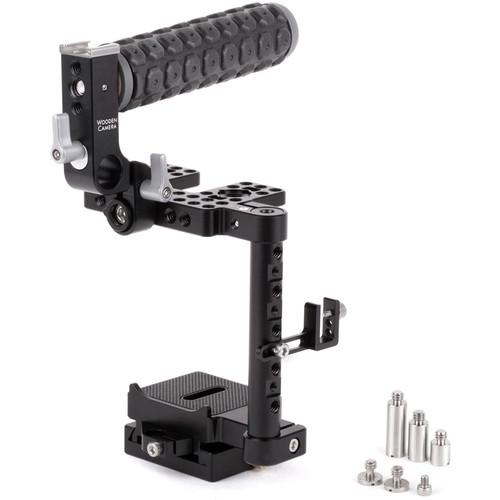

UPC: 606184856985 In the Box Wooden Camera Unified DSLR Cage with Rubber-Grip Handle (Small) Rubber Grip Handle with 3/8"-16 Threads for Unified DSLR Cage abtcbesxfryqabxzxwfrsuezscus 2 x Low-Profile Screw (1/4''-20) 3 x 1/4"-20 Threaded Support Post Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Unified DSLR Cage with Rubber-Grip Handle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera Unified DSLR Specs | Accessory Mounting | Multiple:
1/4"-20 threads
3/8"-16 threads
ARRI anti-twist
Manfrotto anti-twist | | Dimensions | 8.5 x 4.5 x 6" / 215.9 x 114.3 x 152.4 mm | | Weight | 1 lb / 454 g | | | | Package Weight | 1.29 lb | | Box Dimensions (LxWxH) | 7.5 x 7.0 x 1.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
