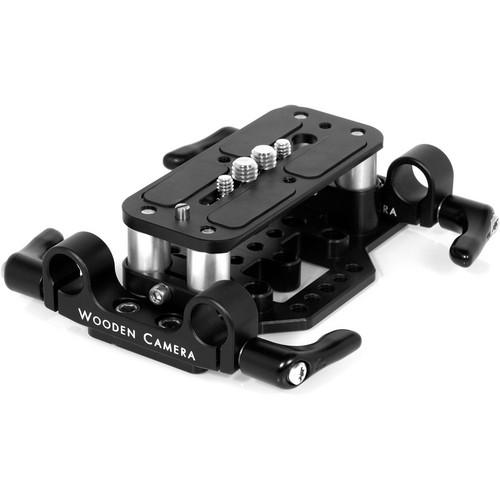

User Manual for Wooden Camera Universal Baseplate Click to enlarge the picture
Contents of the user manual for the Wooden Camera Universal Baseplate
- Product category: Camcorder Supports & Rigs Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Camcorder Supports & Rigs
|
User manual for the Wooden Camera Universal Baseplate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|
Product description The Wooden Camera Universal Baseplate works with almost any camera/lens combination thanks to its adjustable height. Three sets of 15mm riser posts of different lengths allow you to adjust the baseplate height from approximately .7" to 1.9". The baseplate supports standard 15mm rods (available separately) for mounting lens supports and other accessories. The baseplate's ability to be used lengthwise or widthwise also contributes to its widespread compatibility. Another plus is its ability to integrate with Arri-style baseplates and bridgeplates.The baseplate is constructed of aluminum and the screws of stainless steel. Its top and bottom both include 1/4"-20 and 3/8"-16 mounting holes. - Baseplate height can be varied to accommodate different lenses by using the 3 lengths of 15mm posts (4 in each set)
- Offers standard 15mm rod support for mounting accessories (accessory rods not included)
- Configurable to work lengthwise or widthwise for various cameras
- Also serves as an adapter for cameras employing an ARRI-style baseplate or bridgeplate
- Cheeseplate-style bottom incorporates multiple 1/4"-20 and 3/8"-16 mounting holes
UPC: 610079106239 In the Box Wooden Camera Universal Baseplate 2 x Lightweight 15 mm Rod Bracket 2 x 1/4"-20 Low-Profile Screws 2 x 3/8"-16 Low-Profile Screws 4 x 0.9" 15mm Posts 4 x 1.5" 15mm Posts 4 x 2.1" 15mm Posts 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Universal Baseplate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 154700 Specs | Compatible Cameras | Blackmagic Design Cinema Cameras
Canon: T2i, T3i, 60D, 7D, 5D Mark II, 5D Mark III, C100, C300, C500, XL-H1, XH-A1
Panasonic: AF-100 & GH2, GH3, GH4
Sony: EX1/EX3, F3, NEX-FS100, NEX-FS700, HVR-Z1U
Silicon Imaging: SI2K cameras
This compatibility list is not exhaustive. | | Material of Construction | Aluminum | | Post Length | Small: 0.9" (2.2 cm)
Medium: 1.5" (3.8 cm)
Large: 2.1" (5.3 cm) | | Dimensions | 5.7 x 4.3 x 1.9" (14.5 x 10.9 x 4.8 cm) | | Weight | 1.1 lb (0.48 kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 2.5" |
