User Manual for Wooden Camera Universal Lens Support Click to enlarge the picture
Contents of the user manual for the Wooden Camera Universal Lens Support
- Product category: Rod Brackets & Clamps Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Rod Brackets & Clamps
 |
User manual for the Wooden Camera Universal Lens Support contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

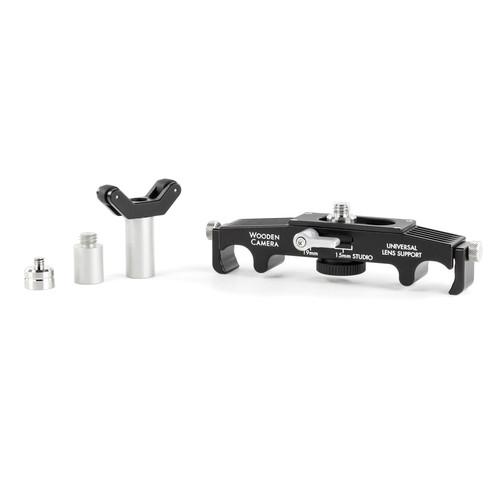

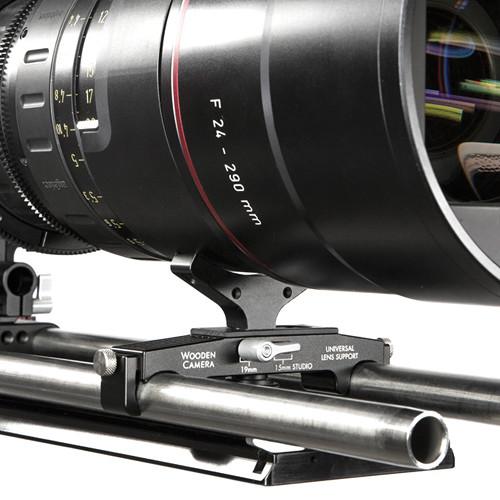

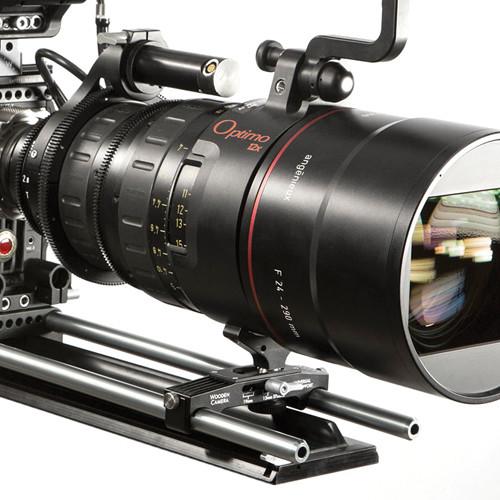

Product description The 19mm/15mm studio Universal Lens Support from Wooden Camera is designed to support heavy lenses with rigs using either 19mm or 15mm studio offset rod configurations. It includes a 1/4"-20 screw cap for attaching to tripod collars and select cinema lenses, a 3/8"-16 cap for attaching to cinema lenses with a standard ARRI support foot, and a Y-bracket with rubber rollers designed for use DSLR type lenses that lack a support foot.

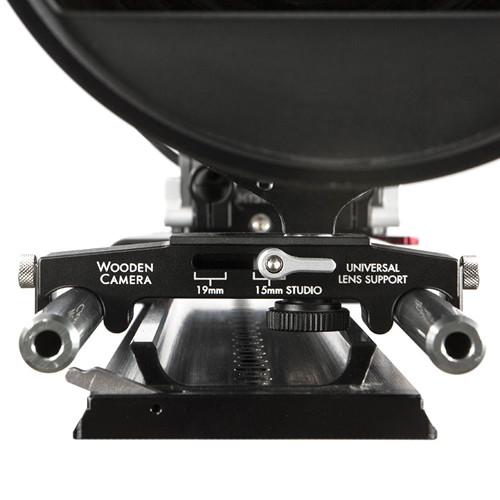

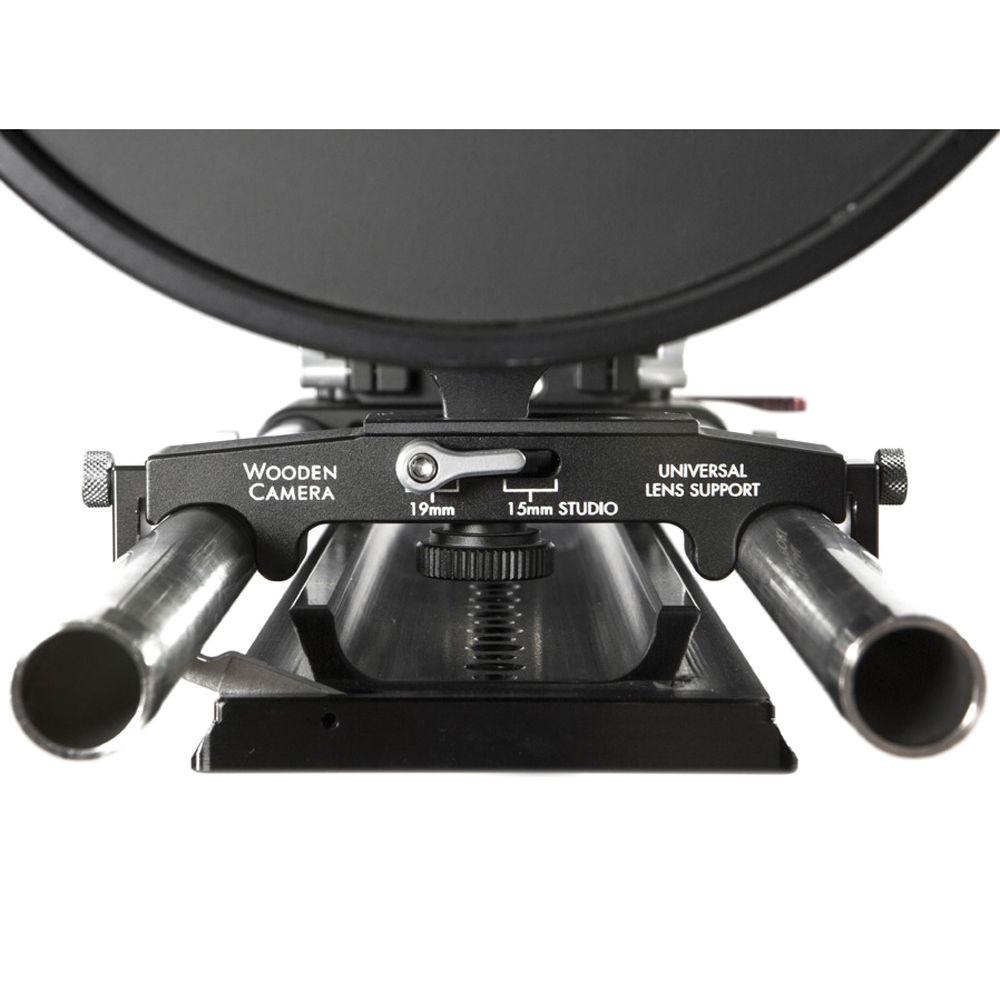

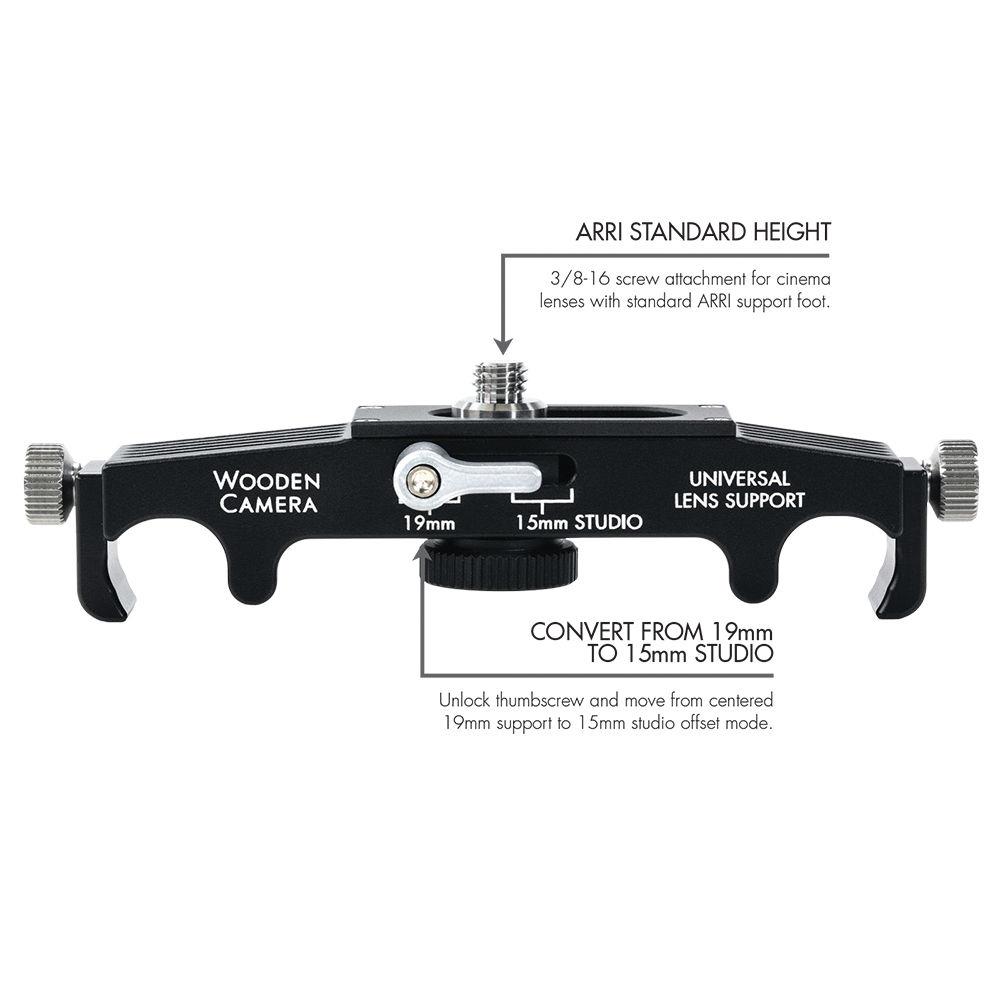

The lens support clamps onto 19mm or 15mm studio offset rods using thumbwheels found at the side of each rod port. To align the lens support, a thumbscrew is loosened which allows you to slide the tightening knob to the desired position. Extra lateral room is provided to help accommodate for skewed baseplates. The tightening knob also offers vertical adjustment to accommodate lenses of different heights. For smaller lenses, small and large support extensions are included. -
- Compatible with 19mm and 15mm studio offset rod configurations
- Tightening screw with 3/8"-16 and 1/4"-20 attachments
- Y-Bracket with rubber rollers for lens without tripod foot support
- Vertical and horizontal adjustments
- Small and large support extensions included for use with smaller diameter lenses

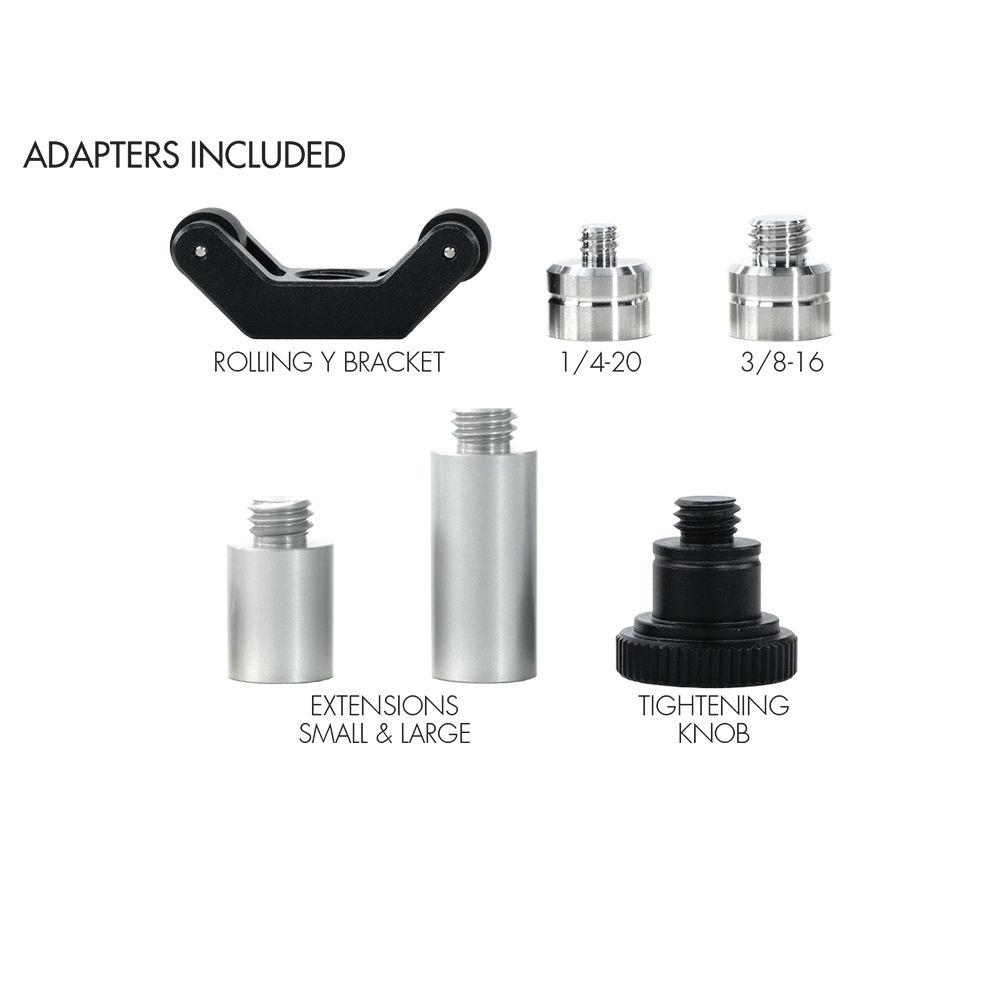

UPC: 700987994605 In the Box Wooden Camera Universal Lens Support (19mm/15mm Studio) Rolling Y-Bracket 1/4"-20 Screw 3/8"-16 Screw Small Extension Large Extension Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Universal Lens Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 175500 Specs | Dimensions | 5.6 x 1.6 x 1.4" (14.28 x 4.09 x 3.46 cm) | | Weight | 7.3 oz (208 g) | | | | Package Weight | 0.455 lb | | Box Dimensions (LxWxH) | 6.0 x 3.75 x 1.95" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
