User Manual for Wooden Camera UVF Mount Click to enlarge the picture
Contents of the user manual for the Wooden Camera UVF Mount
- Product category: Misc. Components Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Misc. Components
 |
User manual for the Wooden Camera UVF Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

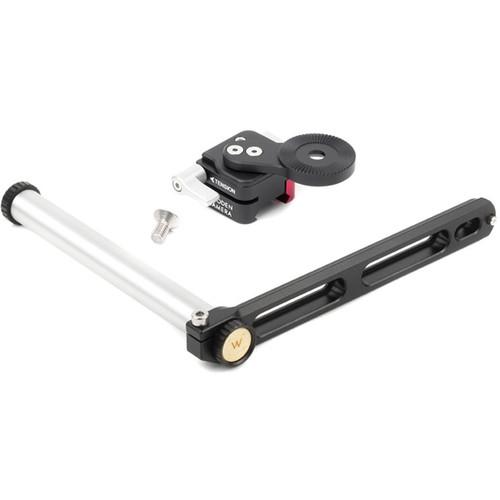

Product description The UVF Mount from Wooden Camera is a NATO standard arm designed for EVFs or LCDs that utilize an ARRI standard rosette for attachment. The arm may be used with a wide variety of products but it is specifically compatible with popular accessories like the Zacuto Gratical and the F&V SpectraHD 4 EVF.
To allow for the greatest range of movement the mount offers three points of adjustment - the 15mm rail for tilt and distance to the camera, a NATO thumbscrew for positioning on NATO rail, and tension thumbscrew to adjust the tilt of an attached EVF. It's unique tool-less design allows for quick installation and removal of the UVF Sled. Additionally, an integrated safety pin prevents accidental removal - preventing damage to your valuable gear. - NATO Arm length approximately 5"
- Can attach directly to RED Dragon/Epic/Scarlet and AJA CION
- Can also attach to other cameras via Wooden Camera cages and cheeseplates
- Safety pin prevents accidental removal of the UVF sled
- UVF Sled can attach directly to any NATO-style rail
UPC: 702534253098 In the Box Wooden Camera UVF Mount 2 x 1/4"-20 x 3/8" Socket Cap Screws M6 x Flat Head Socket Screw Limited 1-Year Warranty Table of Contents
|
