User Manual for Wooden Camera UVF Mount for Sony FS7 Without Clamp Click to enlarge the picture
Contents of the user manual for the Wooden Camera UVF Mount for Sony
- Product category: Misc. Components Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Misc. Components
 |
User manual for the Wooden Camera UVF Mount for Sony contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

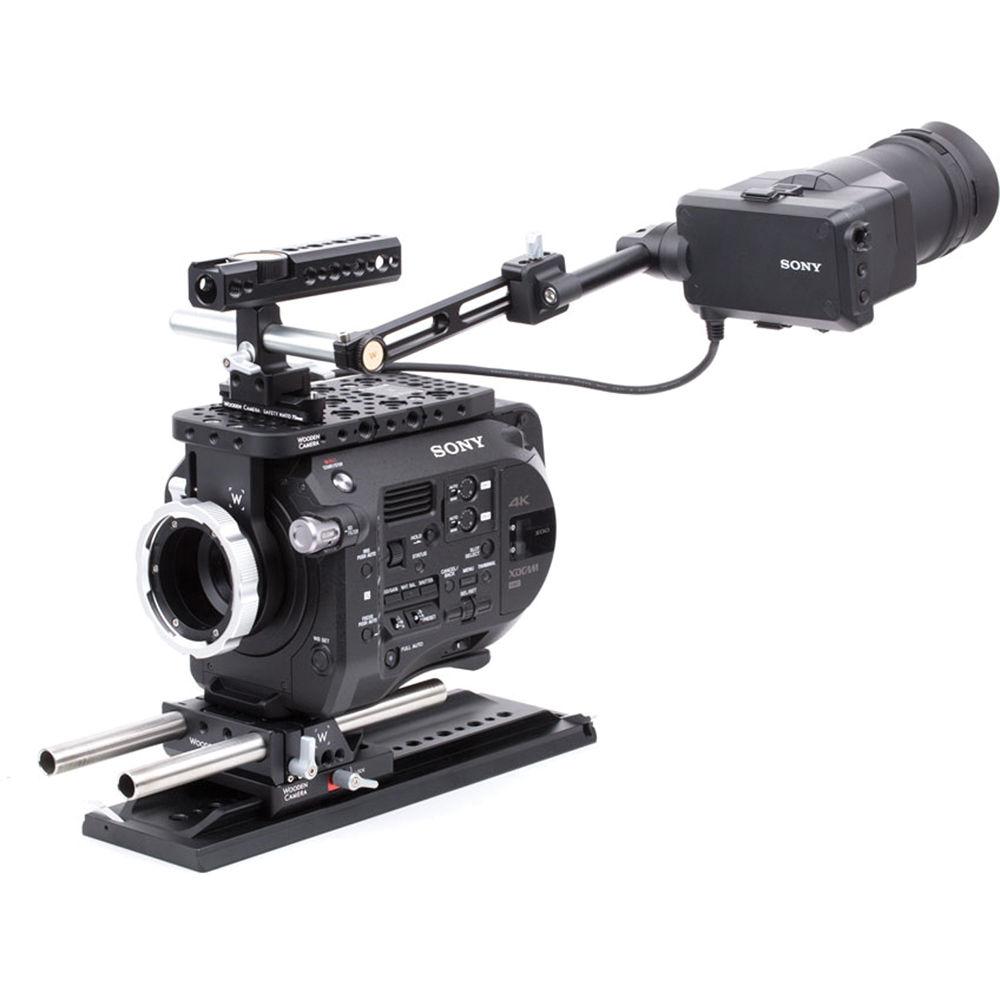

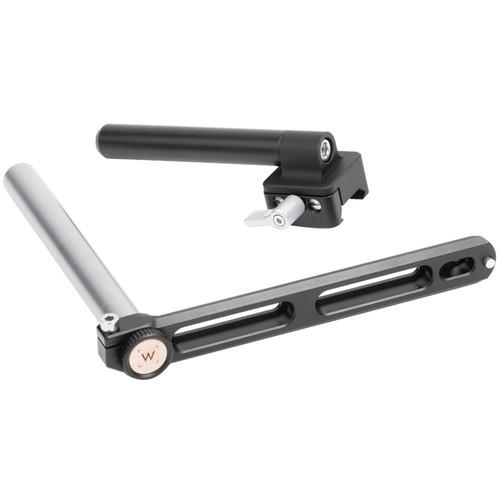

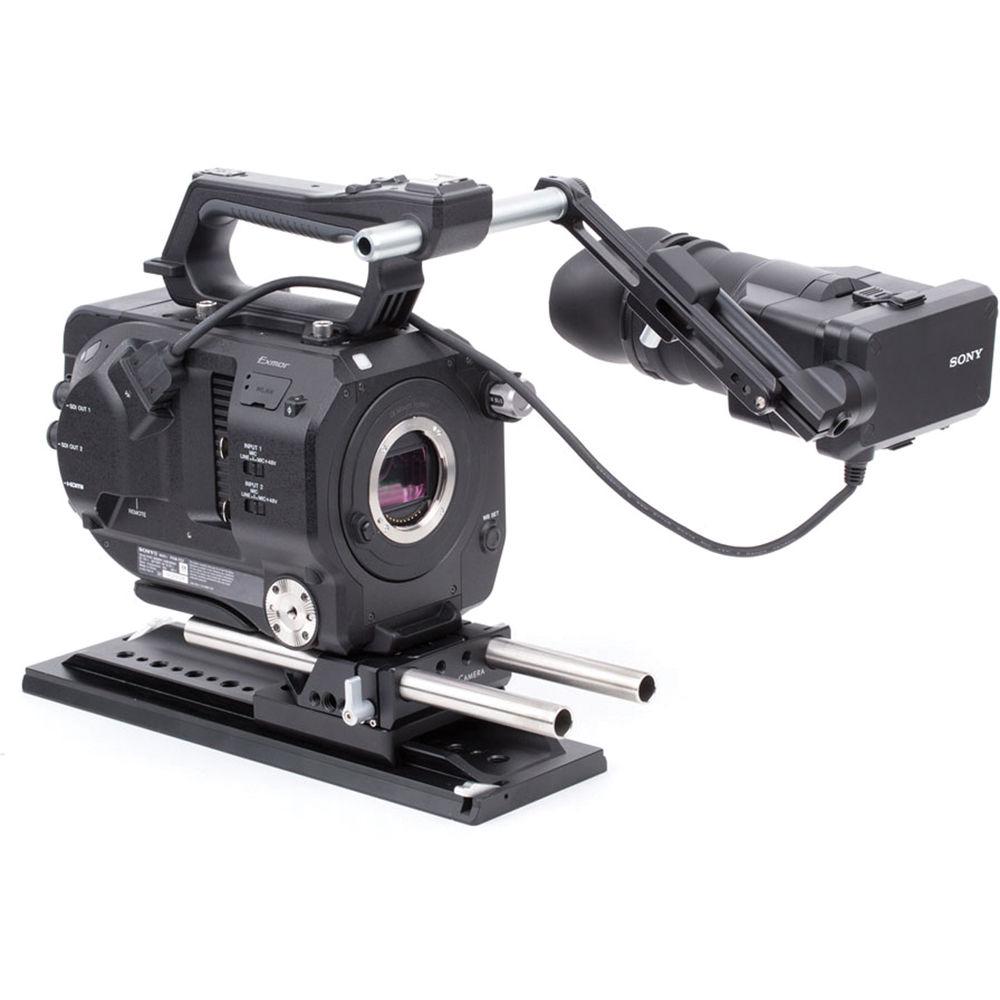

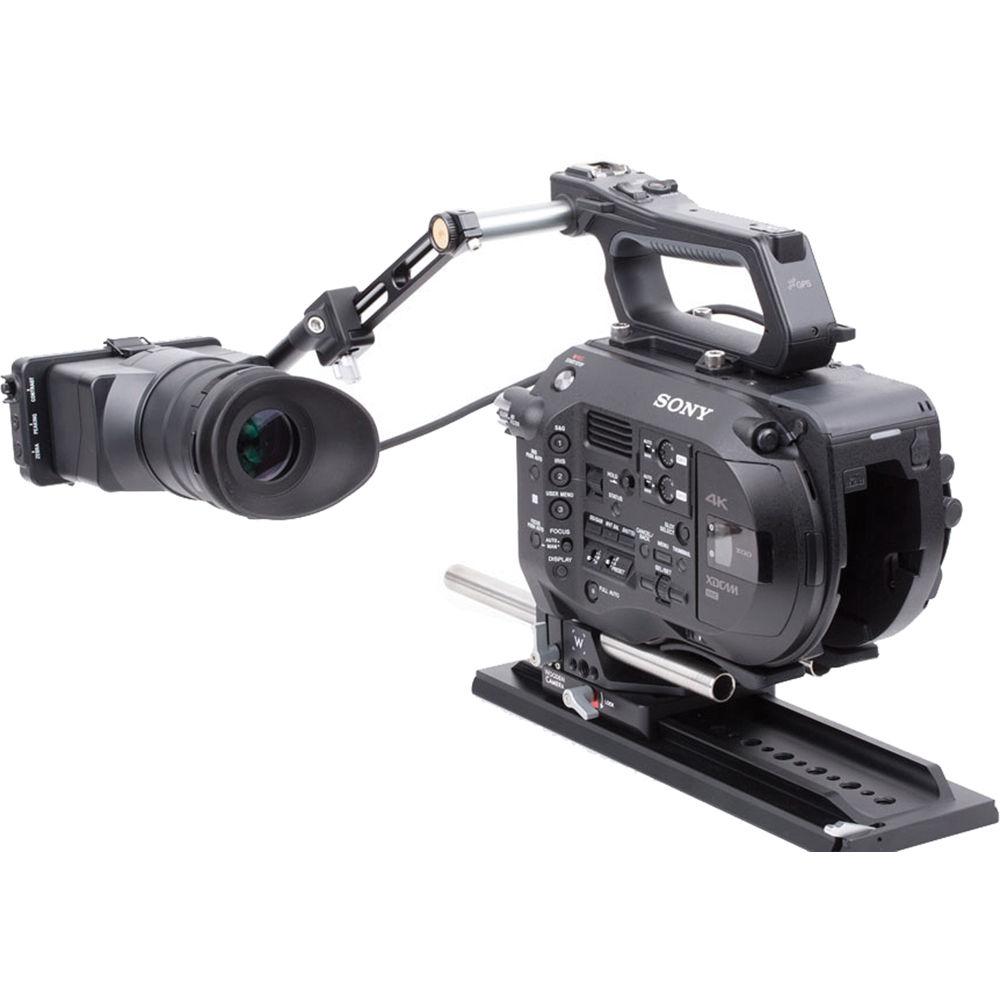

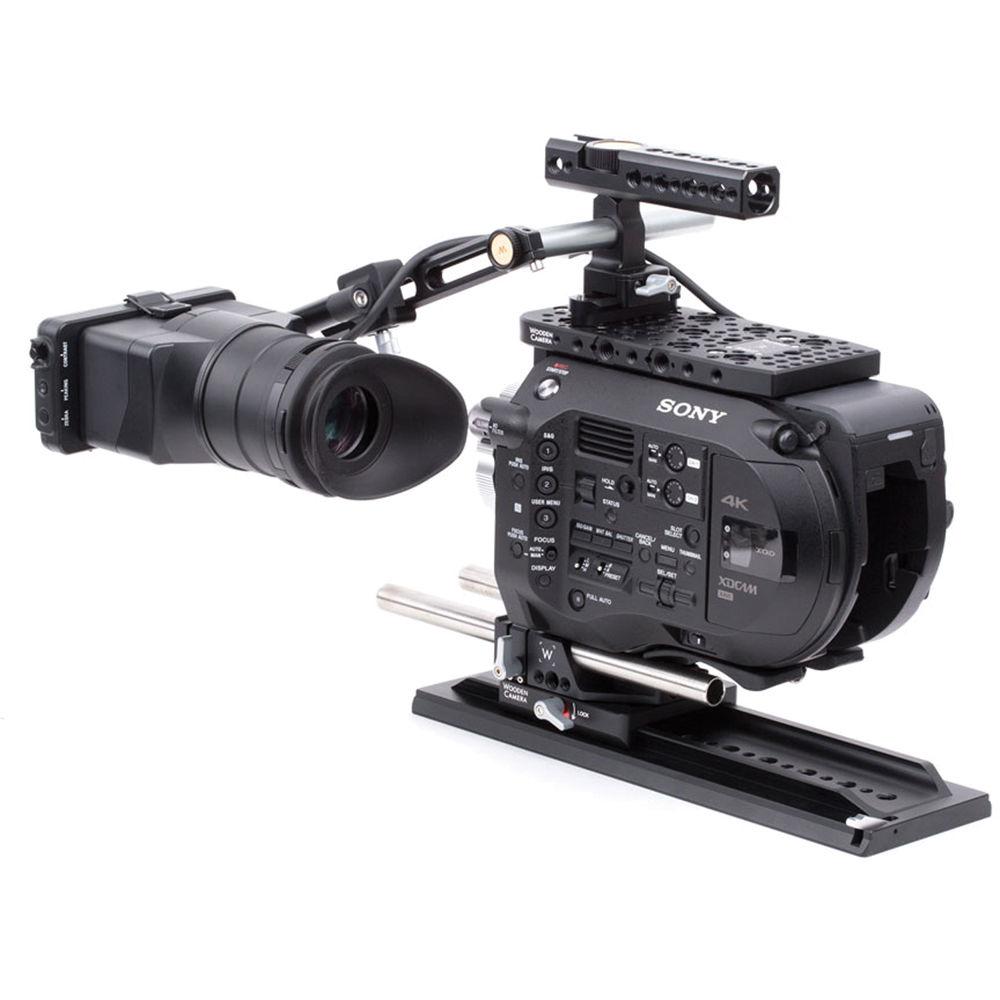

Product description Wooden Camera's UVF Mount for Sony FS7 Without Clamp features a NATO-style rail attached to a rod that fits into the mounting hole on your Sony FS7 camera's top handle. It also includes a NATO-type rail clamp with mounting rod for your camera's viewfinder. This combination replaces the original Sony viewfinder mount system that is included with your Sony FS7 and provides three points of adjustment while ensuring the camera's viewfinder remains level with the camera.
The UVF mount features a 5" NATO-type rail with a safety stop to help prevent the rail clamp from accidentally disengaging from the rail with potentially disastrous results. Additional extension along the rod attached to the NATO clamp allows you to further adjust the viewfinder. The rail clamp features a spring-loaded locking lever so you can loosen or tighten the clamp on the rail even if you are unable to rotate the locking lever throughout a full circle. - Replaces original Sony FS7 viewfinder mount
- Attaches to top handle of Sony FS7
- Provides three points of adjustment:
-
- Approximately 5.5" of L/R adjustment when clamped into your camera's top handle
- Approximately 10" of travel along the combination of the NATO rail and rod attached to the NATO clamp
- Height adjustment
UPC: 702534253012 In the Box Wooden Camera UVF Mount for Sony FS7 Without Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera UVF Mount for Sony FS7 Without Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 195800 Specs | Rod Diameter | 15 mm | | Rod Lengths | NATO Rail Rod: 5.5" / 12.7 cm
NATO Clamp Rod: 6" / 15.2 cm | | NATO Rail Length | 5" / 14 cm | | Dimensions | 6.3 x 5.7 x 1.8" / 158.8 x 145.5 x 45.4 mm | | Weight | 0.6 lb / 282 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 8.8 x 6.3 x 2.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
