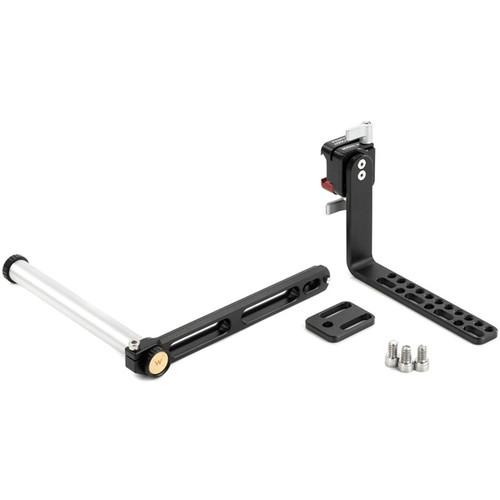

User Manual for Wooden Camera UVF Mount LCD Click to enlarge the picture
Contents of the user manual for the Wooden Camera UVF Mount LCD
- Product category: Misc. Components Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Misc. Components
|
User manual for the Wooden Camera UVF Mount LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|
Product description The Wooden Camera UVF Mount LCD enables you to attach a larger LCD monitor to your camera while keeping it horizontally level. It is similar to the UVF Mount LCD Kit, but doesn't include a 15mm rod clamp. Instead, it is designed to be used with top handles or other on-camera hardware that have a rod clamp built-in. It features a NATO rail kit, UVF v2 sled, and LCD bracket that combine to offer tilt, horizontal, and vertical adjustments for positioning your EVF or monitor.
The NATO rail kit consists of a 15mm rod with a 4" NATO rail attached. The rod portion slots into a sideways-oriented rod clamp on your top handle or rig, allowing for tilt and distance adjustment. The included UVF v2 sled slides onto the NATO rail, securing into place using a thumbscrew, and provides attachment points for the LCD bracket. The sled can also attach to any NATO-standard rail.
The LCD bracket features 1/4"-20 threaded and pass-through holes for attaching your LCD monitor. A small spacer piece is included for monitors with video connection ports and controls on the bottom. To prevent the bracket and sled from accidental removal, there is a safety pin at the end of the NATO rail. -
- UVF Mount without 15mm rod clamp
- Use with top handles or rigs with a built-in sideways-oriented 15mm rod clamp
- For larger sized LCD monitors
- Tension thumbscrew to adjust tilt
- NATO Rail Kit with 15mm rod and 4" NATO rail
- UVF v2 Sled attaches to any NATO compatible rail
- Safety pin on NATO rail prevents accidental removal
- LCD bracket with 1/4"-20 threaded and pass-through holes
- Quick installation and removal
- Screws and Allen wrenches included
UPC: 700987995084 In the Box Wooden Camera UVF Mount LCD (No Clamp) NATO Rail Kit UVF v2 Sled L-Bracket Alpha Adapter for Single 1/4"-20 Screw Hole 2 x #6-32 x 1/2" Flat Head Screw 3 x 1/4"-20 x 3/8" Socket Cap Screw 3/16 Allen Wrench 5/64 Allen Wrench Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera UVF Mount LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 180300 Specs | NATO Rail Length | 4" (10.16 cm) | | Dimensions | 6.3 x 5.7 x 1.2" (15.88 x 14.53 x 3.08 cm) | | Weight | 9.5 oz (270 g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 7.165 x 5.433 x 1.496" |
