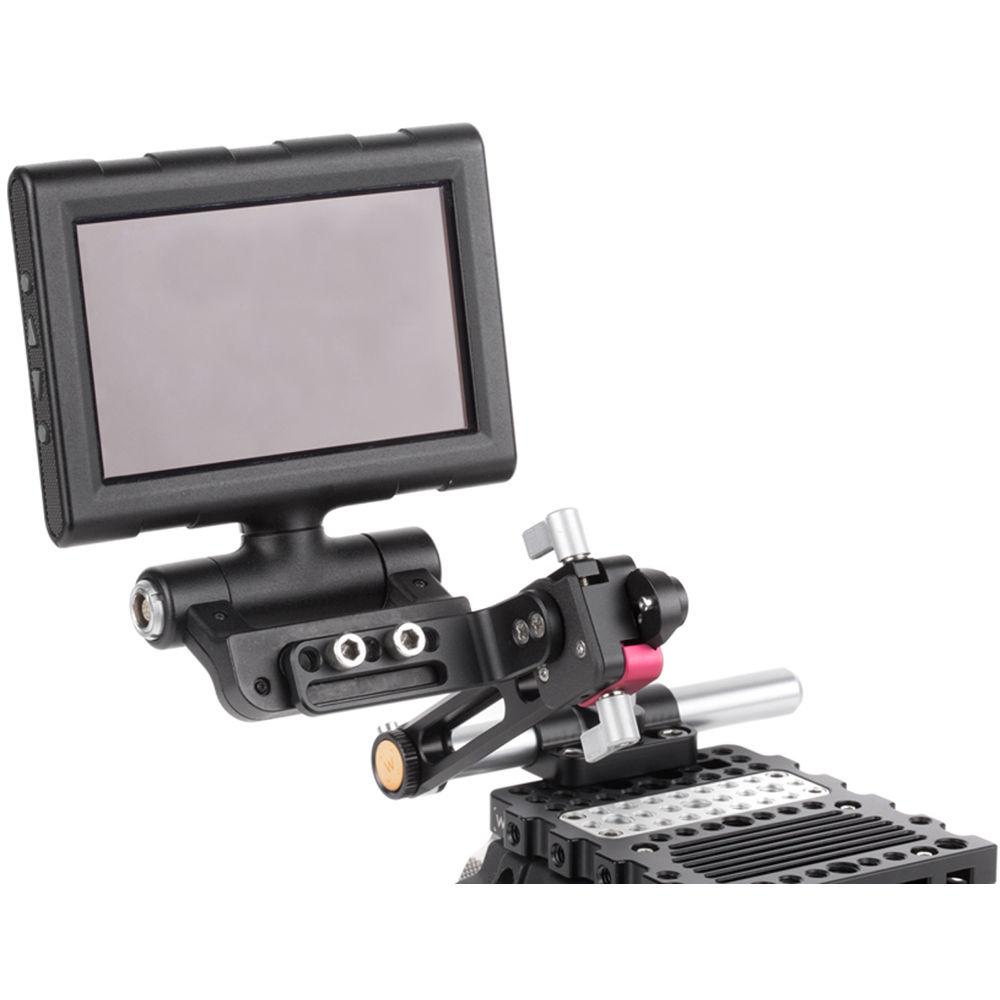

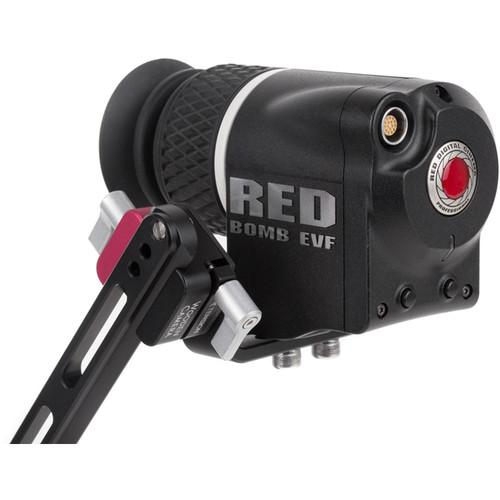

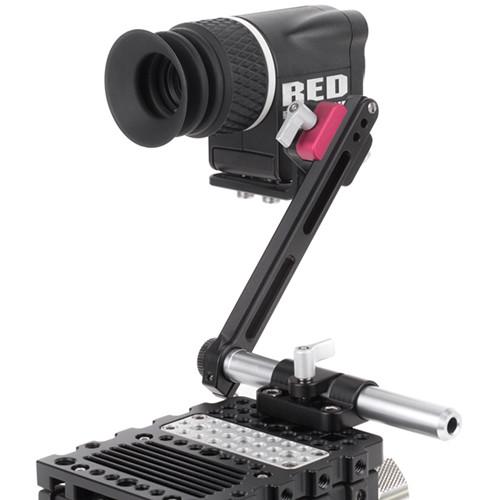

Product description The Wooden Camera UVF Mount V2 NATO Rail Kit enables you to attach and adjust a viewfinder on a rig. A mounting bracket for viewfinders is included. Most viewfinders are compatible. The bracket attaches to the NATO rail of the kit. The NATO rail features industry standard dimensions, so any NATO-compatible bracket is interchangeable with the included one. An adapter for using Alphatron viewfinders and SmallHD viewfinders/LCDs comes included.

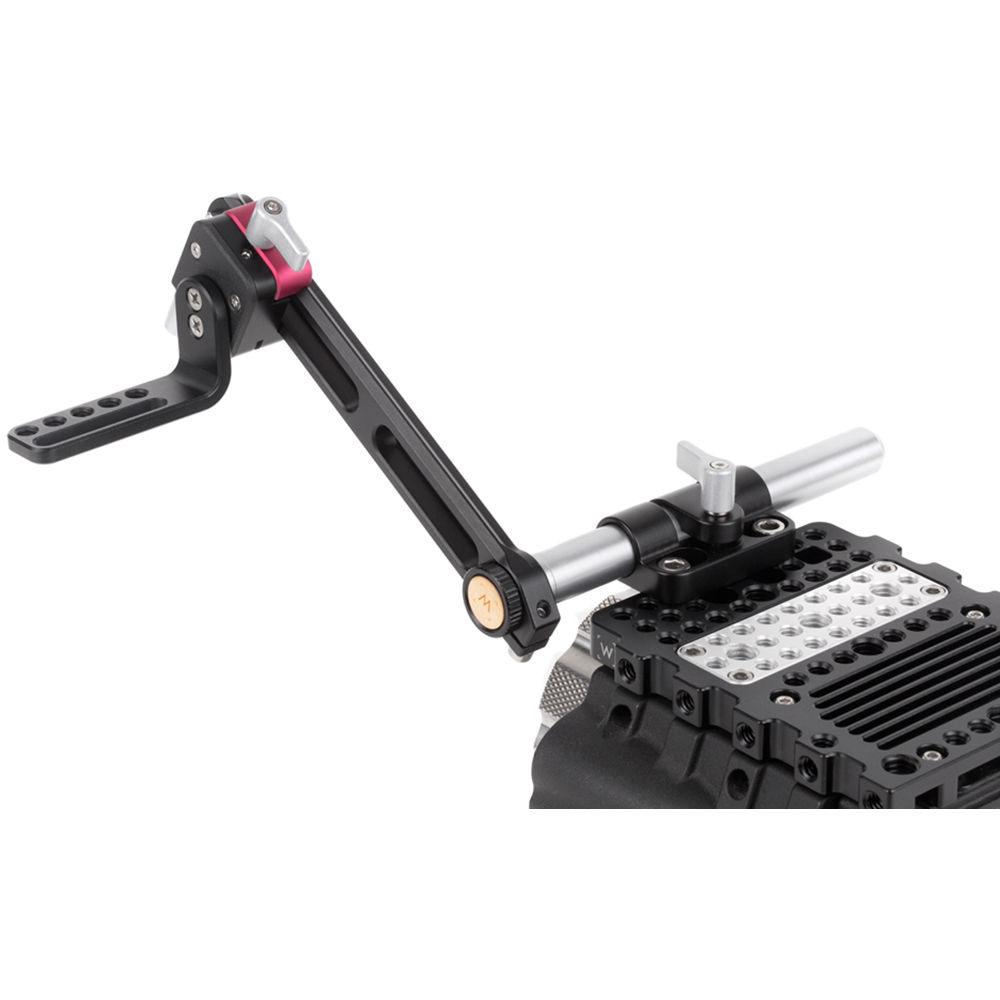

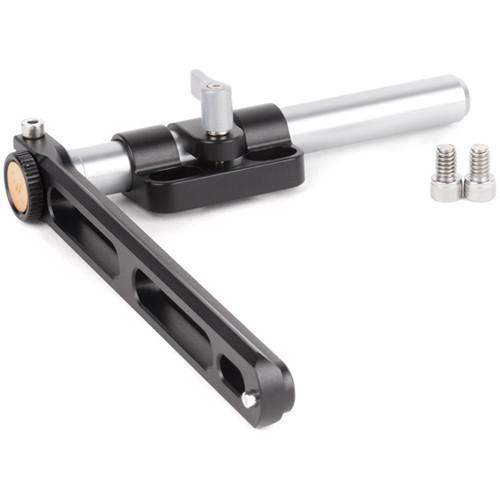

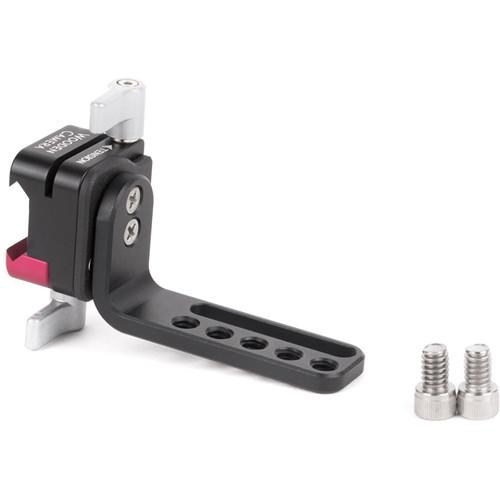

The NATO rail, the mounting bracket, a 15mm tube clamp, and a 15mm rod are the parts of the kit. The clamp attaches to two 1/4" threads spaced between 25 and 36mm apart and it holds the rod. And the NATO rail connects onto to the rod. A safety pin at the end of the rail will prevent the viewfinder mounting bracket from accidentally removing. - Three Points of Adjustment
-
- Rod rotates inside the clamp
- Rod adjusts horizontally along the clamp

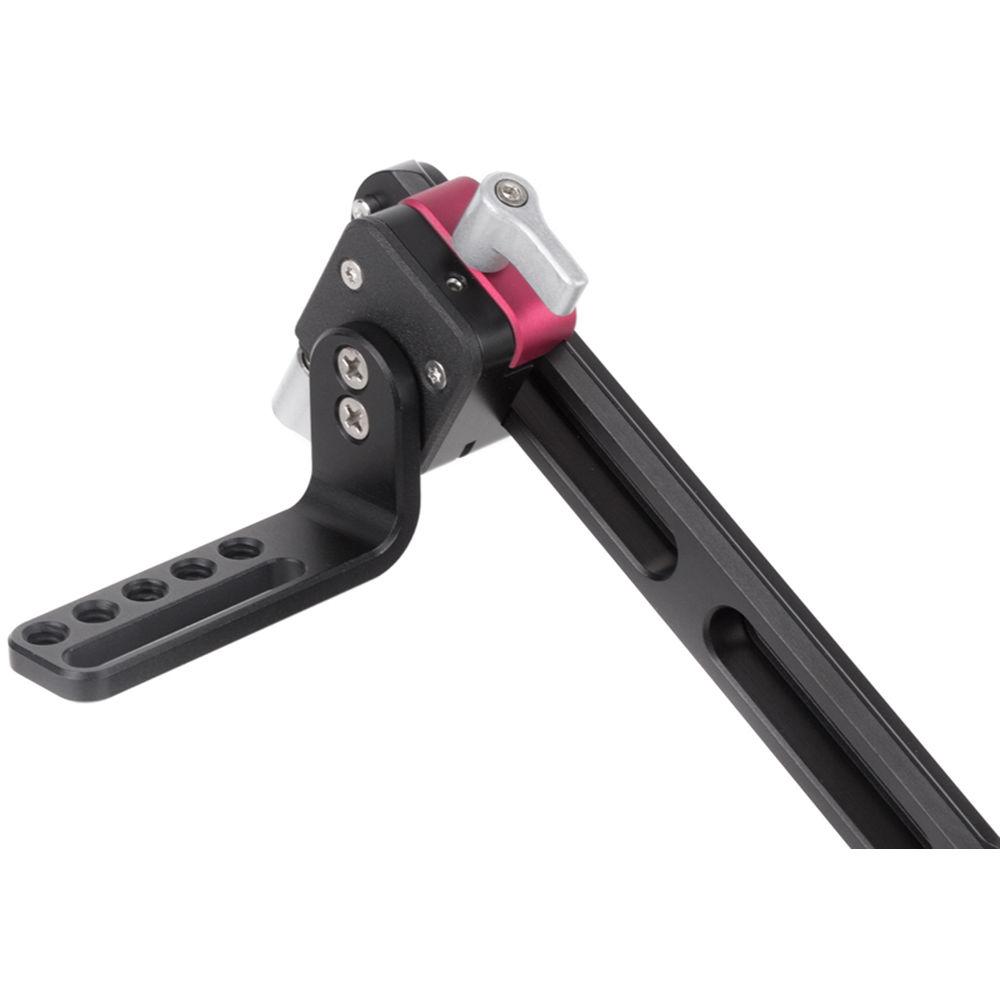

- Optional viewfinder mounting bracket tilts on NATO rail
- Some Compatible Viewfinders
-
- Alphatron
- Cineroid
- RED
- SmallHD
- Zacuto

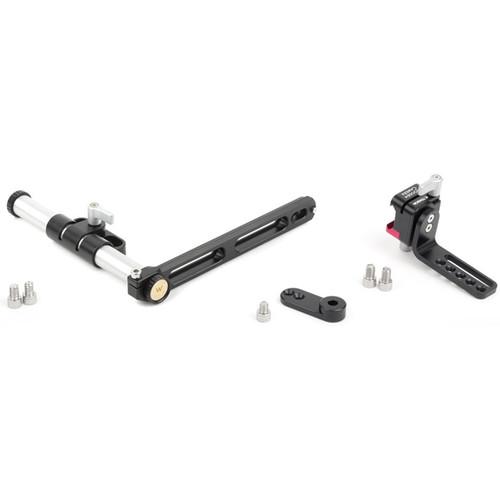

UPC: 610079106499 In the Box Wooden Camera UVF Mount V2 NATO Rail Kit Viewfinder Mounting Bracket Adapter for Alphatron & SmallHD EVFs/LCDs 15mm Tube Clamp 15mm Rod UVF NATO Rail 4 x 1/4-20 x 3/8" Screws 1/4-20 x 1/4" Screw 1-Year Limited Warranty Table of Contents
|
