User Manual for Wooden Camera UVF Mount V2 Viewfinder Bracket for Sony F5 F55 Click to enlarge the picture
Contents of the user manual for the Wooden Camera UVF Mount V2 Viewfinder
- Product category: Misc. Components Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Misc. Components
 |
User manual for the Wooden Camera UVF Mount V2 Viewfinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

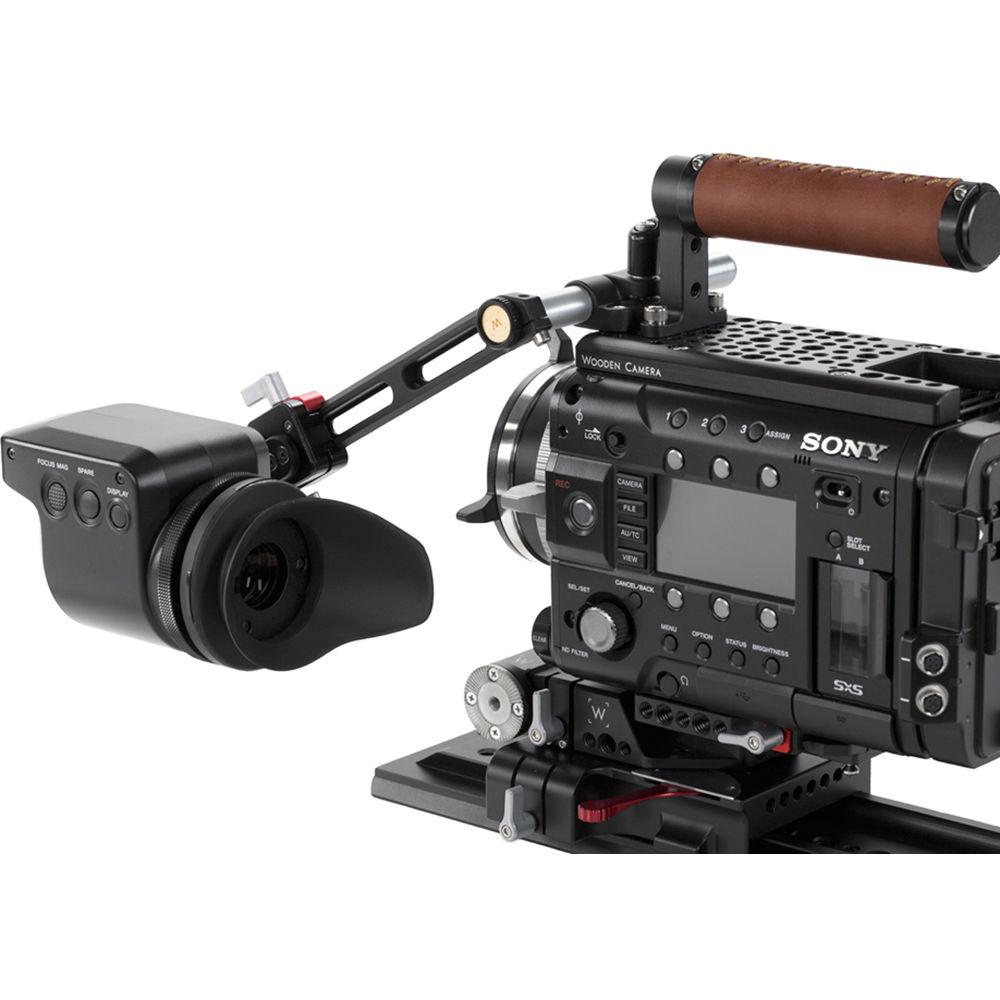

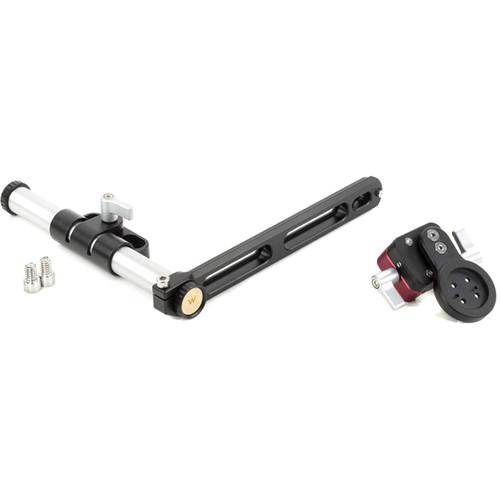

Product description The UVF Mount V2 Viewfinder Bracket for Sony F5/F55 from Wooden Camera replaces the original Sony EVF bracket and accepts the Sony DVF-EL100 0.7" OLED and DVF-L350 3.5" LCD Viewfinder directly. The three points of adjustment are a 15mm Tube Clamp for tilt and distance to the camera, a NATO thumbscrew (identified by red component) for positioning on NATO rail, and a tension thumbscrew to adjust the tilt of the EVF. A no-tools-necessary design allows for quick installation and removal of the UVF v2 sled. A safety pin prevents accidental removal. The UVF v2 sled can attach to any NATO-style rail and is compatible with the Sony DVF-EL100 0.7" OLED Viewfinder and the Sony DVF-L350 3.5" LCD Viewfinder. UPC: 700987994193 In the Box Wooden Camera UVF Mount V2 Viewfinder Bracket for Sony F5/F55 2 x 1/4"-20 x 3/8" Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera UVF Mount V2 Viewfinder Bracket for Sony F5 F55 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 171100 Specs | NATO Rail Length | 4" (10.2 cm) approx. | | Dimensions | 6 x 6 x 1" (15.2 x 15.2 x 2.5 cm) | | Weight | .6 lb (270 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.7 x 6.3 x 2.2" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
