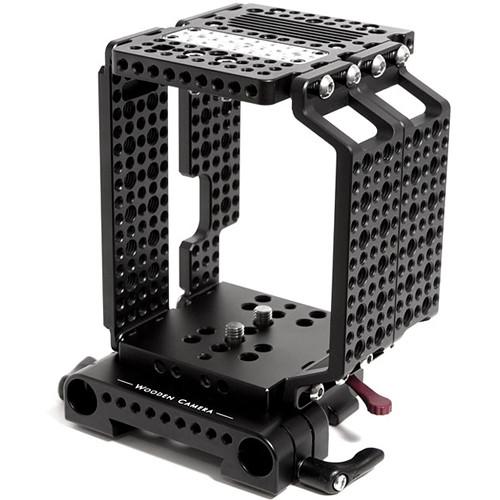

Product description The Wooden Camera WC-146200 Multi-Purpose Cheese Cage + (19mm) for RED Epic & Scarlet Cameras makes these cameras production-ready for mounting accessories. It has arrays of mounting holes in RED standard spacing.
Note: Note: Remove plastic vent cover from camera before installing (147400 Easy Top X ) 147400 Easy Top X - Top plate for RED Epic X and Scarlet X cameras
- Contains arrays of 1/4-20 holes in RED spacing and multiple 3/8-16 holes for large accessories
- Removable Link Cover when the longest REDmote range is needed
146800 Easy Riser - Riser shim plate for RED Epic and Scarlet cameras
- Can also be combined with Bridgeplate 0.74" (19mm) and (0.59" / 15mm Studio) or original ET baseplates for rod support at correct lens height
- Two sets of mounting holes allow the camera to be positioned at the front of baseplate
- Combine with the 146200 Bridgeplate (19mm) for lightweight rods at correct lens height
146200 Bridgeplate (19mm) - It has a rod clamp construction
- Combined with Universal Baseplate for correct lens height on camera.
- Native height for use with RED ONE
153100 Side Plate (Right Rear) - Side mounting plate for RED Epic and Scarlet cameras
- Attaches to Easy Top X and Easy Riser to expand the mounting surface for accessories
- Contains arrays of 1/4-20 and 3/8-16 holes in RED standard spacing
- Compatible with VF top and bottom plates
- Not compatible with the RED Tactical system
- Includes 5x 1/4-20 x 1/2" screws
153000 Side Plate (Right Front) - Side mounting plate for RED Epic and Scarlet cameras
- Attaches to Easy Top X and Easy Riser to expand the mounting surface for accessories.
- Contains arrays of 1/4-20 and 3/8-16 holes in RED standard spacing
- Includes 4x 1/4-20 x 1/2" screws
152900 Side Plate (Left) - Side mounting plate for RED Epic and Scarlet cameras
- Attaches to Easy Top X and Easy Riser to expand the mounting surface for accessories
- Contains arrays of 1/4-20 and 3/8-16 holes in RED standard spacing
- Compatible with VF top and bottom plates
- Not compatible with the RED Tactical system
- Includes 4x 1/4-20 x 1/2" screws
UPC: 610079105171 In the Box Wooden Camera WC-146200 Multi-Purpose Cheese Cage + (19mm) for RED Epic & Scarlet Cameras Easy Top X Plate for Select RED Cameras tyxtszzrrvtczyuded Easy Riser Baseplate for Epic and Scarlet Cameras WC-145400 ARRI Style Bridge Plate (19mm) WC-153100 Side Plate (Right Rear) tyxtszzrrvtczyuded WC-153000 Side Plate (Right Front) WC-152900 Side Plate (Left) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera WC-146200 Multi-Purpose Cheese Cage for RED Epic & Scarlet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 146200 Specs | Overall Dimensions | 7 x 5.6 x 7.5 " (17.78 x 14.22 x 19.05 cm) | | Dimensions | 147400 Easy Top X: 4.8 x 3.9 x 0.5" (12.19 x 9.9 x 1.27 cm)
146800 Easy Riser: 3.9 x 3.8 x 0.5" (9.9 x 9.65 x 0.5 cm)
145400 Bridgeplate (19mm): 7.2 x 4.5 x 1.2' (18.28 x 11.43 x 3.04 cm)
153100 Side Plate (Right Rear): 6.4 x 2.3 x 0.4" (16.25 x 5.84 x 1.01 cm)
153000 Side Plate (Right Front): 6.3 x 1.8 x 0.4"( 16 x 4.57 x 1.01 cm)
152900 Side Plate (Left): 6.3 x 1.8 x 0.4"( 16 x 4.57 x 1.01 cm) | | Weight | 147400 Easy Top X: 0.4 lb (0.18 kg)
146800 Easy Riser: 0.4 lb (0.18 kg)
145400 Bridgeplate (19mm) : 1.2 lb (0.54 kg)
153100 Side Plate (Right Rear): 0.02 lb (0.09 kg)
153000 Side Plate (Right Front): 0.3 lb (0.13 kg)
152900 Side Plate (Left): 0.3 lb (0.13 kg)
WC-146200 Cheese Cage + (19mm):2.8 lb (1.27 kg) | | | | Box Dimensions (LxWxH) | 7.5 x 7.0 x 5.6" |
