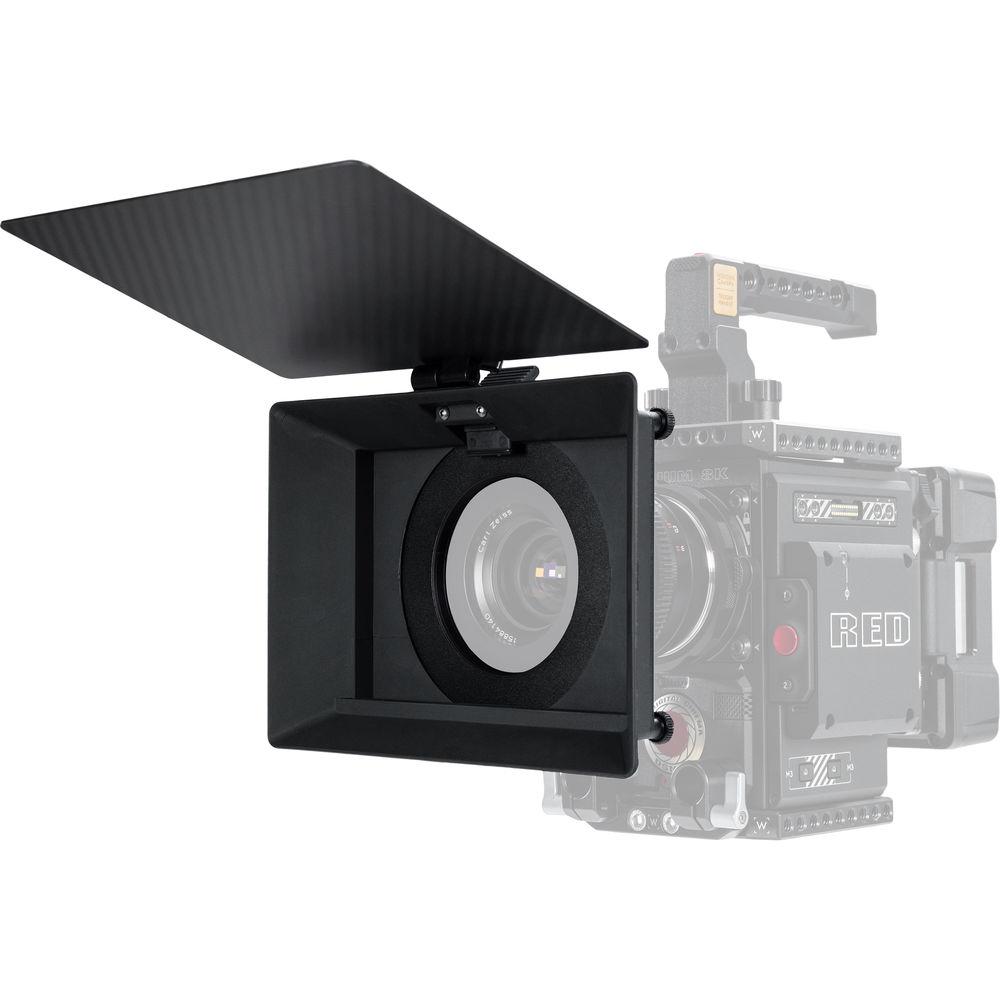

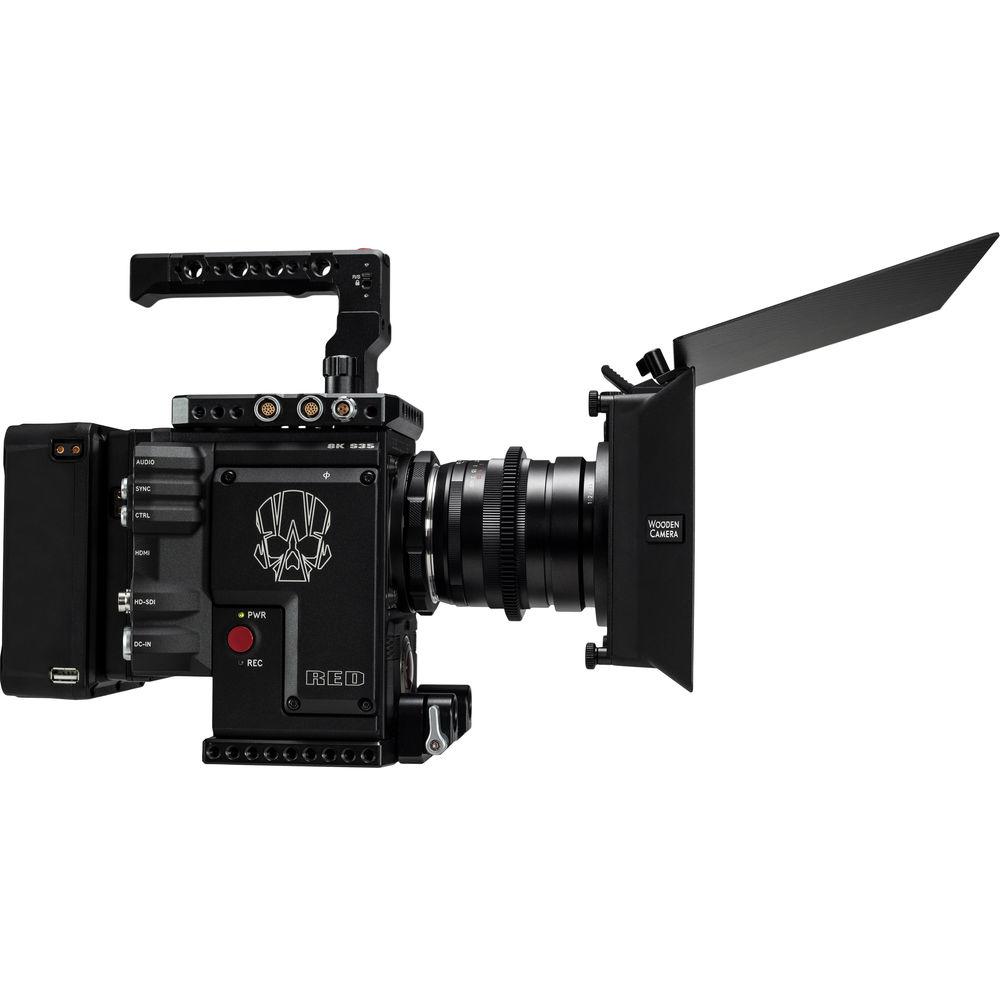

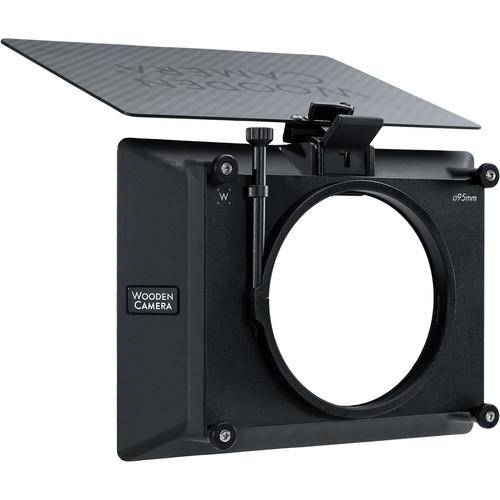

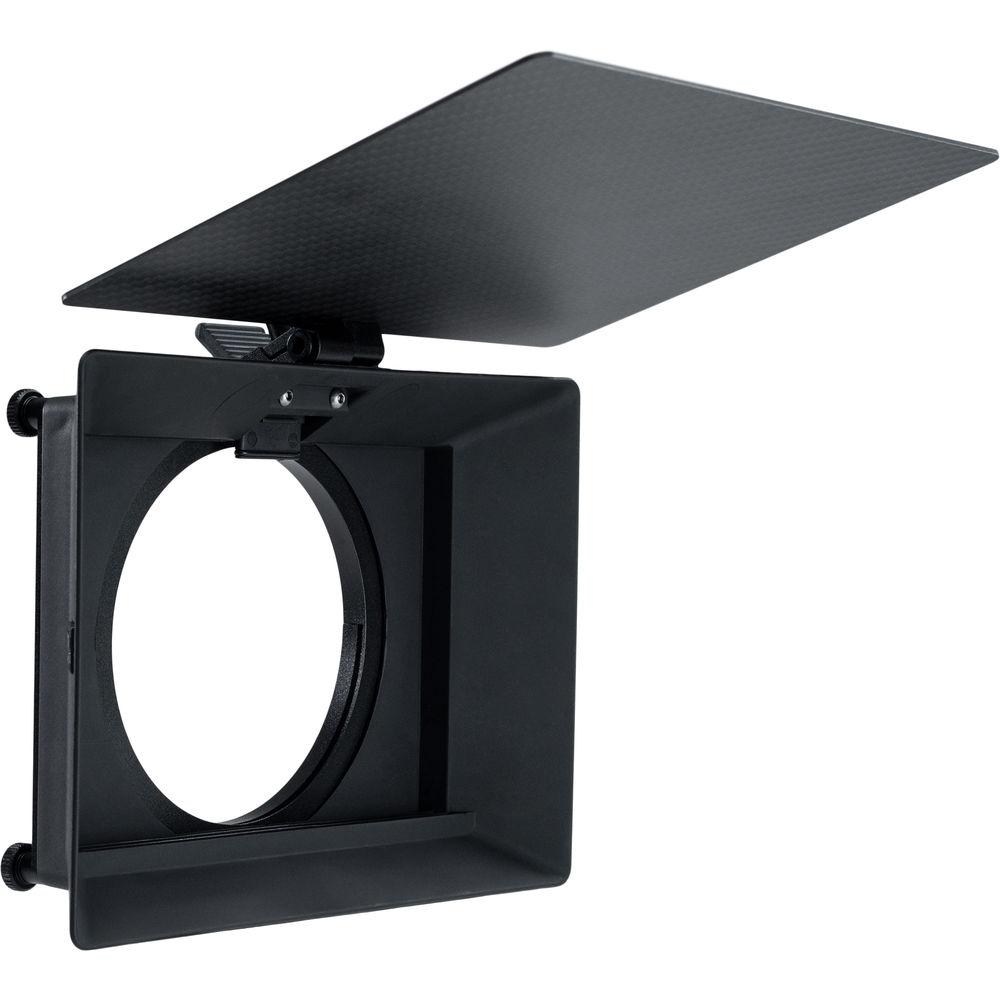

User Manual for Wooden Camera Zip Box Pro 4 x 5.65" Matte Box Click to enlarge the picture
Contents of the user manual for the Wooden Camera Zip Box Pro 4
- Product category: Matte Boxes & Sunshades Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Matte Boxes & Sunshades
 |
User manual for the Wooden Camera Zip Box Pro 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|
Product description The clamp-on Wooden Camera Zip Box Pro 4 x 5.65" Matte Box for lenses with a 95mm front fills out the Wooden Camera matte box lineup, fitting in neatly between the UMB-1 line and the original rubber Zip Box. A lightweight yet durable matte box with interchangeable mounting systems, the Zip Box Pro accepts up to three 4 x 5.65" (Panavision-style) filters without the use of filter trays. If reflections from light sources in frame are a concern, they you can tilt up to two filters in the matte box to help move the reflections out of picture area.
This clamp-on matte box comes with a 95mm clamp that allows you to mount it directly onto your lens. The clamp-on backs are interchangeable, allowing you to work with lenses of different diameters or convert the Zip Box Pro to a swing-away matte box. It is recommended that you use a lens with a non-rotating front when working with a clamp-on matte box. An included carbon fiber top flag helps block veiling glare or bright reflections from striking your lens, and can be folded down to cover the front of the matte box and provide protection to the front of your lens. - The clamp-on Zip Box Pro attaches directly to the front of a lens using dedicated backs of 114, 110, 104, 100, 95, 87, and 80mm.
- An optional Swing-Away back enables making your Zip Pro into a swing-away matte box.
- Backs can be swapped using four thumbscrews.
- Tilting filters move highlight reflections out of your image area.
- Filters are loaded from the front of the matte box and are securely held by a spring-loaded latch.
UPC: 606184857401 In the Box Wooden Camera Zip Box Pro 4 x 5.65" Matte Box (95mm, Clamp-On) 95mm Clamp-On Back Carbon Fiber Top Flag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Zip Box Pro 4 x 5.65" Matte Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 266700 Specs | Filter Trays | None | | Physical Filters | Up to 3 | | Mounting | 95mm Front Lens Diameter | | Dimensions | 7.75 x 2 x 6.5" / 19.69 x 5.08 x 16.51 cm | | Weight | 7.94 oz / 225 g | | | | Package Weight | 0.995 lb | | Box Dimensions (LxWxH) | 11.3 x 7.3 x 4.2" |
