User Manual for Wooden Camera Zip Box Pro 4 x 5.65" Matte Box Click to enlarge the picture
Contents of the user manual for the Wooden Camera Zip Box Pro 4
- Product category: Matte Boxes & Sunshades Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Matte Boxes & Sunshades
 |
User manual for the Wooden Camera Zip Box Pro 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

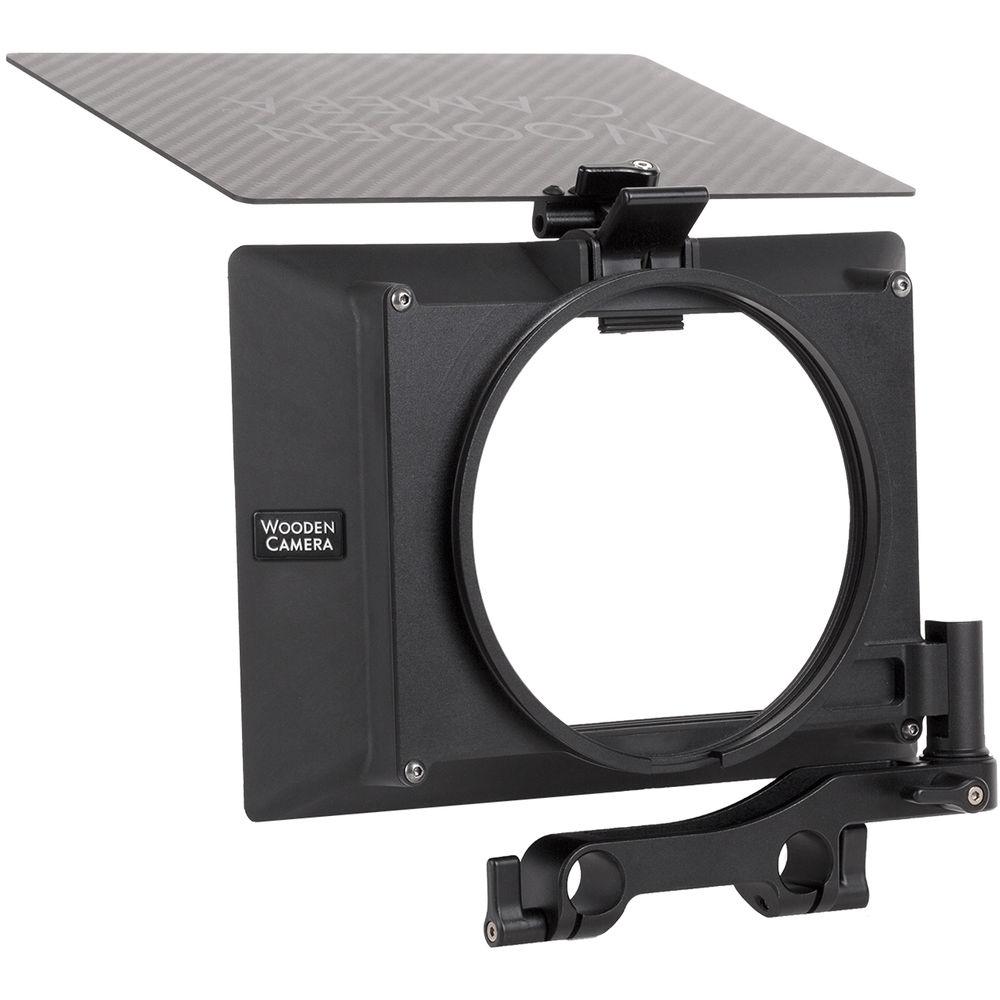

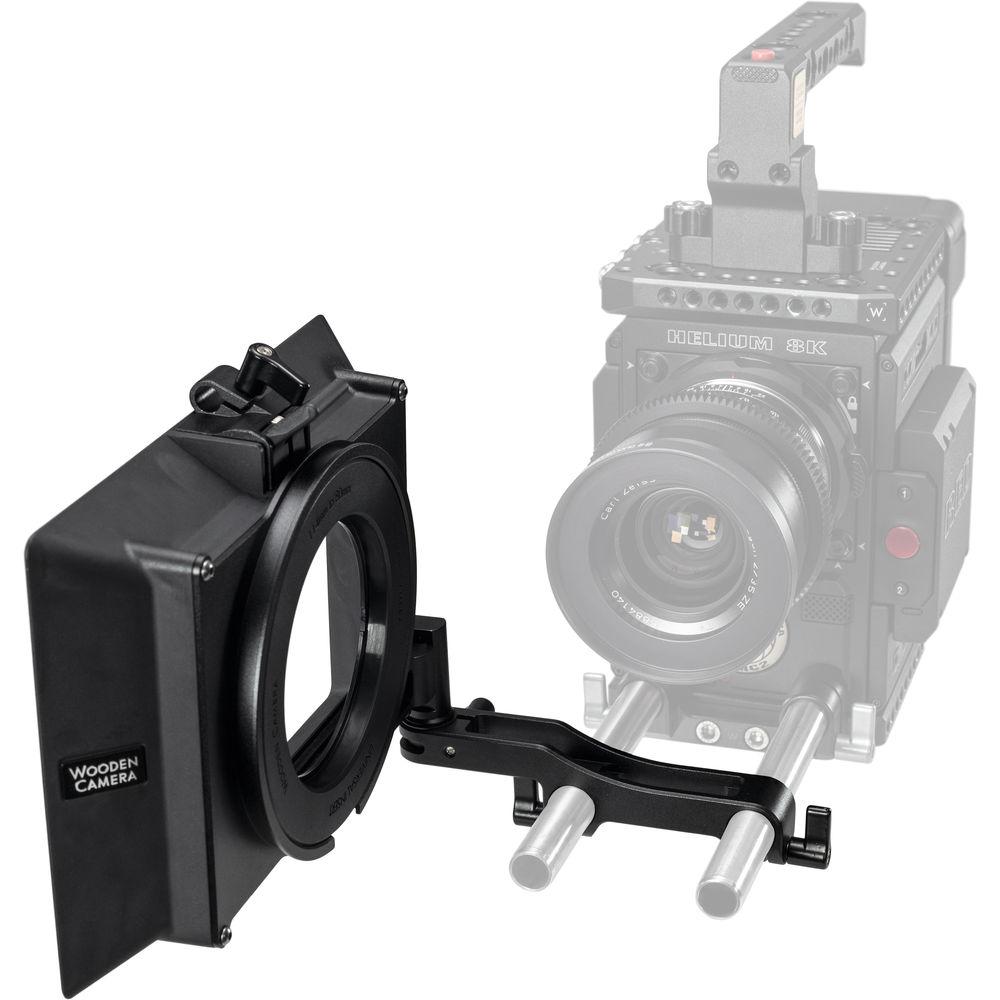

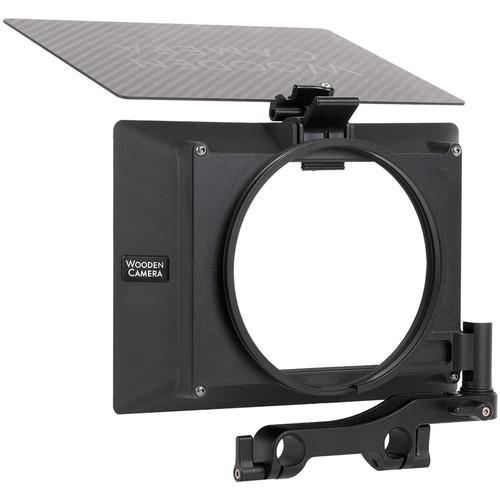

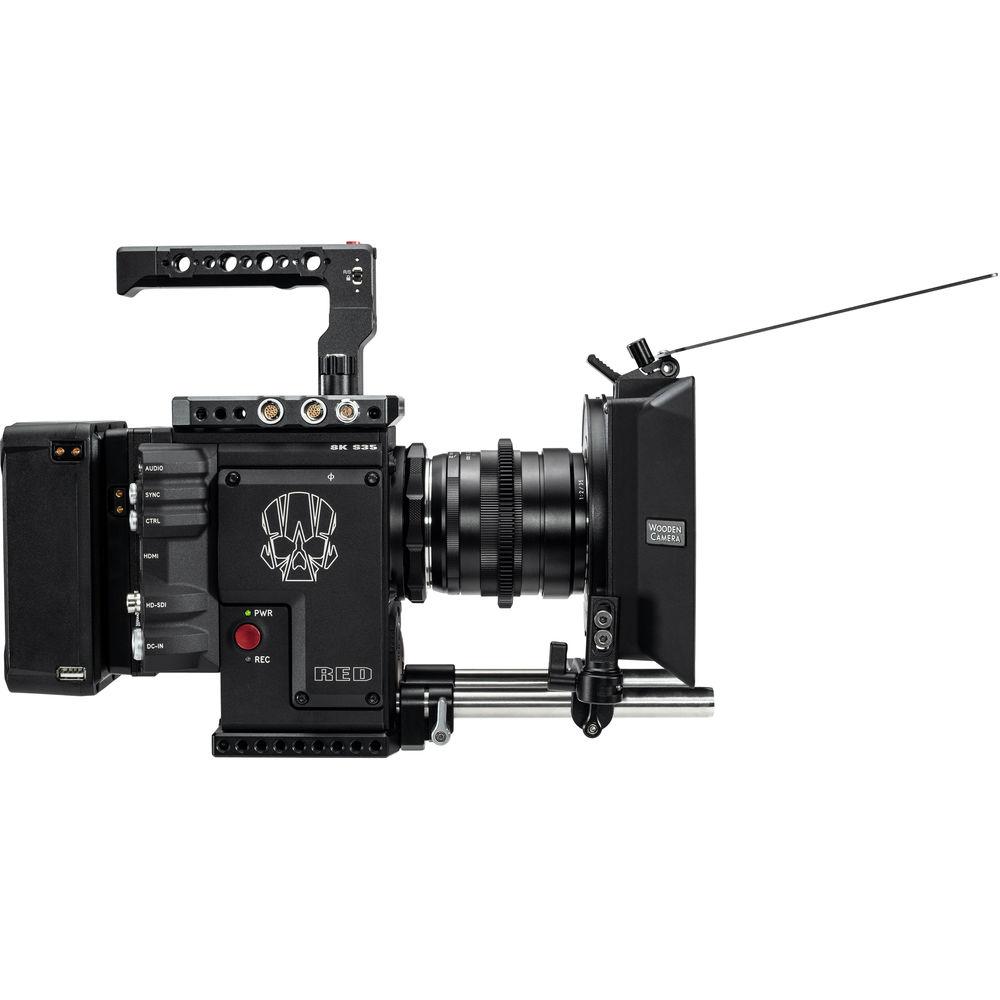

Product description The swing-away Wooden Camera Zip Box Pro 4 x 5.65" Matte Box mounts on 15mm LWS support rods (not included) and features a rear opening of 114mm. A lightweight yet durable matte box with interchangeable mounting systems, the Zip Box Pro accepts up to three 4 x 5.65" (Panavision-style) filters without the use of filter trays. If reflections from light sources in frame are a concern, they you can tilt up to two filters in the matte box to help move the reflections out of the picture area.
The matte box comes with a series of interchangeable reduction rings that provide a tight fit to prevent light from leaking around the back of the lens and flaring your filters. In its swing-away configuration, you can tilt the matte box itself. An included fabric lens donut is included for working with lenses with a non-standard front, lenses that change length while focusing or zooming, or when tilting the Zip Box Pro itself. An included carbon fiber top flag helps block veiling glare or bright reflections from striking your lens, and can be folded down to cover the front of the matte box and provide protection to the front of your lens. - The swing-away configuration includes reduction rings of 80, 87, 95, 100, 104, 110, and 114mm.
- The matte box can be titled by loosening two screws, which coincidentally allow you to adjust the height of the matte box 4mm up or down from center.
- The interchangeable back system allows you to convert the Zip Box Pro swing-away to a clamp-on matte box.
- Backs can be swapped using four screws.

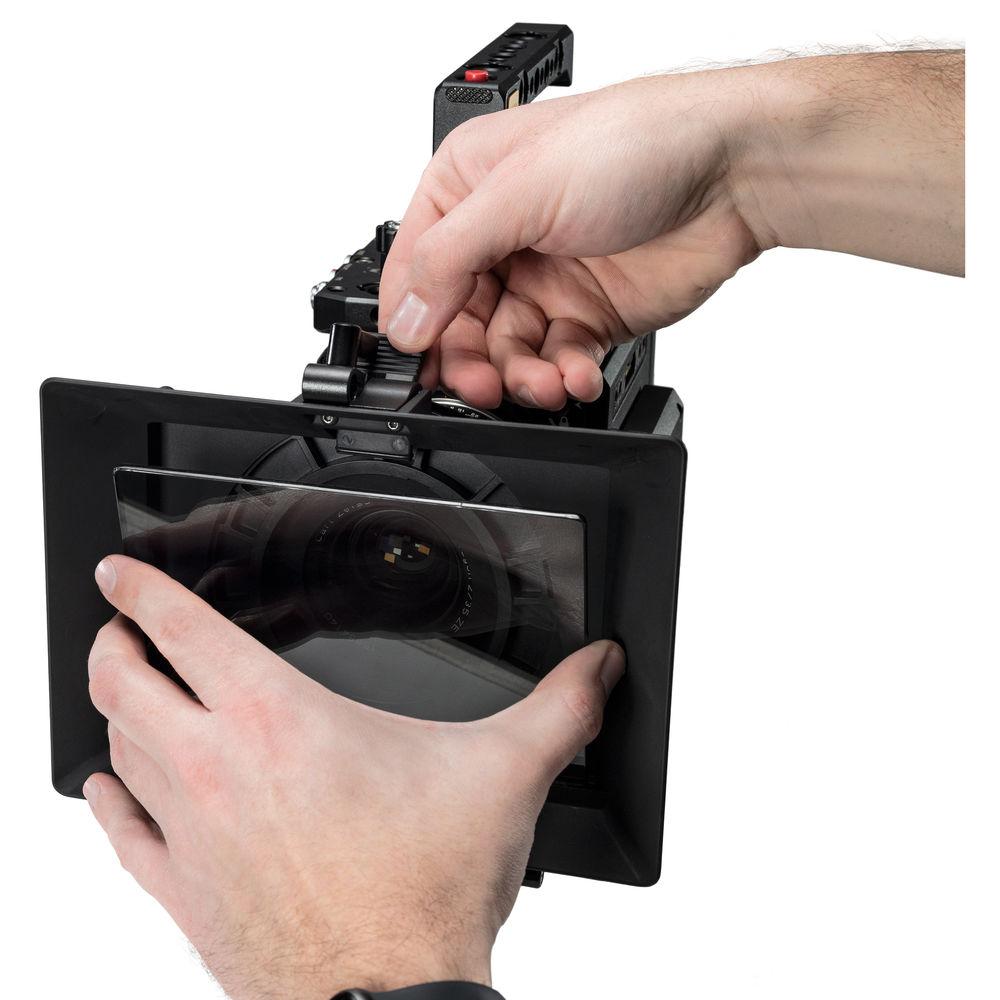

- Filters are loaded from the front of the matte box and are securely held by a spring-loaded latch.
- Tilting filters independently of the swing-away bracket capability allows you to move highlight reflections out of your image area.
UPC: 606184857371 In the Box Wooden Camera Zip Box Pro 4 x 5.65" Matte Box (Swing-Away) Swing-Away Back Carbon Fiber Top Flag Universal Cloth Donut Swing-Away Reduction Ring Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Zip Box Pro 4 x 5.65" Matte Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 266400 Specs | Filter Trays | None | | Physical Filters | Up to 3 | | Rear Opening Diameter | 4.49" / 114 mm | | Vertical Adjustment | Total: 0.31" / 0.8 cm
Above or Below Center: 0.16" / 0.4 cm | | Dimensions | 9 x 8 x 3" / 22.86 x 20.32 x 7.62 cm | | Weight | 1.0 lb / 467.2 g | | | | Package Weight | 1.645 lb | | Box Dimensions (LxWxH) | 8.8 x 8.4 x 6.3" |
