User Manual for Wren Sound Systems V5PF12 Play-Fi Speaker Click to enlarge the picture
Contents of the user manual for the Wren Sound Systems V5PF12 Play-Fi Speaker
- Product category: Wireless Multi-Room Speakers Wren Sound Systems
- Brand: Wren Sound Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wren Sound Systems Wireless Multi-Room Speakers
 |
User manual for the Wren Sound Systems V5PF12 Play-Fi Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wren Sound Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wren Sound Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wren Sound Systems product will considerably shorten its lifespan!
|

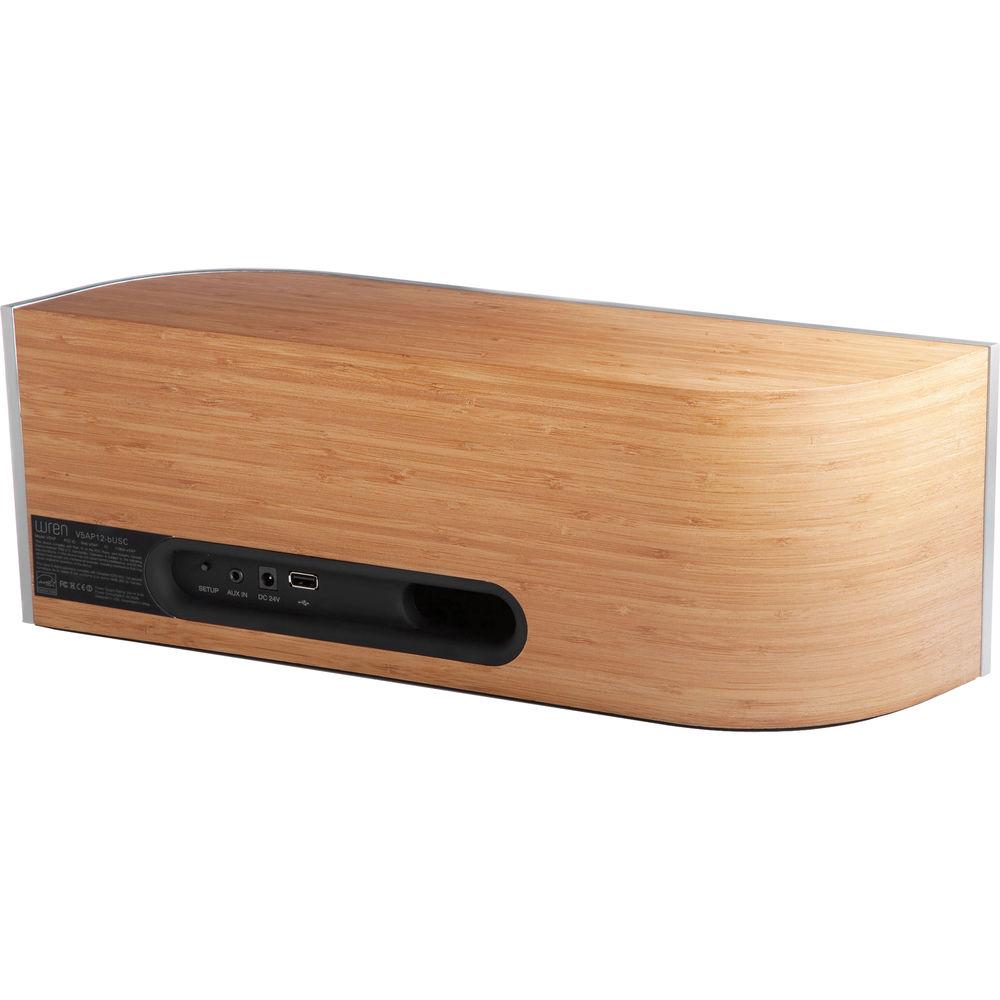

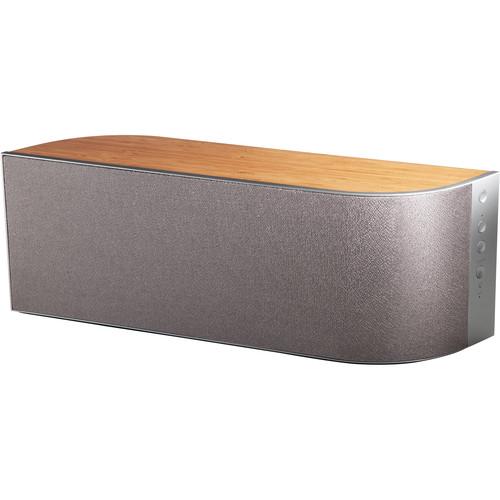

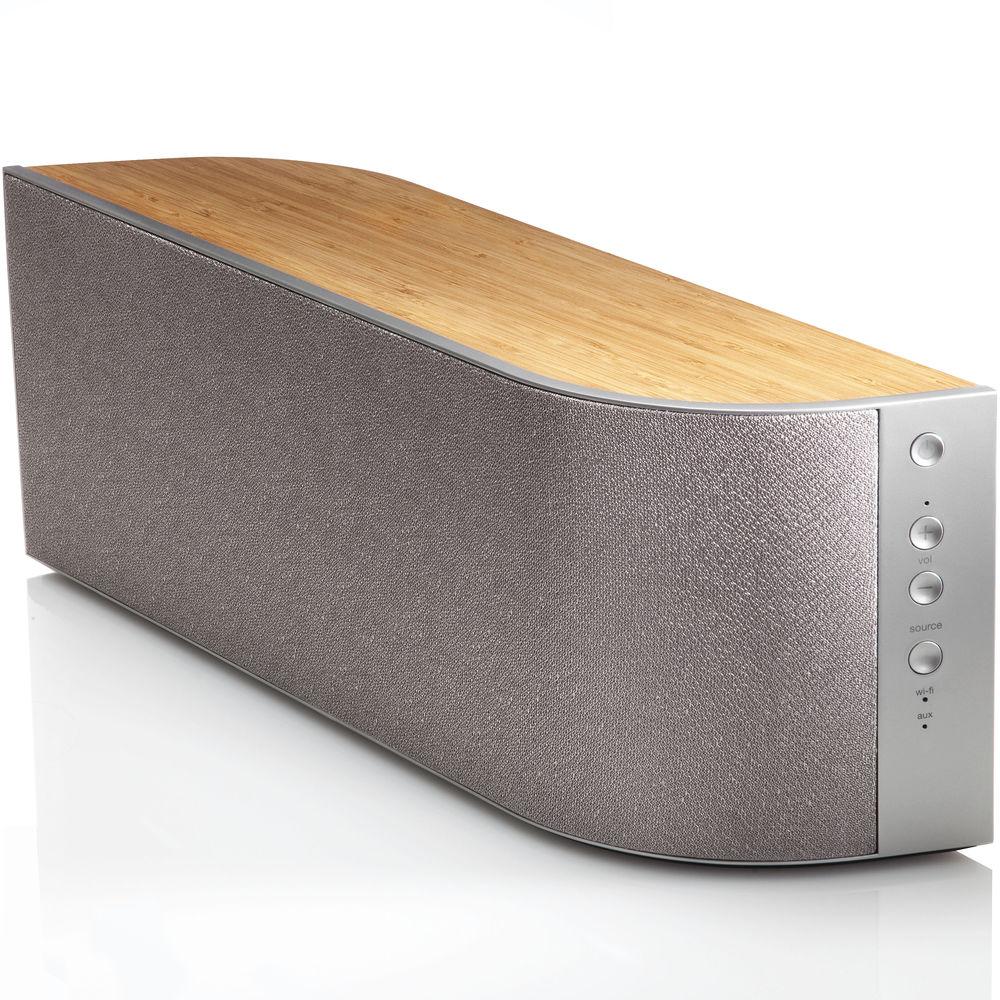

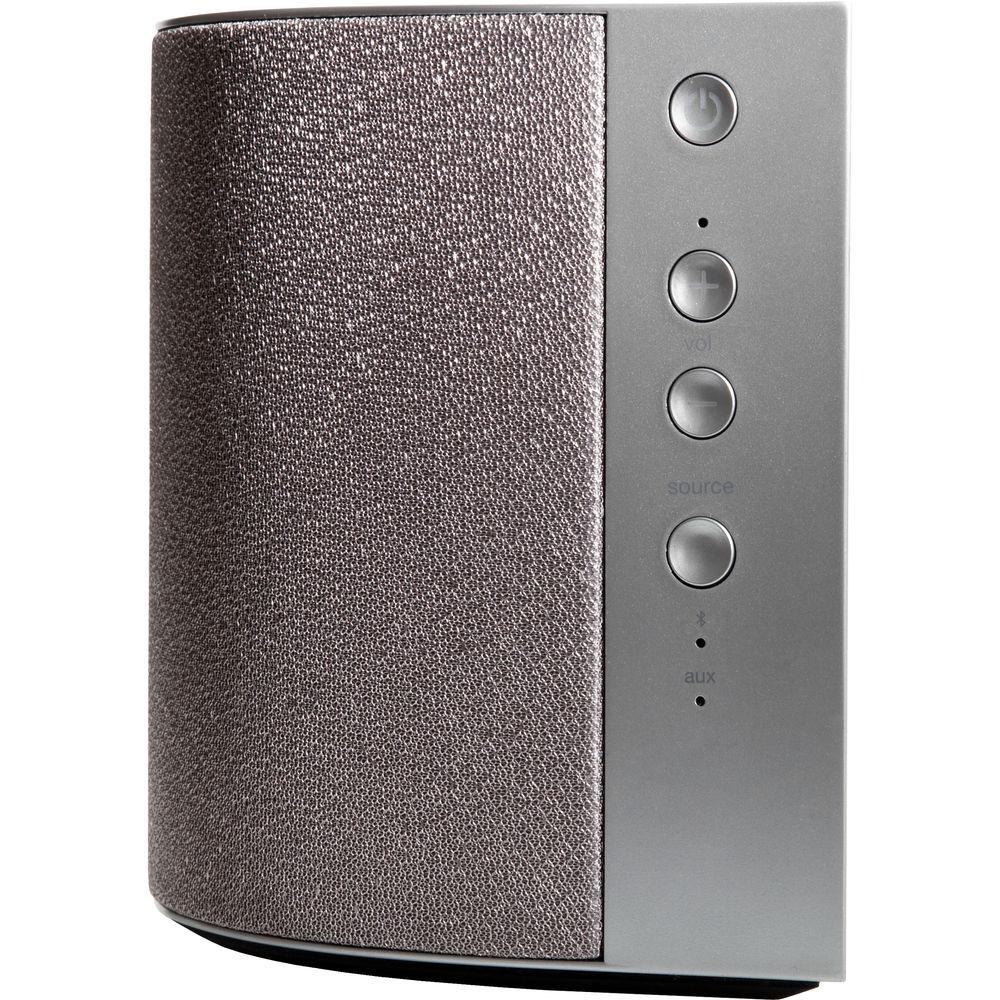

Product description Enjoy your favorite music via DTS Play-Fi with the bamboo Wren Sound Systems V5PF12 Play-Fi Speaker. In addition to streaming uncompressed audio via Play-Fi, it also has a 1/8" input for wired devices. It provides 25W of power per channel from its two 3" woofers and two 0.7" tweeters, powered by a Class-D digital amplifier. The speaker will also charge most portable devices with the included Mini USB and Micro USB cables through the built-in USB port. - High-Performance Drivers
- The Wren V5AP12 makes music using two 3" throw drivers with four-layer voice coils to handle power while dissipating heat. High frequencies are rendered by a pair of edge-driven, wide-dispersion 0.7" soft-dome tweeters positioned on the front baffle.
- DSP-Controlled Digital Amplifier
- The Wren V5AP12 is powered by Intersil's D2 Audio DSP-controlled digital amplifier with 50 watts of power. Wren's DSP optimization enhances the bass while minimizing distortion.
- Solid Anti-Resonance Enclosure
- Beneath the wood veneers, the Wren V5AP12 cabinet is constructed of 0.5"-thick MDF board constructed by laminating layers together, and reinforced with an internal MDF brace to provide a chassis that's virtually free from resonance and coloration.
- Acoustic-Damping Silicone Base Pad
- The underside of the Wren V5AP12 is covered with a 0.2" soft silicone pad that stabilizes the chassis and absorbs any cabinet vibration, eliminating surface coupling buzz and coloration.
- Acoustically Transparent Grille Frame
- The grille on the Wren V5AP12 incorporates such design features as radius ribs, which add stiffness without diffraction, and a diamond matrix that creates more open space so sound is not restricted.
UPC: 858651004317 In the Box Wren Sound Systems V5PF12 Play-Fi Speaker (Bamboo) Mini USB Charging Cable Micro USB Charging Cable AC Power Cord Power Supply Limited 1-Year Warranty Limited 3-Year Warranty with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Wren Sound Systems V5PF12 Play-Fi Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWren Sound Systems V5 Specs | | | Power Output | 25 W | | Amplifiers | 1 x Class-D | | Drivers | 2 x 3" / 7.6 cm Woofers
2 x 0.7" / 19 mm Tweeters | | Enclosure Type | Bass-Reflex | | | | USB | 1 x USB Type-A (Power) | | Audio | 1 x 1/8" (3.5 mm) Input | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 2.5 A | | | | Status Monitoring | LED Indicator | | Dimensions | 16.6 x 6.1 x 4.3" / 42.2 x 15.6 x 10.8 cm | | Weight | 6.6 lb / 3 kg | | | | Box Dimensions (LxWxH) | 22.0 x 12.0 x 8.75" |
