User Manual for WyreStorm EXP-CON-DAC-D Digital to Analog Audio Converter with Dolby Downmix Click to enlarge the picture
Contents of the user manual for the WyreStorm EXP-CON-DAC-D Digital to Analog Audio
- Product category: AD/DA Converters WyreStorm
- Brand: WyreStorm
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WyreStorm AD/DA Converters
 |
User manual for the WyreStorm EXP-CON-DAC-D Digital to Analog Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WyreStorm product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WyreStorm user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WyreStorm product will considerably shorten its lifespan!
|

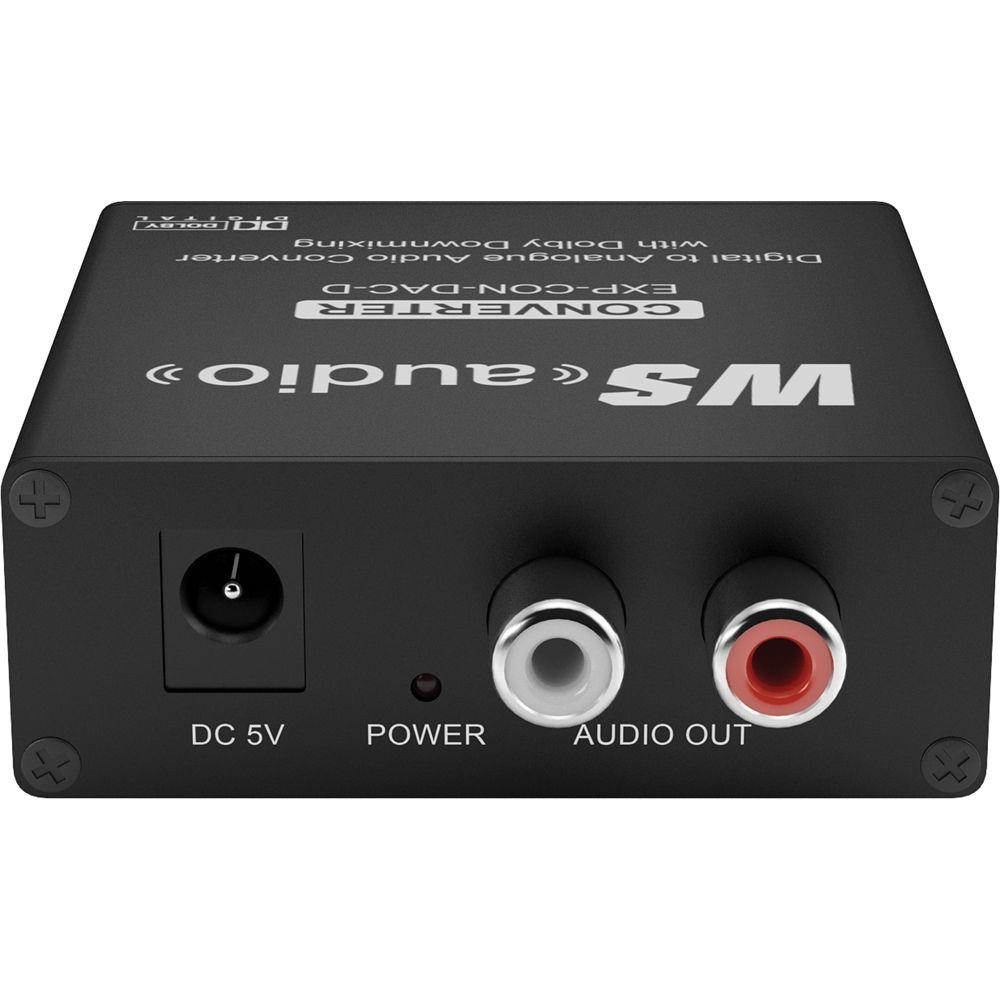

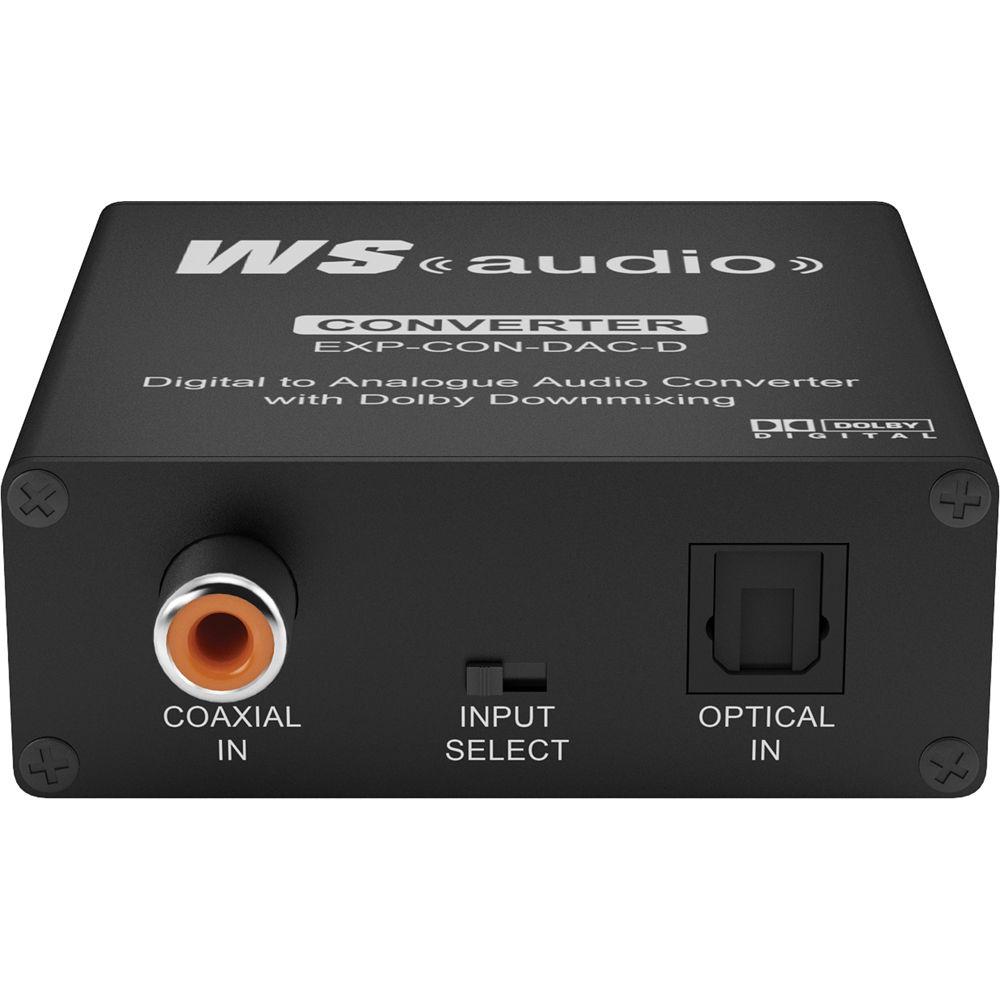

Product description The EXP-CON-DAC-D Digital to Analog Audio Converter with Dolby Downmix from Wyre Storm supports up to 5.1-channel audio encoded in Dolby Digital Surround from compatible multi-channel S/PDIF coaxial or TOSLINK optical digital audio sources and downmixing to standard L/R analog stereo audio.With inputs selectable via onboard input select switch, converted stereo output signals can then be fed to external devices such as an amplifier, Hi-Fi, recording deck, or powered speakers via standard phono style (RCA) jacks. - Converts S/PDIF digital audio (PCM) signals from compatible device to analog stereo audio
- Supports up to 6-channels (up to 5.1 surround) of audio encoded in Dolby Digital
- Manufactured under license from Dolby Laboratories
- Auto samples at frequencies of 32, 44.1, 48 kHz
- Includes digital interpolation filter
- Accepts uncompressed digital audio input signals
- Optical & digital coaxial inputs
UPC: 814303012871 In the Box WyreStorm EXP-CON-DAC-D Digital to Analog Audio Converter with Dolby Downmix 5VDC/ 1A Universal Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WyreStorm EXP-CON-DAC-D Digital to Analog Audio Converter with Dolby Downmix in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWyreStorm EXP-CON-DAC-D Specs | Input | S/PDIF Coaxial, TOSLINK Optical Digital | | Output | Stereo phono analog | | Distortion | < 0.001% @ 1 kHz at 2 V RMS | | Signal to Noise Ratio | > 90 dB (20 Hz to 20 kHz) | | Audio Formats Supported | 44.1 kHz stereo PCM | | Output Impedance | 500 Ω | | Output Voltage | 1.8 V RMS @ maximum input (0 dBFS) | | Frequency Response | < ±0.5 dB | | Chassis | Aluminum (black) | | Operating Temperature Range | 32 to 95°F (0 to 35°C) | | Operating Humidity Range | 5 to 90 % RH (no condensation) | | Power Supply | 5 VDC / 5 W power supply | | Power Consumption | 1.0 W (maximum) | | Dimensions (W x H x D) | 2.5 x 0.9 x 2.5" (63.5 x 22.8 x 63.5 mm) | | Weight | 3.0 oz (86.0 g) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 8.6 x 5.6 x 1.5" |
